Festool KV D8/50 Corner Connection | 203166

Festool KV D8/50 Corner Connection | 203166.

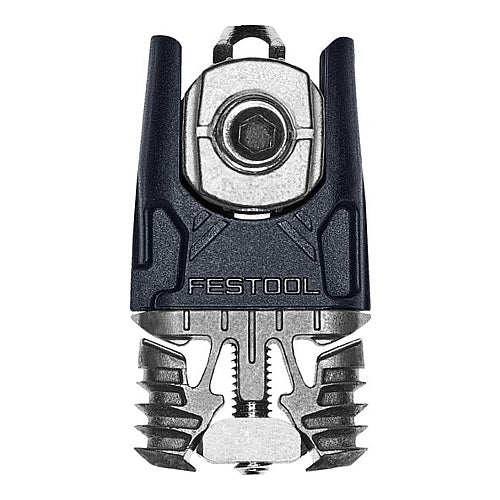

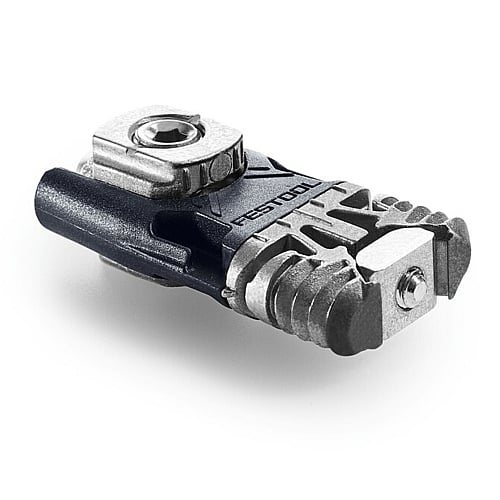

The Festool KV D8/50 Corner Connection is a part of the DOMINO system, designed for creating stable yet detachable corner joints in furniture construction. Compatible with the DOMINO DF 500 joining machine, this connector offers flexibility and ease in assembly, allowing joints to be positioned with precision without the need for additional stops or aids.

Thanks to its large tightening distance and long bolts, the corner joint becomes easy to assemble even by a single person. The fixture elements are flush-screwed, preventing damage to the furniture components during assembly. Additionally, the high tolerance compensation (up to 1.4 mm) ensures a seamless and precise connection, even with varying material thicknesses between 18 mm and 28 mm.

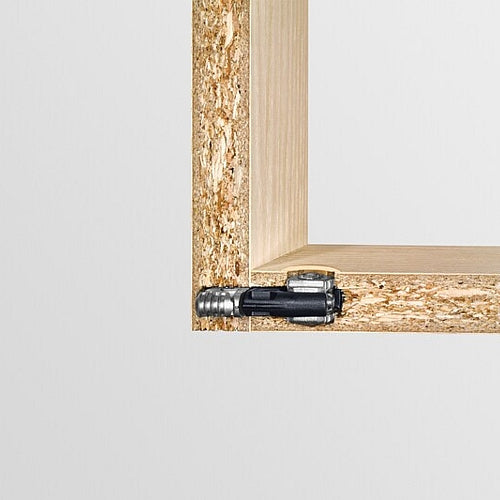

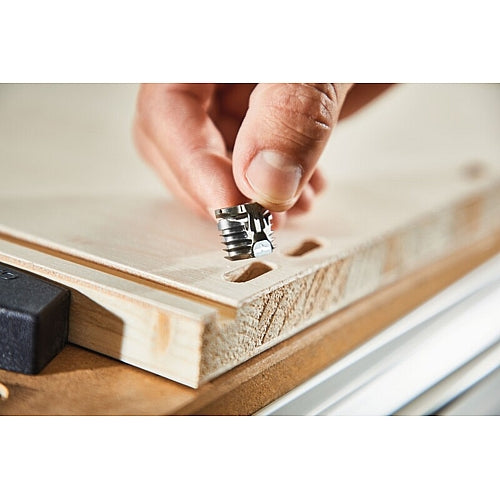

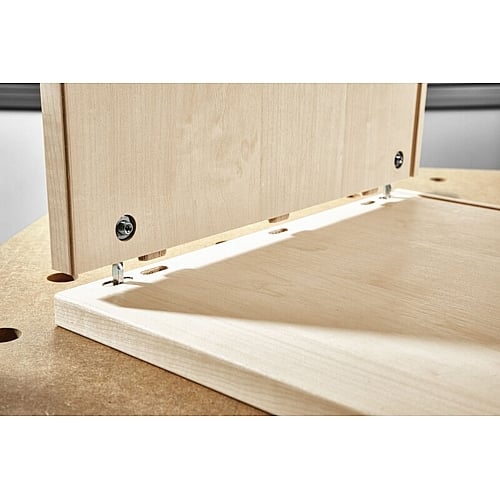

With the Festool KV D8/50, achieving a detachable corner joint is incredibly simple—just two DOMINO routed holes and one drilled hole, allowing quick and error-free assembly. The system guarantees optimum strength, with the split anchor providing stability to the joint. It is perfect for use in furniture manufacturing, especially for corner joints in cupboard and panel structures.

Features & Benefits:

• Easy Assembly: The system allows quick and straightforward production of corner joints using the DOMINO DF 500 joining machine.
• High Stability: The split anchor ensures the joint has optimum strength and a high level of stability.
• Flexible Material Compatibility: Works with materials of thicknesses ranging from 18 mm to 28 mm.

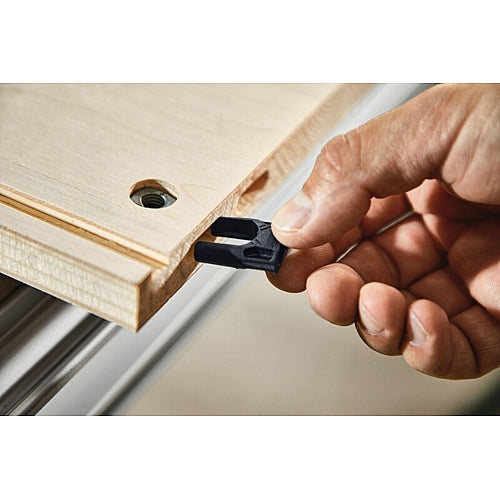

• Error-Free Setup: The drill template provides precise positioning, eliminating the need for additional measurements.

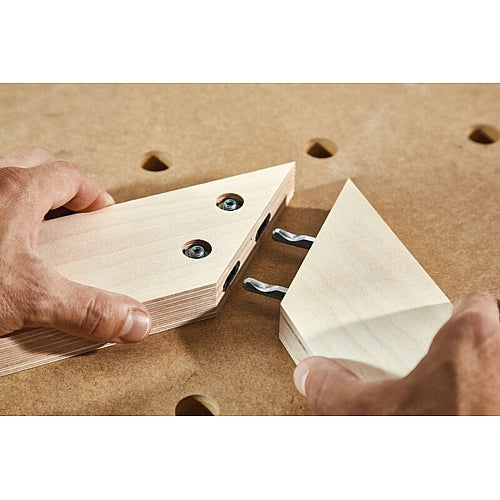

• Detachable Joints: Allows for the disassembly of furniture, providing flexibility and ease in both workshop and customer settings.
• Flush-Screwed Fixture Elements: Protect furniture components from scratches during assembly.

Specifications:

Joint Fixture (8 mm DOMINO dowel cross-cuts): D8
DOMINO Routing Depth for Side Part: 15.00 mm
DOMINO Routing Depth for Base Part: 28.00 mm
Drilling Diameter in Base Part: 15.00 mm
Panel Thickness: 18 – 28 mm

Scope of Delivery:

• 50x Split anchor
• 50x Bolt with M4 thread
• 50x Plastic trays
• 50x Cross anchor with threaded pin
• Qty. in pack: 50.00 Pieces

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
