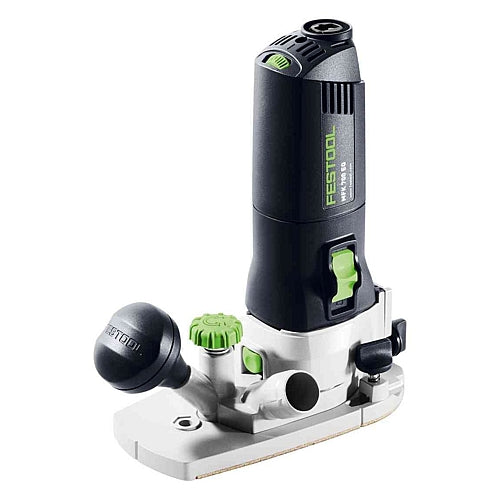

Festool MFK700 EQ-Set Router Module | 578059

Festool MFK700 EQ-Set Router Module | 578059.

Versatile when trimming edges.

Convenient conversion. The modular design makes the MFK 700 a cost-effective all-rounder: Only the router table, and not the entire router, needs to be changed – and it is ideally equipped for all tasks involved in corner and edge trimming. Simply set down the right table and you can immediately route veneers or grooves, round edges, create profiles and much more.

• Wider application spectrum due to interchangeable router tables
• Efficient dust extraction integrated directly on the router base
• 130 mm table support surface for accurate routing results
• Electronic speed adjustment switch for perfect adaptation to the working material
• Motor temperature monitor for a long service life

Product Highlights:

• Achieve ideal results more quickly: The universal interface enables various router table modules to be used for a range of different applications.

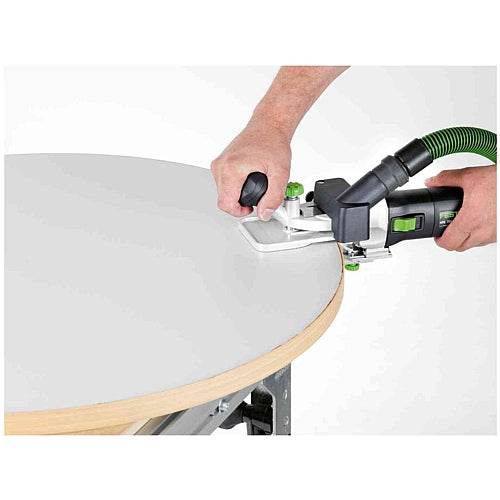

• Convenient and safe: The long router table support with auxiliary handle guarantees safe guidance – without tipping over.
• Systems get it done: Can be expanded in a number of ways with perfectly matched routers, router tables, collets, parallel side fence and more.

Features & Benefits:

• Precise fine adjustment: The routing height can be adjusted accurately to a tenth of a millimetre. The lock prevents the router table from moving during operation and is easy to operate.

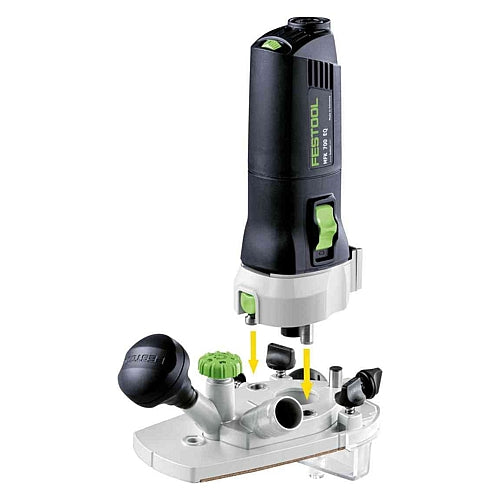

• Universal interface: By using the integrated interface, different router table modules can be used without the need for tools.
• Moving contact pad: The MFK 700 has a moving contact pad with an external ball bearing, ensuring streak-free routing results (included in the scope of delivery of the Set versions or available separately).
• Surface protection: The bench of the MFK 700 is inclined by 1.5° to protect the surface from damage. The slight inclination of the router tool prevents you from routing into the material surface (included in the scope of delivery for the Set versions or available separately).
• Flush routing and rounding: The design of the router table on the MFK 700 incorporates an opening on the support base to accommodate the veneer overhang. Veneer or strips can be routed flush and rounded at the same time using the correct Festool cutter.

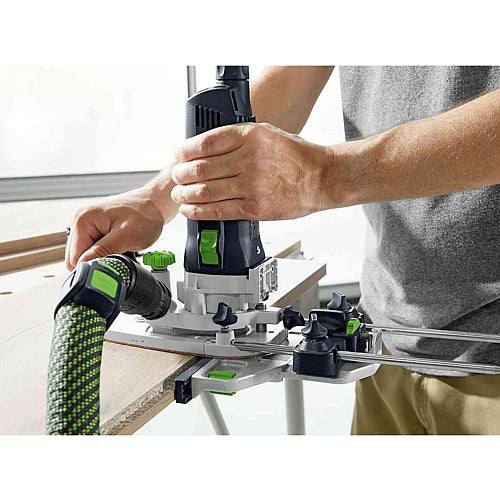

• Side stop with fine setting: Thanks to the central clamp and the tool-free adjustable guidance jaws, the parallel side fence is ready for use in an instant. The fine adjuster, precise to the millimetre, offers maximum precision when routing.
• Cutter replacement in seconds: With the MFK 700, cutter replacement is quick and easy. Actuate the spindle stop via the rocker.

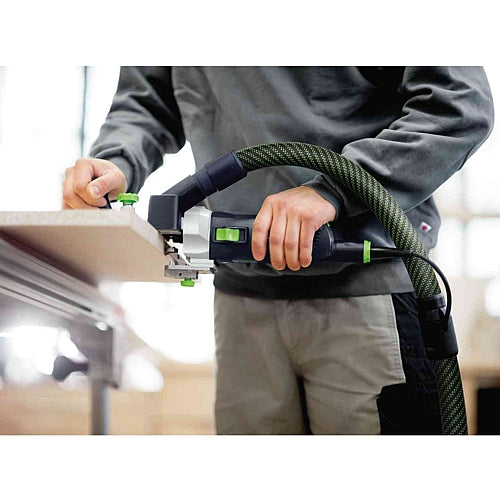

• Clean and healthy work: The extractor connector is integrated directly in the router table – for optimum handling and a clear view of the workpiece.

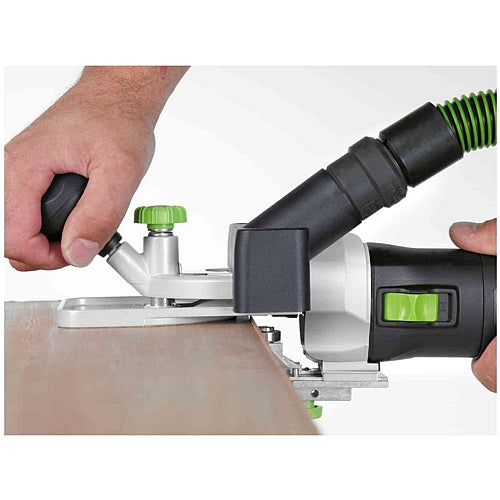

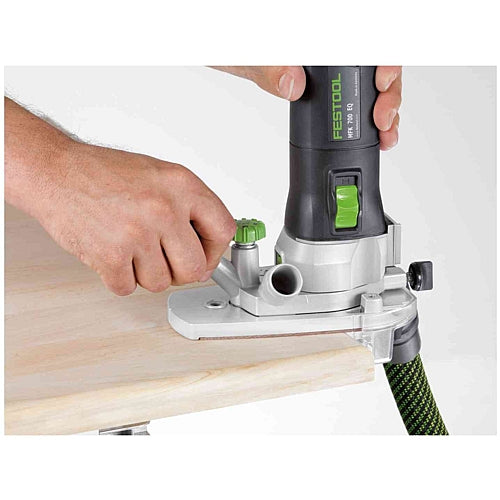

• Flexible motor design: The right motor arrangement for every application: The motor can be installed horizontally or vertically on the router table.
• Speed control adapted to the material: Because of the MMC electronics, the speed of the MFK 700 can be quickly adapted to the working material and is kept constant under load. The temperature monitoring of the motor also guarantees a long service life.
• For quick device changeover: Thanks to the plug-it system, the device can be changed quickly – directly via the cable and not via the socket or extractor: One cable for all devices. And even if the cable breaks, it can be replaced quickly without any problems.

Usage - Main Application:

• Routing solid wood, acrylic and PVC edge veneer
• Chamfering, rounding and profiling edges
• Grooving with side stop

Technical Data:

Power consumption: 720 W
Idle engine speed: 10 000 - 26 000 min⁻¹
Collet dia.: 6 - 8 mm
Router stroke fine adjustment: 14.00 mm
Max. cutter diameter: 32.00 mm
Dust extraction connection diameter: 27 mm
Cable length: 4.00 m
Product weight without accessories: 2.30 kg
Transport weight incl. accessories: 6.00 kg
Drive type: Mains

Noise & Vibration Values:

Routing - Uncertainty (vibration) K: 1.50 m/s²
Routing - Uncertainty (noise) K: 1.50 dB
Routing - Total vibration average, Ah: 2.50 m/s²
Routing - Standards series EN: 60745-2-17
Routing - A-weighted sound pressure level, LpA: 81.00 dB(A)
Routing - A-weighted sound power level, LWA: 92.00 dB(A)

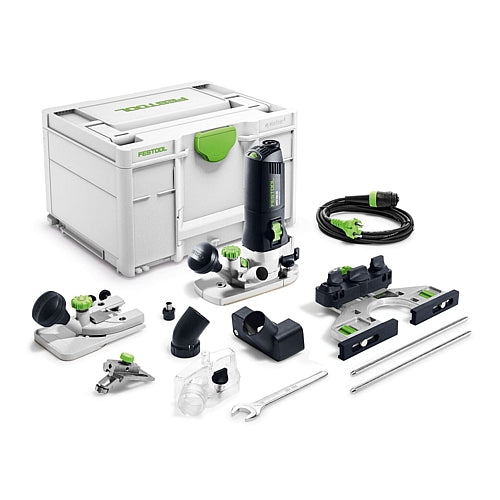

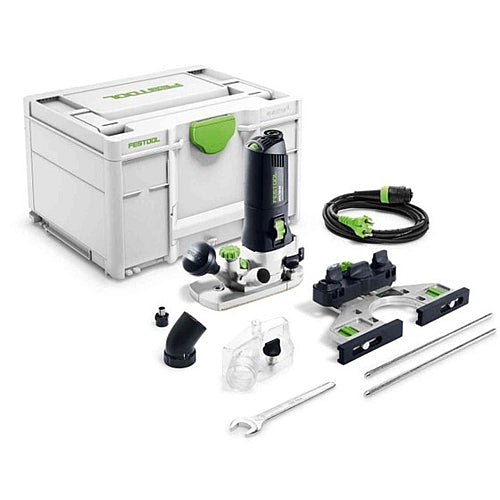

Scope of Delivery:

• SA-OF 1010/MFK Parallel side fence
• FT-MFK 700 1,5° Set Router table
• SZ-D 8/OF 1010 Collet
• WAF 19 open ended spanner
• contact pad
• WAF 3 screwdriver
• extraction hood
• H05 RN-F-4 plug it-cable
• SYS3 M 187 Systainer³

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
