The PRECISIO CS 50 is the ideal solution for cross and rip cuts in applications involving interior fitting, furniture assembly and exhibition stand construction. Thanks to its low weight and a host of ingenious functions, the CS 50 is ideal for applications where the nature of the work constantly changes, e.g. assembly tasks.
Splinter-free cuts on both sides - The integrated splinter guard guarantees high-quality results, with splinter-free cuts on both sides.
Changing saw blades without using tools - The FastFix saw blade replacement enables the work to be adapted to the material. The right blade can be set up in an instant.
One handle for all functions - On/off switch, speed adjustment, quick start/stop functions and guiding mechanism – all of the most important control elements are integrated and clearly arranged in the multifunctional handle.
Tools always to hand - There is sufficient space in the saw blade holder (available as an accessory) for up to four saw blades, a splinter guard and pencil – dust-protected and within reach at all times.

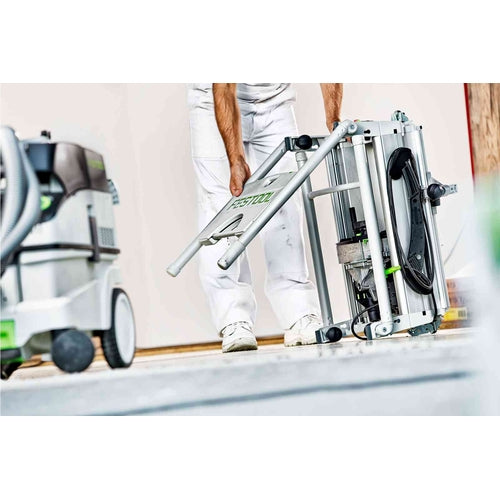

Easy to transport - Low weight and integrated foldaway legs: The CS 50 is easy to transport and set up in seconds. Changing the working height is easy.
Always work at the right angle - Adjusting the cutting angle for angled cuts between -2° and 47° on the CS 50 is quick and easy thanks to the convenient control elements.
For long cross cuts - The CS 50 has a cutting path of 304 mm, allowing you to make cross cuts of up to 200 mm, even at an angle of 45°.

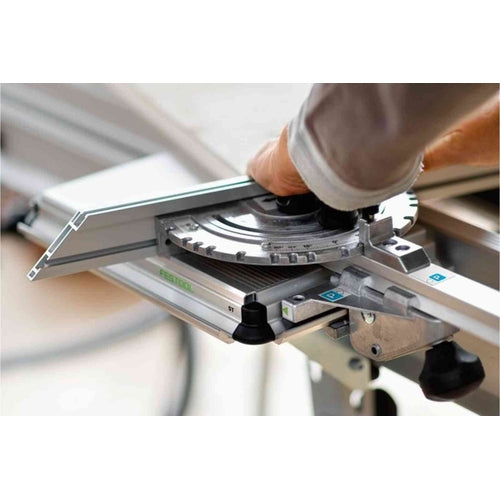

Fast changeover from cross to rip cuts - The angle stop can be rotated by 180° and can be used easily on either side. The CS 50 can therefore be changed from the cross-cut to the rip-cut position in no time at all.
Can be expanded - The PRECISIO can be converted into a fully fledged sawing station with minimal effort by adding an extension table, table lengthener and sliding table.
The holder for accessories - Push stick, guard and preset profile setting rail can be securely stowed in the accessory holder directly on the saw to save space. This means that the system accessories are neatly stowed and always to hand.
Simply mobile. Simply stable - The integrated transport rollers enable the machine to be moved easily. The tilt protection with collapsible support lends the saw additional stability.
MMC digital electronics - Processor controlled “Multi Material Control” power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material.
Splinter guard - Patented splinterguard for splinter-free cuts on both sides when sawing.
FastFix - Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.
CLEANTEC - Standard connection (27/36/50 mm) for dust extraction, protects the operator and the environment.
Quick-acting brake - For safe work when planing, sawing and routing.
Groove in saw table - lever clamps on the saw table fix the workpiece securely and prevent it from shifting accidentally
Power consumption: 1 200 W
Idle engine speed: 1 600 – 4 200 min⁻¹
Saw blade diameter: 190.00 mm
Cutting height 90°/45°: 0 - 52/0 - 37 mm
Inclination: 0 (-2)° - 45 ( 47) °
Cutting path: 304.00 mm
Table dimensions: 585 x 400 mm
Table height, legs folded away: 333.00 mm
Table height, legs unfolded: 900.00 mm
Dust extraction connection diameter: 27/36 mm
Cable length: 4.00 m
Product weight: 21.90 kg
Cutting height: 52 mm
Drive type: Mains
Idle state: A-weighted sound power level, LWA: 97.00 dB(A)
Idle state: Standards series EN: 61029-2-1
Idle state: Uncertainty (vibration) K: 1.50 m/s²
Idle state: A-weighted sound pressure level, LpA: 84.00 dB(A)
Idle state: Total vibration average, Ah: 2.50 m/s²
Idle state: Uncertainty (noise) K: 3.00 dB
Sawing: Total vibration average, Ah: 2.50 m/s²
Sawing: Standards series EN: 61029-2-1
Sawing: Uncertainty (noise) K: 3.00 dB
Sawing: A-weighted sound power level, LWA: 103.00 dB(A)
Sawing: A-weighted sound pressure level, LpA: 90.00 dB(A)
Sawing: Uncertainty (vibration) K: 1.50 m/s²
