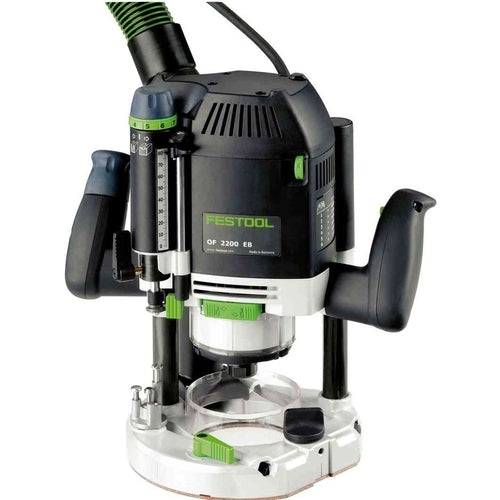

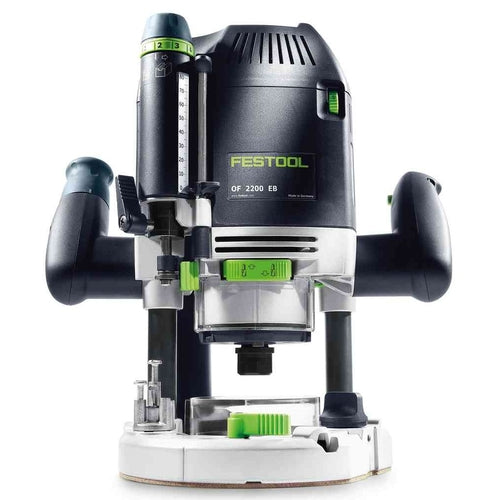

Festool Router OF 2200 EB-Plus | 576215

• Top power development and fully variable speed for hard materials and increased material thicknesses
• Outstanding ergonomics: guide rods offset by 30 degrees to transfer force efficiently
• Dual guide column clamp for extra torsional rigidity and greater precision
• Maximum safety: safety brake stops the cutter promptly
• Tool-free copying ring and base-runner change
• Fast, convenient router-bit change with rocker and ratchet principle

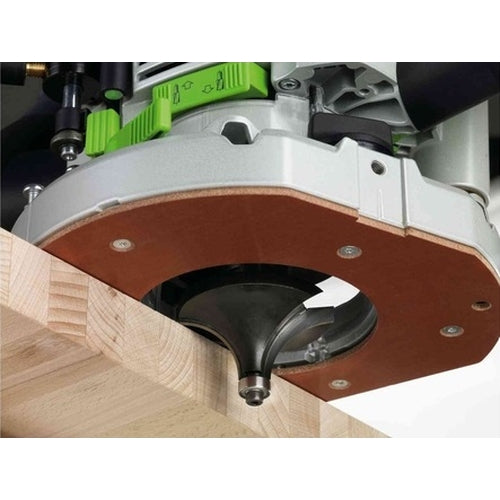

• Detachable base plate for fast profile cutter adjustment
• Simple and exact routing depth setting to 1/10 mm
• Dust extraction of up to 99 % during edge routing through adjustable extraction ring and chip catcher

Product Highlights:

Achieve ideal results more quickly:

Top power development and powerful low-speed torque for hard materials and large material thicknesses.

Convenient and safe:

Simple guidance thanks to ergonomic handle and guide rods that can be moved by 30°. The integrated quick-acting brake minimises the risk of injury.

Systems get it done:

Can be expanded in a number of ways with a router system or template system. A cleaner, healthier working environment with Festool mobile dust extractors.

Features:

Unrivalled performance and operation

More powerful, easier to use, increased comfort and safer – the OF 2200 offers the greatest torque, the highest precision and a high level of ergonomic comfort due to features such as guide rods offset by 30° to transfer the force more efficiently, for example. No matter what your application is, the OF 2200 is the perfect solution.

Powerful torque

The electronic motor control system provides an impressive torque. The armature shaft supported by three bearings guarantees routing with little vibration.

Cleaner, healthier work

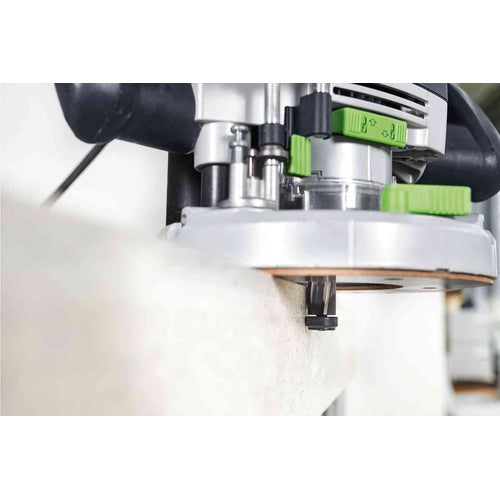

The new suction concept behind the OF 2200 ensures suction power of up to 99%. The retractable extraction ring seals off the chip space when the router is used for plunge-cutting. However, the ring can be locked in place on top for a perfect view of the scribe mark. The chip deflector can be rotated 360° and ensures maximum suction power.

Changes without using tools

Base runners and copying rings on the OF 2200 can be replaced quickly using FastFix, without requiring tools. Changing routers is also a simple matter, thanks to the ratchet principle, which allows you to either tighten or release the router used without having to turn the open ended spanner.

Impeccable guidance

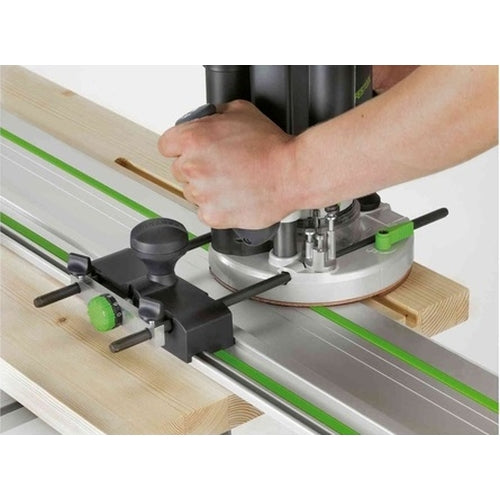

The guide rail was invented and perfected by Festool. For enhanced precision of grooves and rows of holes. Fitted with slideway lining to allow machines to glide smoothly along the rail, plus a groove for fastening and lever clamps.

First class ergonomics

An ergonomic work position when working with the side and guide rail adapters is possible thanks to a guide rod support offset by 30°.

Precise fine adjustment

Routing depth accurate to 1/10 mm thanks to the clearance-free depth setting with zero function. The soft-grip and drag indicator are arranged ergonomically.

Faultless precision

Once the routing height is set, the router can be clamped to both guide columns at the same time with only one clamping handle. This dual-column clamping system guarantees accurate routing results.

Systems get it done

For perfect results, Festool offers you a wide range of cutters in HS and HW quality.

Main applications:

• Rabbeting, grooving and profiling

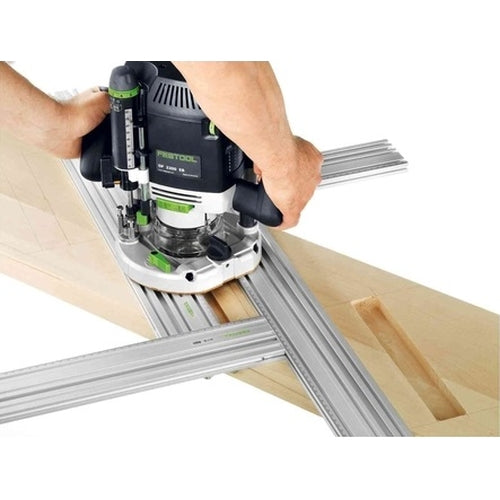

• Routing large cutouts, circles and arcs with the MFS routing template
• Creating worktop corner joints with the worktop template
• Routing seals and espagnolettes in windows and doors

Technical Data:

Power consumption: 2 200 W
Idle engine speed: 10 000 - 22 000 min⁻¹
Collet dia.: 6 - 12.7 mm
Routing stroke: 80,00 mm
Routing depth fine adjustment range: 20,00 mm
Dust extraction connection dia.: 36/27 mm
Cable length: 4,00 m
Product weight: 8,30 kg
Drive type: Mains

Proformance Features:

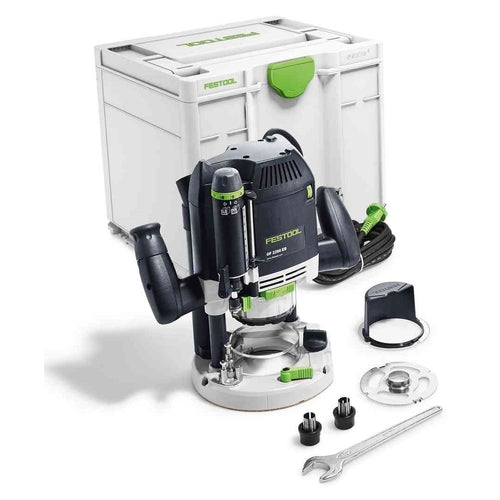

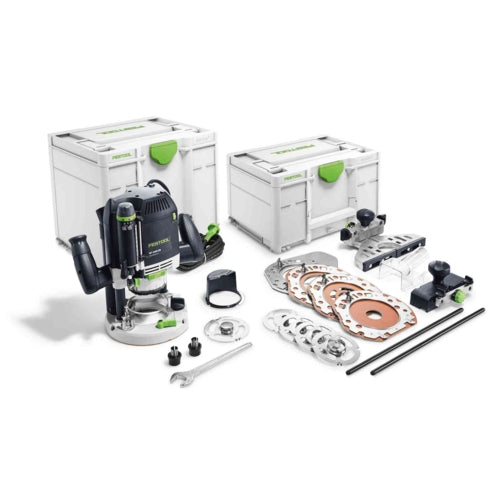

Items Included:

• Chip deflector
• Copying ring 30mm
• Clamping collet 12mm
• Clamping collet 8mm
• Open end spanner, WAF 24
• Systainer SYS3 M 337
