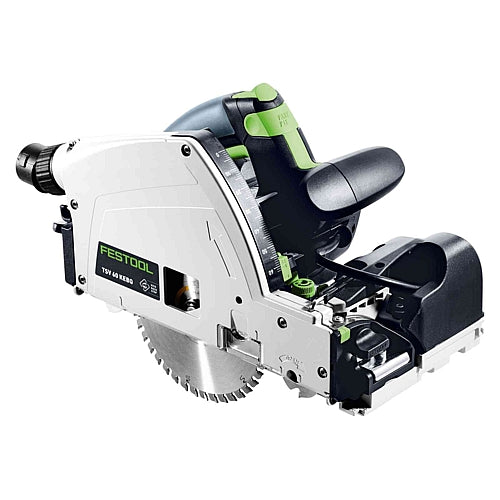

Festool TSV 60 KEBQ-Plus Plunge-Cut Saw with Scoring Function | 576730.

Splinter-free sawing like never before. Perfect from the very first cut. The TSV 60 K plunge-cut saw with scoring function.

Since 1980, Festool plunge-cut saws have been known for their reliable quality and absolute precision. Our objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring function, we have achieved exactly that. Splinter-free sawing on both sides now from the very first cut. Coupled with the built-in KickbackStop, you and your workpiece are protected from dangerous kickbacks and thanks to the ideal combination of Festool system accessories, your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results can be replicated on the construction site – as good as with a stationary machine.

  • Splinter-free: The scoring ensures splinter-free work results on both sides from the very first cut.
  • Long-lasting: Diamond scoring saw blade with very long service life for perfect cut quality time after time.
  • Saw system: comprehensive system with ideal accessories for perfect panel cutting.
  • Safer: the unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the workpiece
  • Versatile: 60 mm cutting depth and can be combined with the FSK cross cutting guide rail or FS guide rail.
  • Swivels with: perfect scoring, even on mitre cuts from 0° to 45°.
  • Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated.
  • Convenient: The FastFix spindle stop on the main saw blade and the possibility of standing it on its side make changing the saw blade very simple, even with the scoring saw blade.
  • Constant: EC-TEC motor in combination with the thin kerf saw blades ensures work progresses without difficulty whilst requiring less effort.

Product highlights:

  • Splinter-free in a single cut. With the TSV 60 K, the dream is now a reality. The built-in scorer can be adjusted with precision and, together with the scoring saw blade, it guarantees consistently splinter-free cuts on both sides. Which means perfect sawing results from the very first cut!
  • Sawing system for perfect panel cutting. Whether it's on the construction site or in the workshop, even large panels can be cut with precision. Thanks to Festool system accessories, it cuts just as well as the stationary machine: You can work precisely even while on the move, and can enjoy splinter-free results to suit your needs.
  • Protects against dangerous kickbacks. The innovative KickbackStop in the plunge-cut saw with scoring function protects your workpiece and minimises the risk of injury. The saw detects a kickback in the blink of an eye and stops the motor within a fraction of a second.

Product details:

  • Integrated scoring function. Ensures splinter-free cuts on both sides from the very first cut. That way, the cut edges are ready for further work straight away.
  • Diamond scoring saw blade. Guarantees a very long service life and perfect cut quality time and time again.
  • Scoring function track and depth adjustment. Precision adjustments of the scoring saw blade for a splinter-free cutting edge.
  • Switching the scorer on and off. Depending on the application, the scoring function can be activated and deactivated as required.
  • Perfect results. Thanks to the guide rails fixed with fastening clamps and the tool-free adjustable guide jaws, the TSV 60 K runs on the guide rail without any play at all.
  • Enhanced safety thanks to the unique KickbackStop. The integrated KickbackStop reduces the risk of injury and damage to the workpiece caused by kickback during sawing or plunge-cutting into the workpiece. Once the saw has been triggered, it is ready for use straight away without replacements or additional costs.
  • Small-scale cutting with FSK. TSV 60 K plunge-cut saw can also be combined with the FSK cross cutting guide rail, for a portable system enabling quick and accurate cross cuts to be made.
  • Constant high cutting power. The brushless EC-TEC motor makes the TSV 60 K virtually maintenance-free and extremely powerful. The high-speed, brushless EC-TEC motor with 6,800 rpm enables work to progress effortlessly while requiring less force.
  • Exact cuts, even at an angle. The scoring unit swivels. For splinter-free mitre cuts of 90° to 45°.

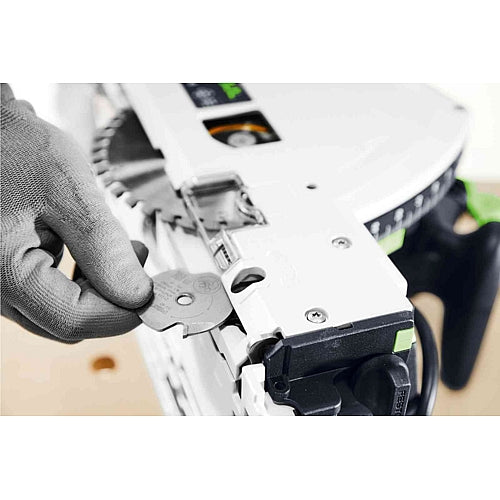

  • Easier saw blade changing. The FastFix spindle stop on the main saw blade and an additional spindle stop for the scoring saw blade make it extremely easy to change the saw blade. The compact, sophisticated design means the saw can be set down on its side, which simplifies changing of the saw blade.
  • Best orientation for plunge cuts. The transparent sliding viewing window and the additional markings for the starting and end point to the left and right of the machine provide a good view of the saw blade. What's more, there are plunge-cut markings for the plunge-cut area of the scoring saw blade.
  • Exact depth setting of the plunge-cut saw. The improved accuracy of the cutting depth setting, with a dual indicator and fine adjustment guarantees exact setting. Improved handling and parallax-free reading come as standard.
  • Precise working with a system. Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table and angle stop, we offer a top-class sawing system. The cut edges can be worked on straight away with the CONTURO edge bander.
  • More options thanks to control electronics. Our fitted control electronics enable temperature monitoring, a quick-acting brake and speed control for optimum adaptation to the material.

Main applications:

  • Splinter-free cutting of chipboard, specially veneered and plastic-coated panels
  • Splinter-free cutting of HPL compact panels such as Trespa®
  • Precise plunge cuts in materials up to 60 mm thick
  • Perfect, splinter-free cutting to length of interior doors
  • Cutting recesses in doors and kitchen worktops
  • Cross cuts with the FSK cross cutting guide rail (floor and façade panels)

Specifications:

Power Consumption (Circular Saw/Scorer): 1,500 / 190 W
No-Load Speed (Circular Saw/Scorer): 3,000 - 6,800 / 22,000 min⁻¹
Saw Blade Diameter (Circular Saw/Scorer): 168 / 47 mm
Angular Range: 0 - 45 °
Cutting Depth: 0 - 62 mm
Dust Extraction Connection Diameter: 27/36 mm
Cable Length: 4.00 m
Drive Type: Mains
Product Weight without Accessories: 6.00 kg
Transport Weight incl. Accessories: 10.10 kg

Noise & Vibration Values:

Sawing wood: A-weighted sound pressure level, LpA: 90.00 dB(A)
Sawing wood: A-weighted sound power level, LWA: 101.00 dB(A)
Sawing wood: Total vibration average, Ah: 2.50 m/s²
Sawing wood: Standards series EN: 62841
Sawing wood: Uncertainty (noise) K: 3.00 dB
Sawing wood: Uncertainty (vibration) K: 1.50 m/s²

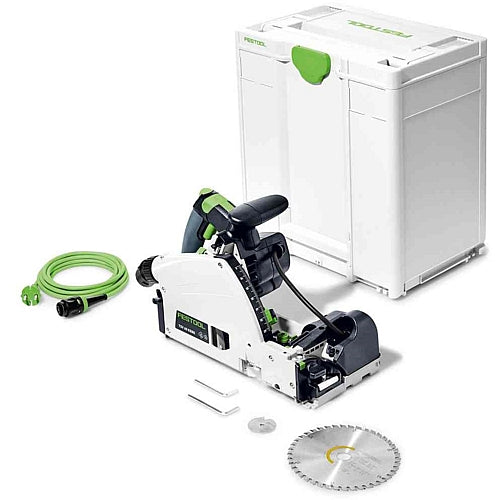

Scope of Delivery:

  • Allen key 4
  • Flag window, vision panel
  • hex key, WAF 5
  • Plug-It power cable (4m)
  • Scoring saw blade DIA 47x2.5x6.35 T1
  • Systainer SYS3 M 437
  • Wood Fine Cut HW 168 x 1.8 x 20 WD42 circular saw blade

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description above or as indicated by the product title.
