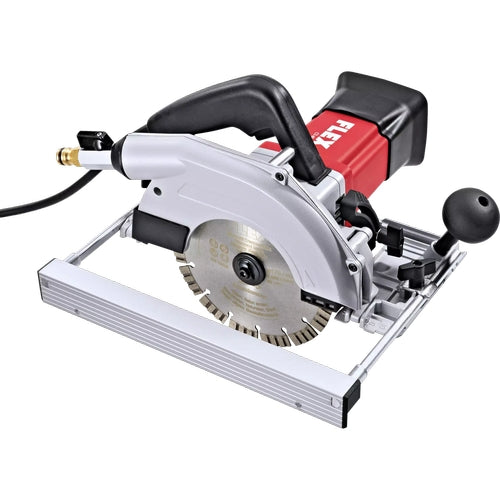

FLEX CS 60 WET Diamond Circular Saw 170mm - 1400W | 374016

FLEX CS 60 WET Diamond Circular Saw 170mm - 1400W | 374016.

Advantages:

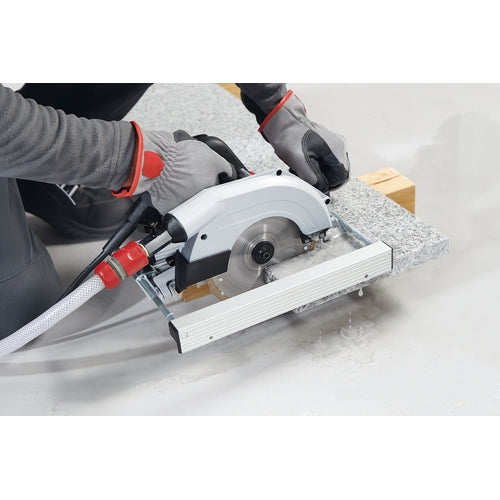

• Ideal for: Inserting water grooves in window sills or steps, work tops, facade slabs, terazzo slabs in garden design & landscaping, joint renovation in the floor
• GFCI operator protector circuit breaker: integrated in cord
• Quick-fit brass coupling: for 1/2 water hose
• High-performance motor: extra powerful for stone cutting and joint milling
• Continuous cut depth setting from 0-60 mm, with rail guide up to 54 mm. In the mitre cut from 0-44 mm, with guide rail up to 38 mm
• Continuous angle adjustment for mitre cuts from 0-45°
• Cut marking at the base plate from 0°/30°/45° for rapid orientation
• High-quality magnesium die-castings for protective cover and base plates
• Motor protection made of rubber prevents the direct intake of spray water
• Water supply: for an effective cooling of the diamond blade
• Spindle lock

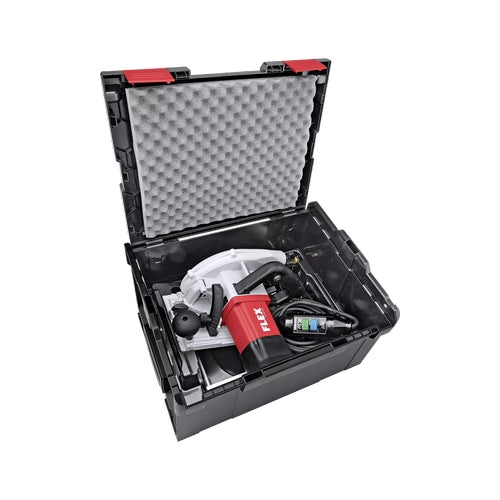

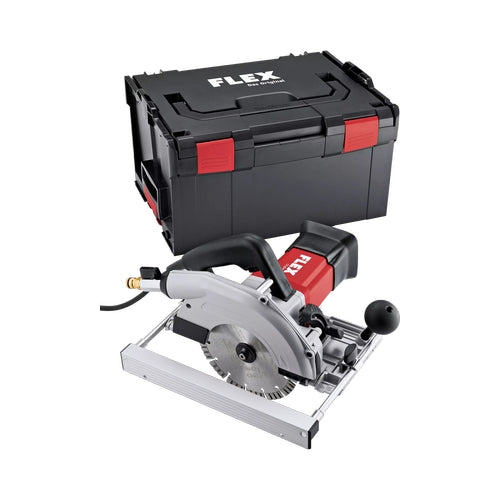

Standard Supply:

• 1× D-TCS S 170x22,2 (347515)
• 1× key SW5 & screwdriver. (359343)
• 1× Parallelanschlag CSW 4161 (350613)
• 1× TK-L 238 (414093)
• 1× TKE CS 60 WET II (436771)


Technical Data:

Power consumption: 1400 W
Power output: 840 W
Voltage: 230 V
Frequency: 50/60Hz Hz
Cutting depth: 60 mm
Cutting depth with guide rail: 54 mm
Cutting depth, mitre cut (45°): 5-44 mm
Cutting depth, mitre cut with guide rail (45°): 38 mm
No-load speed: 6200 1 rpm
Diamond disc diameter: 170 mm
Diamond disc hole: 22.2 mm
Pivoting range: 45 °
Cable length: 4.0 m
Dimensions WxLxH: 360 x 280 x 170 mm
Weight: 4.5 kg
