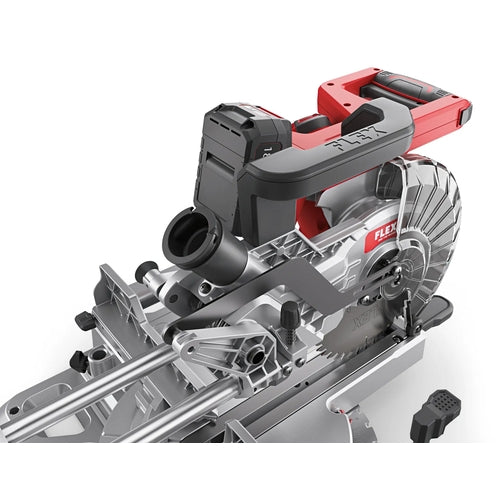

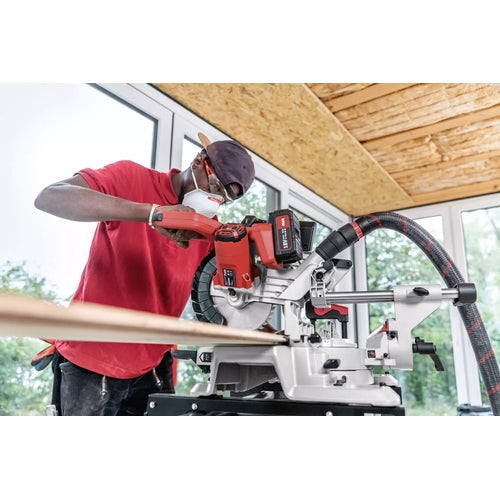

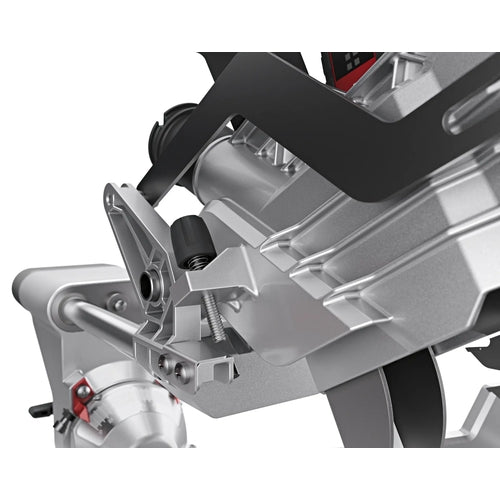

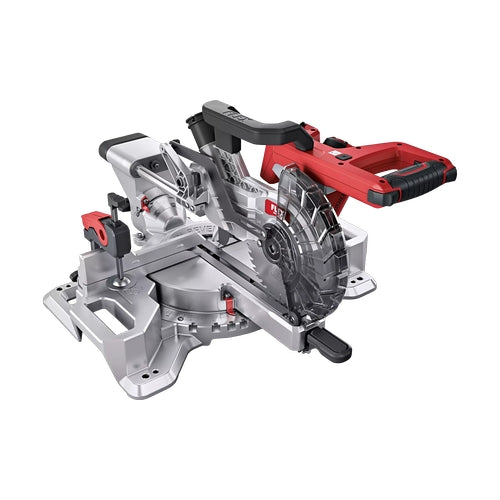

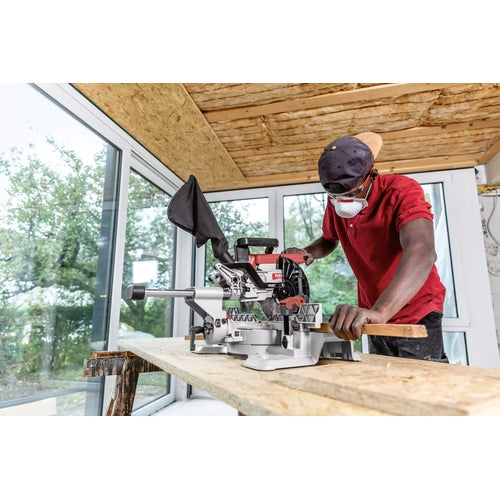

FLEX SMS 190 18.0-EC BL Cordl. Miter Saw 190mm - 18V | 500631

FLEX SMS 190 18.0-EC Brushless Cordles Miter Saw 190mm - 18V | 500631.

Advantages:

• Precise cutting results for the construction of wooden post and beam structures, substructures for drywall construction, laying laminate/parquet flooring as well as wood panelling, cover strips
• Brushless motor with greater efficiency and a longer service life
• Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency
• Motor brake stops the saw blade in 3 seconds
• Exact marking of the cutting line with laser, to the left of the saw blade
• Laser-cut angular scale of 48° left/right. With angle preadjustment of 0-15°-22.5° / 5°-31.6°-45°. Easy to read and with precision adjustment thanks to self-explanatory operating elements
• Swivel segment up to 48° left/right With 0°, 45°, 48° angle stopper for undercuts, angular cuts and schifter cuts
• Rugged and long-life for heavy-duty use
• Vacuum flange Ø 36 mm, for a cleaner workplace and clear view of the cut
• Robust double multi-direction guide
• Ergonomic handle with switch lock for left-handed and right-handed users
• Quick-action clamping holder for secure fixing of the workpiece on the saw table
• LED battery capacity display
• FLEX battery system: suitable for all FLEX 18,0 V battery packs.
• Delivery does not include battery and charger.

Technical Data:

Battery voltage: 18.0 V
Battery capacity: 2.5 / 5.0 / 8.0 Ah
Mitre setting, left: 48 °
Mitre setting, right: 48 °
Inclination setting, left: 48 °
Inclination setting, right: 48 °
Cutting depth, cross-cut mode 90°/90°: 66 mm
Cutting depth, cross-cut mode 90°/45° right: 23 mm
Cutting depth, cross-cut mode 90°/45° left: 35 mm
Cutting depth, cross-cut mode 45°/90°: 66 mm
Cutting depth, cross-cut mode 45°/45° right: 16 mm
Cutting width, cross-cut mode 90°/90°: 245 mm
Cutting width, cross-cut mode 90°/45°: 245 mm
Cutting width, cross-cut mode 45°/90°: 155 mm
Cutting width, cross-cut mode 45°/45°: 175 mm
Cutting depth, cross-cut mode 45°/45° left: 35 mm
Saw blade diameter: 190 mm
Saw blade hole: 30 mm
Dimensions WxLxH: 720 x 575 x 400 mm
Weight without battery pack: 12.9 kg

Standard Supply:

• 1× D190x1,6/1,0x30 HW Z40/15° WZ Special saw blade (503649)
• 1× SAD-C 36 AS Adapter (461636)
• 1× SMS-Clamp Workpiece holder (504106)
• 1× Dust bag
