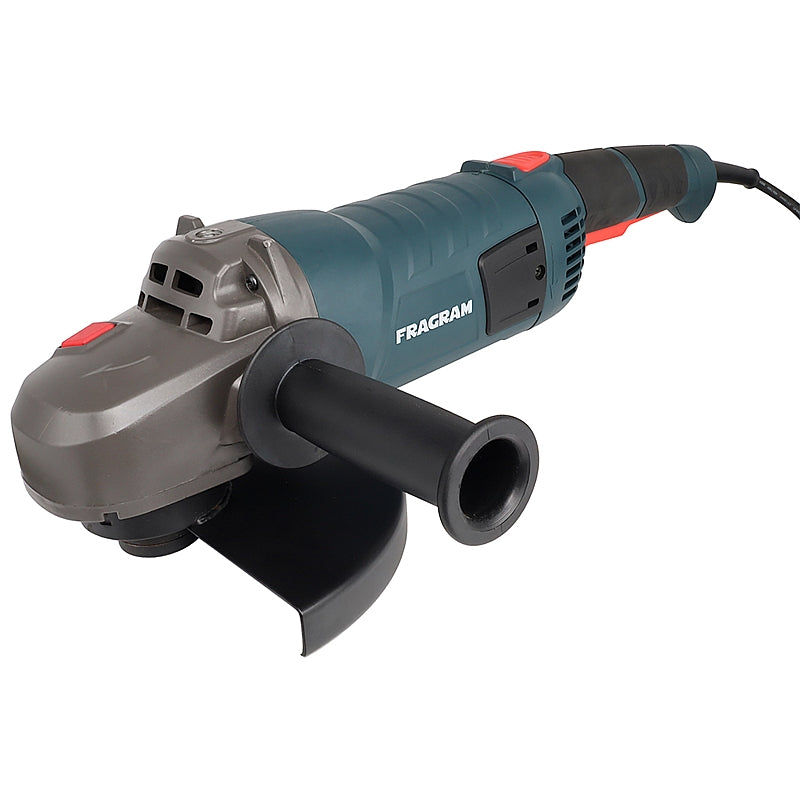

Fragram Angle Grinder 230mm, 2350W | MCOP1743

Fragram Angle Grinder 230mm, 2350W | MCOP1743.

The Fragram 230mm 2350W Angle Grinder is a powerful, heavy-duty electric tool designed for demanding cutting, grinding and surface preparation applications. Equipped with a high-performance 2350W motor and a 230mm disc capacity, this angle grinder provides the power required for a wide range of workshop, construction and general metalworking tasks.

Operating on a 220–240V, 50Hz electrical supply, the grinder delivers a specified no-load speed range of 0–6300 revolutions per minute. Its powerful motor and large disc capacity make it suitable for tackling demanding jobs where effective material removal and cutting performance are essential.

For improved control during start-up, the Fragram Angle Grinder incorporates a soft start function. This feature allows the motor to accelerate more gradually when switched on, helping reduce the sudden initial movement associated with high-powered grinders and providing a smoother starting experience.

The rotating trigger handle offers greater flexibility when positioning the tool for different applications. By allowing the operator to adjust the handle orientation, the grinder provides a more comfortable working position during cutting, grinding and other tasks. Additionally, the adjustable side handle provides a secure secondary gripping point, supporting improved stability, control and accuracy.

A built-in spindle lock simplifies accessory changes by holding the spindle in position while the appropriate spanner is used to remove or secure compatible discs. This practical feature makes it easier to change between cutting, grinding and other suitable accessories according to the task.

The grinder is fitted with a VDE plug and a 2m power cable, providing a convenient connection to a compatible electrical supply. Its metal and plastic construction combines a robust structure with practical handling features, while the green and grey finish gives the tool its distinctive Fragram appearance.

Suitable for cutting, grinding, sanding and wire buffing when fitted with the appropriate compatible accessories, the Fragram 2350W Angle Grinder offers versatility for workshop and construction applications. The machine is supplied with a side handle, spanner, spare set of brushes and instruction manual, and is backed by a 24-month warranty.

Powerful 2350W Motor:

The Fragram Angle Grinder features a 2350W electric motor designed to provide the power required for demanding cutting and grinding applications.

Combined with its 230mm disc capacity and specified no-load speed range of 0–6300/min, the motor supports effective material removal and cutting performance when the machine is fitted with the correct accessory for the intended application.

Soft Start Function:

The integrated soft start function allows the motor to accelerate gradually when the grinder is switched on, rather than immediately reaching its operating speed.

This helps reduce sudden start-up movement and provides a smoother, more controlled operating experience, particularly when handling a high-powered 230mm angle grinder.

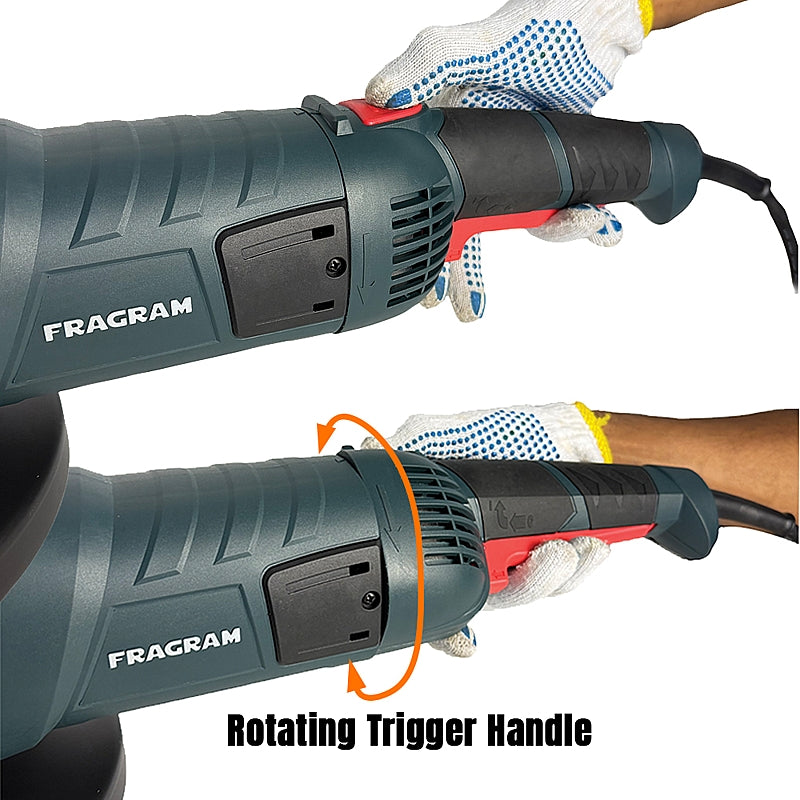

Rotating Trigger Handle:

The rotating trigger handle allows the operator to adjust the handle position to suit different working angles and applications.

This feature supports a more comfortable grip when moving between cutting, grinding and surface preparation tasks, helping improve tool handling and operator control.

Adjustable Side Handle:

The grinder includes an adjustable side handle that provides an additional gripping point during operation. Using both hands helps improve stability and control when working with the tool.

The adjustable design allows the operator to position the side handle according to the intended application and working position, following the manufacturer's instructions.

230mm Disc Capacity:

Designed for 230mm diameter accessories, the Fragram Angle Grinder is suitable for a range of cutting, grinding, sanding and wire buffing applications when fitted with compatible accessories.

The large disc capacity makes it particularly useful for demanding workshop and construction tasks. Always select accessories that match the grinder's specifications, intended application and operating speed.

Spindle Lock for Accessory Changes:

The integrated spindle lock helps simplify disc and accessory changes by preventing the spindle from rotating while the appropriate spanner is used.

This provides a convenient way to change compatible accessories when moving between different applications. Always disconnect the grinder from the electrical supply before changing accessories.

Features & Benefits:

• Powerful 2350W Motor: Delivers the power required for demanding cutting, grinding and surface preparation tasks.
• 230mm Disc Diameter: Accommodates compatible 230mm accessories for heavy-duty workshop and construction applications.
• Soft Start Function: Allows gradual motor acceleration for smoother, more controlled start-up.
• Rotating Trigger Handle: Provides adjustable handle positioning for improved comfort and control during different applications.
• Adjustable Side Handle: Offers an additional gripping point to support stability, accuracy and two-handed operation.
• Spindle Lock: Helps simplify the removal and installation of compatible discs and accessories.
• 0–6300/min No-Load Speed: Provides the manufacturer's specified operating speed range for the machine.
• 220–240V Operation: Designed for use with a compatible 220–240V, 50Hz electrical supply.
• VDE Plug: Supplied with a VDE plug for connection to a compatible power supply.
• 2m Power Cable: Provides a convenient cable length for workshop and construction applications.
• Versatile Applications: Suitable for cutting, grinding, sanding and wire buffing with the appropriate accessories.
• Metal & Plastic Construction: Combines durable construction with practical handling features.
• Spare Brushes Included: Supplied with a spare set of brushes for future maintenance.
• Spanner Included: Provides the tool required for compatible accessory changes.
• 24-Month Warranty: Backed by a two-year warranty for added peace of mind.

Applications:

• Metal Cutting: Cutting suitable metal materials using an appropriate compatible cutting disc.
• Grinding: Removing material and preparing suitable workpiece surfaces with a compatible grinding disc.
• Surface Preparation: Preparing surfaces for further workshop or construction processes.
• Sanding: Sanding suitable materials using an approved, compatible sanding accessory.
• Wire Buffing: Cleaning and preparing suitable surfaces using an approved, compatible wire accessory.
• Workshop Maintenance: General cutting, grinding and surface preparation tasks.
• Construction: Demanding cutting and grinding applications involving suitable construction materials.
• General Metalworking: Fabrication, repair and maintenance tasks requiring a powerful angle grinder.

Operating Guidelines:

1. Inspect the angle grinder, power cable, plug and controls before use.
2. Ensure the machine is disconnected from the electrical supply before fitting or changing an accessory.
3. Select a compatible 230mm cutting, grinding, sanding or wire buffing accessory suitable for the intended application.
4. Confirm that the accessory is rated for the grinder's operating speed and is suitable for the material being worked on.
5. Install the accessory using the spindle lock and supplied spanner, following the manufacturer's instructions.
6. Ensure the appropriate protective guard is correctly fitted and positioned before operation.
7. Adjust the rotating trigger handle and side handle to provide a secure, comfortable two-handed grip.
8. Secure the workpiece and ensure the surrounding work area is clear.
9. Connect the grinder to a compatible 220–240V electrical supply.
10. Start the grinder and allow the soft start function to bring the motor up to operating speed before contacting the workpiece.
11. Maintain a firm grip and use the appropriate cutting or grinding technique for the fitted accessory.
12. Switch off the grinder after use and allow the accessory to stop completely before putting the machine down.

Safety & Maintenance Information:

• Personal Protective Equipment: Wear appropriate eye and face protection, hearing protection, suitable gloves and other protective equipment required for the application.
• Two-Handed Operation: Maintain a secure grip on the main handle and side handle during operation.
• Accessory Compatibility: Only use accessories approved for the grinder's disc capacity, spindle arrangement and operating speed.
• Disc Speed Rating: Ensure the accessory's maximum permitted speed is not lower than the grinder's maximum operating speed.
• Protective Guard: Always use the correct protective guard for the selected accessory and application.
• Cutting & Grinding Discs: Use each disc only for its intended purpose and follow the disc manufacturer's operating instructions.
• Spindle Lock: Only engage the spindle lock when the machine is switched off and the spindle has stopped completely.
• Power Disconnection: Disconnect the grinder from the electrical supply before changing accessories, cleaning or carrying out maintenance.
• Workpiece Stability: Secure the workpiece before cutting, grinding or sanding.
• Dust & Sparks: Take appropriate precautions against airborne dust, sparks and flying debris. Keep flammable materials away from the work area.
• Ventilation: Work in a suitably ventilated area and use appropriate dust control where required.
• Power Cable: Keep the cable away from the rotating accessory, sharp edges and hot surfaces.
• Brush Maintenance: Inspect and replace motor brushes according to the manufacturer's instructions.
• General Inspection: Check the grinder regularly for damage, loose components or abnormal operation.

Specifications:

• Code: MCOP1743
• Barcode: 6003398121405
• Brand: Fragram
• Product Type: Electric Angle Grinder
• Input Power: 2350W
• Voltage: 220–240V AC
• Frequency: 50Hz
• Disc Diameter: 230mm
• No-Load Speed: 0–6300/min
• Soft Start: Yes
• Spindle Lock: Yes
• Main Handle: Rotating Trigger Handle
• Side Handle: Adjustable
• Plug Type: VDE Plug
• Power Cable Length: 2m
• Applications: Cutting, Grinding, Sanding and Wire Buffing
• Material Composition: Metal / Plastic
• Colour: Green / Grey
• Warranty: 24 Months
• Disc Included: No

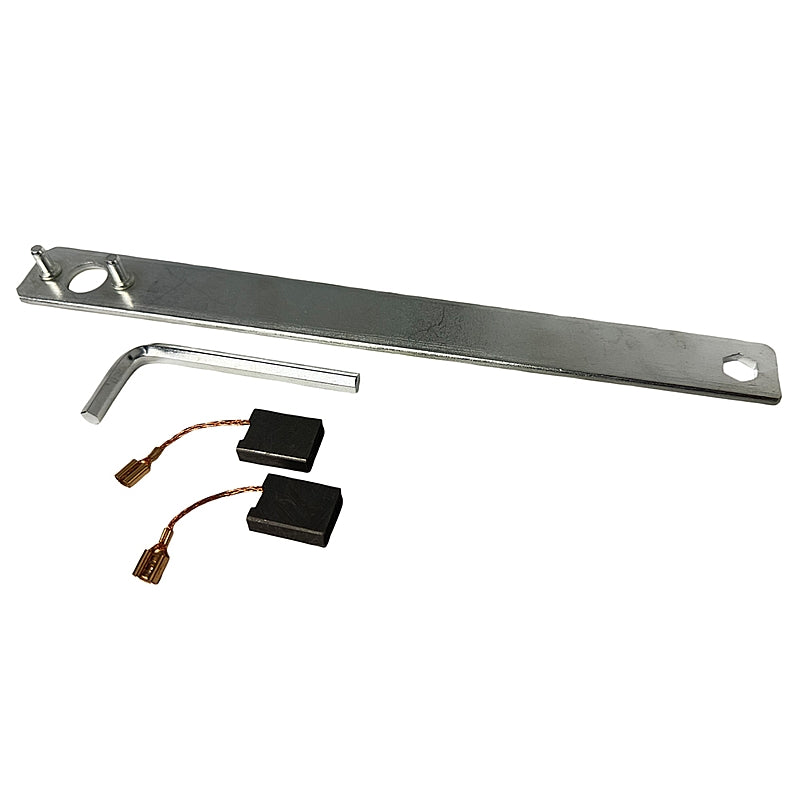

Scope of Delivery:

• 1 x Fragram 230mm 2350W Angle Grinder
• 1 x Side Handle
• 1 x Spanner
• 1 x Spare Set of Brushes
• 1 x Instruction Manual

Please Note: Cutting, grinding, sanding and wire buffing accessories are not included and must be purchased separately. Always select accessories compatible with the machine's specifications and the intended application.

Please Note: The manufacturer specifies a no-load speed of 0–6300/min. This value has been retained as supplied and should not be interpreted as confirmation of a variable-speed control function.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
