Gauge maw screw pitch 801 30blade mm

Accurately milled steel blades
Designed to check both internal and external threads forms
Marked with nominal size on each blade
All blades fixed in a steel sleeve

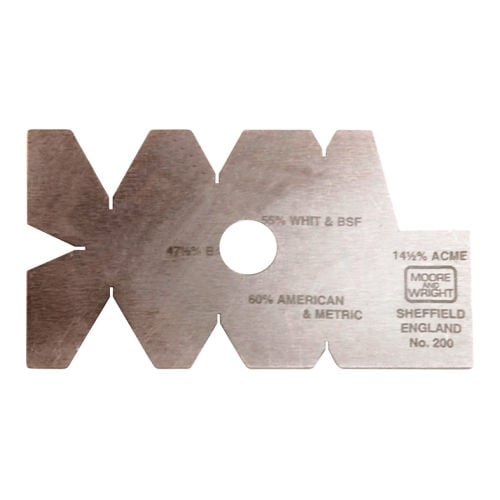

Screw cutting gauge included. 60º

Code Screw pitch No Blades Threads per mm

MAW801 SI Metric 30 0.25, 0.30, 0.35, 0.40, 0.45
0.5, 0.55, 0.60, 0.65, 0.70
0.75, 0.80, 0.85, 0.90, 1.0
1.10, 1.20, 1.25, 1.30, 1.40 1.50, 1.60, 1.70, 1.75, 1.80,
1.90, 2.0, 2.50, 3.0
