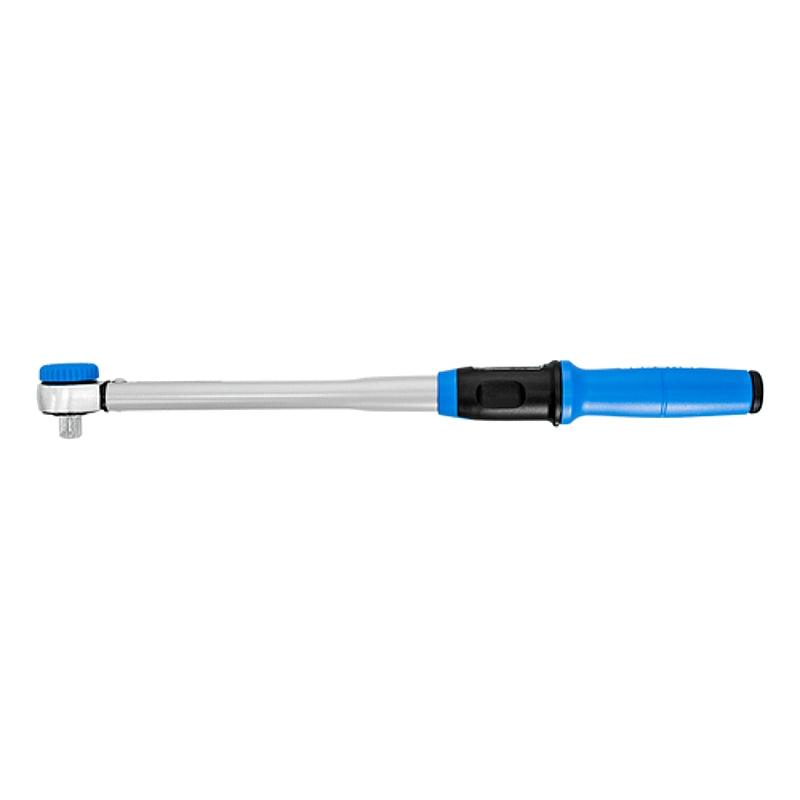

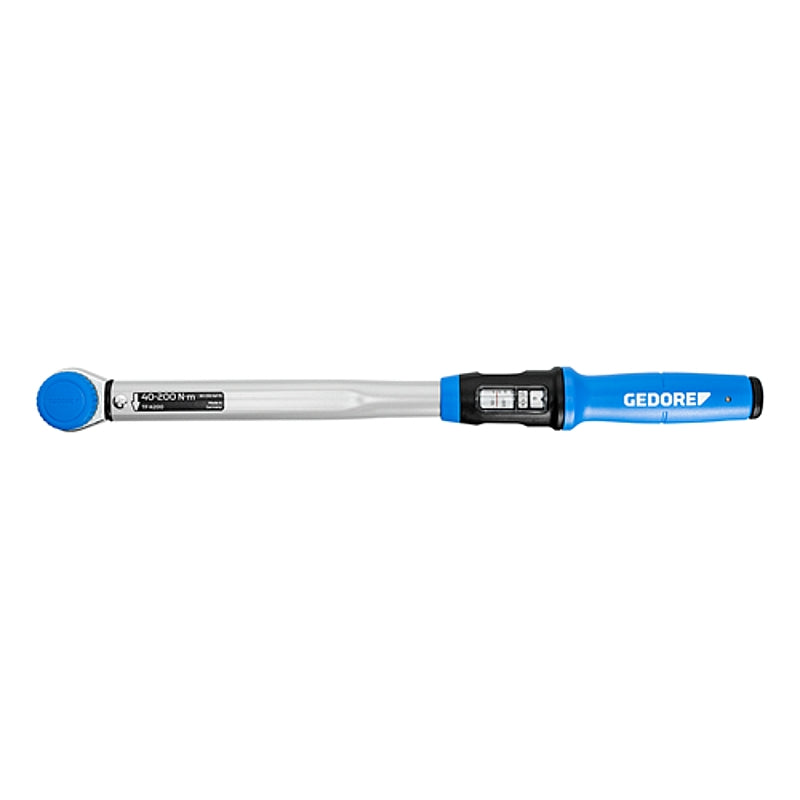

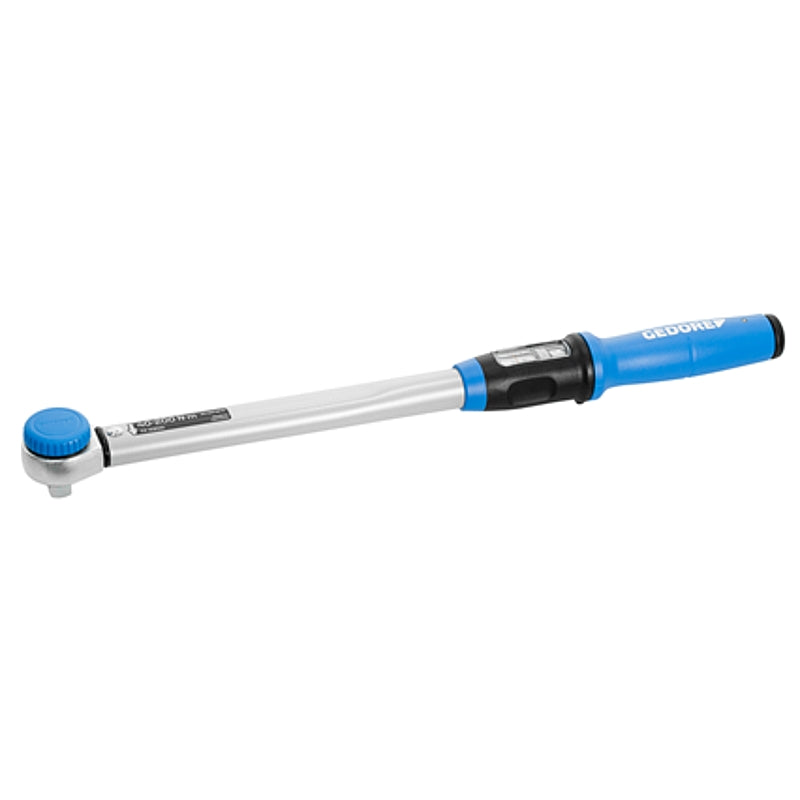

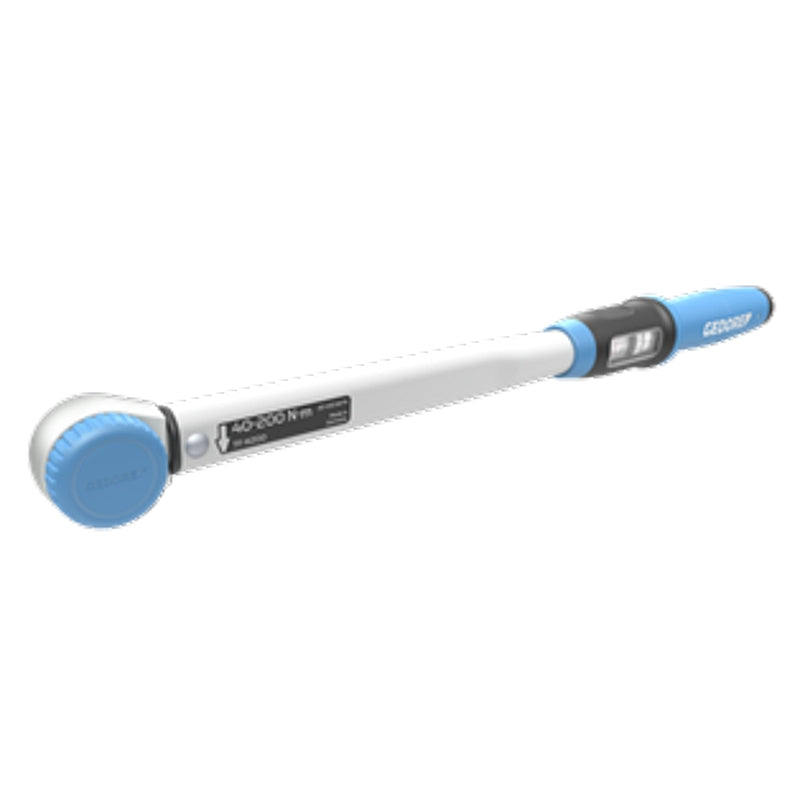

Gedore Torque Wrench TORCOFIX K 1/2" 40-200 Nm (TF-K200) | 3278387

Gedore Torque Wrench TORCOFIX K 1/2" 40-200 Nm (TF-K200) | 3278387
R 4,599.00 ZAR
R 4,599.00 ZAR
Sale Sold out
VAT included.

SKU:T4-3278387
View Product details
product-img

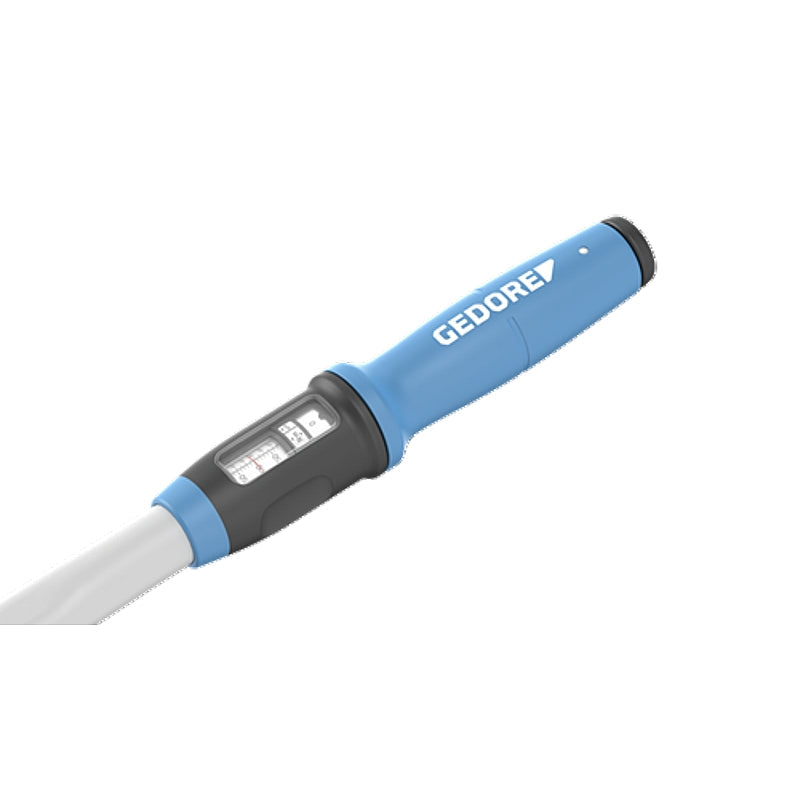

Gedore Torque Wrench TORCOFIX K 1/2" 40-200 Nm (TF-K200) | 3278387
R 4,599.00 ZAR
R 4,599.00 ZAR
VAT included.

Gedore Torque Wrench TORCOFIX K 1/2" 40-200 Nm (TF-K200) | 3278387.

Use:
  • Controlled screw tightening in the range of 1 - 850 Nm / 0,75 - 630 lbf·ft
  • Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
  • Features:
  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (square socket for direction change)

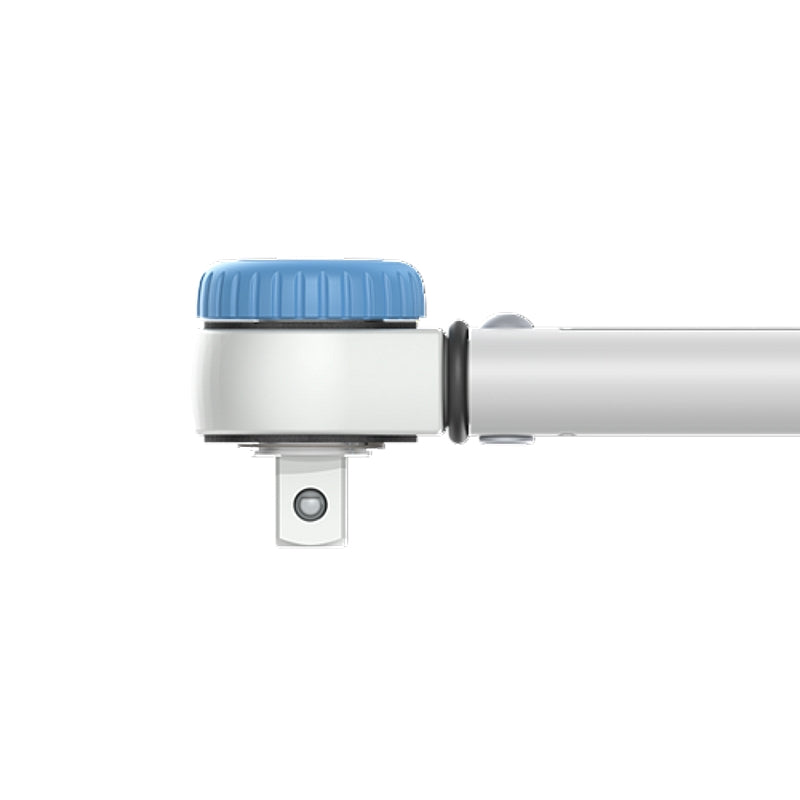

  • 1/2" mushroom head square with ball lock. From 3/4" with square socket and pin retention
  • Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts

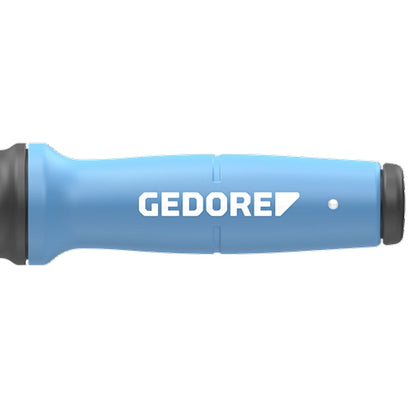

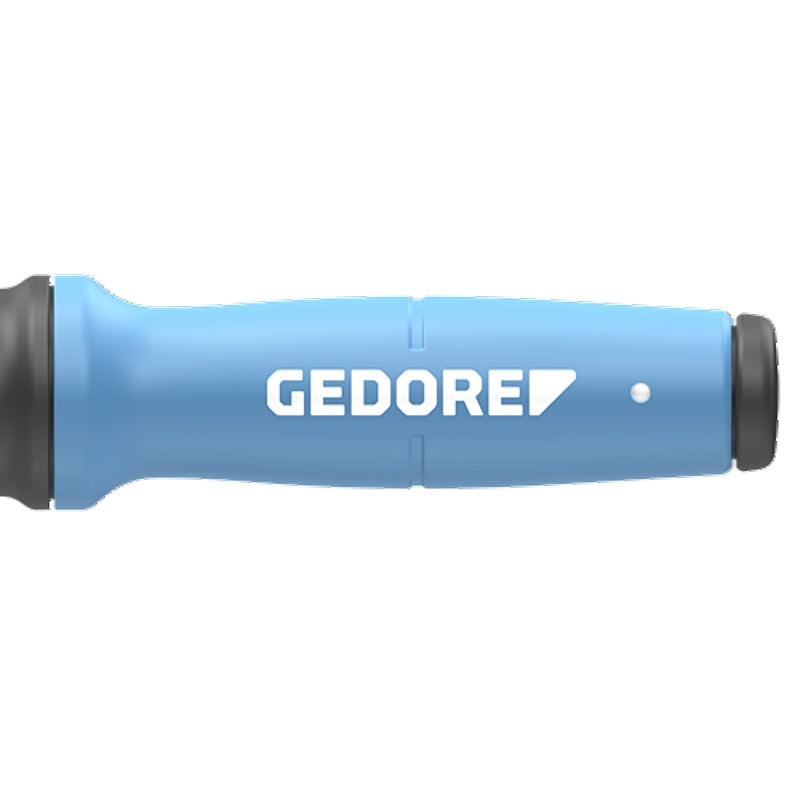

  • New ergonomic handle, shaped according to the natural grip position of the hand
  • clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
  • Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
  • Scale line positioned directly above the scale prevents reading errors (parallax errors)
  • Unit labeling integrated in the scale frame and also protected by viewing windows
  • The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
  • incl. roll away protection, prevents rolling away when the tool is put down

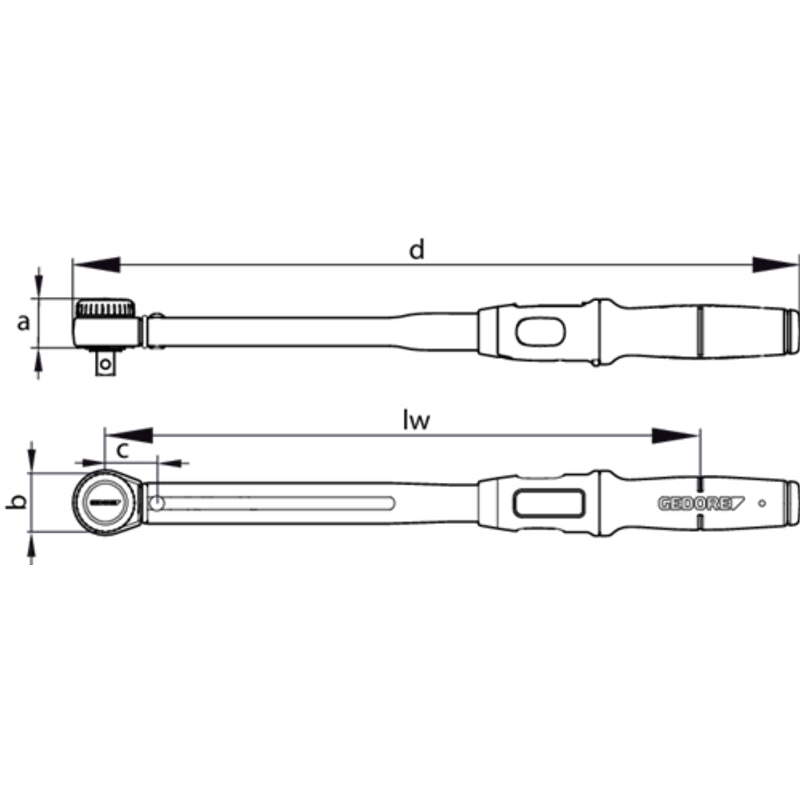

Dimensions & Weights:

  • Total width [mm]: 52 mm
  • Total height [mm]: 45 mm
  • Total length [mm]: 495 mm
  • Weight [kg]: 1,51 kg

Technical Characteristics:

  • Distance housing - square drive: 22 mm
  • Drive type/drive: Mushroom head
  • Drive connector square [metric]: 12,5 mm
  • Drive square inch: 1/2"
  • Number of teeth: 48
  • Tightening direction: Links und Rechts
  • Trigger mechanism: Short path triggering
  • Torque (max.) [lbf·ft]: 150 lbf·ft
  • Torque (max.) [Nm]: 200 Nm
  • Torque (min.) [lbf·ft]: 30 lbf·ft
  • Torque (min.) [Nm]: 40 Nm
  • Range of application: Assembly Production Maintenance and repair
  • Calibration length: 404,3 mm
  • Width of head 1 [mm]: 44,0 mm
  • Head height 1 [mm]: 36 mm
  • Material: Tubular steel construction, top-grade plastic parts
  • vernier Nm: 1 Nm
  • Standard: DIN 3120 - A 12,5 ISO 1174
  • Precision +/-: +/- 3 %
  • Test certificate: DIN EN ISO 6789-2:2017
  • Return angle: 7,5 °
  • Graduation [lbf·ft]: 10 lbf·ft
  • Scale division [Nm]: 10 Nm

Scope of Delivery:

  • Storage/Content: Karton
  • Contents (Qty of pieces): 1
