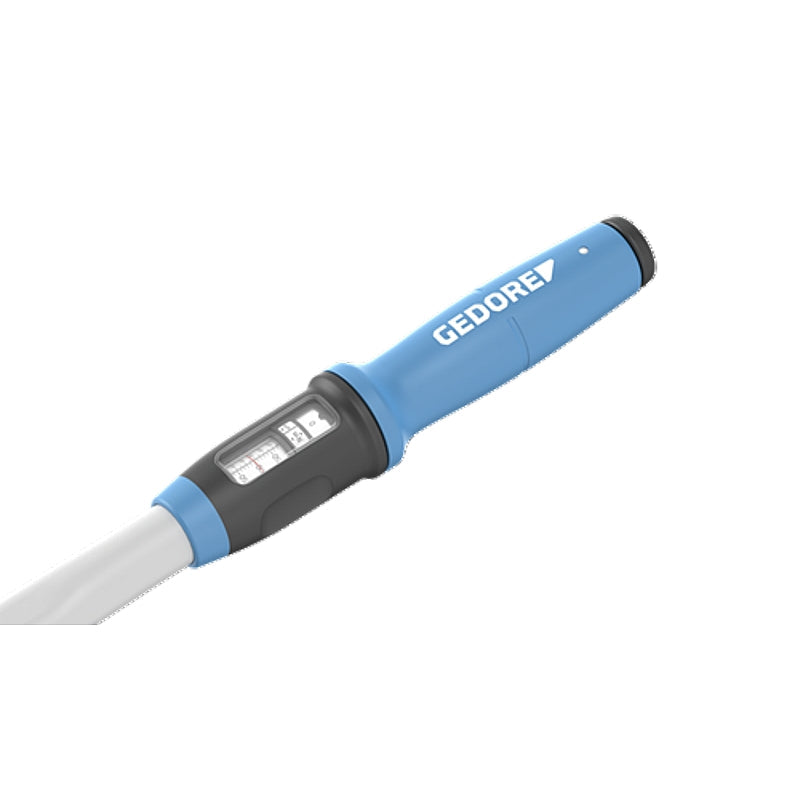

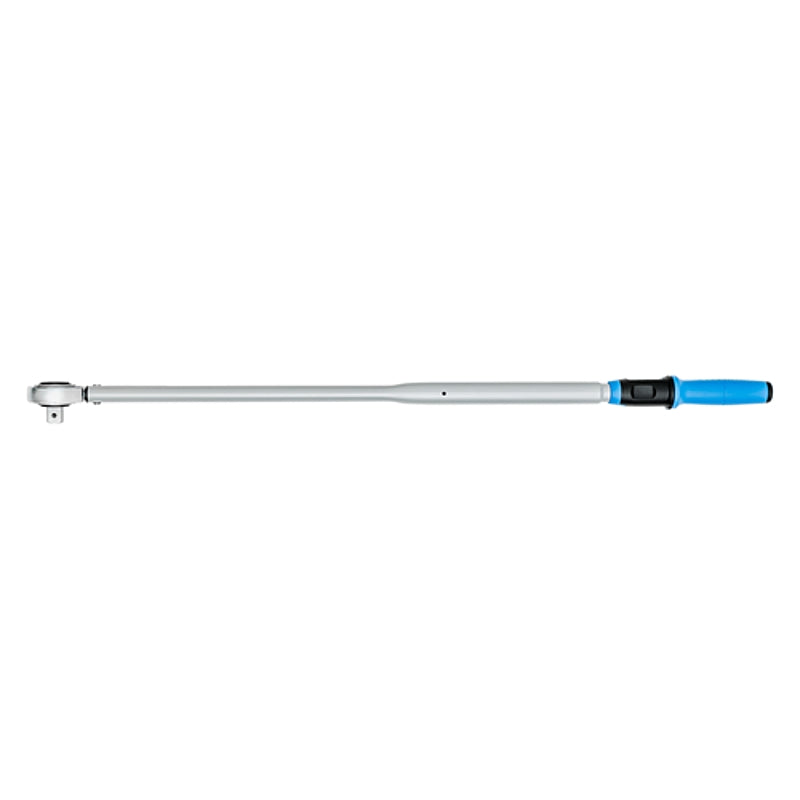

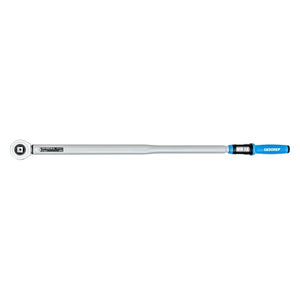

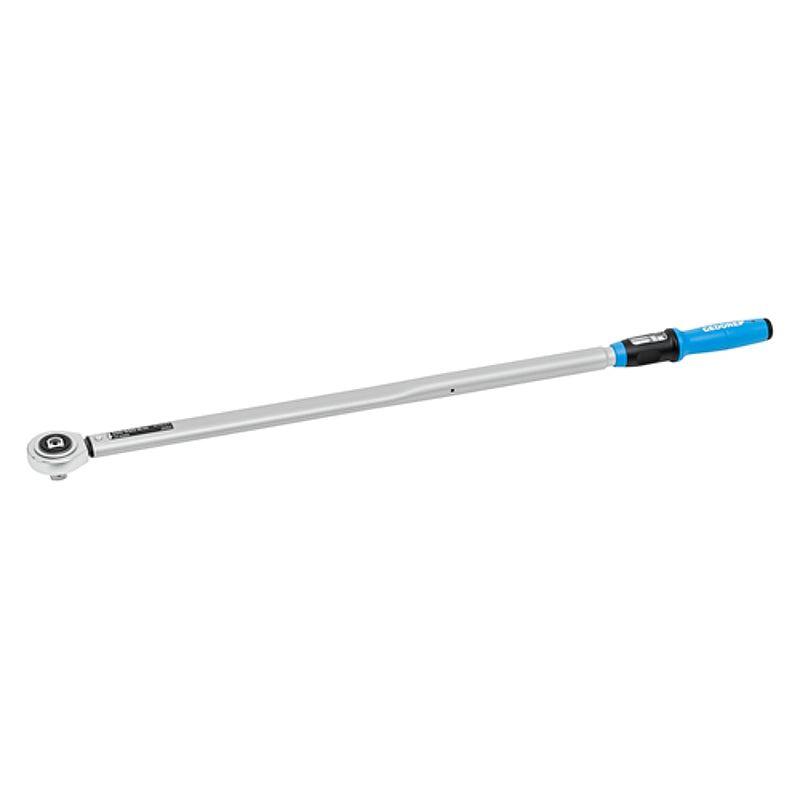

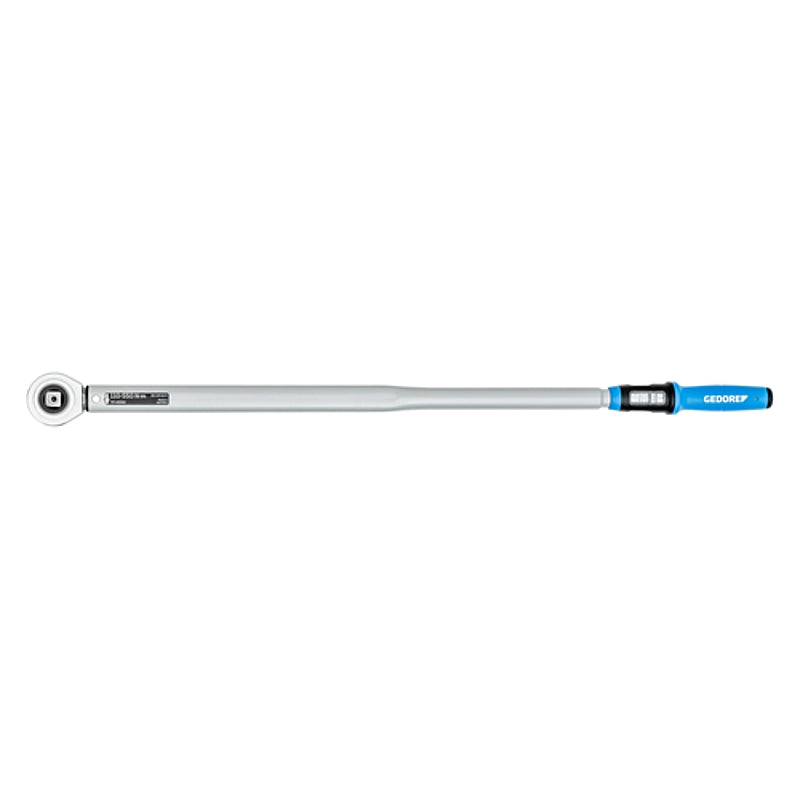

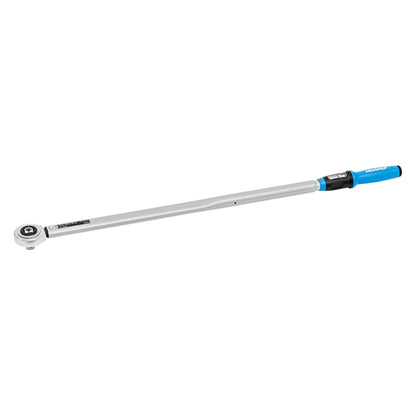

Gedore Torque Wrench TORCOFIX K 3/4" 110-550 Nm (TF-K550) | 3278492

Gedore Torque Multiplier DREMOPLUS ALU 2000 Nm (DVI-20Z) | 2653265.

• Controlled screw tightening in the range of 1 - 850 Nm / 0,75 - 630 lbf·ft
• Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
• Features:
• Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
• Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
• For controlled right- and left-hand tightening (square socket for direction change)
• 1/2" mushroom head square with ball lock. From 3/4" with square socket and pin retention
• Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
• New ergonomic handle, shaped according to the natural grip position of the hand
• clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
• Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
• With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
• Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
• Scale line positioned directly above the scale prevents reading errors (parallax errors)
• Unit labeling integrated in the scale frame and also protected by viewing windows
• The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
• incl. roll away protection, prevents rolling away when the tool is put down

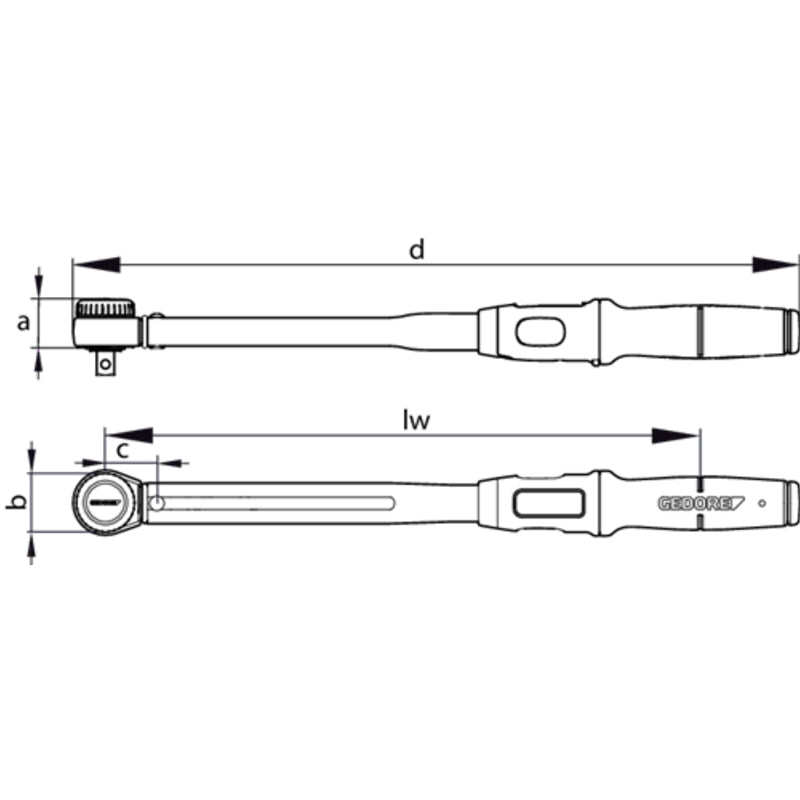

Dimensions & Weights:

Catalogue Downloads:

Below you will find catalogues for our different product ranges.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
