Gedore Torque Wrench TORCOFIX K 3/4" 80-400 Nm (TF-K400) | 3278409
R 6,799.00 ZAR
R 6,799.00 ZAR
VAT included.

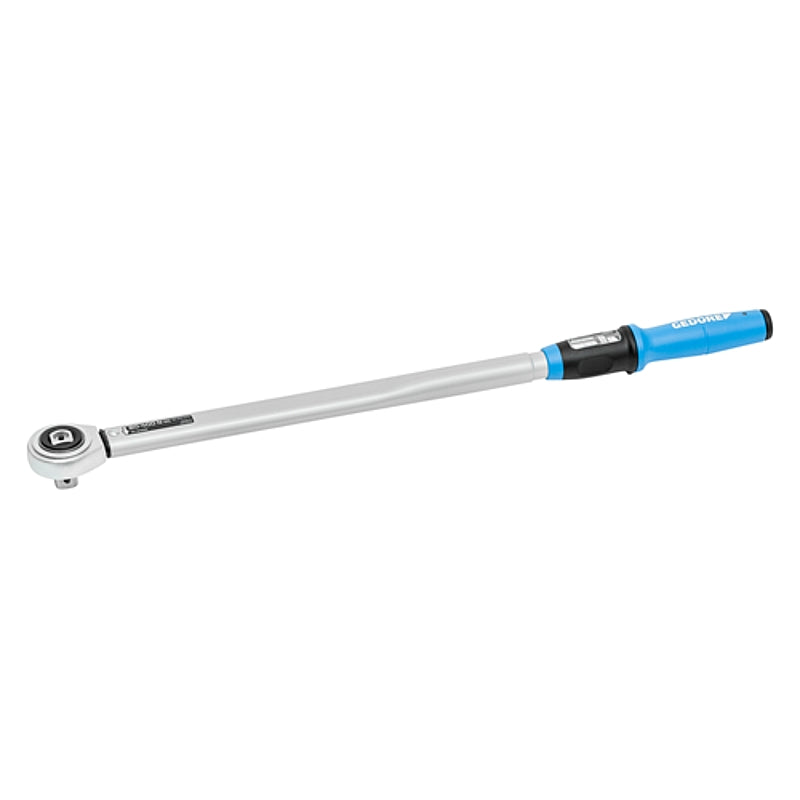

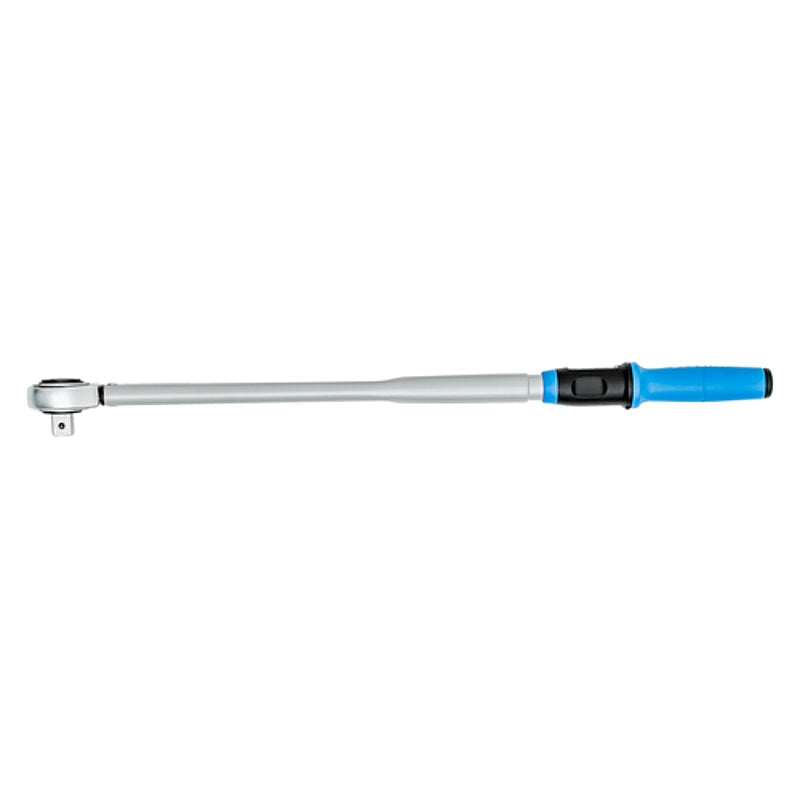

Gedore Torque Wrench TORCOFIX K 3/4" 80-400 Nm (TF-K400) | 3278409.

Use:
  • Controlled screw tightening in the range of 1 - 850 Nm / 0,75 - 630 lbf·ft
  • Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
  • Features:
  • Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
  • Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
  • For controlled right- and left-hand tightening (square socket for direction change)
  • 1/2" mushroom head square with ball lock. From 3/4" with square socket and pin retention
  • Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts

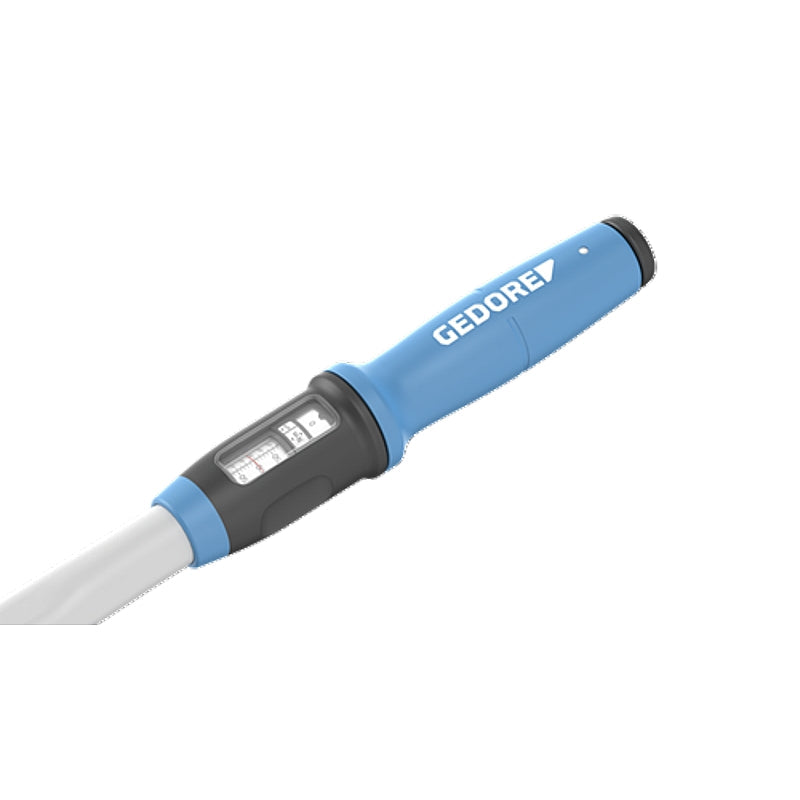

  • New ergonomic handle, shaped according to the natural grip position of the hand
  • clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
  • Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
  • With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
  • Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
  • Scale line positioned directly above the scale prevents reading errors (parallax errors)
  • Unit labeling integrated in the scale frame and also protected by viewing windows
  • The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
  • incl. roll away protection, prevents rolling away when the tool is put down

Dimensions & Weights:

  • Total width [mm]: 62 mm
  • Total height [mm]: 52 mm
  • Total length [mm]: 690 mm
  • Weight [kg]: 2,15 kg

Technical Characteristics:

  • Distance housing - square drive: 31,25 mm
  • Drive type/drive: Push-through square
  • Drive connector square [metric]: 20 mm
  • Drive square inch: 3/4"
  • Number of teeth: 36
  • Tightening direction: Links und Rechts
  • Trigger mechanism: Short path triggering
  • Torque (max.) [lbf·ft]: 300 lbf·ft
  • Torque (max.) [Nm]: 400 Nm
  • Torque (min.) [lbf·ft]: 60 lbf·ft
  • Torque (min.) [Nm]: 80 Nm
  • Range of application: Assembly Production Maintenance and repair
  • Calibration length: 593,3 mm
  • Width of head 1 [mm]: 62,5 mm
  • Head height 1 [mm]: 31 mm
  • Material: Tubular steel construction, top-grade plastic parts
  • vernier Nm: 1 Nm
  • Standard: DIN 3120 - A 12,5 ISO 1174
  • Precision +/-: +/- 3 %
  • Test certificate: DIN EN ISO 6789-2:2017
  • Return angle: 10 °
  • Graduation [lbf·ft]: 10 lbf·ft
  • Scale division [Nm]: 10 Nm

Scope of Delivery:

  • Storage/Content: Karton
  • Contents (Qty of pieces): 1
