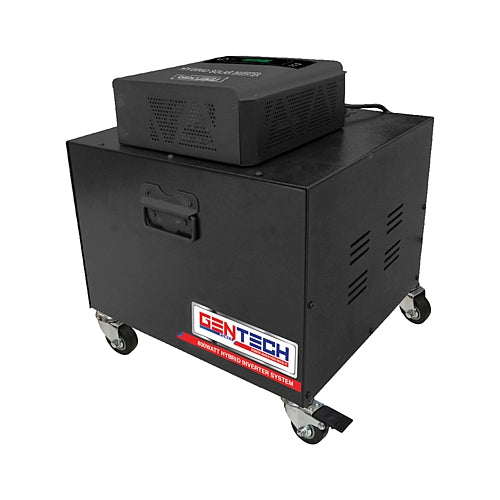

Gentech Power Hybrid Inverter System 800W | GEN1400

Gentech Power Hybrid Inverter System 800W | GEN1400.

The Gentech Power Hybrid Inverter System 800W (GEN1400) is designed to provide a consistent power supply. Equipped with an 800-Watt solar hybrid inverter head and a Gentech Power Gel Battery, it ensures reliable performance. The system includes a 12-month warranty for the inverter head and a 7-day limited warranty for the battery.

It's important to note that the manufacturer does not cover flat batteries or reduced running time. In case of a decrease in running time, recharge the batteries for approximately 48 hours or consider purchasing new ones. Premature damage to the battery due to improper use is not covered by the manufacturer warranty.

The Gentech Power Battery charge cycles are rated to last at different depth of discharge levels:

• 100% Depth of Discharge = +- 350 Charge Cycles
• 80% Depth of Discharge = +- 520 Charge Cycles
• 50% Depth of Discharge = +- 730 Charge Cycles

Due to frequent load shedding, these cycles can be depleted between 3 to 6 months. Once depleted, the battery reaches its "end of life" and requires immediate replacement.

During Load Shedding Stage 3 – 6, it is recommended to turn the inverter power switch "OFF" and use the inverter only when urgently required.

Key Features:

• 800-Watt Solar Hybrid Inverter Head: Ensures uninterrupted power supply.
• Gentech Power Gel Battery: Comes with a 7-day limited warranty.
• Warranty Coverage: Inverter head covered for 12 months; battery covered for 7 days.
• Charge Cycles: Rated cycles for different depth of discharge levels.

Battery Warranty Disclaimer:

Due to excessive load shedding this battery carries a limited warrantee of 7 days only. It is designed to perform as specified. The lifespan of this battery is pre-determined by the amount of charge and discharge cycles it will undergo over a period. These cycles are considered normal “wear and tear” and are not covered by the manufacturer warranty policy. Regular charging / discharging cycles will have a direct impact on the performance and or running time of this battery. Please refer to the performance and discharge data below. Please charge for 48 hours prior to use.

Specifications:

Model: 1000VA (800W) 12V
Input:
Nominal Voltage: 220~240VAC
Input Voltage Range: 90~280VAC
Nominal Frequency: 50Hz or 60Hz (Auto Detection)
Solar:
Nominal Voltage: 18VDC
Charging Current: 50A±1A max
Output:
Voltage: 230VAC±10%
Frequency: 50/60Hz 0.1Hz
Waveform: Modified Sine-wave
Efficiency (AC to AC): >95%
Efficiency (DC to AC): >80%
Battery Charger:
Nominal Voltage: 12Vdc
Charging Voltage: 14.4Vdc
Charging Current: 10A±2A max
Overcharging Protection: 16.0V
Transfer:
Transfer Time: 15-20ms Typical (Narrow Range); 40ms max (Wide Range)
Audible Alarm:
Low Batter Voltage in battery Mode: Buzzing every 2 seconds
Overload: Buzzing every 0.5 seconds
Fault: Buzzing Continuously
Environment:
Temperature: 0~40°C

Packaging Dimensions & Weight:

Length: 420mm
Width: 280mm
Height: 500mm
Weight: 52kg

Scope of Delivery:

• 800-Watt Solar Hybrid Inverter Head (GEN1400)
• Gentech Power Gel Battery
