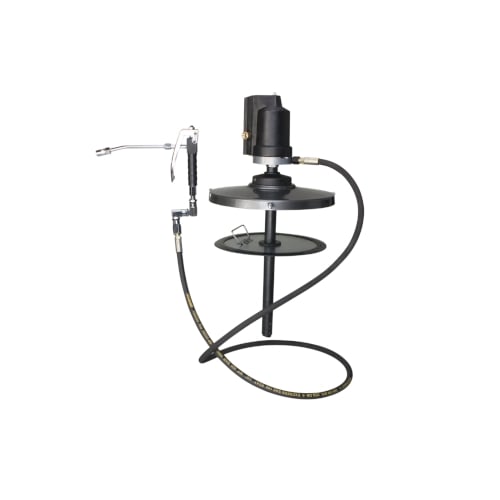

PUMP - Air Operated Grease Ratio Pump - 50kg
A compact and practically noiseless air operated 50 : 1 ratio pump
Ideal for applications where there is a continuous need for high pressure grease
Zinc construction makes them suitable for mining applications
Can be used without an airline lubricator as the motor is non-corroding
Use with light and self-collapsing grease up to NLGI #2
Supplied complete with
Drum cover
Rubber lined follower plate
213cm high pressure hose
Z swivel and grease control gun
PUMP SPECIFICATIONS
Working Pressure 4 - 10 BAR (60 TO 150 PSI)
Maximum Air Pressure 10 BAR (150) PSI
Maximum Outlet Pressure 500 BAR (7500 PSI)
Air Inlet Connection ¼” NPT (F)
Pump Outlet Connection ¼” NPT (F)
Air Consumption 270 lt/min (72 GPM) 9cfm per min
Grease Output (NLGI No.2 Grease) 0,460kg/min (1lb/min)
Noise Level 85 db
Spare Nozzle available - CODE GRO 2185
CODE GREASE PAIL SIZE
GRO2I80 50kg
