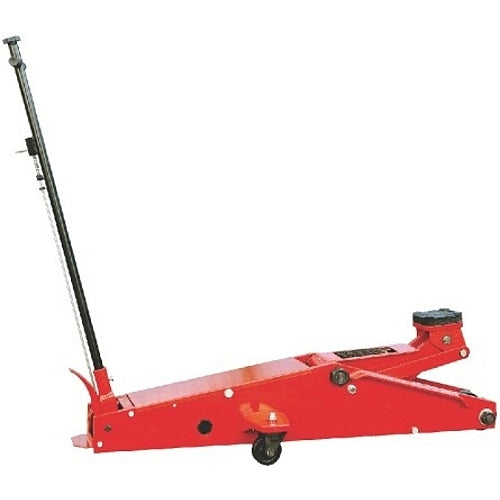

BIG RED Heavy-Duty Trolley Jack, Long Wheel Base, 15T | QYW15

BIG RED Heavy-Duty Trolley Jack, Long Wheel Base, 15T | QYW15.

Engineered for strength and extended access, the BIG RED QYW15 Heavy-Duty Trolley Jack features a 15-ton capacity paired with a long wheelbase design. This jack is built to accommodate larger commercial vehicles, including trucks and buses, offering reliable support in demanding service environments.

With a minimum height of 220 mm (8.66 in) and a maximum lifting height of 680 mm (26.77 in), the QYW15 provides exceptional vertical range, making it suitable for a variety of undercarriage access needs. The long frame design, measuring 1550 mm x 560 mm x 305 mm, enhances stability and reach, allowing technicians to position the jack precisely under heavy vehicles.

Constructed to withstand the rigours of frequent professional use, this unit is well-suited for fleet service facilities and heavy equipment workshops.

Features & Benefits:

• High Lifting Capacity: Lifts up to 15 tons, ideal for large trucks and heavy-duty machinery.
• Extended Lifting Range: Lifting height spans from 220 mm (8.66 in) to 680 mm (26.77 in) for broad application coverage.
• Long Wheel Base Design: Provides enhanced reach and stability, perfect for accessing lift points on long or heavy vehicles.
• Industrial Build Quality: Designed to handle frequent use in high-demand service environments.
• Oversized Construction: Large frame dimensions support improved load distribution and ease of positioning.

Specifications:

Code: QYW15
Capacity (Ton): 15
Min. Height (mm): 220
Max. Height (mm): 680
Product Size (mm): 1550 x 560 x 305
N.W (Kg): 165
G.W (Kg): 180
Package Size (mm): 1703 x 523 x 384

Scope of Delivery:

• 1 x BIG RED Heavy-Duty Trolley Jack, Long Wheel Base, 15T | QYW15

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
