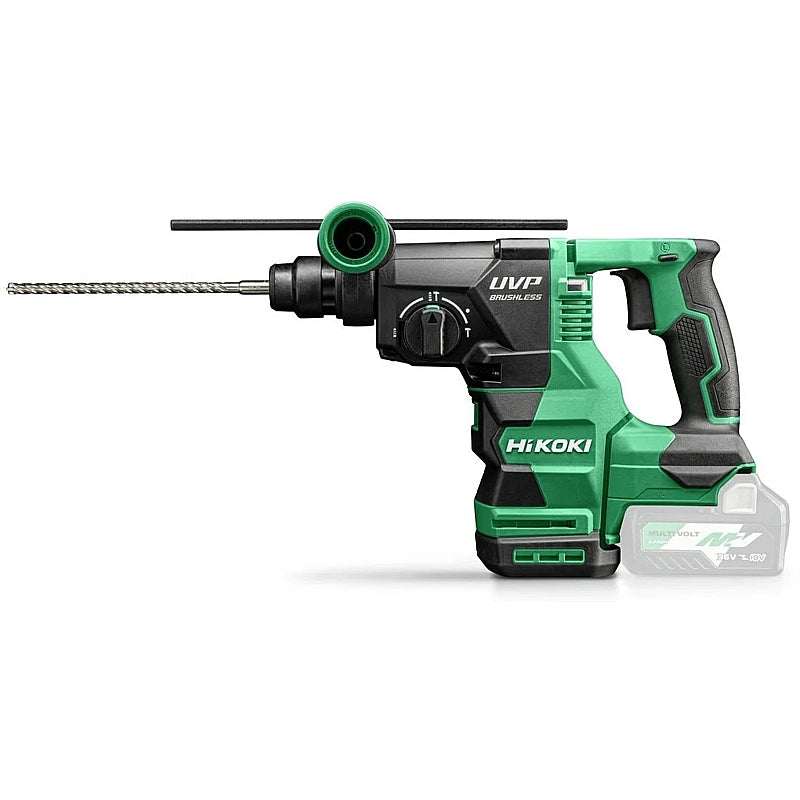

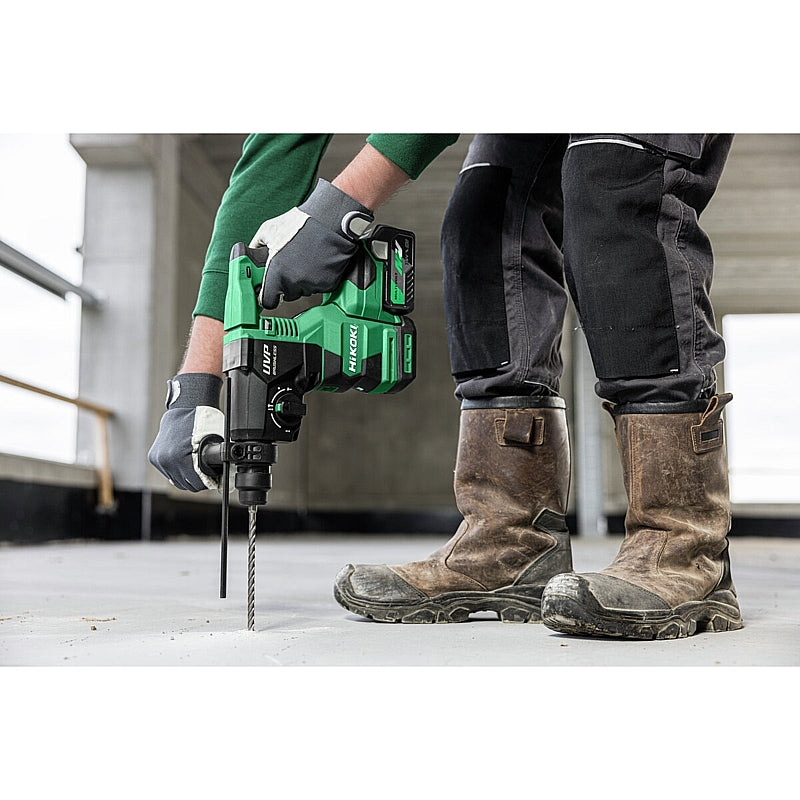

HiKOKI MULTI VOLT (36V) Cordless BL SDS-Plus Rotary Hammer Drill 3.2J (Bare Tool) | DH3628DAW2Z

HiKOKI MULTI VOLT (36V) Cordless Brushless SDS-Plus Rotary Hammer Drill 3.2J (Bare Tool) | DH3628DAW2Z.

The HiKOKI MULTI VOLT 36V Cordless Brushless SDS-Plus Rotary Hammer Drill is designed to deliver powerful and reliable performance for professional drilling and demolition applications. Producing 3.2J of impact energy, this versatile rotary hammer efficiently drills into concrete up to 28mm while also handling wood and mild steel applications with ease.

Featuring three operating modes, including rotary hammer, drill only, and hammer only with selectable chisel positioning, this tool provides excellent versatility across a wide range of construction and renovation tasks. In addition, the advanced brushless motor delivers high power output while reducing wear and extending the tool’s service life.

For improved operator safety and comfort, the drill incorporates Reactive Force Control (RFC), which stops the motor if the bit suddenly binds or overloads, helping to reduce dangerous twisting. Furthermore, User Vibration Protection (UVP) and the Low Vibration Handle (LVH) significantly minimise vibration levels during operation for enhanced user comfort during prolonged use.

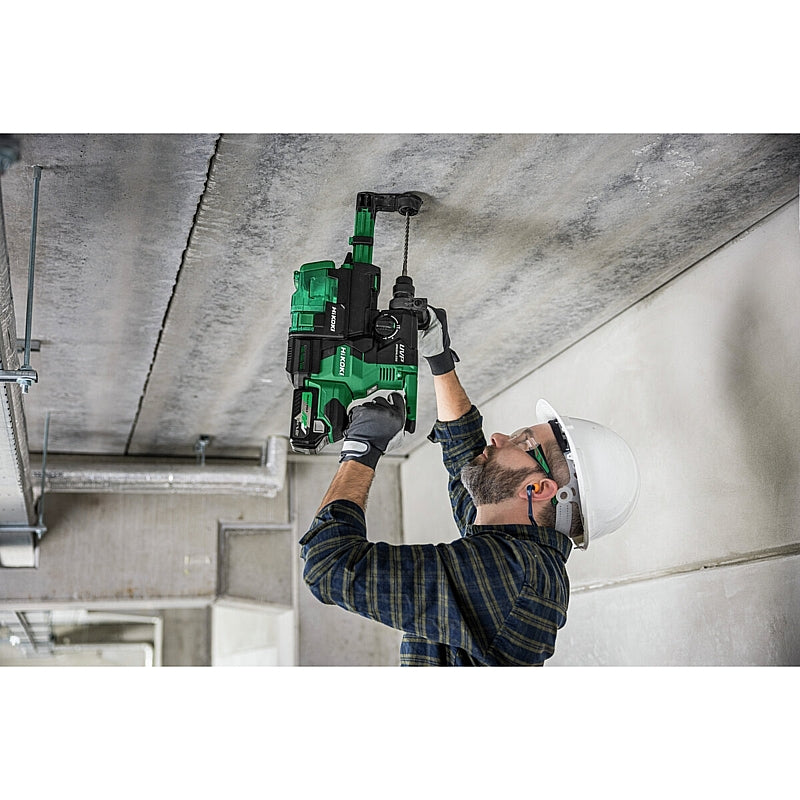

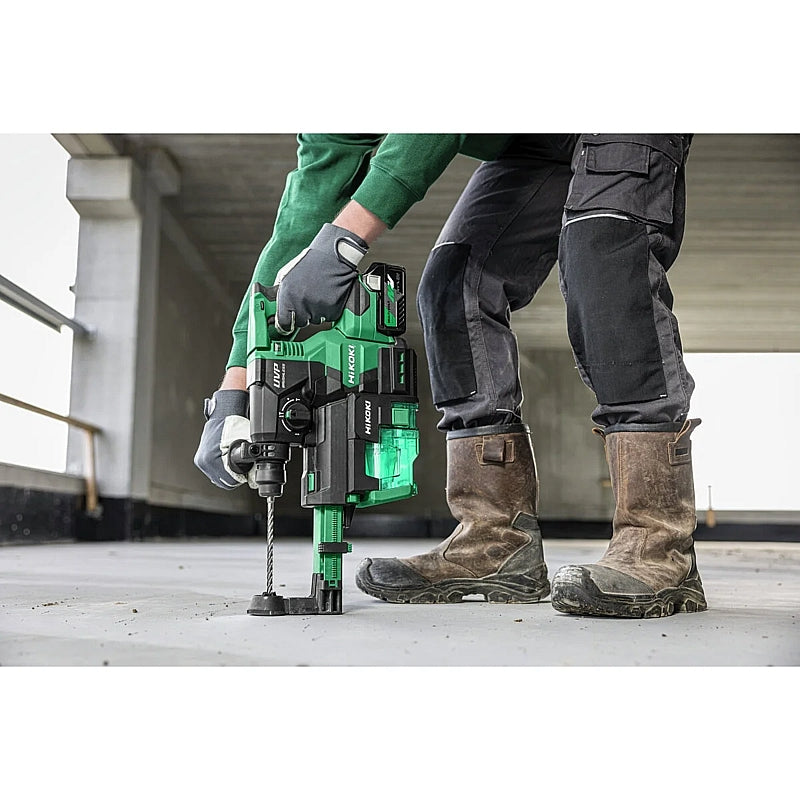

The integrated LED Level assists with achieving accurately drilled holes, while the auto-stop function allows users to record drilling times for consistent hole depths. Soft-start control also improves drilling accuracy by reducing slipping during startup. Additionally, the tool is compatible with the HiKOKI Cyclon Dust Extraction Unit with HEPA filter, helping to maintain a cleaner and safer working environment.

Powered by HiKOKI MULTI VOLT battery technology, this cordless rotary hammer combines cordless freedom with powerful performance suitable for demanding jobsite applications.

Features & Benefits:

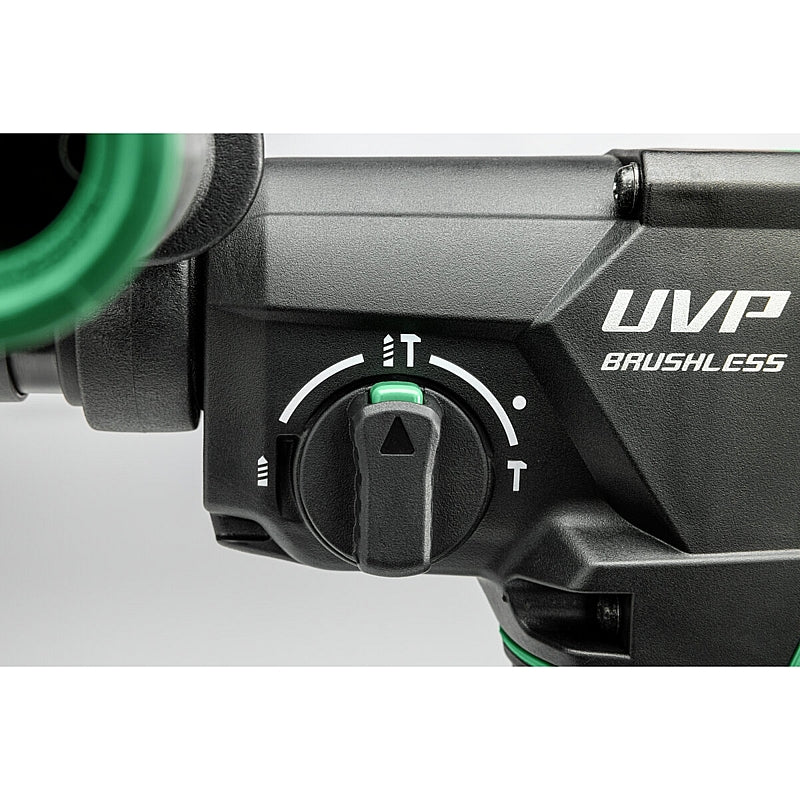

• 3 Operating Modes: Allows rotary hammer drilling, standard drilling, and hammer-only chiselling for maximum versatility.
• 3.2J Impact Energy: Delivers powerful drilling and chiselling performance in concrete applications.
• Brushless Motor: Provides high efficiency, reduced maintenance, and extended service life.
• Reactive Force Control (RFC): Stops the motor during sudden overload situations to improve user safety.
• User Vibration Protection (UVP): Reduces vibration levels to improve operator comfort during extended use.

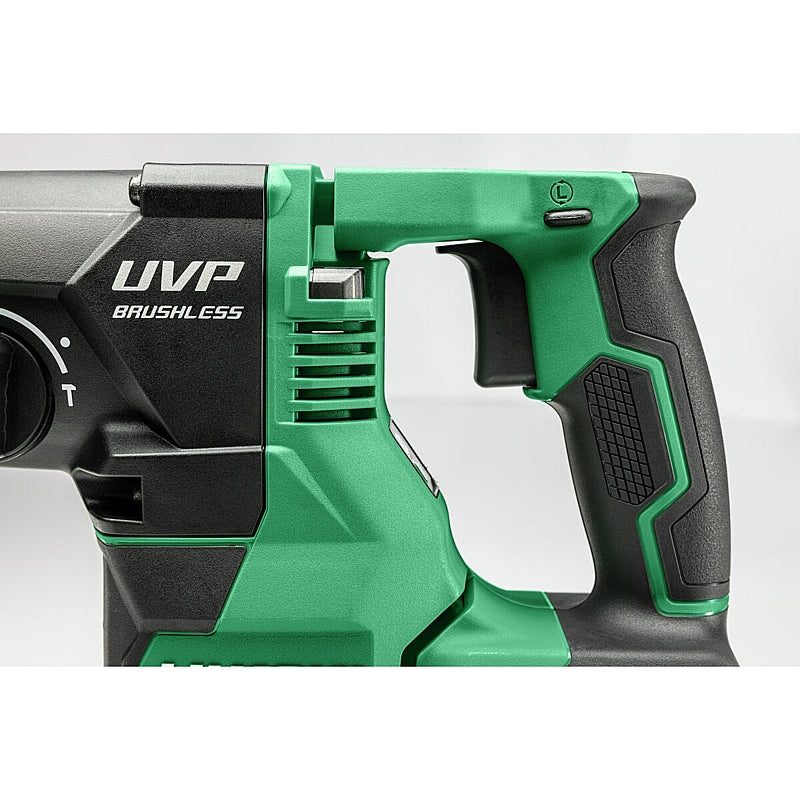

• Low Vibration Handle (LVH): Enhances grip comfort and minimises fatigue.

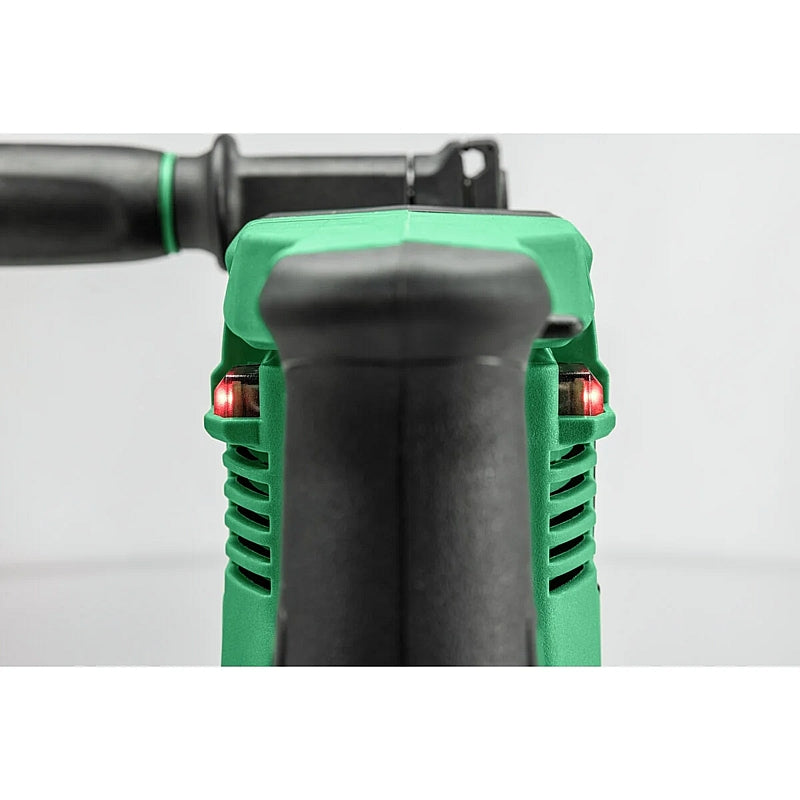

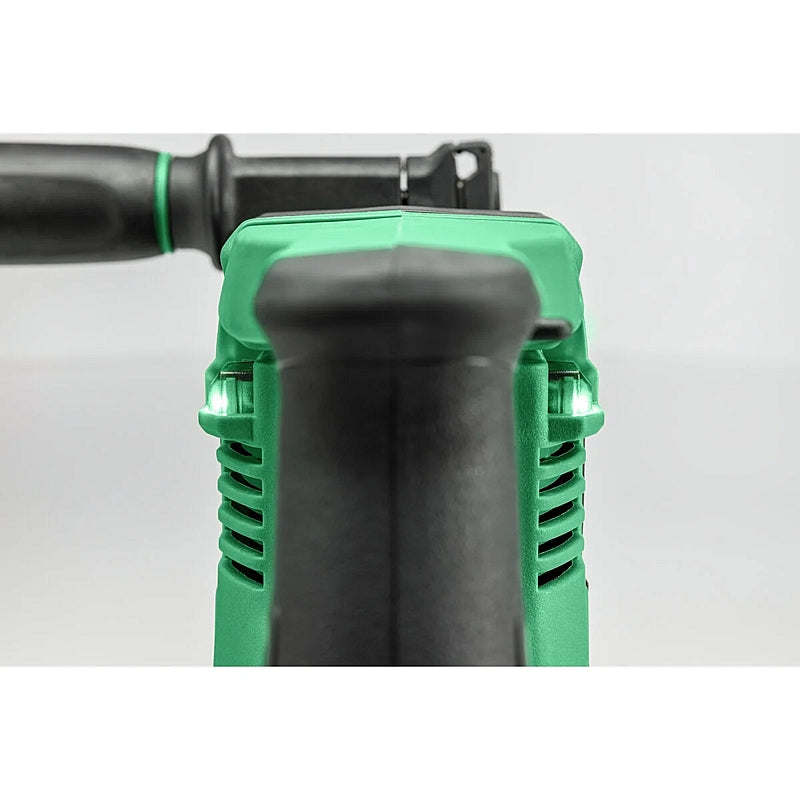

• LED Level Indicator: Helps maintain straight drilling for improved accuracy.
• Auto-Stop Function: Stores drilling times for consistent and repeatable drilling depths.
• Soft-Start Control: Improves drilling precision by reducing startup slipping.
• Dust Extraction Compatibility: Compatible with the Cyclon Dust Extraction Unit with HEPA filter for cleaner operation.
• MULTI VOLT Technology: Combines cordless mobility with powerful performance.
• Forward & Reverse Rotation: Provides added control and versatility during operation.
• Integrated LED Light: Improves visibility in dimly lit working environments.

Specifications:

• Code: DH3628DAW2Z
• Barcode: 4966376405572
• Battery Voltage: 36V
• Impact Energy (EPTA): 3.2J
• No Load Speed: 0 - 950/min
• Full Load Impact Rate: 0 - 4300/min
• Concrete Drill Capacity: 3.4 - 28mm
• Mild Steel Drill Capacity: 13mm
• Wood Drill Capacity: 32mm
• Weight (Without Battery Pack): 3.20kg

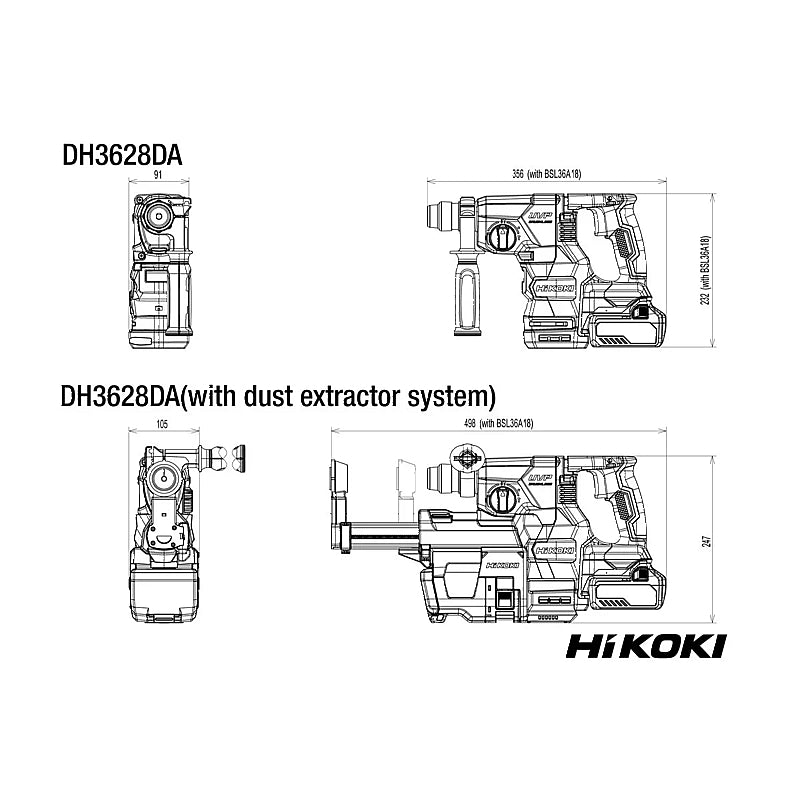

• Tool Length: 334mm
• Tool Width: 91mm
• Tool Height: 232mm
• Concrete Drilling Vibration: 12.1m/sec²
• Concrete Drilling Vibration Uncertainty K: 1.5m/sec²
• Chiselling Vibration: 9.9m/sec²
• Chiselling Vibration Uncertainty K: 1.5m/sec²
• Emission Sound Pressure: 94dB
• Emission Sound Power: 102dB
• Emission Uncertainty KpA: 3dB
• Warranty (With Registration): 36 Months
• Right / Left Rotation: Yes
• Slip Clutch: Yes
• Dust Extraction Unit Compatibility: Yes
• Low Vibration Handle: Yes
• LED Light: Yes

Scope of Delivery:

• HiKOKI MULTI VOLT (36V) Cordless Brushless SDS-Plus Rotary Hammer Drill 3.2J (Bare Tool)
• Side Handle
• Depth Gauge
• Stackable System Case 4

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
