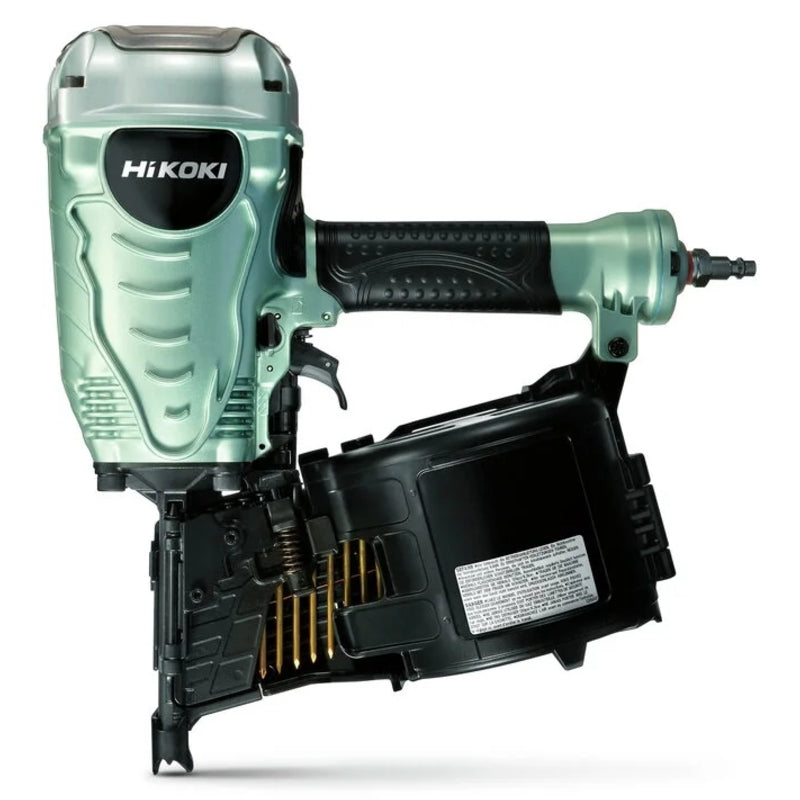

HiKOKI Air Coil Nail Gun 70–120psi (45–90mm) | NV90AGL4Z

HiKOKI Air Coil Nail Gun 70–120psi (45–90mm) | NV90AGL4Z

The HiKOKI NV90AGL4Z Air Coil Nail Gun is engineered for efficiency and durability in demanding nailing tasks. Designed for wire-collated nails ranging from 45mm to 90mm in length and 2.5mm to 3.3mm in diameter, it operates at a pressure of 70–120 psi (0.5–0.85 MPa). The tool’s ergonomic rafter grip ensures comfortable handling during prolonged use, while its tool-less depth adjustment and 360° swivelling air outlet allow for quick and precise control. The top-loading pop-out magazine enables fast reloading, and the mechanism supports both sequential and contact actuation nailing modes, providing flexibility for different applications. Built for reliability, this nailer offers professional-grade performance in construction and carpentry environments.

Features & Benefits:

• Versatile Application: Compatible with wire-collated nails up to 90mm for framing and heavy-duty nailing tasks.
• Tool-Free Adjustments: Depth and exhaust direction can be adjusted easily without tools for greater precision.
• Adjustable Air Outlet: 360° swivelling outlet ensures precise and convenient control of exhaust air.
• Quick Reloading: Easy top-loading pop-out magazine allows fast nail replacement.
• Dual Nailing Modes: Switch effortlessly between single sequential and contact actuation nailing.
• Comfortable Operation: Ergonomic rafter grip reduces fatigue during extended use.

Specifications:

Article Number: NV90AGL4Z
EAN: 4966376297399
Nailing Speed: 3 nails per second
Operating Pressure: 0.5 – 0.85 MPa (70 – 120 psi)
Wire-Collated Nail Length: 45 – 90 mm
Nail Shank Diameter: 2.5 – 3.3 mm
Magazine Capacity: 200 – 300 nails
Tool Weight: 3.5 kg
Tool Length: 336 mm
Tool Width: 135 mm
Tool Height: 332 mm
Driving System: Normal Pressure
Depth Adjuster: Yes
Contact Actuation Mode: Yes
ETIM Class: EC003862

Scope of Delivery:

• 1 x HiKOKI Air Coil Nail Gun 70–120psi (45–90mm)
• 1 x Eye Protector
• 1 x Carton Box

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
