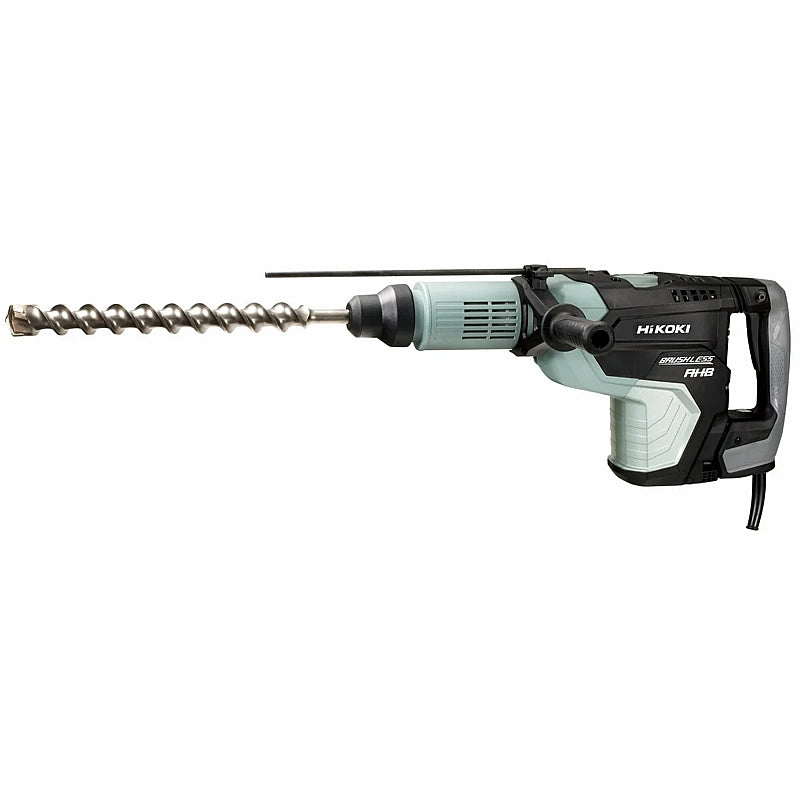

HiKOKI Brushless SDS-Max Rotary Hammer Drill 18.8J, 1500W | DH52MEWSZ

HiKOKI Brushless SDS-Max Rotary Hammer Drill 18.8J, 1500W | DH52MEWSZ.

The HiKOKI Brushless SDS-Max Rotary Hammer Drill is designed for demanding concrete drilling and chiselling applications. Powered by a robust 1500W brushless motor, it delivers an impressive 18.8 joules of impact energy, making it ideal for drilling holes up to 52mm in concrete. Furthermore, the brushless motor ensures consistent performance, even when used with long extension cords or generators, while also reducing wear and extending the tool’s lifespan.

For enhanced versatility, the tool offers two operating modes—rotary hammer and hammer-only—along with 12 adjustable chisel positions. In addition, constant speed control maintains optimal power under load, while variable speed control allows users to adapt performance according to the task. The SDS-Max system enables quick, one-action bit changes, improving efficiency on site.

Designed with user comfort in mind, the rotary hammer features an ergonomic soft grip handle and a Low Vibration Handle (LVH), reducing fatigue during extended use. Moreover, the durable aluminium housing body (AHB) protects internal components from harsh working conditions, ensuring reliability in tough environments.

Features & Benefits:

• Powerful 1500W Brushless Motor: Delivers high performance with reduced wear for extended service life.
• 18.8J Impact Energy: Provides exceptional drilling and chiselling power for heavy-duty applications.
• Two Operating Modes: Switch between rotary hammer and hammer-only for increased versatility.
• 12 Chisel Positions: Allows precise angle adjustment for optimal working positions.
• Constant Speed Control: Maintains performance under load for consistent results.
• Variable Speed Control: Enables adjustment of drilling and hammering speed to suit different tasks.
• One-Action SDS-Max System: Allows quick and easy bit changes for improved efficiency.
• Low Vibration Handle (LVH): Reduces user fatigue and improves comfort during prolonged use.
• Ergonomic Soft Grip: Enhances control and handling during operation.
• Aluminium Housing Body (AHB): Protects internal components from external damage.
• Generator Compatible: Ensures reliable operation even with fluctuating power supply.
• Slip Clutch & Lock-On Function: Improves safety and ease of use during extended operation.

Specifications:

• Code: DH52MEWSZ
• Barcode: 4966376285198
• Rated Input Power: 1500 W
• Mains Frequency: 50/60 Hz
• Impact Energy (EPTA): 18.8 J
• No Load Speed: 110–280 /min
• Full Load Impact Rate: 1000–2400 /min
• Max Drill Diameter (Concrete): 52 mm
• Tool Weight: 11 kg
• Cable Length: 4 m
• Tool Dimensions (L x W x H): 585 x 116 x 263 mm
• Vibration (Drilling): 16.2 m/s²
• Vibration Uncertainty (Drilling): 1.7 m/s²
• Vibration (Chiselling): 11.9 m/s²
• Vibration Uncertainty (Chiselling): 1.6 m/s²
• Sound Pressure Level: 105 dB
• Sound Power Level: 113 dB
• Sound Uncertainty (KpA): 3 dB
• Warranty: 36 Months (with registration)
• Slip Clutch: Yes
• Lock-On Function: Yes
• Aluminium Housing Body: Yes
• Low Vibration Handle: Yes

Scope of Delivery:

• HiKOKI Brushless SDS-Max Rotary Hammer Drill 18.8J, 1500W
• Side Handle
• Hammer Grease A
• Injection Case

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
