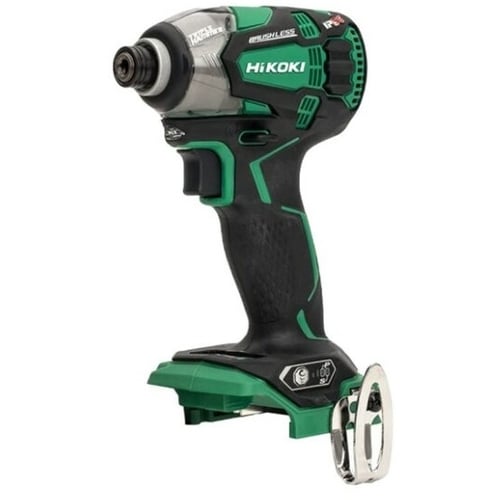

Hikoki 1/4" Cordless BL Impact Driver 18V 207Nm (Bare Tool) | WH18DBDL2-W4

Hikoki Cordless Brushless Impact Driver 18V 207Nm (Bare Tool) | WH18DBDL2-W4.

The HiKOKI WH18DBDL2 is an Impact Driver with a high power brushless motor delivering a maximum tightening torque of 207Nm. It has an IP56 rating for dust resistance & waterproofing and triple hammer mechanism with three anvils for higher power and extended life.

Features:

Three strikers on the hammer offers greater comfort with less cam-out:

• The hammer with 3 strikers reduces vibration by making 3 impacts per rotation instead of the conventional 2. This results in greater comfort and less cam-out (driver slippage from screw head), and works great for light-duty applications such as fastening short or thin screws. In order to suit various applications, a 4-step tightening mode selector function is also incorporated.

Power Mode:

When enabled under heavy load, the power mode dramatically increases the impact energy by reducing the impact rate to 1.5 impacts per rotation and extending the interval between successive impacts. This mode is ideal for long or thick screws.

Tightening Speed:

When driving a ø5.3 x 120mm wood screw into hard wood without a pilot hole.

*1 - In comparison with the WH18DDL 18V cordless impact driver.
*2 - In comparison with the WH14DDL 14.4V cordless impact driver.

Tightening Torque:

Newly Designed Airflow System for Optimal Cooling Efficiency:

• The rear fan efficiently cools down the motor and hammer case for more durability.

Well-Balanced Weight Distribution for Better Work Efficiency:

• Less user fatigue due to the well-balanced design with the center of gravity positioned at the middle finger of the grip hand.

Multifunction LED for Increased Visibility Remaining Battery Indicator:

By pressing the light selector switch, the LED mode changes:

1. Always On / Off mode
2. Trigger switch interlocked with afterglow mode

• Thanks to the unique design of dust-protective cooling windows and fully plastic coating on some important inner parts, this product conforms to IP56 protection class ratings (dust and water resistance) for electrical equipment as stipulated by the international IEC regulations.

*The equipment has been designed to withstand the effects of dust and water, but there is no guarantee that it will not malfunction. Do not use or leave the equipment in locations where it is subject to excessive amounts of dust, or in locations where it is submerged in water or subject to rainwater. (Only the main unit conforms to the IP56 protection class ratings when equipped with a battery.)

High Capacity 6.0Ah Lithium-ion Batteries* (for Longer Runtime):

• Wood screws 4.0mm in dia. x 50mm in length, cedar without pilot holes.

*These numbers are for reference purposes. They may vary according to the material to be screwed and operating conditions.

Fast Charging (offered by Our original charging technology):

• Built-in cooling system
• reduces charging time by efficiently cooling both the battery and charger at the same time during charging.

Large charge indicator lamp:

• with 4 color status LED and sound alert once charging is complete

USB port (5V - 2A) - Capable of charging at low & high temperatures

• (-10℃ to 50℃)

*The included batteries and charger vary by country or area.

Technical Data:

Capacity - Ordinary Bolt: 5 – 18mm (3/16 – 23/32")
Capacity - High Tension Bolt: 5 – 14mm (3/16 – 9/16")
Capacity - Machine Screw: 4 – 10mm (5/32 – 3/8")
Capacity - Self Drilling Screw: 3.5 – 6mm (1/8 – 1/4")
Drive: 6.35mm (1/4") Hex Bit Shank
Tightening Torque: 207Nm (1,832in.-lbs.)
Battery voltage: 18V
Battery Power Output: 108Wh for BSL1860, 90Wh for BSL1850, 54Wh for BSL1830
No Load Speed Power Mode: 0 – 2,900/min
No Load Speed Normal Mode: 0 – 2,900/min
No Load Speed Soft Mode: 0 - 900/min
No Load Speed Self Drilling Screw Mode: 0 – 2,900/min
Full Load Impact Rate Power Mode: 0 - 4,000/min
Full Load Impact Rate Normal Mode: 0 - 4,000/min
Full Load Impact Rate Soft Mode: 0 - 1,900/min
Full Load Impact Rate Self Drilling Screw Mode: 0 – 2,100/min
Overall Length: 127mm (5")
Overall Length: 1.6kg (3.5lbs.) with BSL1860 / BSL1850 / BSL1830 | 1.3kg (2.9lbs.) with BSL1830C
Vibration Total Values (triax vector sum)*2 (Impact tightening of fasteners of the maximum capacity of the tool): Vibration emission value ah = 16.7m/s2 | Uncertainty K = 1.5m/s2

1*. Weight according to EPTA-Procedure 01/2003.
2*: Vibration total values (triax vector sum)determined according to EN60745.
3*. The included batteries and charger vary by country or area.
