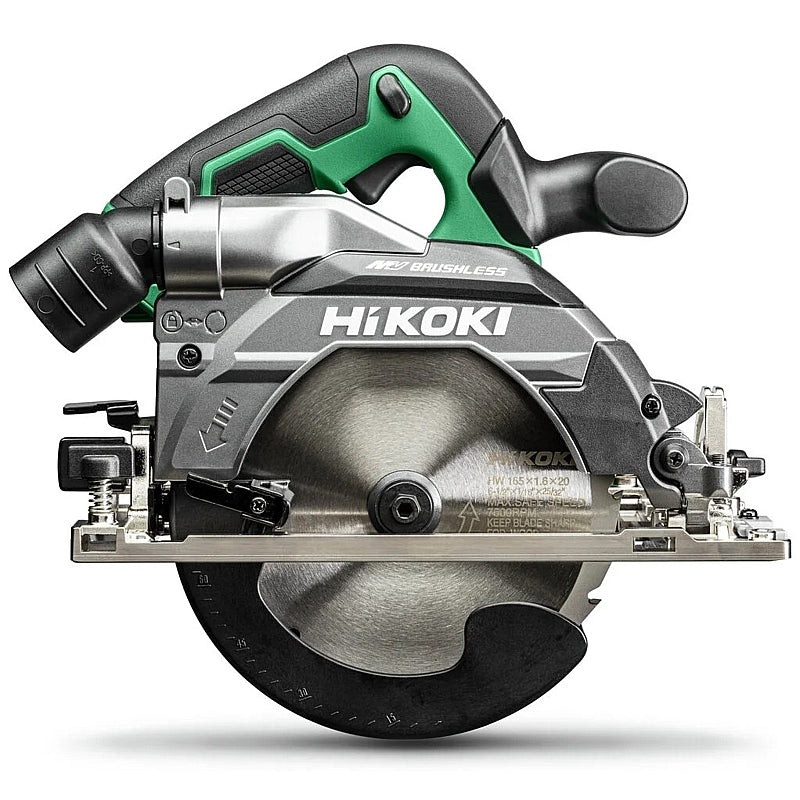

HiKOKI MULTI VOLT (36V) Cordless Brushless Circular Saw 165mm (Bare Tool) | C3606DBW2Z.

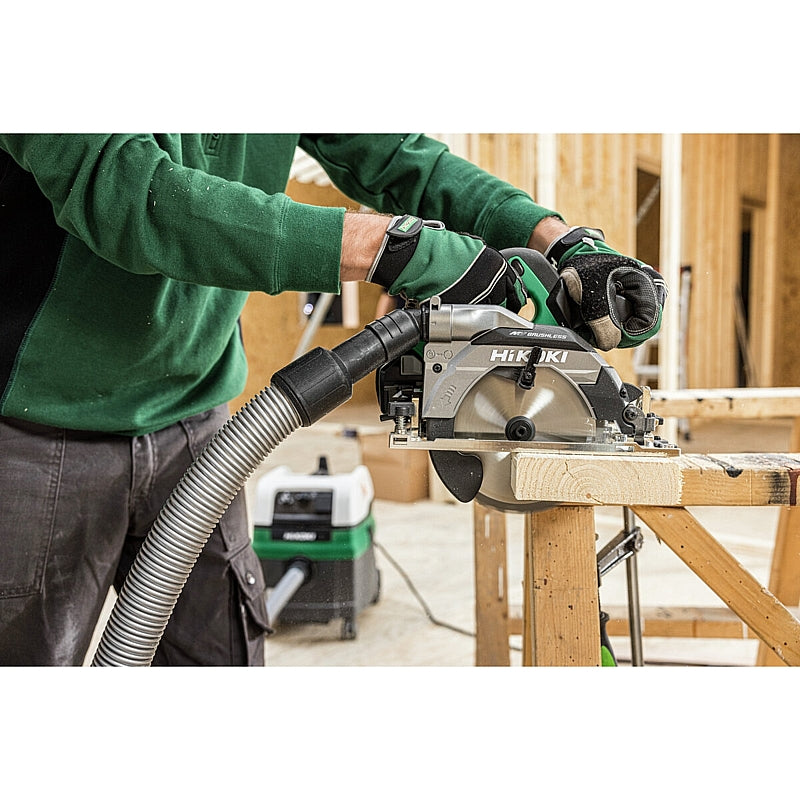

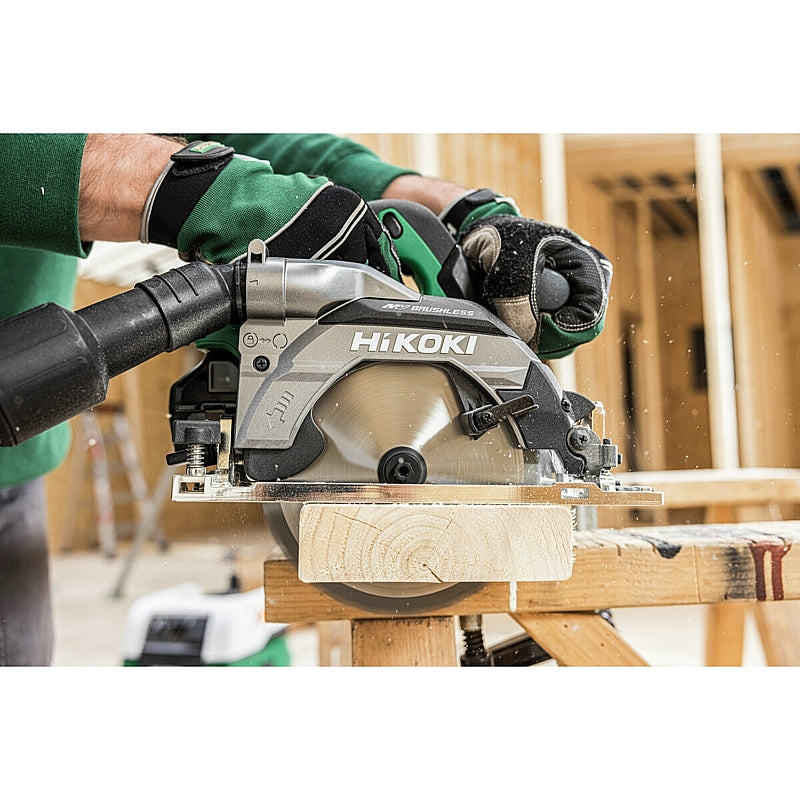

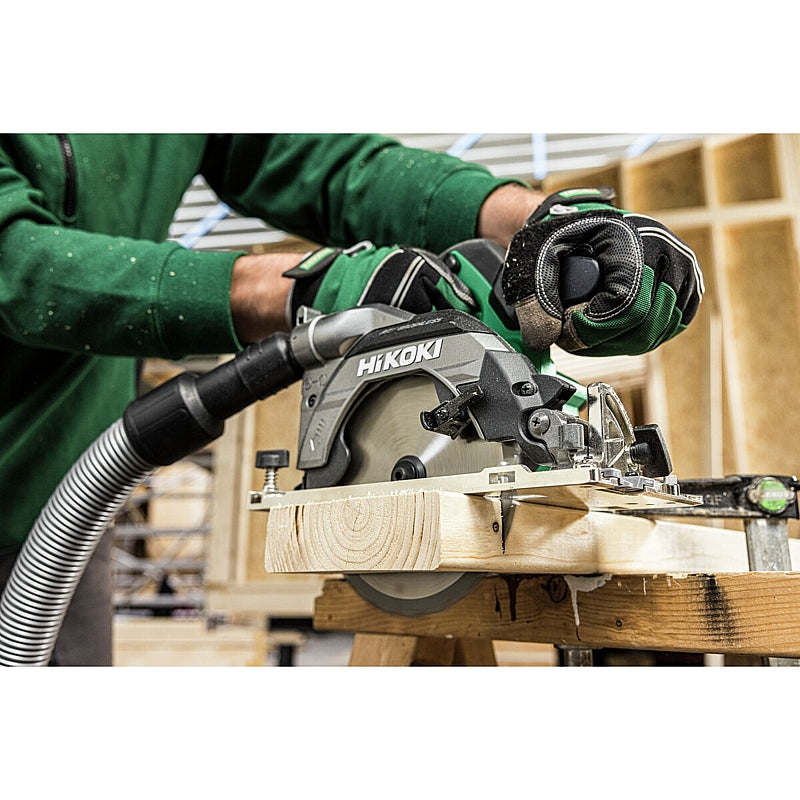

The HiKOKI MULTI VOLT 36V Cordless Brushless Circular Saw is designed for powerful and precise cutting performance across demanding woodworking and construction applications. Featuring a 165mm blade and innovative deep cut technology, this saw achieves a maximum cutting depth of 66mm while using a standard saw blade.
The brushless motor delivers strong cutting performance with reduced wear and extended service life. In addition, the MULTI VOLT battery platform provides cordless freedom while maintaining high output for demanding cutting tasks.
The saw features a bevel range from -5° to 45°, offering increased versatility for a wide range of cutting applications. Furthermore, the optimised blade visibility from both sides improves accuracy and helps users achieve high-precision cuts.
Designed for flexibility and ease of use, the tool features a compact and lightweight construction that improves manoeuvrability during operation. The aluminium die-cast gear cover further enhances durability for jobsite use.
For improved safety, the saw includes a fast stopping electric brake, kickback protection, and soft start functionality. The integrated LED light illuminates the cutting line and work surface, while the chip blower helps keep the cutting area clear for improved visibility during operation.
Features & Benefits:
-
165mm Blade Capacity: Suitable for a wide range of cutting applications.
-
Innovative Deep Cut Technology: Achieves 66mm cutting depth using a standard saw blade.
-
66mm Cutting Depth at 0°: Provides strong cutting capability for demanding tasks.
-
45mm Cutting Depth at 45°: Supports angled cutting applications.
-

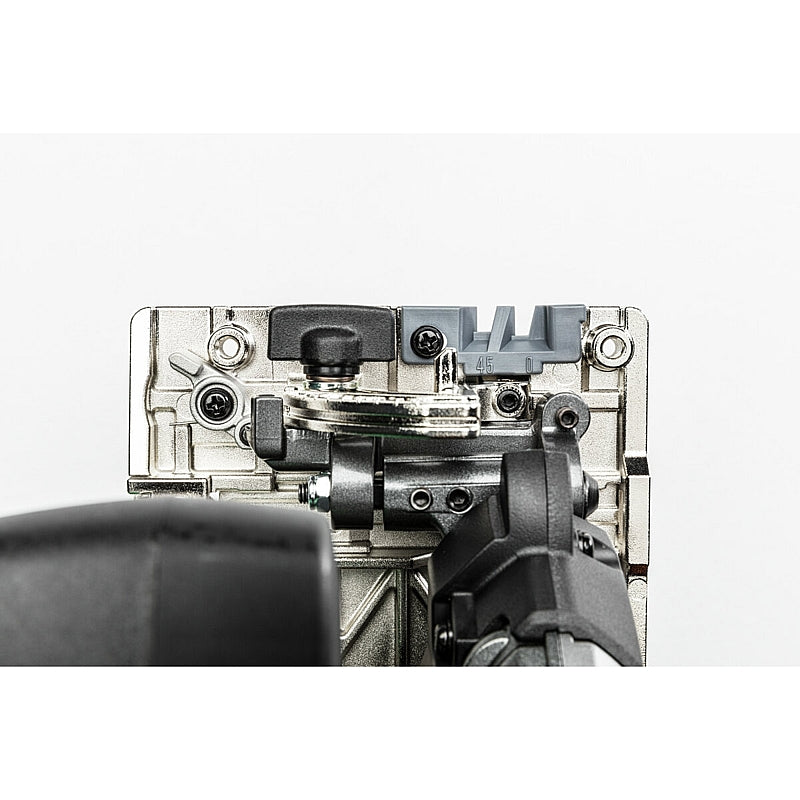

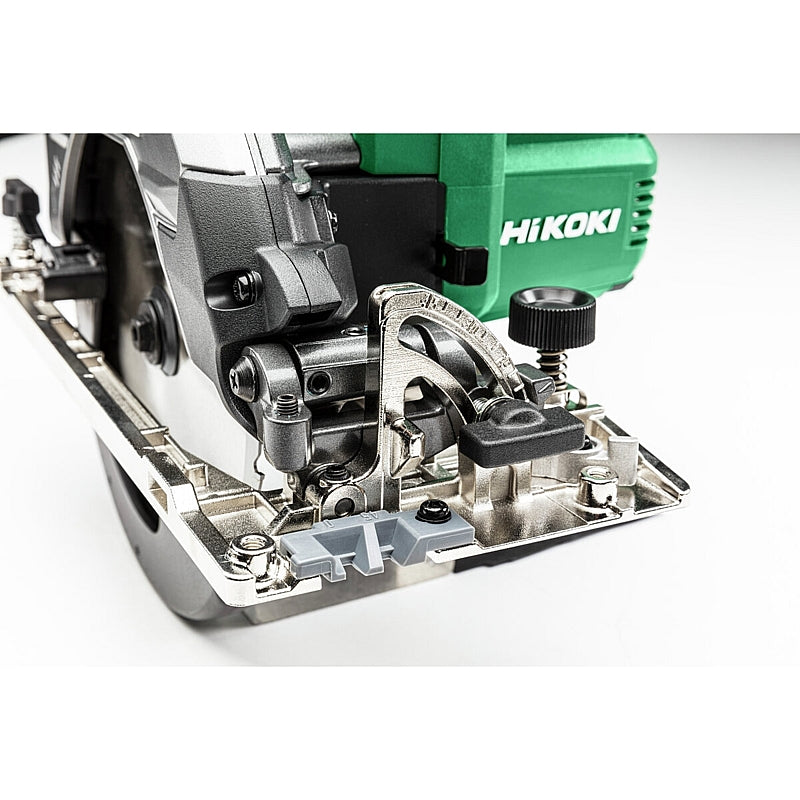

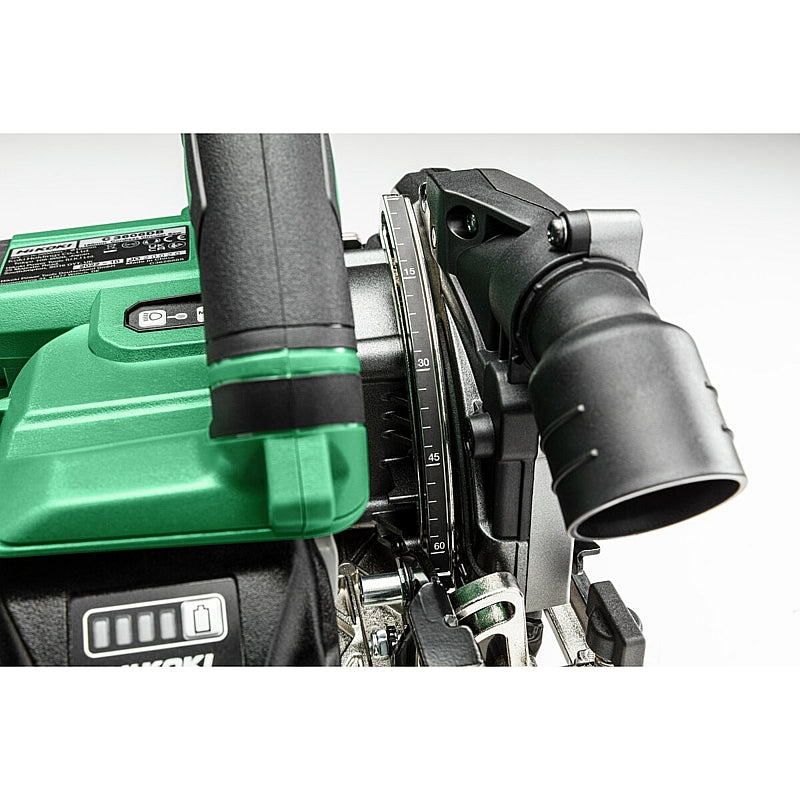

-5° to 45° Bevel Capacity: Increases versatility across multiple cutting angles.
-
Brushless Motor: Delivers high power with reduced wear and longer service life.
-

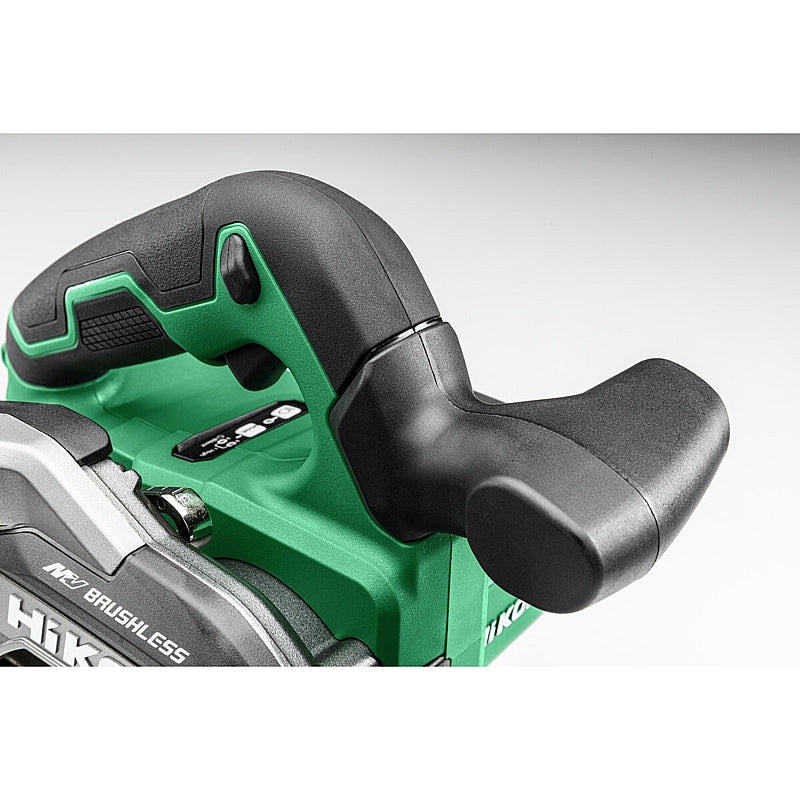

Compact and Lightweight Design: Improves manoeuvrability and flexibility during operation.
-
Fast Stopping Electric Brake: Enhances user safety.
-
Kickback Protection: Improves operational safety and control.
-
Soft Start: Provides smoother startup and better handling.
-
LED Light: Illuminates the work area and cutting line for improved visibility.
-
Chip Blower: Helps maintain a clear cutting line during operation.
-

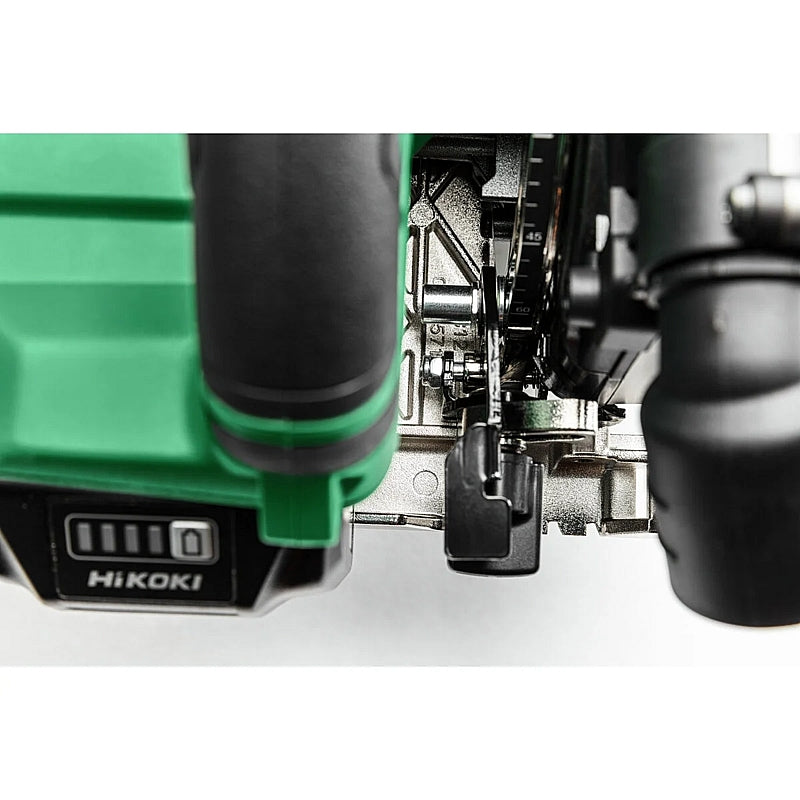

Optimised Blade Visibility: Supports highly accurate cuts from both sides.
-
Aluminium Die-Cast Gear Cover: Improves durability in demanding environments.
-
MULTI VOLT Technology: Combines cordless freedom with high-performance output.
Specifications:
-
Code: C3606DBW2Z
-
Barcode: 4966376408160
-
Battery Voltage: 36V
-
Blade Diameter: 165mm
-
Bore Size: 20mm
-

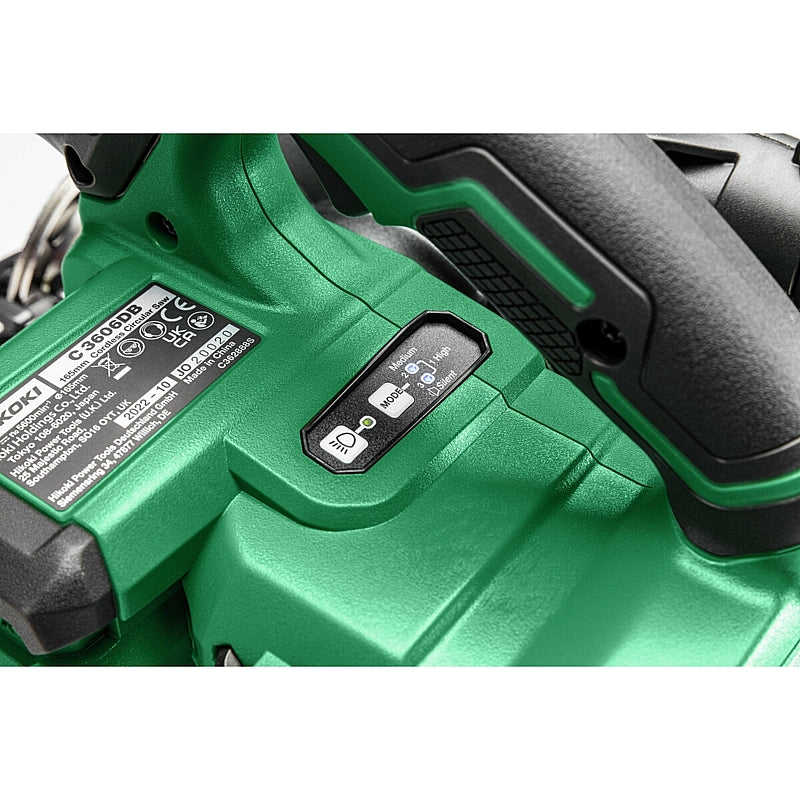

No Load Speed: 5600/4300/2000/min
-
Max Cutting Depth (0°): 66mm
-
Max Cutting Depth (45°): 45mm
-
Maximum Cutting Angle: 45°
-
Weight (Without Battery Pack): 2.70kg
-

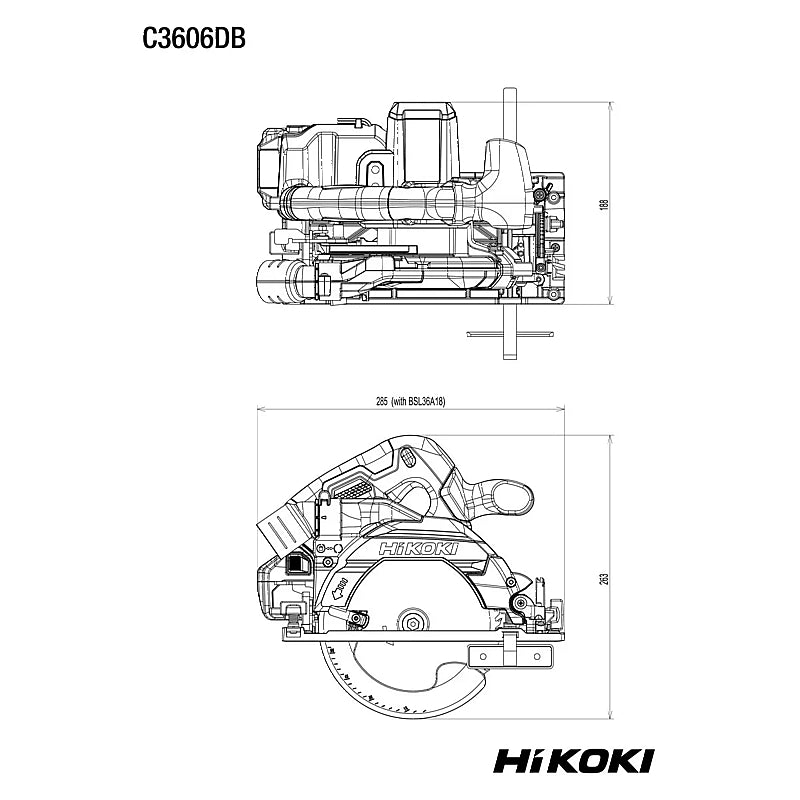

Tool Length: 285mm
-
Tool Width: 188mm
-
Tool Height: 263mm
-
Application: Cutting Chip Board
-
Vibration: 2m/sec²
-
Vibration Uncertainty K: 1.5m/sec²
-
Emission Sound Pressure: 92dB
-
Emission Sound Power: 100dB
-
Emission Uncertainty KpA: 3dB
-
Warranty (With Registration): 36 Months
-
Dust Box Attachment: None
-
Material: Gear Cover: Aluminium Die Cast
-
Brake: Yes
-
Kick Back Protection: Yes
-
Soft Start: Yes
-
Chip Blower: Yes
-
LED Light: Yes
Scope of Delivery:
- HiKOKI MULTI VOLT (36V) Cordless Brushless Circular Saw 165mm (Bare Tool)
- Saw Blade
- 5mm Hex Bar Wrench
- Guide
- Stackable System Case 4
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
