HiKOKI MULTI VOLT (36V) Cordless BL SDS-Plus Rotary Hammer Drill 3.2J (Bare Tool) | DH3628DCW2Z

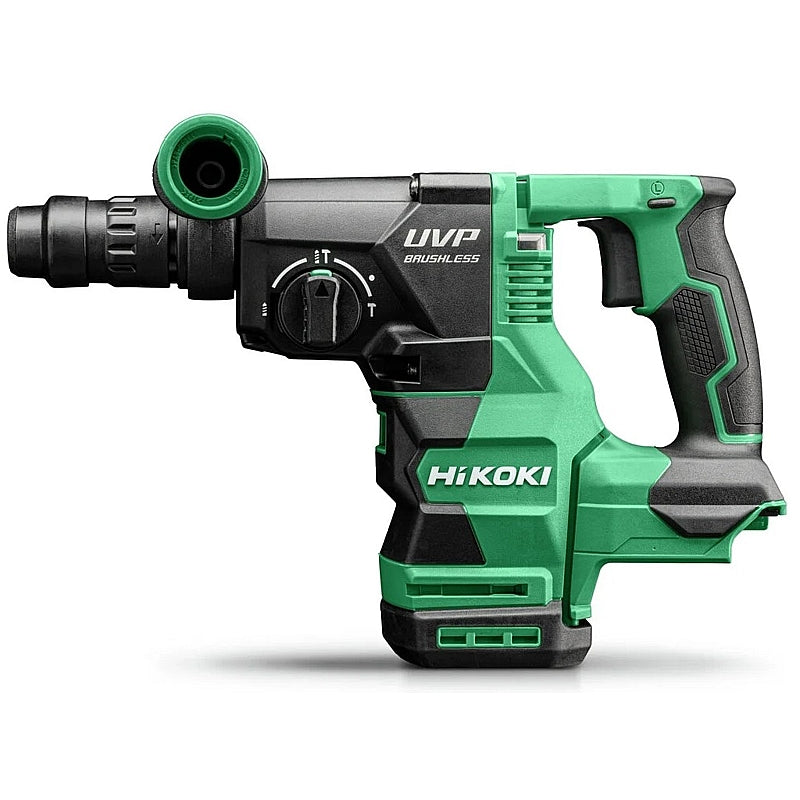

HiKOKI MULTI VOLT (36V) Cordless Brushless SDS-Plus Rotary Hammer Drill 3.2J (Bare Tool) | DH3628DCW2Z.

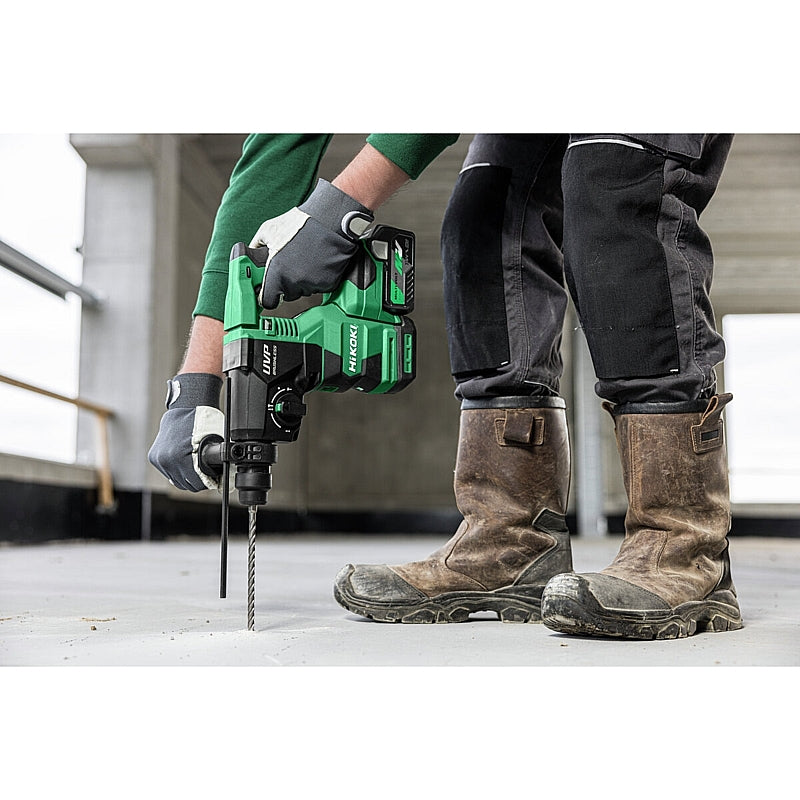

The HiKOKI MULTI VOLT 36V Cordless Brushless SDS-Plus Rotary Hammer Drill is designed for drilling and chiselling applications requiring high performance, versatility, and improved operator comfort. Delivering 3.2J of impact energy, this rotary hammer drills into concrete up to 28mm while also supporting drilling applications in mild steel and wood.

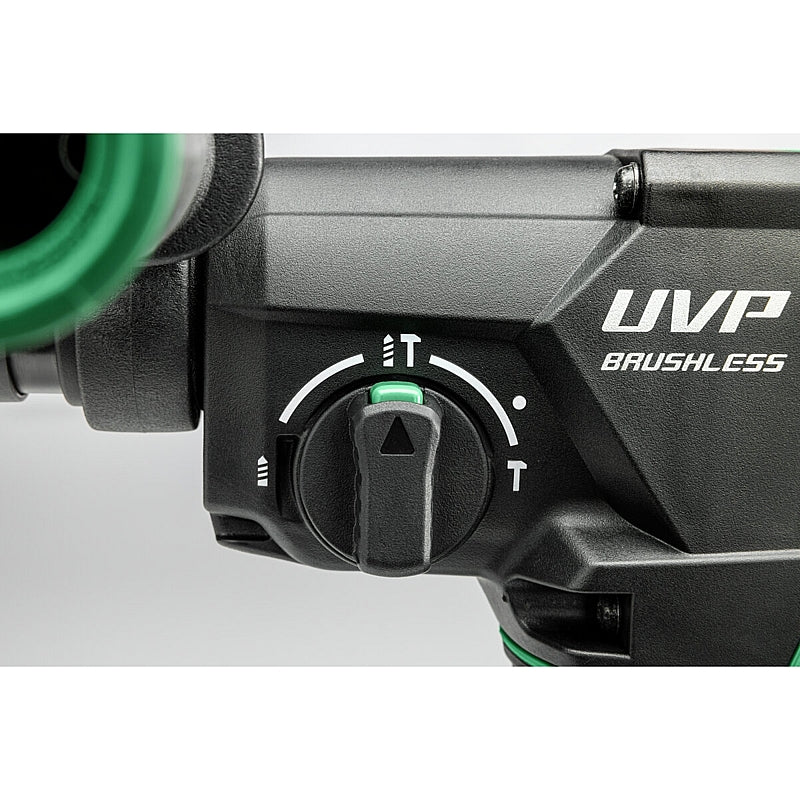

With three selectable operating modes, including rotary hammer, drill only, and hammer only with selectable chisel positioning, the tool adapts easily to a wide variety of tasks. In addition, the quick release chuck system allows fast and efficient changes between the SDS-Plus drill bit holder and the drill chuck holder for increased versatility across multiple applications.

The integrated Reactive Force Control (RFC) enhances operator safety by stopping the motor if the tool bit becomes suddenly overburdened, helping to reduce twisting of the main unit and minimise the risk of injury. Furthermore, User Vibration Protection (UVP) and the Low Vibration Handle (LVH) are designed to minimise vibration levels and improve operator comfort during prolonged use.

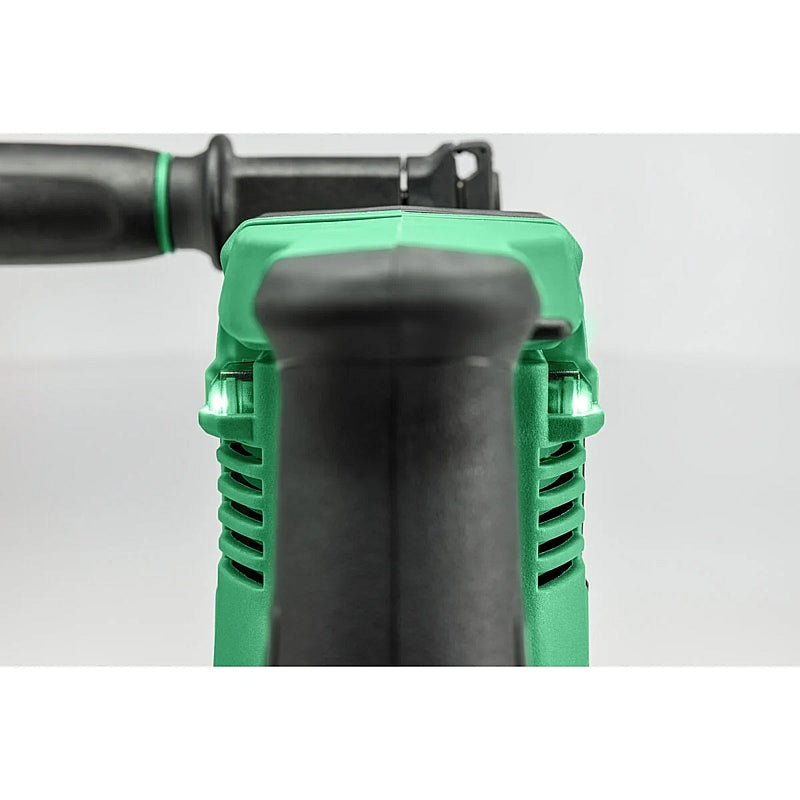

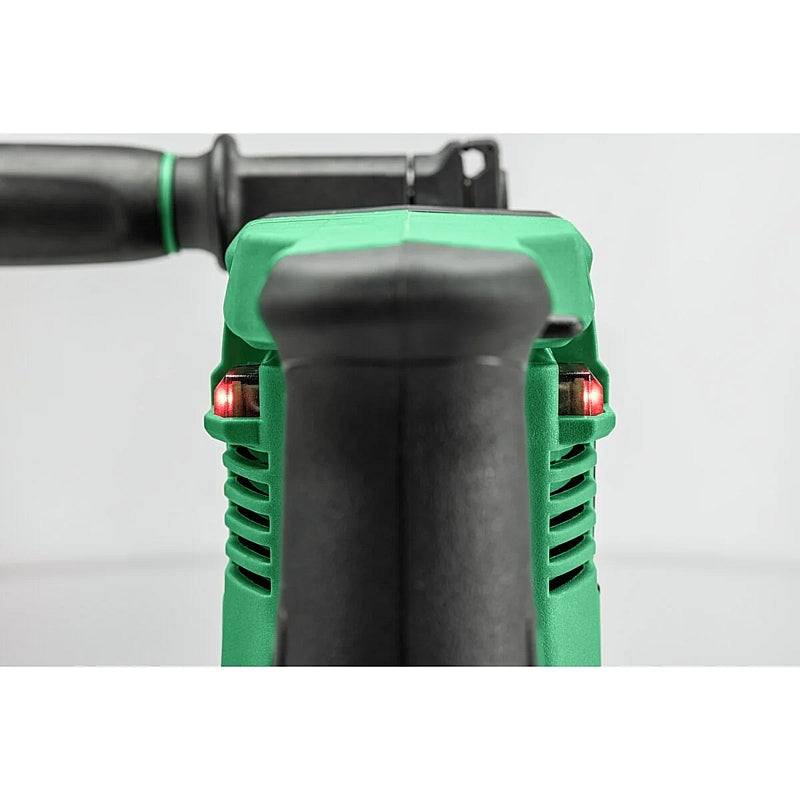

For improved drilling precision, the LED LEVEL indicates whether the tool is being held straight, helping users achieve accurately drilled holes. The auto-stop function also allows drilling time to be recorded and stored, enabling consistent drilling depths when completing repetitive applications. Additionally, soft-start control assists with comfortable drilling and helps reduce slipping during startup.

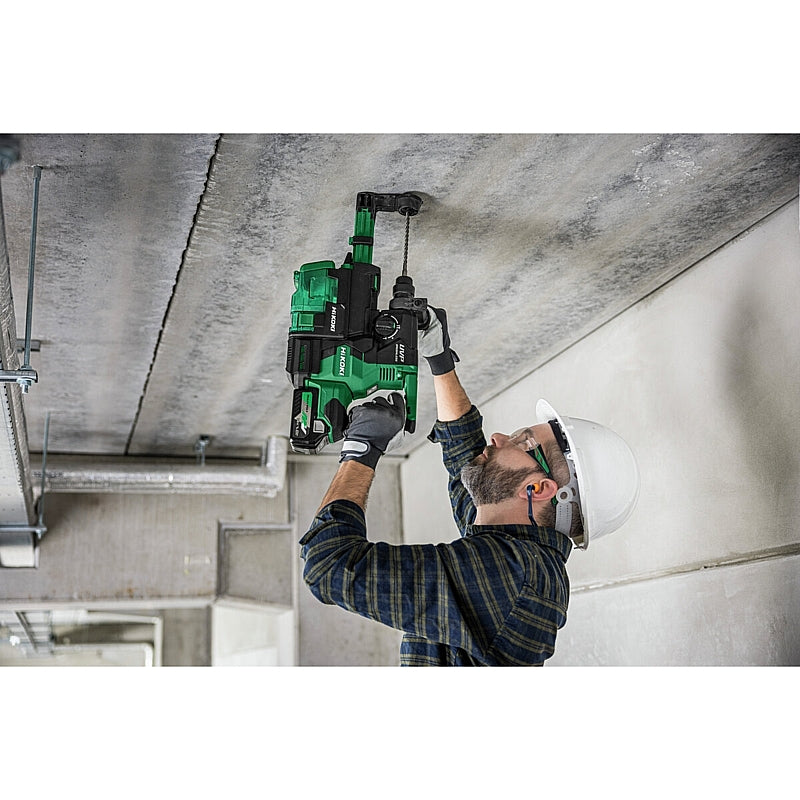

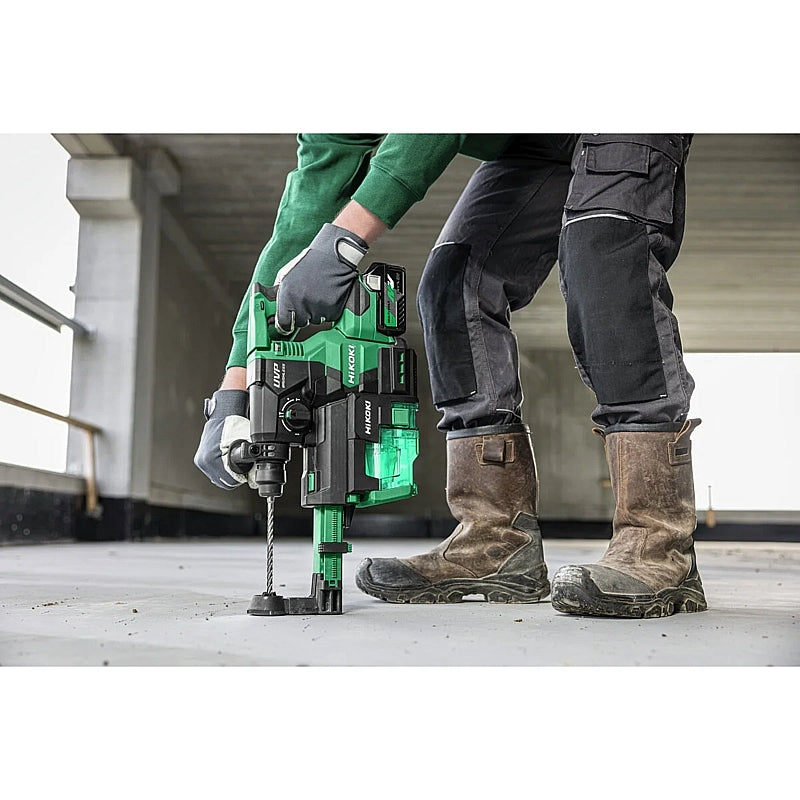

The brushless motor delivers high power with reduced wear for extended service life, while HiKOKI MULTI VOLT battery technology combines cordless freedom with powerful performance. The rotary hammer is also compatible with the Cyclon Dust Extraction Unit with HEPA filter to help maintain a cleaner and safer working environment.

Features & Benefits:

• 3 Operating Modes: Allows rotary hammer drilling, standard drilling, and hammer-only chiselling for versatile operation.
• Selectable Chisel Position: Provides improved flexibility during chiselling applications.
• Quick Release Chuck System: Enables fast switching between the SDS-Plus drill bit holder and drill chuck holder for various applications.
• 3.2J Impact Energy: Delivers powerful drilling and chiselling performance.
• Brushless Motor: Provides high power with reduced wear and extended service life.
• Reactive Force Control (RFC): Stops the motor during sudden overload situations to help reduce twisting and improve user safety.
• User Vibration Protection (UVP): Minimises vibration levels to improve operator comfort.

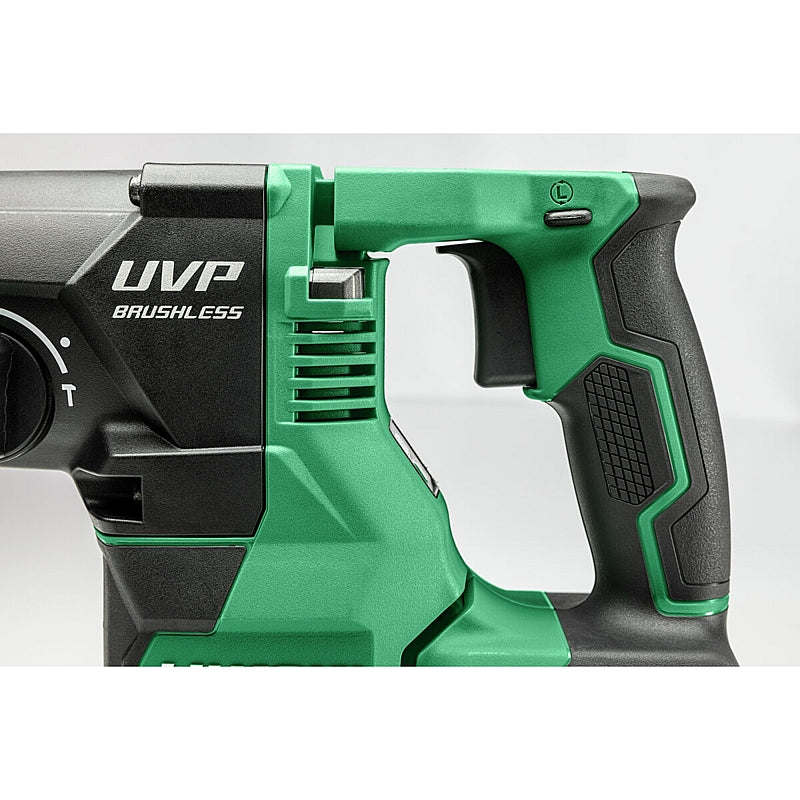

• Low Vibration Handle (LVH): Improves handling comfort and grip during operation.
• LED LEVEL: Assists with straight drilling for improved drilling accuracy.

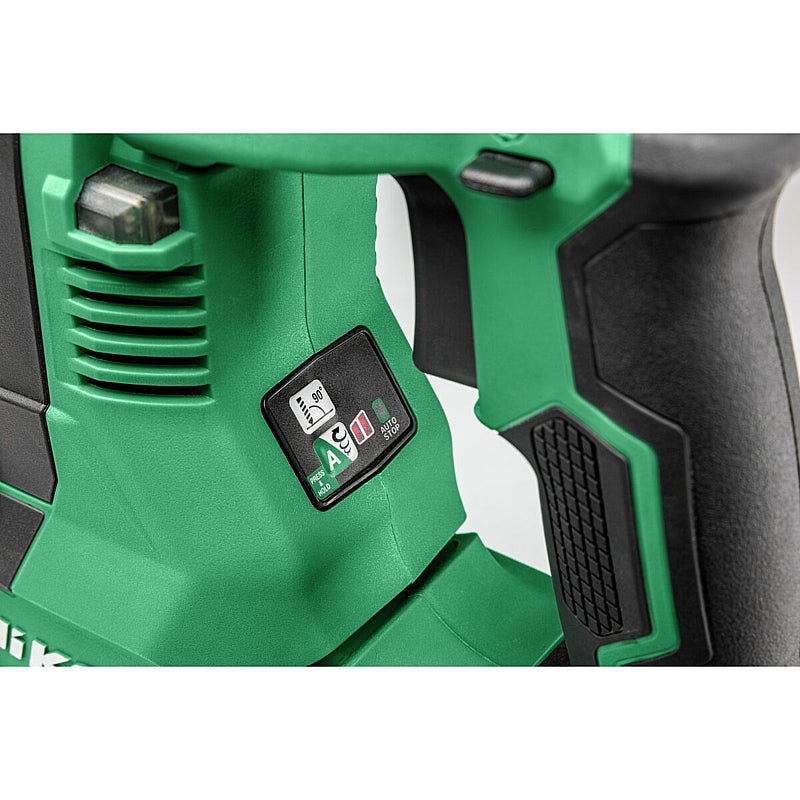

• Auto-Stop Function: Records and stores drilling time for consistent drilling depths.
• Soft-Start Control: Provides smoother drilling startup and helps reduce slipping.
• Dust Extraction Compatibility: Compatible with the Cyclon Dust Extraction Unit with HEPA filter for cleaner operation.
• MULTI VOLT Technology: Combines cordless convenience with powerful performance.
• Forward & Reverse Rotation: Allows additional control and application flexibility.
• Slip Clutch: Supports safer operation during demanding applications.
• Integrated LED Light: Improves visibility in low-light working conditions.

Specifications:

• Code: DH3628DCW2Z
• Barcode: 4966376405749
• Battery Voltage: 36V
• Impact Energy (EPTA): 3.2J
• No Load Speed: 0 - 950/min
• Full Load Impact Rate: 0 - 4300/min
• Concrete Drill Diameter: 3.4 - 28mm
• Mild Steel Drill Diameter: 13mm
• Wood Drill Diameter: 32mm
• Weight (Without Battery Pack): 3.40kg
• Tool Length: 367mm
• Tool Width: 91mm
• Tool Height: 232mm
• Application: Full Load Drilling into Concrete
• Vibration: 12.1m/sec²
• Vibration Uncertainty K: 1.5m/sec²
• Application: Full Load Chiselling
• Vibration: 9.9m/sec²
• Vibration Uncertainty K: 1.5m/sec²
• Emission Sound Pressure: 94dB
• Emission Sound Power: 102dB
• Emission Uncertainty KpA: 3dB
• Warranty (With Registration): 36 Months
• Right- / Left Rotation | Forward / Reverse Rotation: Yes
• Slip Clutch: Yes
• Dust Extraction Unit Compatibility: Yes
• Low Vibration Handle: Yes
• LED Light: Yes

Scope of Delivery:

• HiKOKI MULTI VOLT (36V) Cordless Brushless SDS-Plus Rotary Hammer Drill 3.2J (Bare Tool)
• Side Handle
• Depth Gauge
• Drill Chuck Holder
• Stackable System Case 4

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
