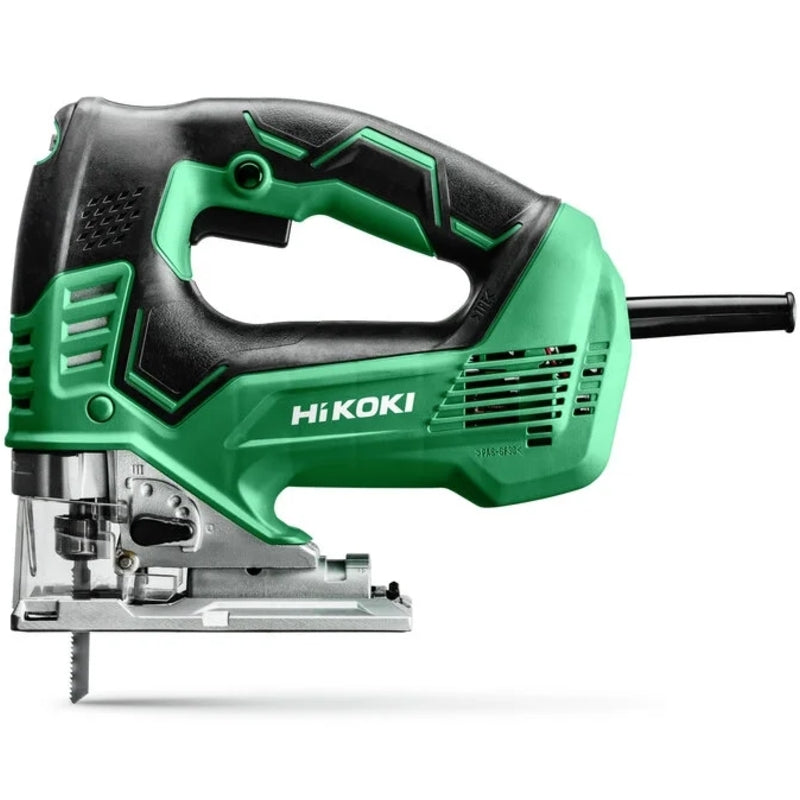

HiKOKI Orbital Jigsaw, 800W | CJ160VW1Z

HiKOKI Orbital Jigsaw, 800W | CJ160VW1Z.

The HiKOKI CJ160VW1Z Orbital Jigsaw delivers high performance with an 800 W motor and 160 mm cutting capacity in wood. Its 4-step orbital mode ensures fast and efficient cutting across different materials, while the torsion-free, nickel-plated aluminium base plate supports stable, accurate cuts. The integrated LED light provides clear visibility of the work surface and marking lines. Additionally, the soft-grip bow handle enhances comfort and control during prolonged use. Control electronics with a 5-stage stroke rate and AUTO mode adjust the stroke for material-specific applications, optimising performance under load and idle conditions. Toolless blade change and efficient chip blower further improve productivity and safety.

Features & Benefits:

• Powerful Motor: 800 W motor ensures strong cutting performance in wood and metals.
• 4-Step Orbital Action: Enables smooth and rapid cutting in a variety of materials.
• Integrated LED Light: Illuminates the work area for precise cutting and better visibility.
• Soft-Grip Handle: Provides comfortable handling and superior control during extended use.
• Toolless Blade Change: Allows fast and simple blade replacement to reduce downtime.
• Material-Specific Stroke Control: 5-stage stroke rate and AUTO mode optimise cutting performance for different materials.
• Torsion-Free Baseplate: Nickel-plated aluminium base ensures stability and precise bevel adjustments up to 45°.
• Efficient Chip Blower: Keeps cutting lines clear for accurate work.

Specifications:

Article Number: CJ160VW1Z
EAN: 4966376293902
Rated Input Power: 800 W
Voltage: 230 V
Mains Frequency: 50 Hz
Cutting Capacity Wood: 160 mm
Cutting Capacity Mild Steel Plate: 10 mm
Cutting Capacity Stainless Steel: 2.5 mm
Minimum Cutting Radius: 25 mm
Maximum Cutting Angle: 45 °
Pendulum Stroke Levels: 4
Stroke Length: 26 mm
Tool Weight: 2.7 kg
Cable Length: 2.5 m
Tool Length: 249 mm
Tool Width: 75 mm
Tool Height: 205 mm
Handle Type: Loop Handle
Auto Mode: Yes
Toolless Blade Change: Yes
Pendulum Stroke: Yes
Chip Blower: Yes
LED Light: Yes
No Load Speed: 800-2,800 /min
ETIM Class: EC001399

Scope of Delivery:

• 1 x HiKOKI Orbital Jigsaw, 800W
• 1 x Blade No. 41
• 1 x Blade No. 123X
• 1 x Splinter Guard
• 1 x Sub Base
• 1 x Chip Cover
• 1 x Stackable System Case 2

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
