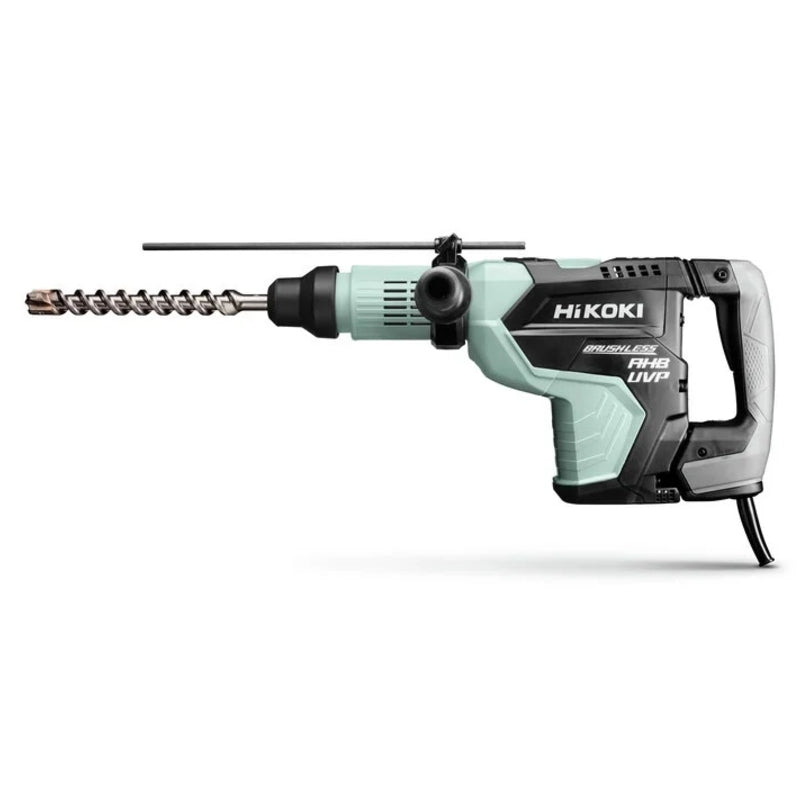

HiKOKI SDS-Max Rotary Hammer Drill 12.2J, 1500W | DH45MEYWSZ

HiKOKI SDS-Max Rotary Hammer Drill 12.2J, 1500W | DH45MEYWSZ.

The HiKOKI SDS-Max Rotary Hammer Drill 12.2J, 1500W is engineered for professional-grade performance in demanding construction environments. Equipped with a powerful 1500W brushless motor, it delivers an impressive 12.2J of impact energy for efficient drilling and chiselling in concrete up to 45mm. The brushless technology ensures high power output, reduced wear, and a longer service life while maintaining full performance, even when using long extension cords.

This model offers two operating modes—rotary hammer and hammer only—providing flexibility for both drilling and chiselling applications. The 12 selectable chisel positions allow users to achieve optimal precision and working angles. Additionally, constant speed control keeps performance consistent under heavy load, while the variable drilling speed control enables fine-tuned operation to suit specific materials or applications.

The User Vibration Protection (UVP) system significantly reduces vibration levels, improving comfort during prolonged use. Designed with an ergonomic soft grip handle and a durable Aluminium Housing Body (AHB), the DH45MEYWSZ provides superior operator control, extended durability, and resistance against external influences. Its SDS-Max chuck system allows quick, one-action bit changes for improved efficiency. Together, these features make this rotary hammer a powerful, reliable, and comfortable tool ideal for professional construction and industrial applications.

Features & Benefits:

• Powerful Brushless Motor: Provides high efficiency, reduced maintenance, and consistent performance, even with long extension cords.
• High Impact Energy: 12.2J impact force ensures rapid drilling and chiselling in tough concrete materials.
• Two Operating Modes: Choose between rotary hammer and hammer only for versatile use.
• 12 Chisel Positions: Enables precise alignment and greater flexibility during chiselling work.
• User Vibration Protection (UVP): Reduces vibration levels for superior comfort and control.
• Constant Speed Control: Maintains optimal drilling performance under heavy load.
• Variable Speed Control: Allows adjustment of drilling and hammering speeds to suit each task.
• Quick Tool Changes: SDS-Max system allows single-action bit and chisel exchange.
• Durable Construction: Aluminium Housing Body (AHB) protects internal components against external damage.
• Ergonomic Design: Soft grip handle ensures comfort during extended use.
• Built-in Safety: Slip clutch and lock-on function enhance user safety and operational convenience.

Specifications:

• Code: DH45MEYWSZ
• Barcode (EAN): 4966376285020
• Rated Input Power: 1500 W
• Voltage: 230 V
• Mains Frequency: 50/60 Hz
• Impact Energy (EPTA): 12.2 J
• Full Load Impact Rate: 2950 – 1200 /min
• Drilling Capacity – Concrete: 45 mm
• No Load Speed: 120 – 310 /min
• Tool Length: 535 mm
• Tool Width: 116 mm
• Tool Height: 255 mm
• Tool Weight: 9.50 kg
• Cable Length: 4 m
• User Vibration Protection (UVP): Yes
• Slip Clutch: Yes
• Lock-On Function: Yes
• Aluminium Housing Body: Yes
• Low Vibration Handle: Yes
• Brushless Motor: Yes
• ETIM Class: EC001366

Scope of Delivery:

• 1 x HiKOKI SDS-Max Rotary Hammer Drill 12.2J, 1500W
• 1 x Side Handle
• 1 x Stopper
• 1 x Hammer Grease A
• 1 x Injection Case

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
