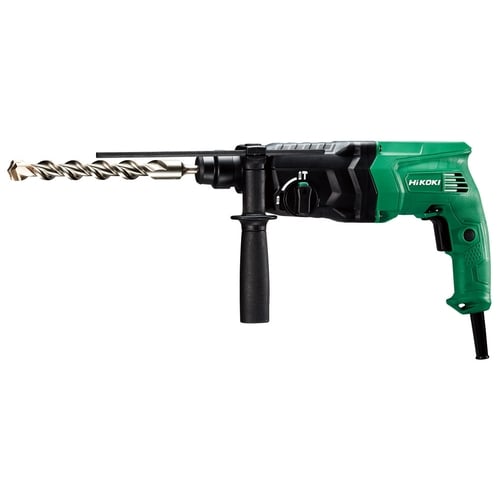

Hikoki SDS-Plus Rotary Hammer Drill 24mm 730W (2-Mode) | DH24PG2

Hikoki SDS-Plus Rotary Hammer Drill 24mm 730W (2-Mode) | DH24PG2.

Features:

Compact Body.

• The shortened overall length results in better handling.

*Vs. the existing model DH24PH/PG.

Labyrinth Ventilation Windows for reducing the ingress of dust and debris into the tool.

• Double ventilation windows (inlets) in labyrinth construction does less harm to the motor by reducing the ingress of dust and debris into the tool.

Large Change Lever.

• Located on the side of the tool body for easy operation

Angle Adjustment Function (DH24PH2 only).

• When using a cold chisel or cutter, the angle of the tool tip can be adjusted by setting the change lever as shown on the left.

One-push Bit Mounting.

• Easy to insert a bit

Technical Data:

Capacity Concrete: 24mm
Capacity Steel: 13mm
Capacity Wood: 32mm
Capacity Core Bit: 50mm
Power Input: 730W
Bit Shank: SDS-plus
No Load Speed: 0 - 1,050/min
Full Load Impact Rate: 0 - 3,950/min
Overall Length: 349mm
Weight*1: 2.8kg

Vibration Total Values (triax vector sum) *2:

Hammer drilling into concrete: Vibration emission value ah, HD = 14.5m/s2 / Uncertainty K = 1.5m/s2
Equivalent chiselling value: Vibration emission value ah, CHeq = 11.5m/s2, Uncertainty K = 1.5m/s2

*1. Weight according to EPTA-Procedure 01/2003 (incl. the side handle but excl. a cord).
*2: The vibration total values were determined according to EN60745.
*3. Standard accessories vary by country or area.

Downloads:

Brochure - Hikoki DH24PG2 (2-mode)
