BIG RED Hydraulic Hand Pump, 700 Bar | TRCP-180

BIG RED Hydraulic Hand Pump, 700 Bar | TRCP-180.

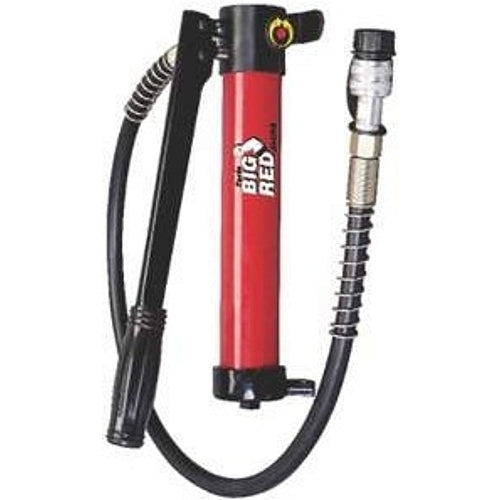

The BIG RED TRCP-180 Hydraulic Hand Pump is engineered for reliability and efficiency in demanding hydraulic applications. Designed for use with single-acting hydraulic cylinders, this unit is ideal for lifting, pressing, and general maintenance operations requiring precision control and high-pressure output.

Featuring a robust steel body and a dual-stage mechanism, the TRCP-180 offers efficient fluid displacement and fast operation. It delivers 2 ml of oil per pump stroke under high-pressure conditions, with an overall oil capacity of 400 ml. Compact in size and easy to transport, this pump is perfect for both workshop and on-site use.

Features & Benefits:

• High-Pressure Performance: Provides up to 700 Bar of hydraulic pressure for heavy-duty tasks.
• Efficient Output: Delivers 2 ml of oil per stroke under high pressure for controlled operation.
• Reliable Capacity: 400 ml oil reservoir supports continuous use without frequent refills.
• Durable and Portable: Sturdy construction in a compact form factor, ideal for mobile repairs and confined workspaces.
• Compatible Design: Works seamlessly with a range of BIG RED hydraulic rams and accessories.

Specifications:

Code: TRCP-180
Working Pressure (Bar) Low: –
Working Pressure (Bar) High: 700
Oil Volume / each pump (ml) Low: –
Oil Volume / each pump (ml) High: 2
Oil Capacity (ml): 400
N.W / G.W (Kg): 3.9 / 4.5
Package Size (mm): 395 x 225 x 165

Scope of Delivery:

• 1 x BIG RED Hydraulic Hand Pump | TRCP-180

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
