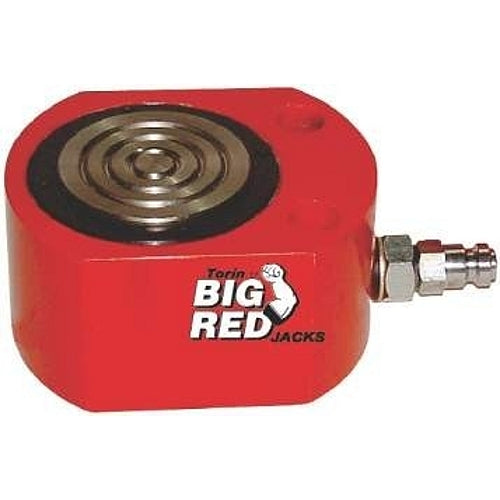

BIG RED Hydraulic Portable Ram, 10T | TRB2010

BIG RED Hydraulic Portable Ram, 10T | TRB2010.

The BIG RED TRB2010 Hydraulic Portable Ram is engineered for durability and efficiency in demanding lifting environments. With a 10-ton capacity, it is well-suited for lifting, pushing, or positioning heavy equipment or machinery where space is limited.

This model features a minimum height of 53 mm (2.09") and a maximum extension height of 64 mm (2.52"), offering an 11 mm (0.43") lift. Its robust 44 mm (1.73") cylinder diameter contributes to lifting stability under load. Compact and lightweight at just 1.8 kg (3.97 lbs), the TRB2010 is also easy to transport and deploy in tight working conditions.

It pairs seamlessly with the TRCP-180 hydraulic hand pump, ensuring consistent and controlled hydraulic performance.

Features & Benefits:

• Powerful Lifting Capacity: Provides up to 10 tons of force, ideal for medium-duty industrial or workshop use.
• Low-Profile Design: A minimum height of just 53 mm (2.09") allows operation in tight or confined spaces.
• Precision Control: Short lift stroke of 11 mm (0.43") ensures accurate adjustments and safe positioning.
• Sturdy Construction: The 44 mm (1.73") cylinder diameter adds strength and durability to the lifting system.
• Portable and Lightweight: Weighing only 1.8 kg (3.97 lbs), the ram is easy to transport and handle on the job site.
• Pump Compatibility: Designed for use with the TRCP-180 hydraulic hand pump for efficient operation (refer to catalogue page 11).

Specifications:

Product Code: TRB2010
Capacity: 10 Ton
Minimum Height: 53 mm (2.09")
Lift Height: 11 mm (0.43")
Maximum Height: 64 mm (2.52")
Cylinder Diameter: 44 mm (1.73")
Net Weight: 1.8 kg
Gross Weight: 1.9 kg
Package Size: 320 x 170 x 150 mm
Suitable Hand Pump: TRCP-180 (refer to catalogue page 11)

Scope of Delivery:

• 1 x BIG RED Hydraulic Portable Ram | TRB2010

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
