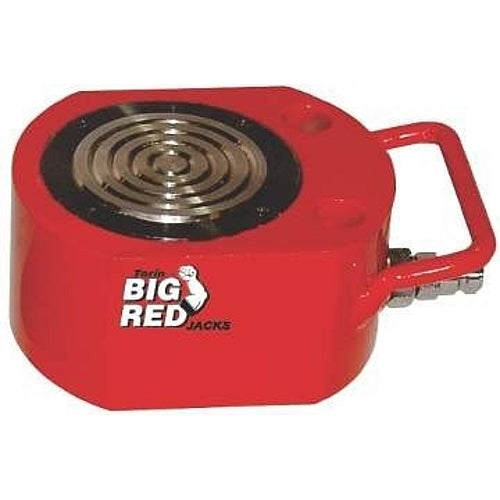

BIG RED Hydraulic Portable Ram, 200T | TRB2200

BIG RED Hydraulic Portable Ram, 200T | TRB2200.

The BIG RED TRB2200 Hydraulic Portable Ram is engineered for high-capacity industrial lifting, pressing, and pushing tasks where compact equipment is essential. With an impressive 200-ton lifting force, this single-acting hydraulic ram is ideal for heavy-duty operations that require both power and precision in restricted working environments.

The unit features a minimum height of 101 mm (3.98"), making it suitable for tight spaces, and delivers a controlled lift height of 21 mm (0.83")—reaching a maximum height of 122 mm (4.8"). Its robust cylinder, with a 195 mm (7.68") diameter, enhances strength and stability during use.

Designed to integrate with the TRCP-700 hydraulic hand pump (refer to catalogue page 11), the TRB2200 enables a dependable and efficient hydraulic setup. Its heavy-duty steel construction ensures durability and consistent performance under high-stress conditions.

Features & Benefits:

• High-Capacity Output: Offers a substantial 200-ton force for intensive industrial applications.
• Low-Profile Design: Operates at a minimum height of just 101 mm (3.98"), fitting beneath low-clearance structures.
• Controlled Stroke: Features a 21 mm (0.83") lift height for precision movement in critical operations.
• Heavy-Duty Cylinder: Built with a large 195 mm (7.68") diameter cylinder to handle high-load demands with stability.
• Compatible System Integration: Designed for use with the BIG RED TRCP-700 hand pump, providing a reliable hydraulic solution.

Specifications:

Product Code: TRB2200
Capacity: 200 Ton
Minimum Height: 101 mm (3.98")
Lift Height: 21 mm (0.83")
Maximum Height: 122 mm (4.8")
Cylinder Diameter: 195 mm (7.68")
Net Weight: 34 kg
Gross Weight: 35.9 kg
Package Size: 260 x 255 x 150 mm
Suitable Hand Pump: TRCP-700 (refer to catalogue page 11)

Scope of Delivery:

• 1 x BIG RED Hydraulic Portable Ram | TRB2200

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
