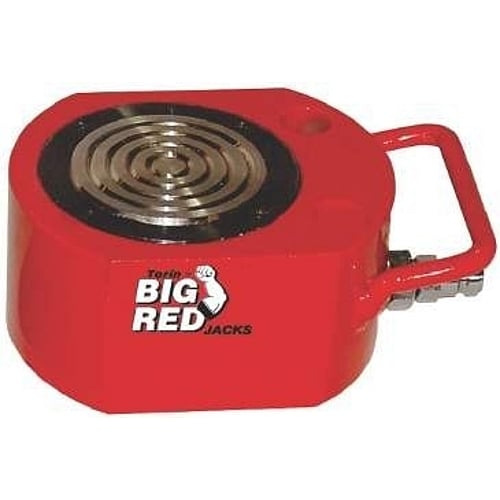

BIG RED Hydraulic Portable Ram, 50T | TRB2050

BIG RED Hydraulic Portable Ram, 50T | TRB2050.

The BIG RED TRB2050 Hydraulic Portable Ram is designed to deliver exceptional lifting and pressing power in a space-efficient package. With a robust 50-ton capacity, this single-acting hydraulic ram is well-suited for industrial maintenance, construction, and heavy equipment repair operations.

The unit boasts a low-profile height of just 77 mm (3.03"), making it ideal for applications with limited vertical clearance. It offers a controlled lift stroke of 18 mm (0.71"), reaching a maximum height of 95 mm (3.74"). The cylinder diameter measures 98 mm (3.86"), supporting stable and secure load handling.

Engineered for integration with the TRCP-700 hand pump (refer to page 11 of the catalogue), this ram delivers reliable performance when paired with compatible hydraulic systems. Built with durability in mind, the TRB2050 is compact, easy to transport, and strong enough to meet heavy-duty demands.

Features & Benefits:

• Compact Design: At only 77 mm (3.03") tall, this ram fits easily in tight working environments.
• Powerful Output: Generates a 50-ton lifting force—ideal for demanding industrial use.
• Controlled Lift: Offers an 18 mm (0.71") stroke for precision lifting and pressing operations.
• Wide Cylinder Base: A 98 mm (3.86") diameter provides excellent load stability during operation.
• System Compatibility: Pairs with the TRCP-700 hydraulic hand pump for efficient operation and control.

Specifications:

Product Code: TRB2050
Capacity: 50 Ton
Minimum Height: 77 mm (3.03")
Lift Height: 18 mm (0.71")
Maximum Height: 95 mm (3.74")
Cylinder Diameter: 98 mm (3.86")
Net Weight: 8.5 kg
Gross Weight: 8.8 kg
Package Size: 230 x 165 x 110 mm
Suitable Hand Pump: TRCP-700 (refer to catalogue page 11)

Scope of Delivery:

• 1 x BIG RED Hydraulic Portable Ram | TRB2050

Downloads:

• Torin BIG RED Jacks & Yellow Jacket Mini Garage Equipment Catalogue [PDF]

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
