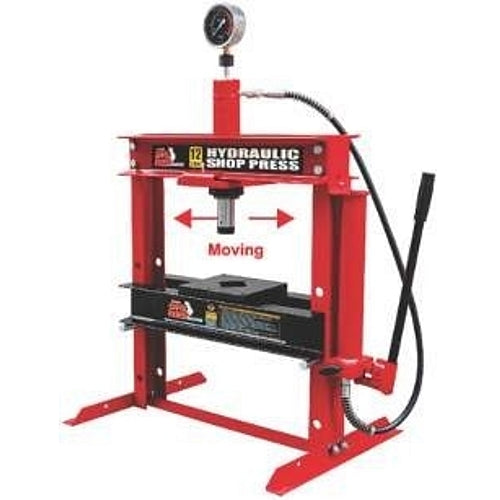

BIG RED Hydraulic Shop Press with Gauge 0-340mm, 12T | TY12001

BIG RED Hydraulic Shop Press with Gauge 0–340mm, 12T | TY12001.

Engineered for small to medium-scale workshop operations, the BIG RED TY12001 Hydraulic Shop Press provides a dependable 12-ton (12,000 kg) capacity. This model is equipped with a pressure gauge, allowing for more controlled and precise pressing during various tasks, such as bearing installations, metal shaping, or component alignment.

The press offers a 165 mm stroke for adequate depth and a 0–340 mm work range, accommodating compact workpieces with ease. Despite its solid build, the TY12001 remains highly portable due to its relatively low net weight of 56.5 kg. Additionally, the unit is delivered in a neatly packed 795 x 420 x 180 mm box, simplifying storage and setup.

Features & Benefits:

• Reliable 12-Ton Capacity: Provides sufficient force for a variety of light to medium-duty shop tasks.
• Built-In Pressure Gauge: Enhances operational control and helps monitor applied force.
• Efficient 165 mm Stroke: Supports deeper pressing and flexibility during jobs.
• Compact Work Range: With a 0–340 mm working range, it's ideal for smaller components and bench-top use.
• Portable Yet Sturdy: Weighs just 56.5 kg, offering a balance between mobility and durability.

Specifications:

Product Code: TY12001
Capacity: 12 Ton (12,000 kg)
Stroke: 165 mm
Work Range: 0–340 mm
Net Weight: 56.5 kg
Gross Weight: 58.5 kg
Package Size: 795 x 420 x 180 mm (L x W x H)

Scope of Delivery:

• 1 x BIG RED Hydraulic Shop Press with Gauge | TY12001
