Kobe Red Line Micro Air Die Grinder Kit (GM5603) | KBE2702543K

Kobe Red Line Micro Air Die Grinder Kit (GM5603) | KBE2702543K.

This Kobe Red Line Micro Air Die Grinder is engineered for precision tasks where control and accuracy are essential. With its compact pencil-style body, it allows users to work comfortably in tight spaces while maintaining excellent handling and stability. Furthermore, its high-speed performance makes it suitable for fine grinding, polishing and deburring on small metal components and detailed fabrication work. In addition, the ring-style variable throttle provides precise speed control, ensuring consistent results across a wide range of applications. The lightweight design, combined with a rear exhaust and silencer system, also enhances operator comfort during extended use.

Features & Benefits:

• High-speed performance: Operates at 58,000 rpm for efficient precision grinding and polishing.
• Compact pencil design: Enables easy access into confined or intricate working areas.
• Variable ring throttle: Provides accurate and responsive speed control for detailed work.
• Low vibration operation: Reduces operator fatigue during extended use.
• Noise reduction system: Includes a silencer to help minimise operational noise levels.
• Lightweight construction: Improves handling and control for precision applications.

Standards:

• EN ISO 12100:2010 - Safety of machinery: General principles for design, risk assessment and risk reduction.
• EN ISO 11148-9:2011 - Hand-held non-electric power tools: Safety requirements for die grinders.
• ISO 28927-12:2012 - Hand-held portable power tools: Test methods for vibration emission in die grinders.
• EN ISO 15744:2008 - Hand-held non-electric power tools: Noise measurement code (engineering method, grade 2).

Specifications:

• Code: KBE2702543K
• Barcode: 5036140089228
• Air Consumption: 7 CFM (198 L/min)
• Air Inlet Size: 1/4 in (6.35 mm)
• Body Style: Pencil
• Collet Size: 3 mm (0.12 in)
• Exhaust Location: Rear
• Free Speed: 58,000 rpm
• Air Pressure: 90 psi (6.2 bar)
• Overall Length: 156 mm (6.14 in)
• Power Source: Air
• Power: 38 W
• Weight: 0.21 kg (0.46 lb)
• Sound Pressure Level: 76 dB(A)
• Vibration Level: 4.8 m/s²
• Throttle Type: Ring-style throttle

Scope of Delivery:

• 1 x Kobe Red Line Micro Air Die Grinder (GM5603)
• 1 x Silencer
• 1 x 3 mm Collet

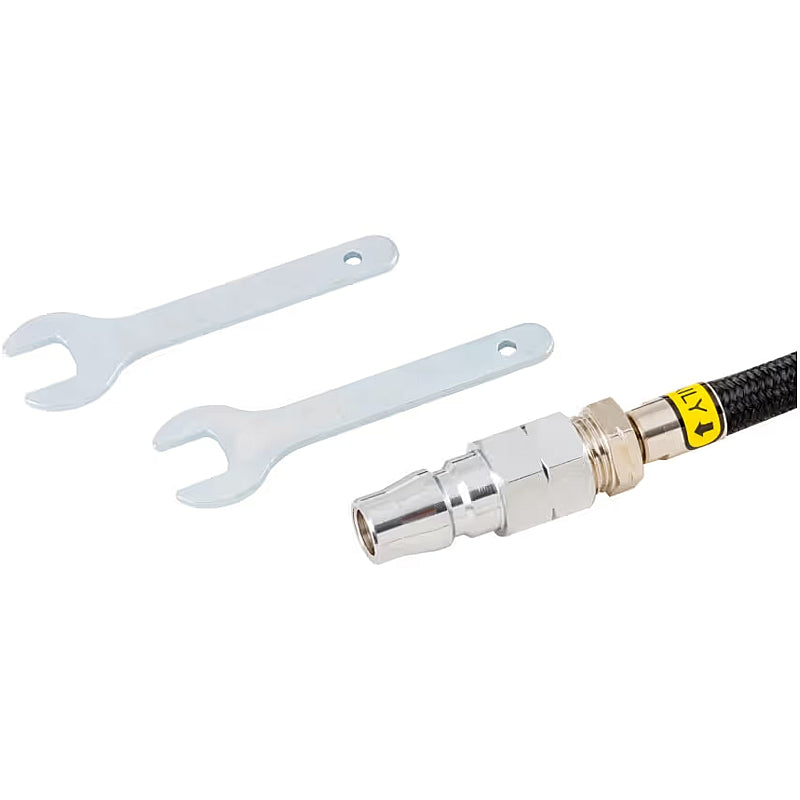

• Collet spanners
• Instruction manual

View Datasheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
