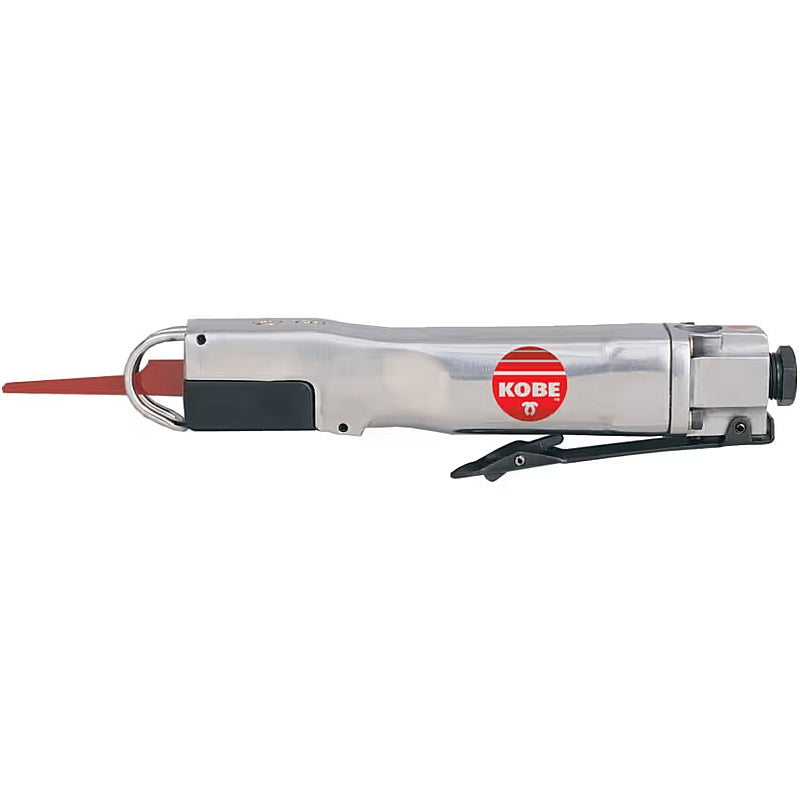

Kobe Red Line Multi-Purpose Air Body Saw, 1/4 Air Inlet (BS920L) | KBE2703500K

Kobe Red Line Multi-Purpose Air Body Saw, 1/4 Air Inlet (BS920L) | KBE2703500K.

This Kobe Red Line Multi-Purpose Air Body Saw is engineered to deliver clean, accurate cuts without distortion. As a result, it is ideally suited for body shop and sheet metal applications where precision and finish quality are essential. Furthermore, its compact and lightweight construction enhances handling, particularly in confined working areas. The tool operates using compressed air and incorporates a teasing throttle for improved cutting control. In addition, a safety release throttle helps reduce the risk of accidental start-ups, improving user safety during operation. With the ability to accept a wide range of blade types, this air body saw offers excellent versatility across automotive and fabrication tasks.

Features & Benefits:

• Burr-free cutting performance: Produces clean cuts without distortion for a professional finish.
• High versatility: Accepts most square-ended blades, including jigsaw blades, hacksaw blades and mini files up to 13 mm (0.51 in).
• Safety release throttle: Helps prevent accidental start-ups for improved operator safety.
• Wide material capability: Cuts aluminium and steel with reliable performance.
• Compact design: Lightweight construction improves control and ease of use in confined spaces.
• Secure blade system: Universal side-locking blade clamps ensure stable blade retention during use.

Standards:

• EN ISO 12100:2010 / Safety of machinery - General principles for design - Risk assessment and risk reduction (ISO 12100:2010)
• EN ISO 11148-4:2012 / Hand-held non-electric power tools - Safety requirements Part 4: Non-rotary percussive power tools (ISO 11148-4:2012)
• EN ISO 28927-10:2011 / Hand-held portable power tools - Test methods for evaluation of vibration emission Part 1: Saws (ISO 28927-8:2009)
• EN ISO 15744:2008 / Hand-held non-electric power tools - Noise measurement code Engineering method (grade 2) (ISO 15744:2002

Specifications:

• Code: KBE2703500K
• Barcode: 5036140089358
• Air Consumption: 4 CFM (113 L/min)
• Air Inlet Size: 1/4 in (6.35 mm)
• Air Pressure: 90 psi (6.2 bar)
• Compatible Hose Inner Diameter: 10 mm
• Stroke Length: 10 mm
• Strokes per Minute: 9,000 spm
• Cutting Capacity (Steel): 1.6 mm
• Cutting Capacity (Aluminium): 2.0 mm
• Overall Length: 235 mm
• Weight: 0.55 kg
• Sound Pressure Level: 87.3 dBA
• Sound Power Level: 100.3 dBA
• Vibration Level: 25.7 m/s² (K: 4 m/s²)
• Power Source: Air
• Max Square End Blade Size: 13 mm x 1 mm

Scope of Delivery:

• 1 x Kobe Red Line Multi-Purpose Air Body Saw (BS920L)
• Hex keys
• 2 x Blades

View Datasheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
