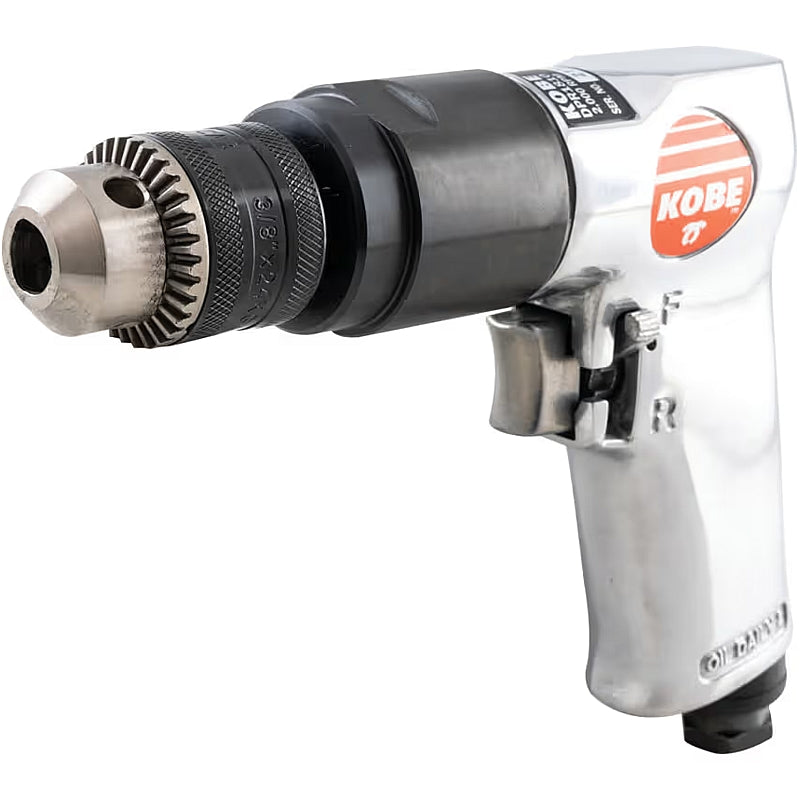

Kobe Red Line Reversalbe Air Pistol Drill, 1-10mm ( DPR1810) | KBE2701400L

Kobe Red Line Reversible Air Pistol Drill, 1–10 mm (DPR1810) | KBE2701400L.

This Kobe Red Line Reversible Air Pistol Drill is built for reliable performance in demanding workshop conditions. It features a 10 mm Jacobs keyed chuck and delivers strong, stall-resistant operation, making it suitable for both drilling and screwdriving tasks. Furthermore, its lightweight aluminium alloy body improves handling and reduces operator fatigue during extended use.

In addition, the drill incorporates a thumb-operated reverse switch, allowing quick direction changes for improved workflow efficiency. Heavy-duty bearings enhance durability, while the compact 165 mm body length enables access into confined working areas. As a result, this tool is well suited for general maintenance work across a wide range of materials including metals, composites and wood-based products.

Features & Benefits:

• Stall resistant motor: Delivers consistent performance under load for dependable drilling and driving.
• Reversible operation: Thumb switch allows quick forward and reverse control for screwdriving tasks.
• Heavy-duty construction: Designed with robust bearings for improved durability and service life.
• 10 mm keyed chuck: Provides secure bit retention for a wide range of applications.
• Compact body design: 165 mm length allows improved access in confined spaces.
• Lightweight aluminium housing: Reduces user fatigue and improves handling comfort.

Specifications:

• Code: KBE2701400L
• Model Number: DPR1810
• EAN: 5036140089044
• Air Consumption: 4 cfm (113 L/min)
• Air Inlet Size: 1/4 in (6.35 mm)
• Air Pressure: 90 psi (6.3 bar)
• Compatible Hose Inner Diameter: 10 mm
• Chuck Capacity: 10 mm
• Chuck Type: Keyed
• No Load Speed: 2,000 rpm
• Spindle Thread: 3/8"-24
• Overall Length: 165 mm
• Height: 150 mm
• Width: 42 mm
• Weight: 1.4 kg
• Power: 373 W
• Power Source: Air
• Sound Pressure Level: 85 dBA
• Sound Power Level: 101 dBA
• Vibration Level: 5.4 m/s² (K: 0.12 m/s²)
• Reversibility: Reversible
• Features: Teasing throttle
• UNSPSC Code: 27112703
• ECLASS Code: 21052003

Standards:

• EN ISO 12100:2010 – Safety of machinery: General principles for design, risk assessment and risk reduction (ISO 12100:2010).
• EN ISO 11148-3:2012 – Hand-held non-electric power tools: Safety requirements – Drills and tappers (ISO 11148-3:2012).
• EN ISO 28927-5:2009 – Hand-held portable power tools: Vibration test methods – Drills and impact drills (ISO 28927-5:2009).
• EN ISO 15744:2008 – Noise measurement code for hand-held non-electric power tools – Engineering method (grade 2) (ISO 15744:2002).

Scope of Delivery:

• 1 x Kobe Red Line Reversible Air Pistol Drill (DPR1810)
• 1 x Chuck key

View Datasheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
