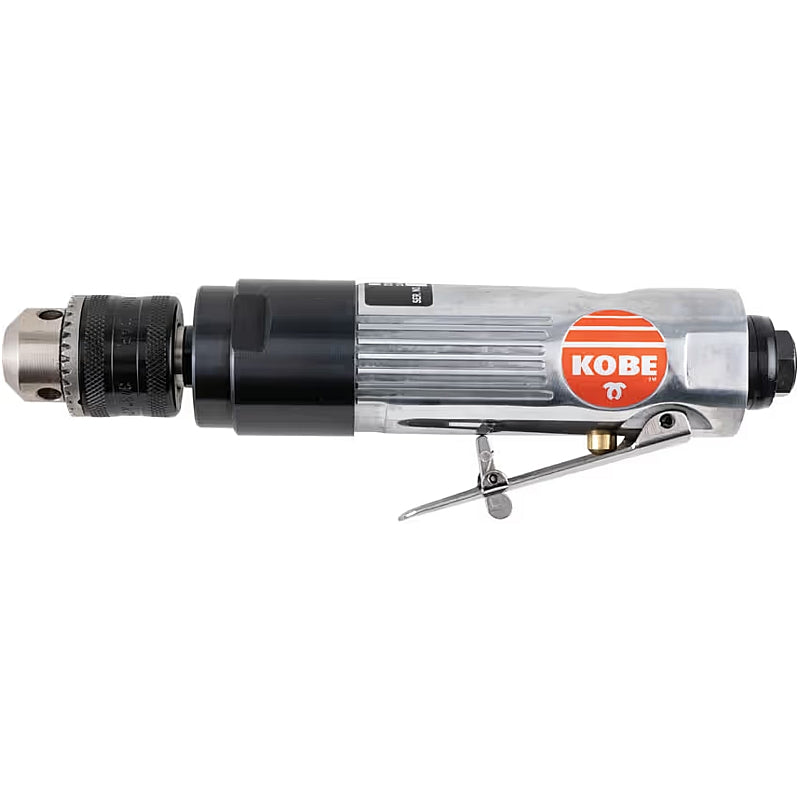

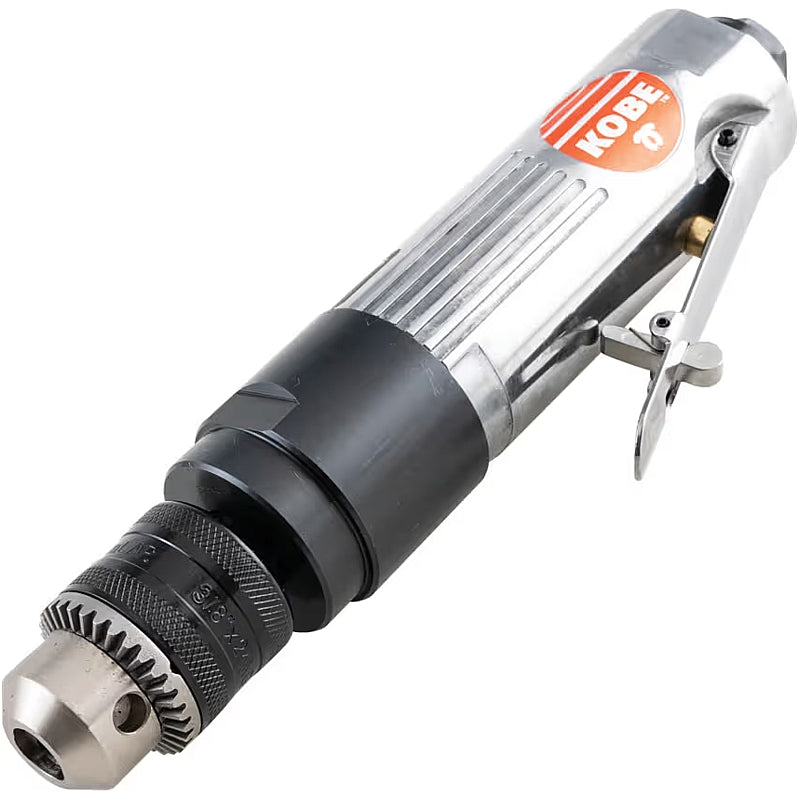

Kobe Red Line Straight Air Drill, 1-10mm (DS4510L) | KBE2701450N

Kobe Red Line Straight Air Drill, 1–10 mm (DS4510L) | KBE2701450N.

This Kobe Red Line Straight Air Drill is engineered for consistent performance in demanding workshop, production and maintenance settings. It features a 10 mm Jacobs keyed chuck and delivers strong, stall-resistant operation, making it suitable for drilling in a wide range of materials including metals and composites.

Furthermore, its straight-body design supports vertical drilling and improves accessibility in confined spaces. The integrated safety lever throttle helps prevent accidental start-ups, while planetary gearing enhances smooth operation and durability. As a result, this drill provides dependable performance for both general maintenance and industrial applications.

Features & Benefits:

• Stall-resistant design: Maintains performance under load for consistent drilling results.
• Safety lever throttle: Reduces risk of accidental start-up for improved operator safety.
• High-performance gearing: Planetary gearing ensures smoother operation and improved durability.

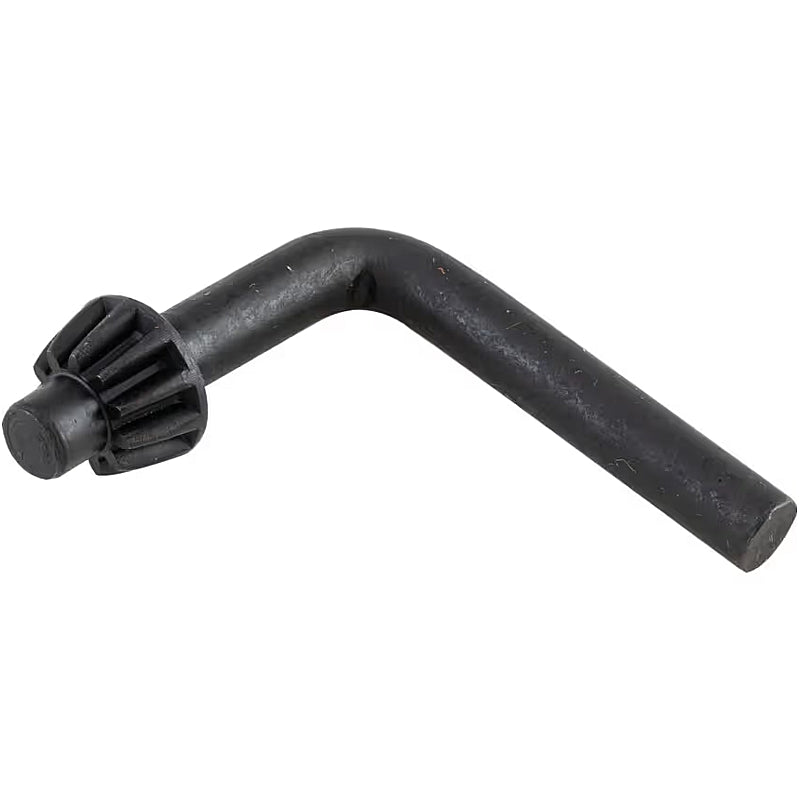

• 10 mm keyed chuck: Provides secure grip and compatibility with a wide range of drill bits.
• Straight body design: Improves access in confined or vertical drilling applications.

Specifications:

• Code: KBE2701450N
• Model Number: DS4510L
• EAN: 5036140089068
• Air Consumption: 4 cfm (113 L/min)
• Air Inlet Size: 1/4 in (6.35 mm)
• Air Pressure: 90 psi (6.3 bar)
• Compatible Hose Inner Diameter: 10 mm
• Chuck Capacity: 10 mm
• Chuck Type: Keyed
• No Load Speed: 4,500 rpm
• Spindle Thread: 3/8"-24
• Overall Length: 190 mm
• Weight: 0.9 kg
• Power: 336 W
• Power Source: Air
• Sound Pressure Level: 100 dBA
• Sound Power Level: 103 dBA
• Vibration Level: 2.5 m/s² (K: 0.45 m/s²)
• Reversibility: Non-reversible
• Features: Safety lever throttle, planetary gearing
• UNSPSC Code: 27112703
• ECLASS Code: 21052003

Standards:

• EN ISO 12100:2010 – Safety of machinery: General principles for design, risk assessment and risk reduction (ISO 12100:2010).
• EN ISO 11148-3:2012 – Hand-held non-electric power tools: Safety requirements – Drills and tappers (ISO 11148-3:2012).
• EN ISO 28927-5:2009 – Hand-held portable power tools: Vibration test methods – Drills and impact drills (ISO 28927-5:2009).
• EN ISO 15744:2008 – Noise measurement code for hand-held non-electric power tools – Engineering method (grade 2) (ISO 15744:2002).

Scope of Delivery:

• 1 x Kobe Red Line Straight Air Drill, 1-10mm (DS4510L)

View Datasheet

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
