Kreg Cabinet Hardware Jig | KHI-PULL-INT

Kreg Cabinet Hardware Jig | KHI-PULL-INT.

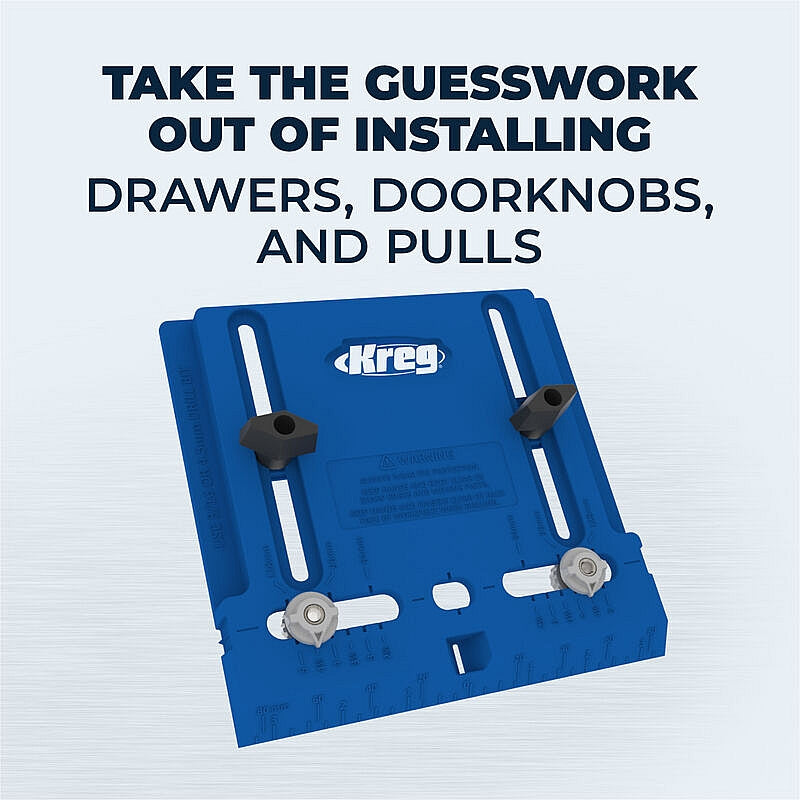

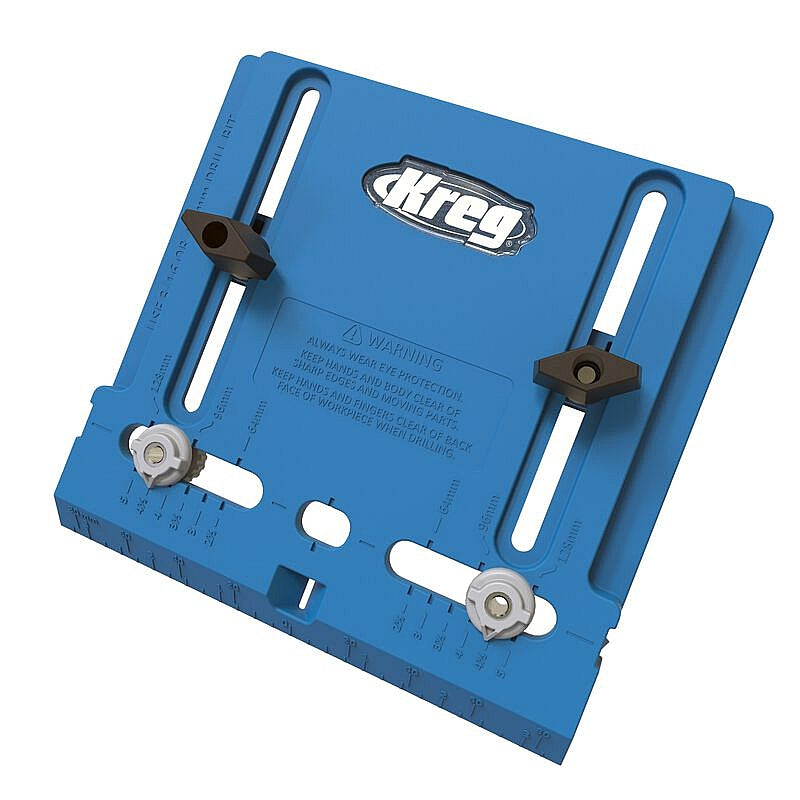

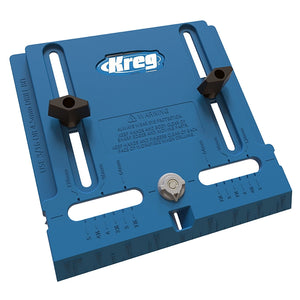

The Kreg Cabinet Hardware Jig, assists users in installing cabinet knobs and pulls with reliable, repeatable accuracy. It eliminates guesswork by combining adjustable, hardened-steel drill guides with built-in measuring scales in both imperial and metric formats. Consequently, you can position knobs and pulls consistently without relying on repeated manual measurements.

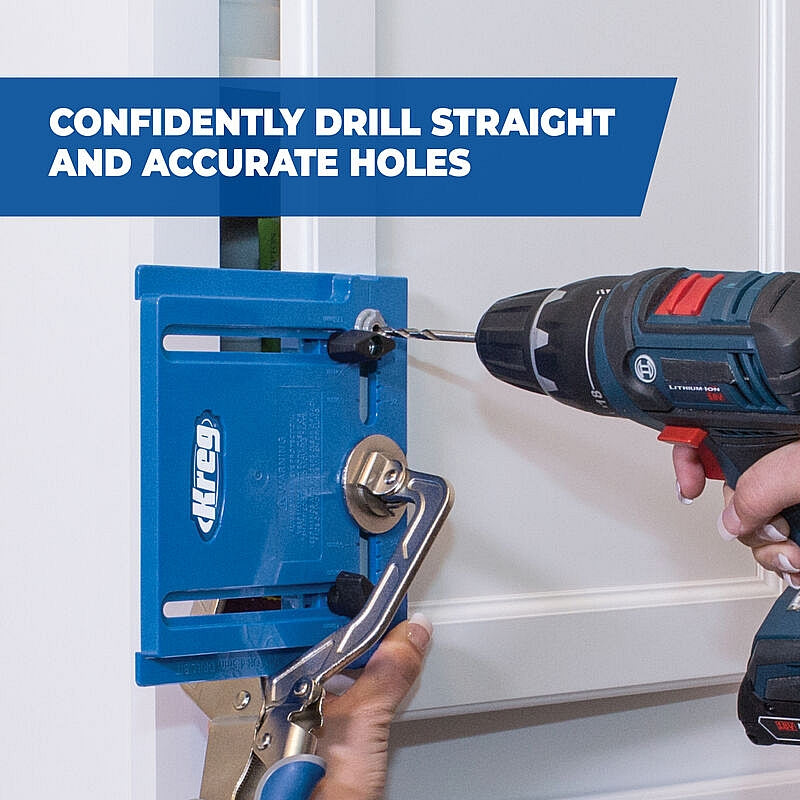

The moveable edge guide allows fast positioning, while the durable polymer body keeps the jig lightweight yet strong for comfortable handling. Additionally, the hardened-steel drill guides lock into place to align with common hole spacings, enabling straight, accurately positioned holes. This feature provides peace of mind whether you are upgrading cupboard doors, refreshing cabinetry throughout a room, or completing new builds.

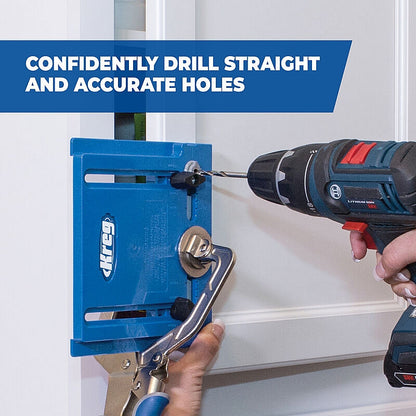

Although designed for beginners, the jig offers professional-grade reliability. You simply set the jig to match your required hardware spacing, position it correctly using the integrated scales and edge guide, and begin drilling with a 3/16" (5mm) drill bit. The result is consistent, accurately aligned cabinet hardware — even on large-scale projects.

Features & Benefits:

• Precise Hole Positioning: Adjustable guides support accurate knob and pull placement.

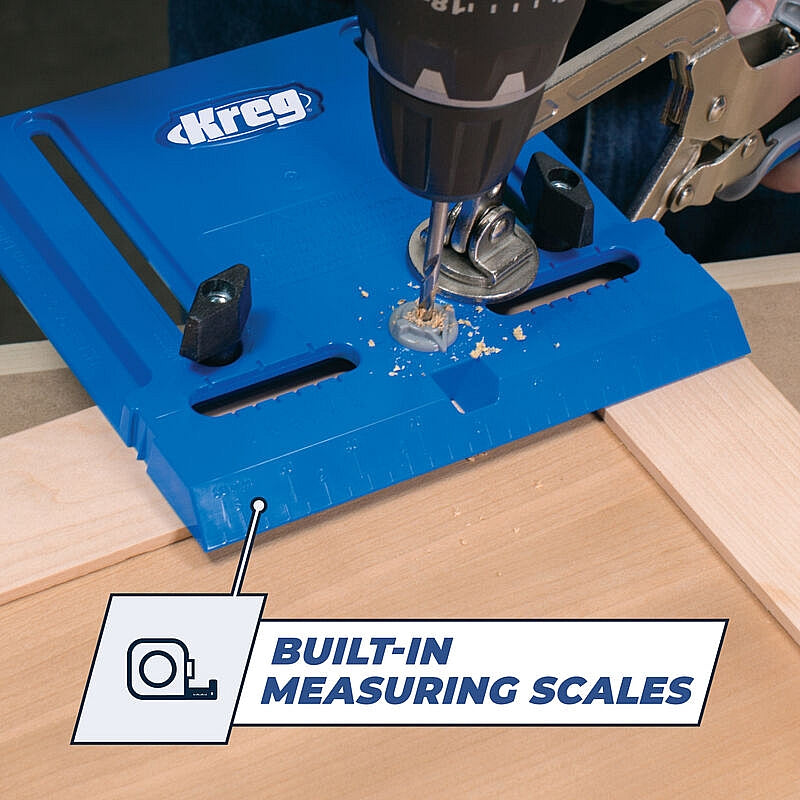

• Repeatable Accuracy: Built-in measuring scales make it simple to duplicate results across multiple doors or drawers.

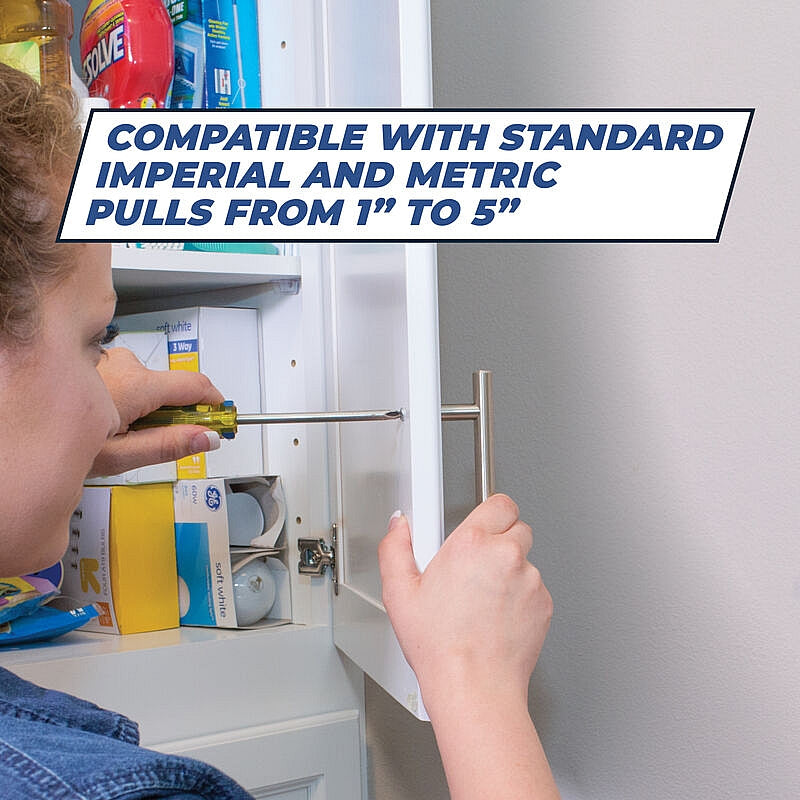

• Versatile Compatibility: Works with single- and multi-hole knobs and pulls, providing flexibility for different hardware styles.

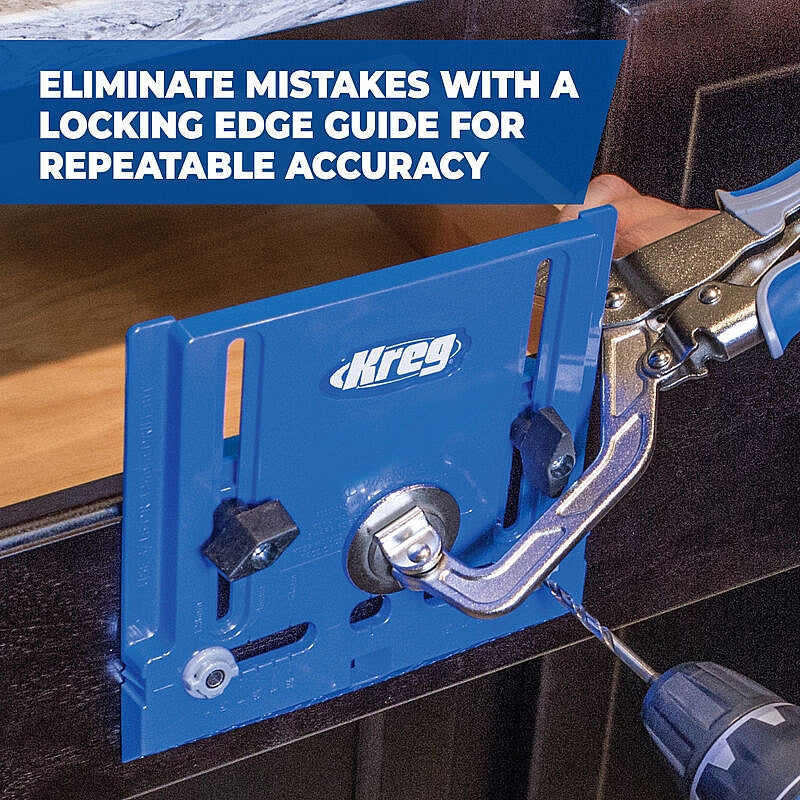

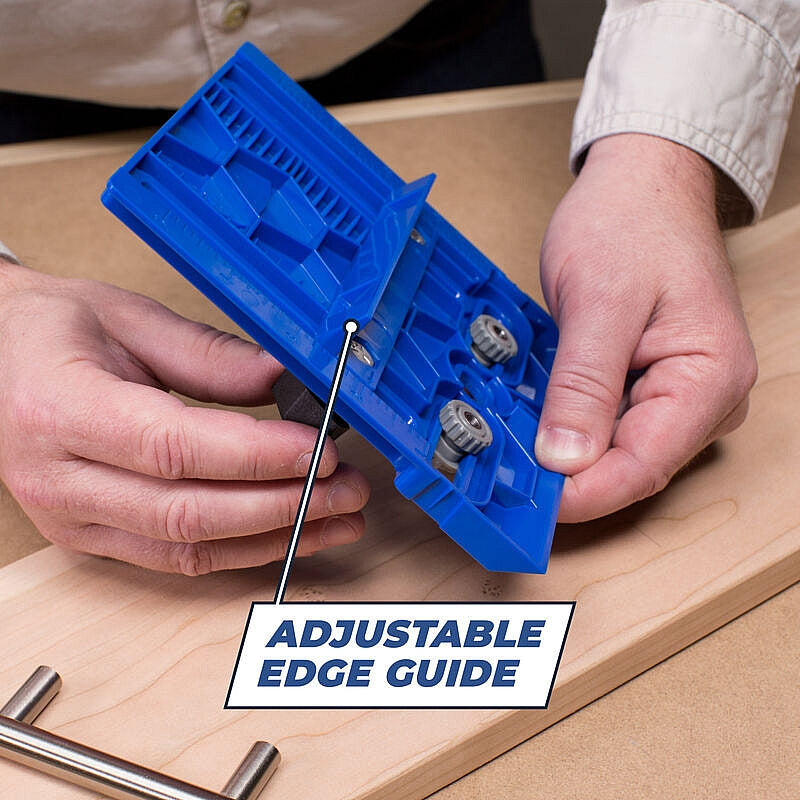

• Easy Positioning: Moveable edge guide enables straightforward setup on a wide variety of cabinet layouts.

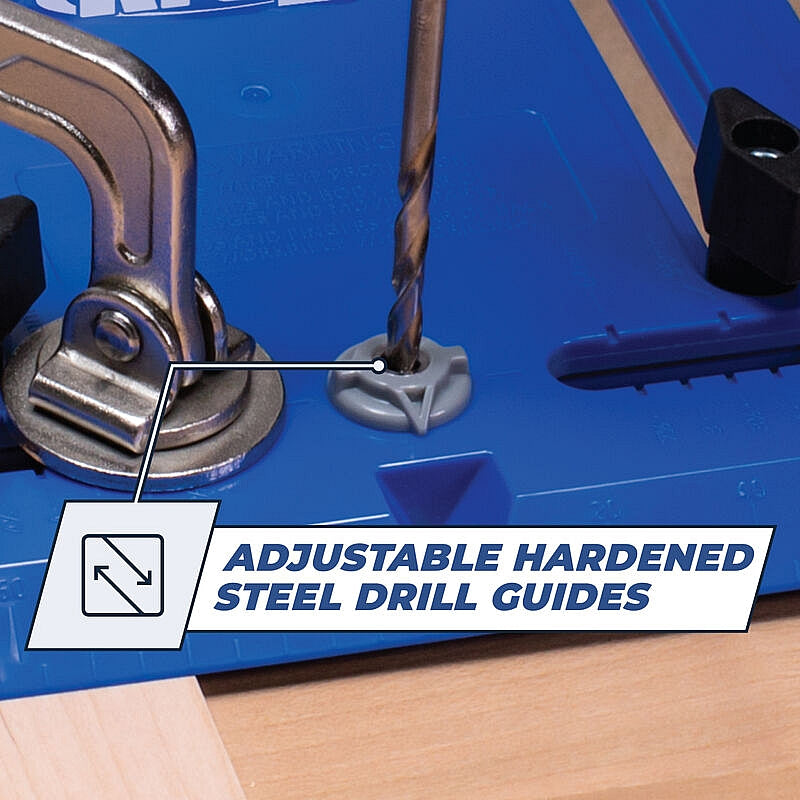

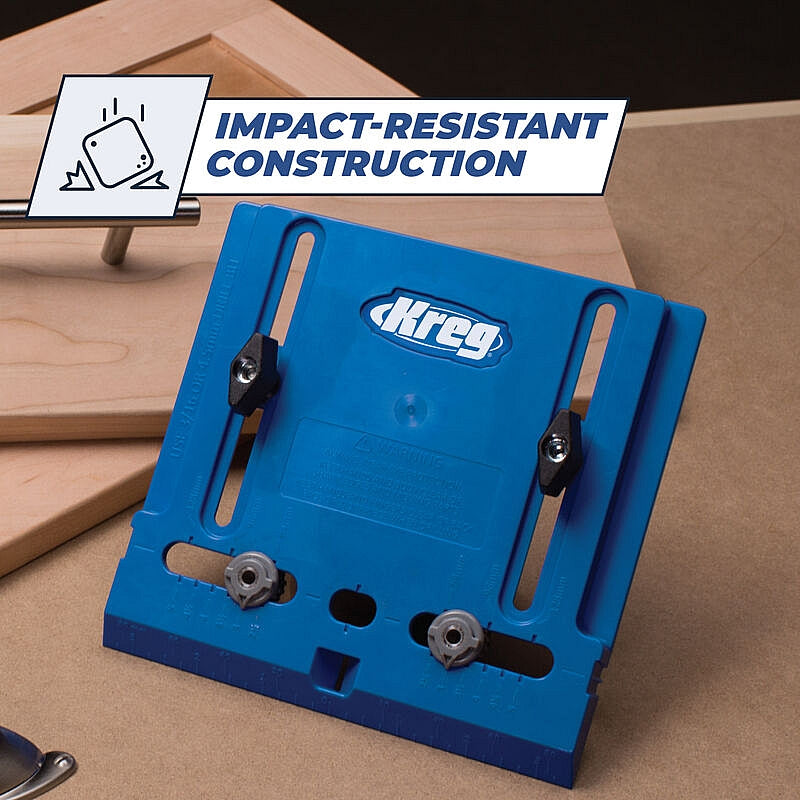

• Durable Construction: Hardened-steel drill guides paired with a strong yet lightweight polymer body ensure long-term reliability.
• Beginner-Friendly: Intuitive design allows users of all experience levels to work confidently.

Specifications:

Code: KHI-PULL-INT
Construction: Plastic Polymer, Steel
Adjustability: Adjustable edge guide and drill guides
Imperial Edge-Guide Capacity: 1" to 5" (25mm–127mm)
Drill Guide Spacing (Imperial): 2 1/2", 3", 3 1/2", 4", 4 1/2", 5"
Drill Guide Spacing (Metric): 64mm, 96mm, 128mm

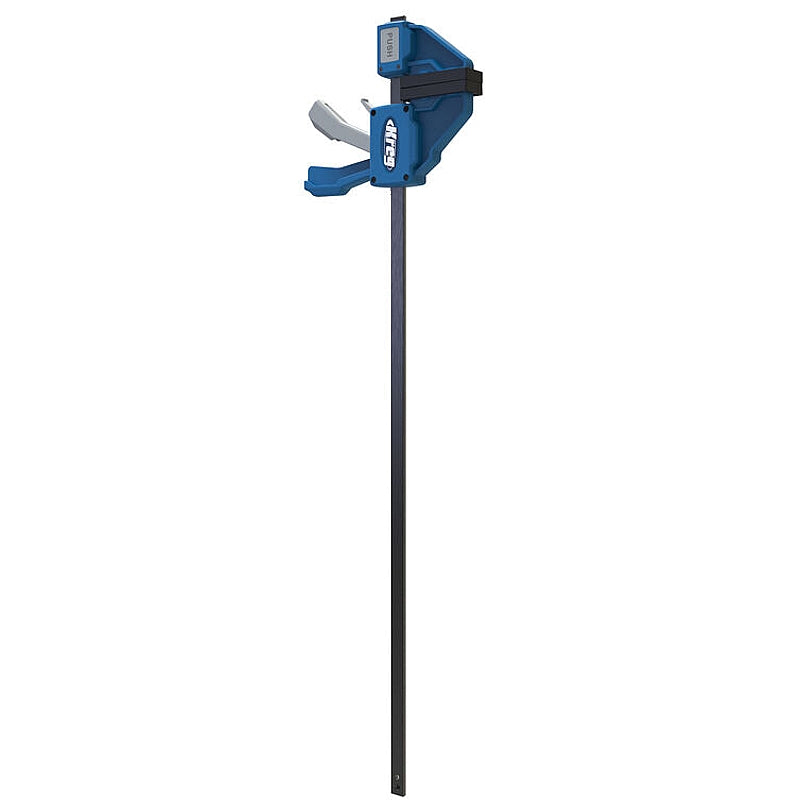

Works With: Kreg Wood Project Clamps, Kreg Face Clamps, Kreg VersaGrip Clamps
Required Drill Bit: 3/16" (5mm) – not included

Scope of Delivery:

• 1 x Jig Base
• 1 x Edge Guide
• 2 x Drill Guides with Knurled Nuts
• 2 x Non-Slip Pads
• 2 x T-Knobs and Bolts
• 1 x Owner’s Manual

Learn:

How to install knobs on cabinet doors

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
