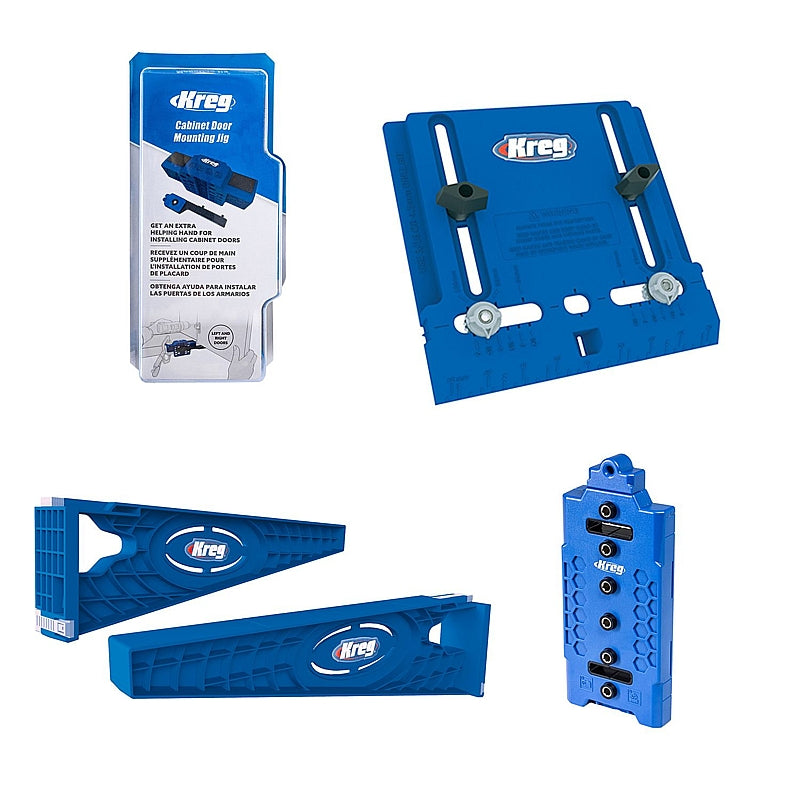

Kreg Hardware, Installation and Mounting Jig Kit | COMBO 403

1 x Kreg Cabinet Door Mounting Jig | KHI-CDIJ.

The Kreg Cabinet Door Mounting Jig simplifies the process of installing cabinet doors by providing an extra hand for holding the door in place while mounting the hinges. It works with both left- and right-hand doors and is compatible with frameless or face-frame cabinets. With an adjustable support arm, you can easily position doors at the desired height, thanks to nine settings that offer precise placement. Additionally, fine-tune the door height with micro-adjustment shims for even more accuracy, making this jig an essential tool for professional-quality cabinet door installation.

Features & Benefits:

• Convenient Support Arm: Helps hold the door in place while you attach hinges, allowing for hands-free operation during installation.
• Versatile: Compatible with left- and right-swing doors on both frameless and face-frame cabinets.
• Adjustable: The support arm adjusts to nine different positions, ensuring precise door placement with ease.
• Reliable Grip: GripMaxx™ anti-slip material ensures a secure clamp, keeping doors steady while you install the hinges.
• Fine-Tuned Adjustments: Included micro-adjustment shims allow you to adjust the door height with accuracy, offering adjustments in 1/16", 1/8", or 3/16" increments.
• Easy Three-Step Process: Simplify door hanging with the quick and easy three-step process: clamp, align, and install.

Specifications:

Compatibility: Works with left- and right-hand doors; Kreg Concealed Hinge Jig
Capacity: Supports up to 25 lbs.
Adjustability: Adjustable support arm with nine different positions; micro-adjustment shims provide adjustments in 1/16", 1/8", or 3/16" increments
Material: GripMaxx™ anti-slip material for secure clamping
Compatibility: Works with both face-frame and frameless cabinets

Scope of Delivery:

• 1 x Kreg Cabinet Door Mounting Jig
• 2 x Micro-Adjustment Shims

1 x Kreg Cabinet Hardware Jig | KHI-PULL.

The Kreg Cabinet Hardware Jig, assists users in installing cabinet knobs and pulls with reliable, repeatable accuracy. It eliminates guesswork by combining adjustable, hardened-steel drill guides with built-in measuring scales in both imperial and metric formats. Consequently, you can position knobs and pulls consistently without relying on repeated manual measurements.

The moveable edge guide allows fast positioning, while the durable polymer body keeps the jig lightweight yet strong for comfortable handling. Additionally, the hardened-steel drill guides lock into place to align with common hole spacings, enabling straight, accurately positioned holes. This feature provides peace of mind whether you are upgrading cupboard doors, refreshing cabinetry throughout a room, or completing new builds.

Although designed for beginners, the jig offers professional-grade reliability. You simply set the jig to match your required hardware spacing, position it correctly using the integrated scales and edge guide, and begin drilling with a 3/16" (5mm) drill bit. The result is consistent, accurately aligned cabinet hardware — even on large-scale projects.

Features & Benefits:

• Precise Hole Positioning: Adjustable guides support accurate knob and pull placement.
• Repeatable Accuracy: Built-in measuring scales make it simple to duplicate results across multiple doors or drawers.
• Versatile Compatibility: Works with single- and multi-hole knobs and pulls, providing flexibility for different hardware styles.
• Easy Positioning: Moveable edge guide enables straightforward setup on a wide variety of cabinet layouts.
• Durable Construction: Hardened-steel drill guides paired with a strong yet lightweight polymer body ensure long-term reliability.
• Beginner-Friendly: Intuitive design allows users of all experience levels to work confidently.

Specifications:

Code: KHI-PULL
Construction: Plastic Polymer, Steel
Adjustability: Adjustable edge guide and drill guides
Imperial Edge-Guide Capacity: 1" to 5" (25mm–127mm)
Drill Guide Spacing (Imperial): 2 1/2", 3", 3 1/2", 4", 4 1/2", 5"
Drill Guide Spacing (Metric): 64mm, 96mm, 128mm
Works With: Kreg Wood Project Clamps, Kreg Face Clamps, Kreg VersaGrip Clamps
Required Drill Bit: 3/16" (5mm) – not included

Scope of Delivery:

• 1 x Jig Base
• 1 x Edge Guide
• 2 x Drill Guides with Knurled Nuts
• 2 x Non-Slip Pads
• 2 x T-Knobs and Bolts
• 1 x Owner’s Manual

Learn:

How to install knobs on cabinet doors

1 x Kreg Drawer Slide Jig | KHI-SLIDE.

The Kreg Drawer Slide Jig offers a fast, efficient, and accurate way to install drawer slides. Whether you're working with face-frame or frameless cabinets, this versatile jig helps position the slides perfectly, ensuring smooth operation and a perfect fit. Designed for ease of use, it works with ball-bearing, epoxy-coated, and undermount slides, making it an ideal tool for both professionals and DIY enthusiasts. This intuitive jig eliminates the guesswork of mounting drawer slides by indexing precisely with the cabinet frame or designated marks on frameless cabinets, ensuring accuracy in every installation.

Features & Benefits:

• Accurate Slide Positioning: The built-in indexing tabs ensure perfect alignment of the slides in both the cabinet and the drawer box, eliminating the need for repeated measuring and marking.
• Repeatable Results: Thanks to its precise design, this jig offers consistent and reliable results, helping you achieve the same level of accuracy in every project.
• Versatile and Adaptable: The Drawer Slide Jig is suitable for both face-frame and frameless cabinets, making it perfect for various types of cabinetry, including chests and dressers.
• Reversible Design: The jig can be reversed to mount slides to both the cabinet and the drawer box, ensuring flexibility and ease of use for any drawer installation task.
• Secure Clamping: The brackets firmly hold the slides in place while you work, ensuring stability and preventing shifting during installation.
• Durable Construction: Made from impact-resistant polymer, this jig is built to last, offering reliable performance for years of use.
• Easy to Use: With a simple, intuitive design, the Kreg Drawer Slide Jig is easy for beginners to operate, while also providing professional-quality results.
• Multipurpose: It is compatible with a variety of drawer slides, including ball-bearing, epoxy-coated, and undermount slides, giving you the flexibility to tackle a wide range of projects.

Specifications:

Material: Impact-resistant Polymer
Capacity: Works with a minimum cabinet depth of 14" (355mm)
Compatibility: Compatible with ball-bearing, epoxy-coated, and undermount slides; works with Kreg Wood Project Clamps and Face Clamps

Scope of Delivery:

• 2 x Brackets
• 4 x Upper/Lower sliders (pre-installed)
• 1 x Owner's Manual

1 x Kreg Shelf Pin Jig 6mm (1/4") | KMA3225.

Add perfectly spaced shelf pin holes to your projects with the Kreg Shelf Pin Jig. Hardened-steel drill guides ensure precision for level, wobble-free shelves. It comes complete with a 1/4" (6mm) high-quality brad-point bit. Drill guides are centered on standard 1 1/4" (32mm) spacing and feature a lifetime warranty.

Whether you’re adding shelves to existing furniture, or building from scratch, creating the shelf pin holes is easy. Use the fence to align the jig with the edge of your workpiece for straight, accurate rows. Quickly drill six holes in one setup – or connect a second Shelf Pin Jig to drill longer rows of holes with the same consistent spacing.

The jig also has useful features for installing concealed cabinet hinges and drawer slides in frameless cabinets. Molded-in alignment marks and an indicator window help align mounting screws for hinge plates – set at standard backspacing for a 32mm cabinet system – which also helps with locating the front hole for drawer slide installation.

Highlights:

• Create perfectly spaced holes at 1-1/4" (32 mm) increments
• Drill clean, precise holes with hardened-steel drill guides
• 32 mm system compatible for locating hinges and drawer slides
• Work confidently with alignment windows for visibility
• Snap two jigs together to quickly drill more holes in one run
• Keep accessories close by with on-board storage

A tool for every task.

• INGENIOUS - Unique solutions to common problems.
• EASY TO USE - Approachable, intuitive, easy-to-use tools to help eliminate mistakes.
• PROFESSIONAL QUALITY - Precise, repeatable results every time.
• QUICK AND SIMPLE - Simple design for quick setup.

Features:

Easy - Creates perfectly spaced holes for level, wobble-free shelves.

Precise - Cams and measuring scale make it easy to set the jig and position the hinge cup precisely.

Fast - Expandable design lets you snap two or more jigs together for fast drilling of multiple holes.

Repeatable - A locating pin lets you confidently move the jig and reference the last hole drilled.

Durable - Hardened steel drill guides for years of dependable, accurate drilling.

Versatile - A built-in fence aligns with the edge of the workpiece to set the proper. The fence is removable for working inside a case.

Includes:

• Shelf Pin Jig
• 1/4" Drill Bit
• Stop Collar
• Sample Pack of 1/4" Shelf Pins

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
