Kreg Precision Miter Gauge System | KMS7102

Kreg Precision Miter Gauge System | KMS7102.

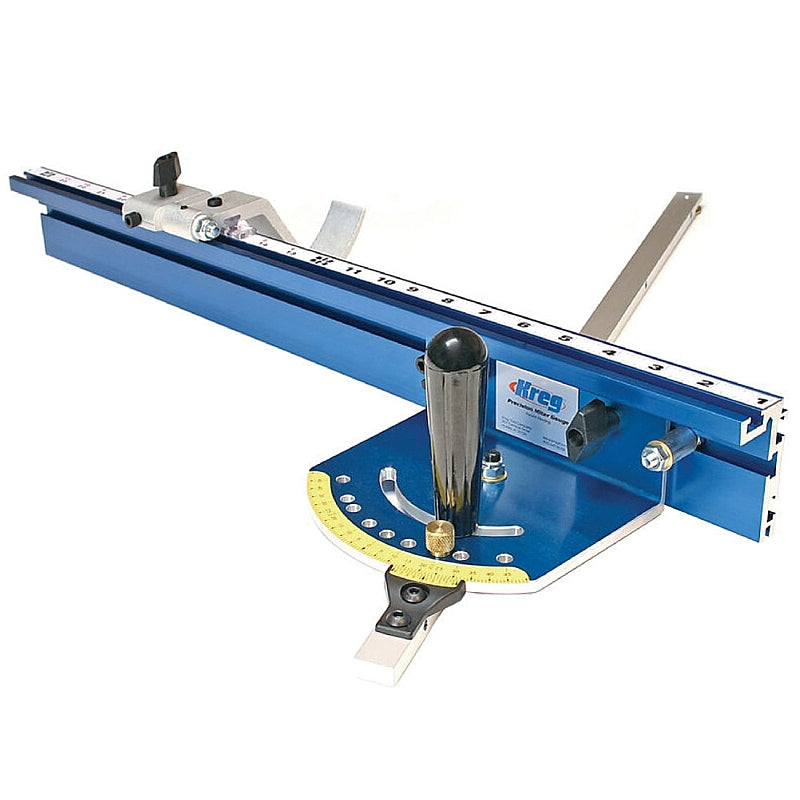

The Kreg Precision Miter Gauge System is designed to provide ultimate accuracy and ease of use right out of the box. Factory-calibrated, it eliminates the need for tedious setup, allowing you to cut perfect miters immediately. The gauge includes positive stops at 0°, 10°, 22 1/2°, 30°, and 45°, and a brass pin enables quick switching between these common angles. For custom angles, the easy-to-use Vernier scale allows adjustments down to 1/10th of a degree.

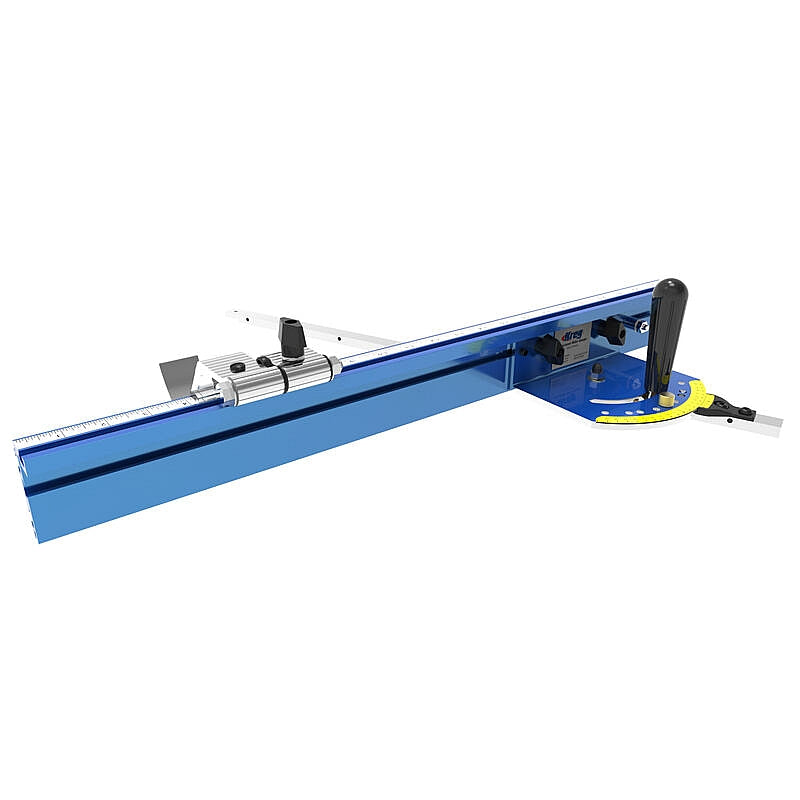

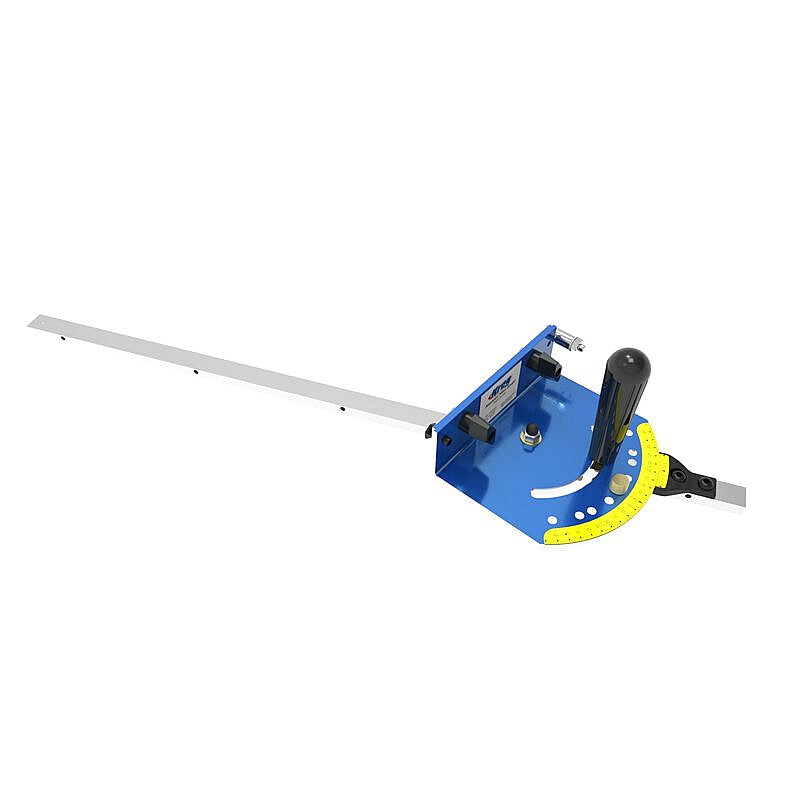

The system features a 24" (610mm) anodized-aluminum fence with a Swing Stop and self-adhesive measuring tape, ensuring consistent, repeatable cuts. The Precision Lens Cursor, similar to a high-quality table saw rip fence lens, provides a high-visibility red line for exact stop placement. Additionally, the anodized-aluminum 24" (610mm) miter bar, measuring 3/8" (9.5mm) thick by 3/4" (19mm) wide, comes with five bar adjusters to eliminate play in the miter slot.

With the Swing Stop's break-away design, you can easily add a versatile, heavy-duty fence, temporarily move the stop out of the way, or quickly square boards without readjustment. Every feature—from the CNC-milled aluminum head to the durable Swing Stop—is built for precision and longevity, ensuring superior performance in every project.

Features & Benefits:

• Factory-Calibrated Accuracy: Ready to use immediately without calibration for precise miters.
• Positive Stops: Quick-access stops at 0°, 10°, 22 1/2°, 30°, and 45° streamline common cuts.

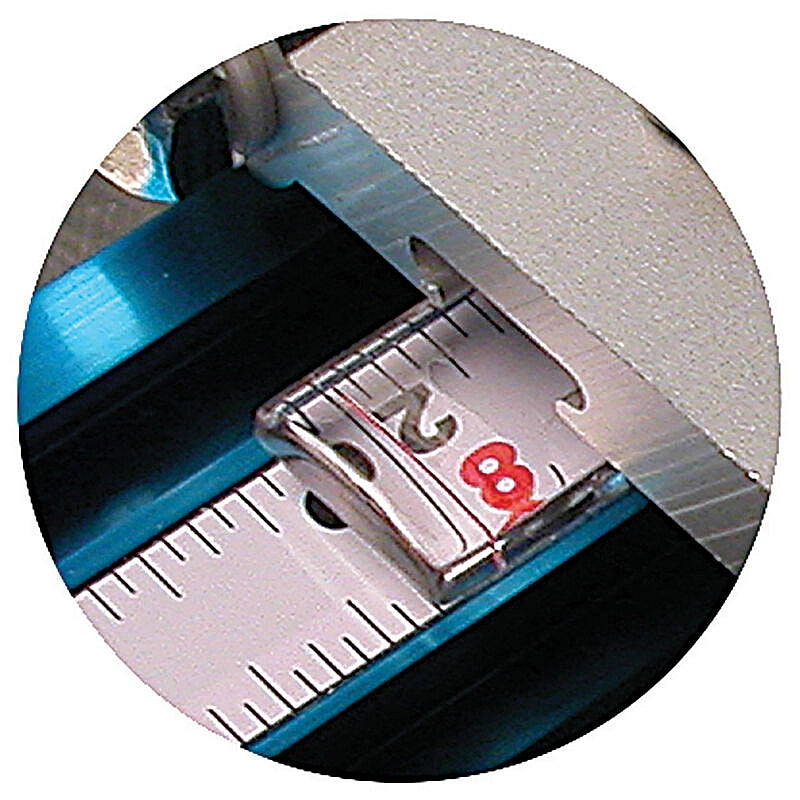

• Precision Lens Cursor: High-visibility red line ensures exact Swing Stop placement.

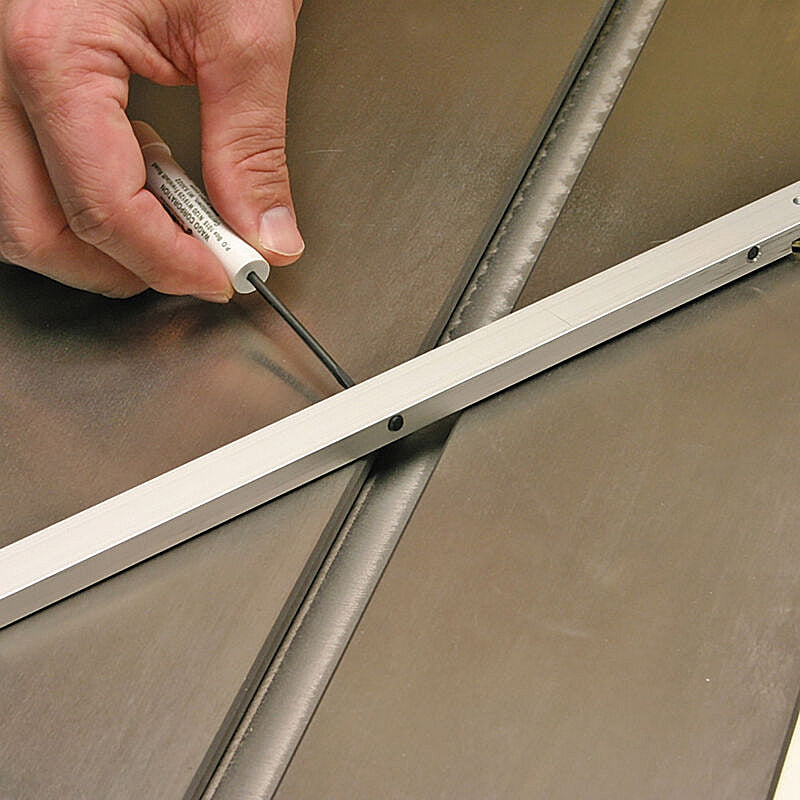

• No Play in Miter Slot: Adjustable bar with five screws eliminates unwanted movement.
• Versatile Fence & Swing Stop: Heavy-duty fence and break-away stop allow flexible, repeatable cuts.

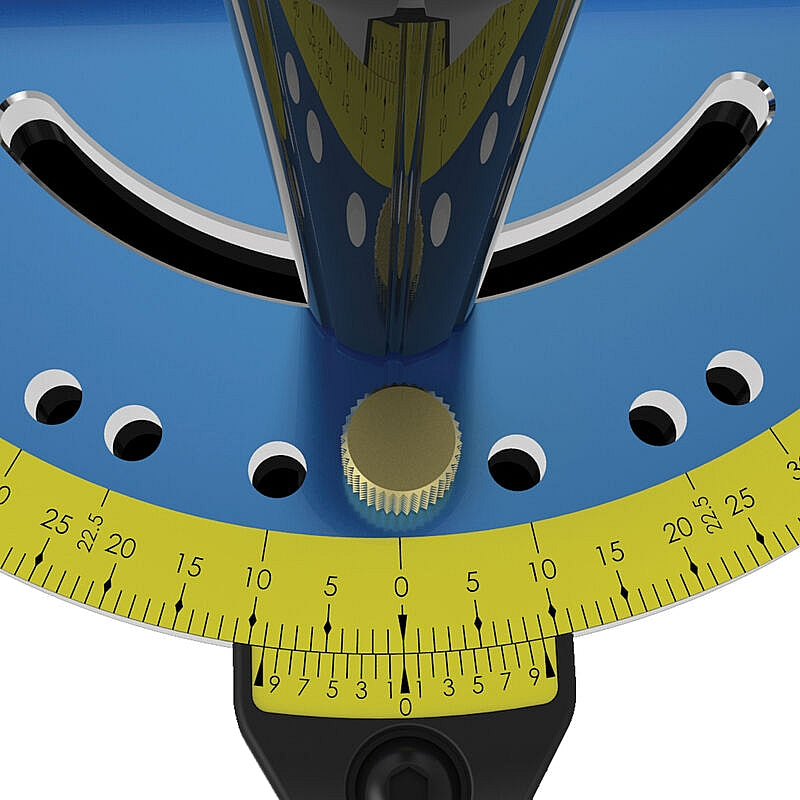

• Vernier Scale: Fine adjustments down to 1/10th of a degree for custom angles.

Specifications:

Code: KR KMS7102
Construction: Anodized aluminum, steel, brass
Bar Dimensions: 24" (610mm) long, 3/8" (9.5mm) thick x 3/4" (19mm) wide
Fence: 24" (610mm) anodized-aluminum with swing stop
Angle Adjustment: -50° to +50°, stops at 0°, 10°, 22 1/2°, 30° and 45°
Vernier Precision: 1/10th of a degree
Miter Slot Compatibility: Standard 3/8" (9.5mm) x 3/4" (19mm)
Warranty: 3 Year Limited

Scope of Delivery:

• 1 x Kreg Precision Miter Gauge
• 1 x 24" (610mm) Fence with scale
• 1 x Swing Stop with Precision Lens Cursor
• 1 x Self-adhesive measuring tape
• 1 x Owner's manual

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
