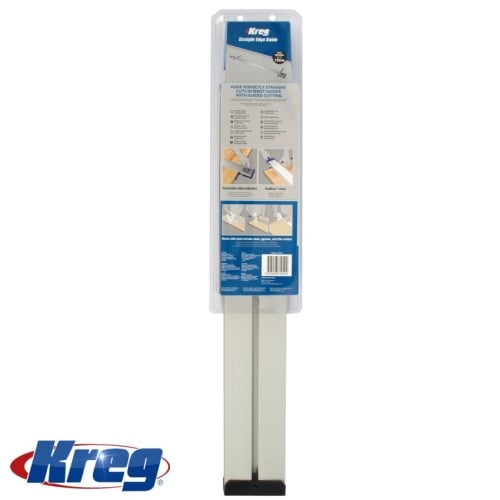

Kreg Straight Edge Guide Cut Up To 1220mm | KMA4500

Kreg Straight Edge Guide Cut Up To 1220mm | KMA4500.

The Kreg Straight Edge Guide makes it easier to achieve straight, precise cuts when breaking down plywood and other sheet goods. Designed with a cutting capacity of up to 4 ft (1220mm), the guide provides a reliable straight reference for both rip cuts and crosscuts, helping you cut larger materials accurately and with greater confidence.

Instead of relying on freehand cutting, the tool rides against the low-profile aluminium guide rail to follow a straight path through the material. It works with left- and right-blade circular saws, as well as some jigsaws and trim routers, making it a versatile guided-cutting solution for a variety of projects and compatible power tools.

Retractable cutline indicator arms simplify positioning by allowing you to align the guide with your pencil marks before making the cut. Once positioned, the built-in adjustable GripMaxx™ clamp secures the guide directly to the workpiece. Its anti-slip surface helps keep the rail securely positioned while you work.

The Straight Edge Guide also features an expandable design. It is compatible with the Kreg Straight Edge Guide Extension, which is available in 2 ft (610mm) sections for applications requiring additional cutting capacity. This allows the basic 4 ft (1220mm) system to adapt to larger projects when paired with the compatible extension.

Precise Guided Cutting:

The aluminium guide rail provides a straight reference edge for your cutting tool. By guiding the saw, jigsaw or trim router against the rail, the Straight Edge Guide helps maintain a consistent cutting path and makes it easier to produce accurate rip cuts and crosscuts in sheet goods.

Easy Cutline Alignment:

Retractable cutline indicator arms help position the guide accurately before cutting. Simply align the indicators with your pencil marks to establish the required cutting position. This provides a clear reference for where the cut will be made before the power tool enters the material.

Built-In GripMaxx™ Clamping:

The Straight Edge Guide incorporates a low-profile adjustable GripMaxx™ clamp, so a separate clamping system is not required to secure the guide. The anti-slip clamping surface grips the material and helps hold the guide firmly in position while cutting.

Expandable for Larger Projects:

For projects requiring greater cutting capacity, the Straight Edge Guide is compatible with the Kreg Straight Edge Guide Extension. Extensions are available in 2 ft (610mm) sections, allowing the guided-cutting system to be expanded beyond its standard 4 ft (1220mm) capacity.

Features & Benefits:

• 4 ft (1220mm) Cutting Capacity: Allows straight rip cuts and crosscuts across sheet goods up to the specified cutting capacity.
• Aluminium Guide Rail: Provides a straight reference surface to guide the cutting tool accurately through the material.
• Rip & Crosscut Capability: Suitable for making both rip cuts and crosscuts when breaking down sheet materials.
• Retractable Cutline Indicators: Help align the guide accurately with pencil marks before making a cut.
• Built-In GripMaxx™ Clamp: Secures the guide directly to the material without requiring a separate clamp.
• Anti-Slip Clamping Surface: GripMaxx™ technology helps prevent the guide from shifting while positioned on the workpiece.
• Low-Profile Guide Rail: Provides a practical guiding surface for compatible cutting tools.
• Left- & Right-Blade Saw Compatibility: Works with circular saws that have either left- or right-positioned blades.
• Multiple Tool Compatibility: Designed for circular saws and can also be used with some jigsaws and trim routers.
• Works with Most Brands: Designed to accommodate compatible tools from a variety of manufacturers.
• Expandable Design: Can be extended for larger cutting applications using compatible Kreg Straight Edge Guide Extensions.
• 2 ft (610mm) Extension Compatibility: Compatible extensions are available in 2 ft (610mm) sections to increase the guide's cutting capacity.
• Guided Sheet Cutting: Makes breaking down larger sheet materials more controlled and precise than relying on freehand cutting.

How to Use:

1. Mark the required cutting position on the sheet material.
2. Position the Kreg Straight Edge Guide across the workpiece.
3. Use the retractable cutline indicator arms to align the guide accurately with the pencil marks.
4. Secure the guide to the material using the built-in adjustable GripMaxx™ clamp.
5. Position the compatible circular saw, jigsaw or trim router against the aluminium guide rail.
6. Keep the tool against the guide rail while moving it through the material to produce the straight cut.

Applications:

• Breaking down plywood and other sheet goods
• Straight rip cutting
• Straight crosscutting
• Guided circular saw cutting
• Guided cutting with compatible jigsaws
• Guided cutting with compatible trim routers
• Workshop and project sheet-material cutting
• Projects requiring repeatable straight-line guidance

Specifications:

• Code: KMA4500
• Product Type: Straight Edge Cutting Guide
• Cutting Capacity: Up to 4 ft (1220mm)
• Cut Types: Rip Cuts and Crosscuts
• Guide Rail Material: Aluminium
• Guide Rail Type: Low-Profile
• Cutline Alignment: Retractable Cutline Indicator Arms
• Clamping System: Adjustable Built-In GripMaxx™ Clamp
• Clamp Surface: GripMaxx™ Anti-Slip
• Circular Saw Compatibility: Left- and Right-Blade Circular Saws
• Additional Tool Compatibility: Some Jigsaws and Trim Routers
• Extension Compatibility: Kreg Straight Edge Guide Extension
• Extension Size: Available in 2 ft (610mm) Sections
• Design: Expandable

Scope of Delivery:

• 2 x 28" (711mm) Guide Rails
• 2 x Paired Connector Bars
• 2 x Cutline Indicator Arms
• 1 x Adjustable GripMaxx™ Clamp
• 1 x Handle
• 1 x Owner's Manual

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
