Laguna Dust Extractor D|Flux: 1, 1.5HP TEFC - 220V | MDCDF15510

Laguna D|Flux Dust Extractor 1, 1.5HP TEFC – 220V | MDCDF15510.

The Laguna D|Flux Dust Extractor 1 forms part of the latest D|Flux Dust Collection range, developed to meet essential dust extraction requirements while maintaining a clean and healthier workspace. Powered by a 1.5HP TEFC motor and operating on 220V, this unit delivers reliable performance for small to medium workshop environments.

Furthermore, the two-stage cyclone system efficiently separates heavy particles before fine dust reaches the 1 Micron canister filter, thereby improving filtration efficiency and extending filter life. Dust collects neatly into a clear plastic bag housed inside a robust steel drum, allowing for quick visual inspection of fill levels.

In addition, user-focused features such as magnetic hose connections, an air-strut-assisted drum lid, and integrated machine and drum wheels ensure effortless operation and mobility. With a compact footprint and high airflow performance, the D|Flux 1 offers an excellent balance between power, efficiency, and affordability.

Features & Benefits:

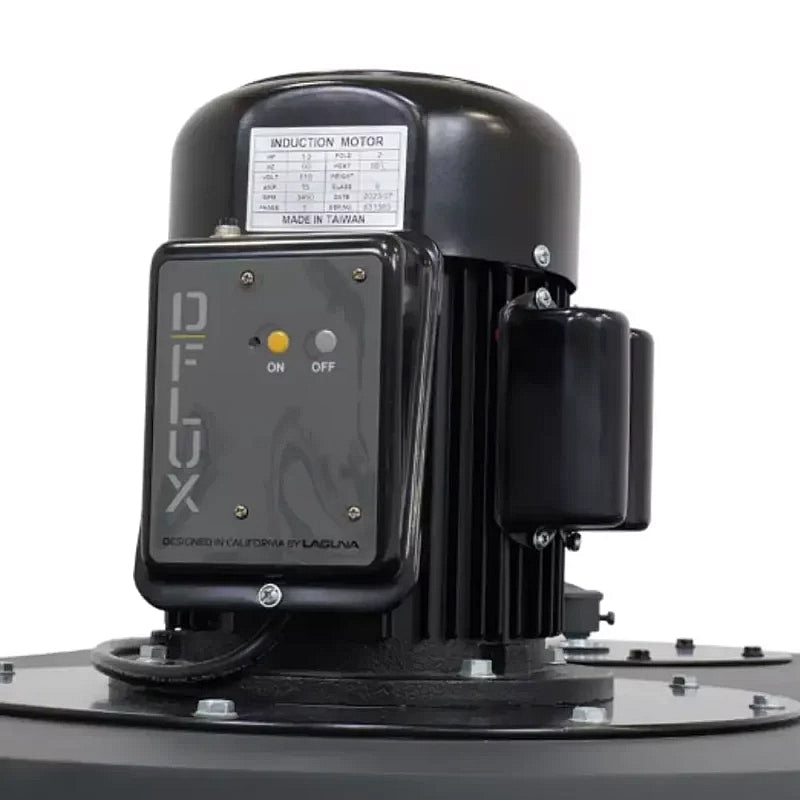

• 1.5HP TEFC Motor: Provides dependable power while protecting the motor from dust and debris.
• Two-Stage Cyclone Collection: Effectively separates heavy particles, improving overall dust collection efficiency.

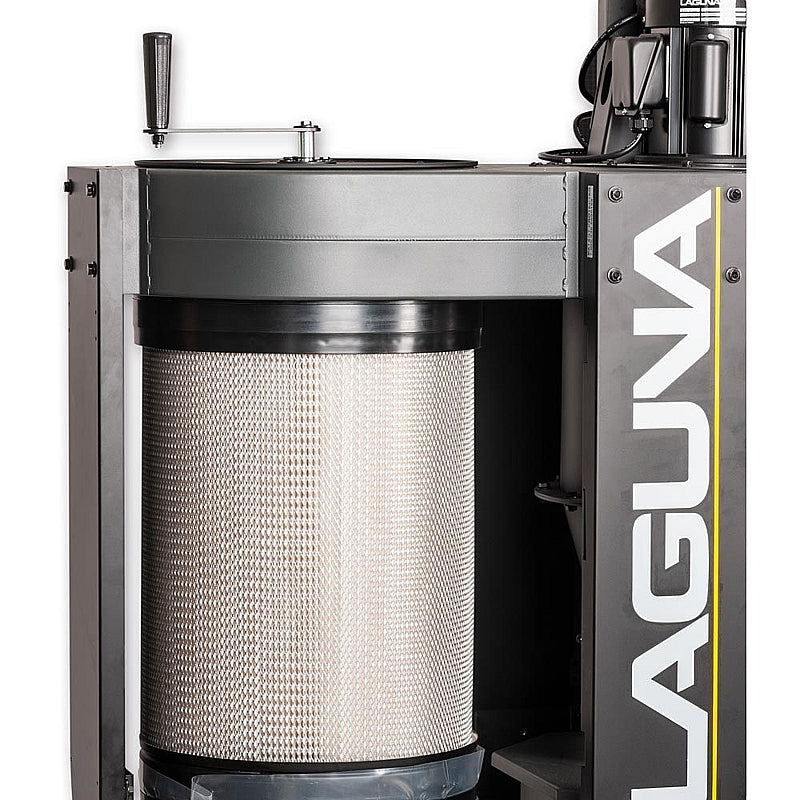

• 1 Micron Canister Filter: Ensures fine dust filtration for cleaner air and easier maintenance.
• Clear Drum Bag System: Allows quick monitoring of dust levels without opening the drum.

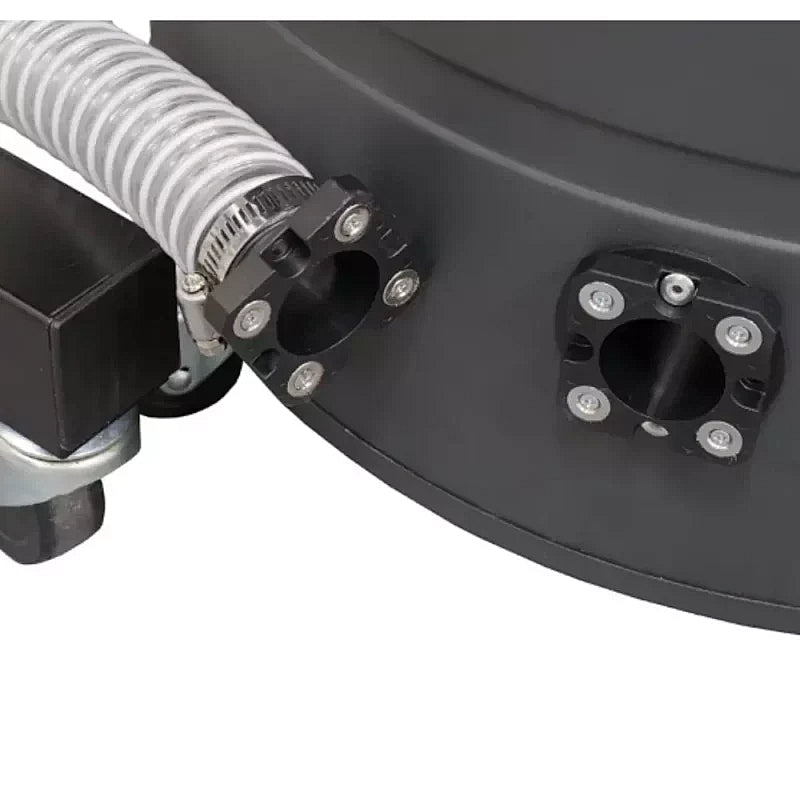

• Magnetic Hose Connections: Enables fast and secure hose attachment.

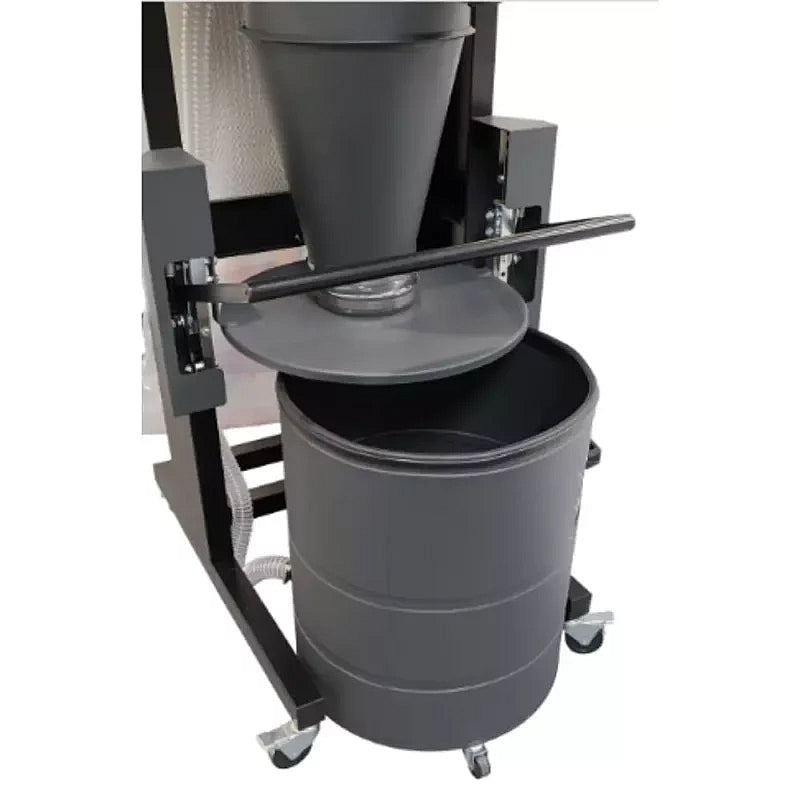

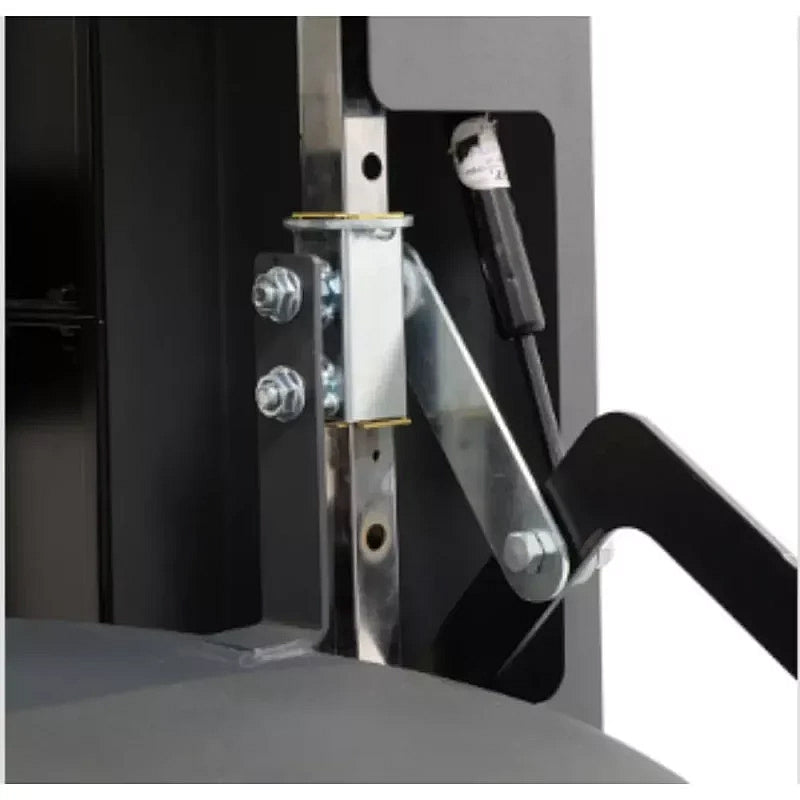

• Air-Strut-Assisted Drum Lid: Simplifies drum access and reduces physical effort during emptying.
• RF Remote Control: Offers convenient on/off operation from a distance.
• Integrated Wheels: Improves mobility for both the machine and collection drum.

Specifications:

• Code: MDCDF15510
• Barcode: Not provided
• Motor: 1.5 HP TEFC
• Voltage: 220V
• Collection Type: 2 Stage Cyclone
• Maximum Air Flow: 868 CFM (approximately 1,475 m³/h)
• Maximum Static Pressure: 9.7" (246 mm)
• Inlet Size: 6" (152 mm)

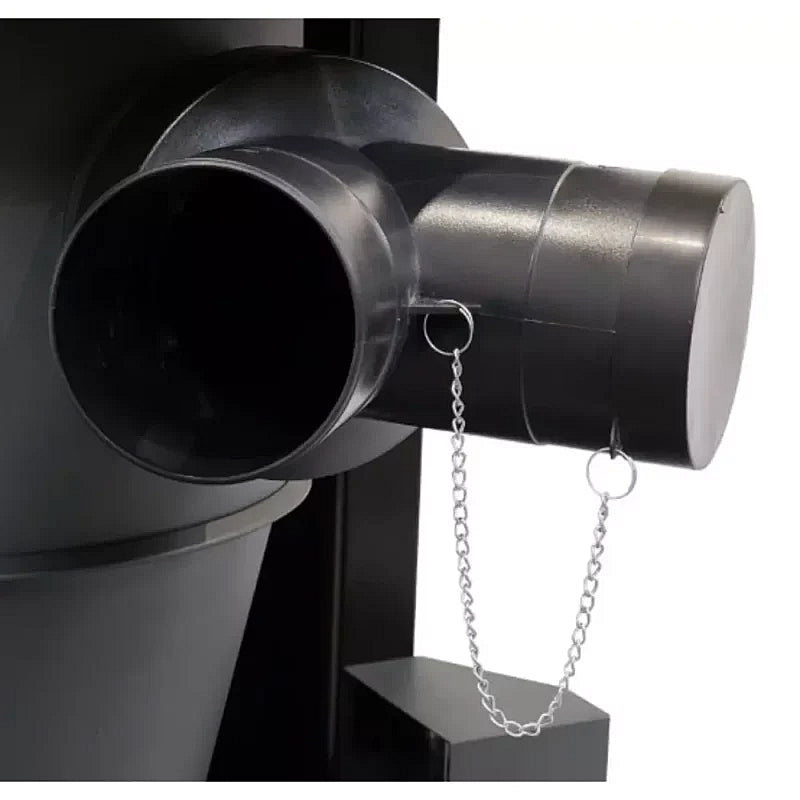

• Splitter: 2 × 4" (102 mm)
• Collection Volume: 20 Gallon Drum (75.7 litres)
• Filter Type: 1 Micron Canister Filter
• Filter Size: 14.5" × 24" (368 mm × 610 mm)
• Impeller: Cast Aluminium, 12-3/4" (324 mm)
• Drum Bag Retention: Negative Pressure
• Drum Bag Hose: Magnetic Connector
• Drum Lid Hose: Clear Hose
• Drum Handle Lift: Air Strut Assistance
• Mobility: Machine and Drum Wheels
• Remote Control: RF Remote
• Sound Rating: 78 dB
• Certification: ETL
• Filter Cleaning: Manual
• Dimensions (L × W × H): 27-1/2" × 44" × 70" (699 mm × 1,118 mm × 1,778 mm)
• Shipping Weight: 278 lbs (126 kg)
• Packaging: 1 Box

Scope of Delivery:

• Laguna D|Flux 1 Dust Extractor Unit
• Steel Collection Drum with Clear Plastic Bag
• 1 Micron Canister Filter
• RF Remote Control

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
