Laguna Dust Extractor D|Flux: 3, 3.0HP TEFC - 220V | MDCDF3220

Laguna D|Flux Dust Extractor 3, 3.0HP TEFC – 220V | MDCDF3220.

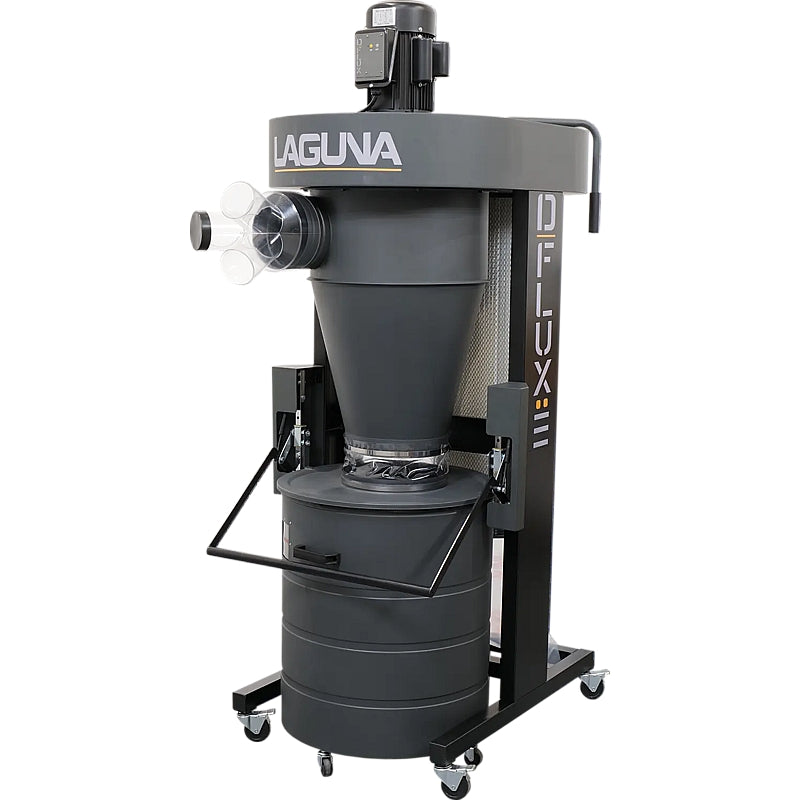

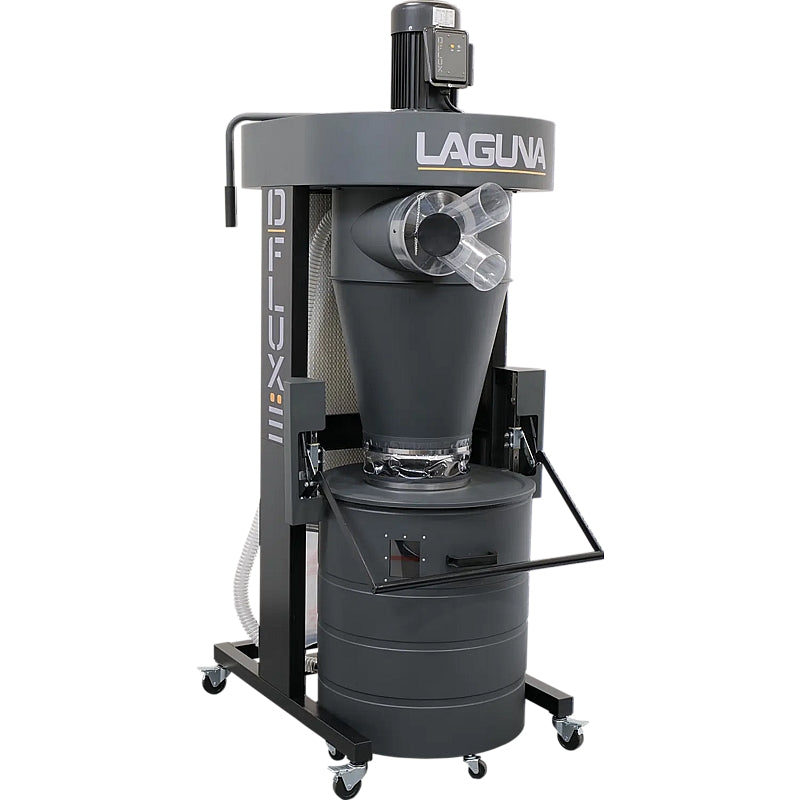

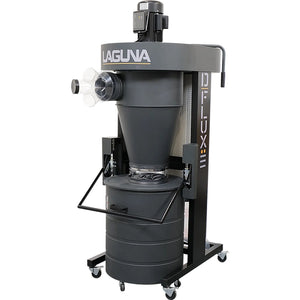

The Laguna D|Flux Dust Extractor 3 represents the high-performance solution within the D|Flux Dust Collection range, specifically developed for workshops requiring increased capacity and airflow. Powered by a robust 3HP TEFC motor operating on 220V, this unit delivers reliable and consistent dust extraction while maintaining a clean and efficient workspace.

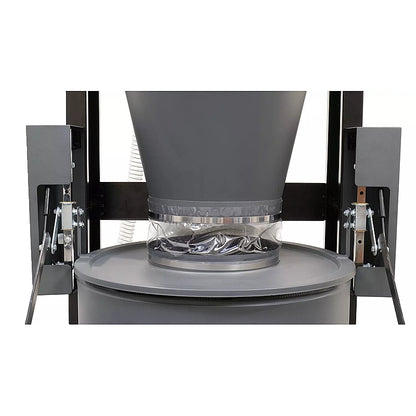

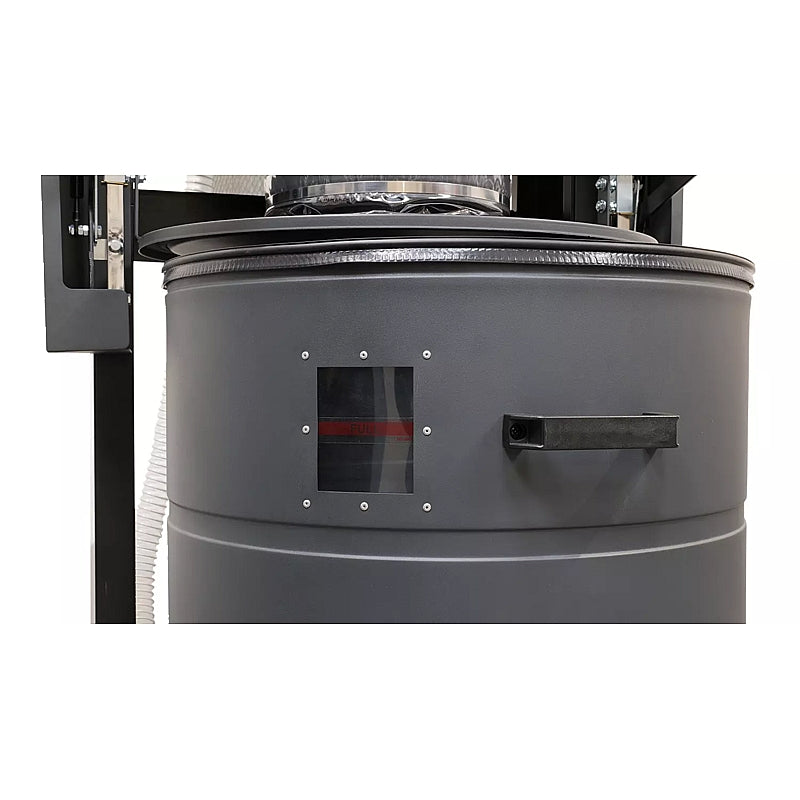

Moreover, the advanced two-stage cyclone system efficiently captures heavy debris before fine particles reach the 1 Micron canister filter, thereby enhancing filtration efficiency and reducing maintenance frequency. Dust is collected into a clear plastic bag housed within a durable steel drum, allowing for easy monitoring of fill levels.

In addition, the user-focused design incorporates magnetic hose connections, an air-strut-assisted drum lid for effortless handling, and integrated wheels on both the machine and drum for improved mobility. Designed for woodworkers seeking maximum performance at an accessible price point, the D|Flux 3 delivers powerful dust management without compromise.

Features & Benefits:

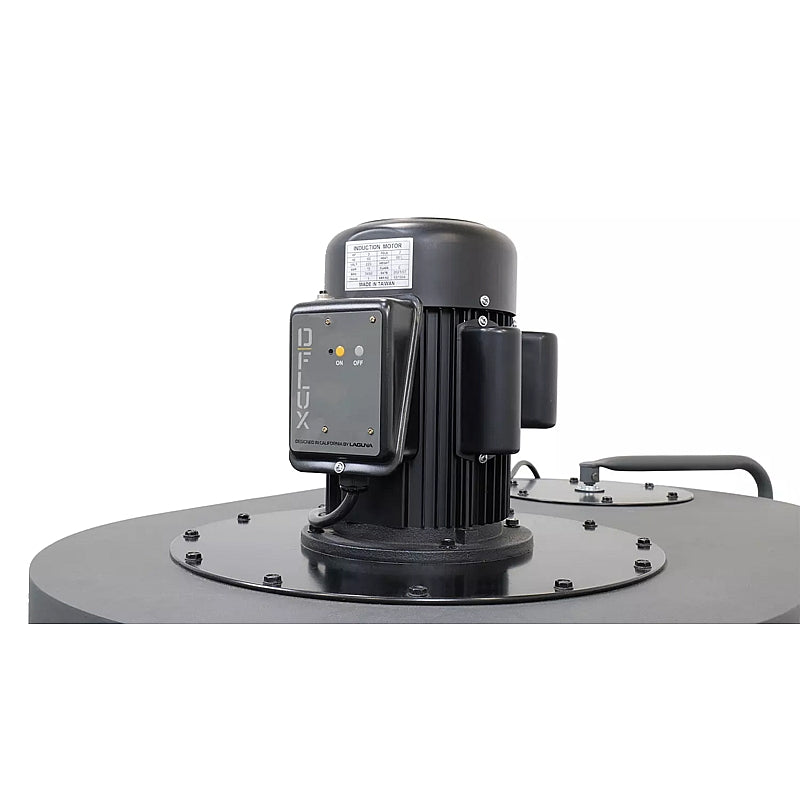

• 3HP TEFC Motor: Delivers powerful and dependable performance while protecting internal components from dust ingress.
• High-Efficiency 2-Stage Cyclone Separator: Improves separation of heavy particles, enhancing airflow consistency and filter longevity.
• 45-Gallon Steel Drum Capacity: Supports extended operation with fewer emptying intervals.

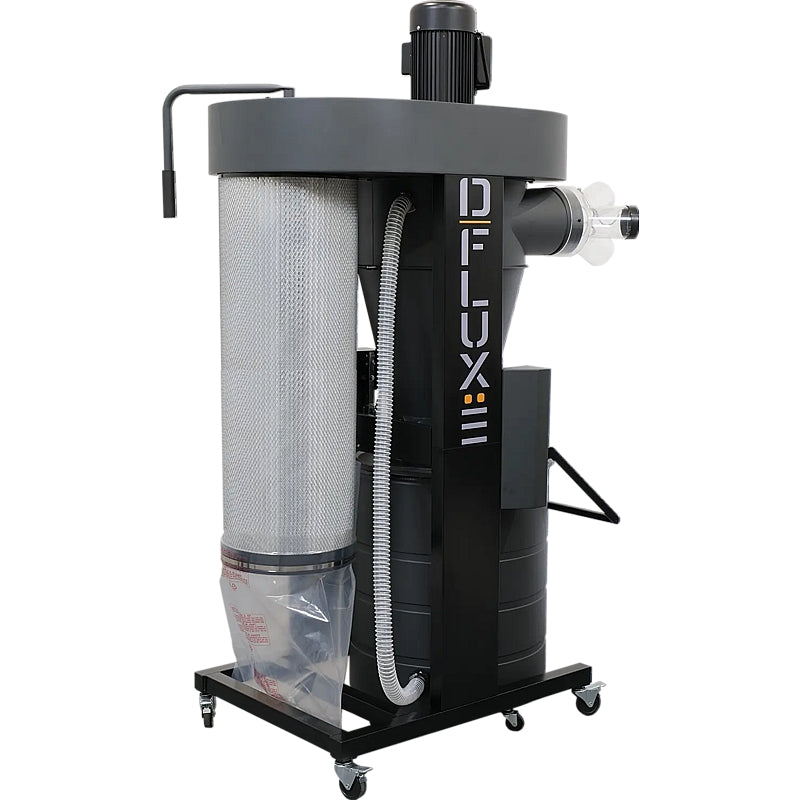

• 1 Micron Canister Filter: Provides superior fine dust filtration for cleaner workshop air.

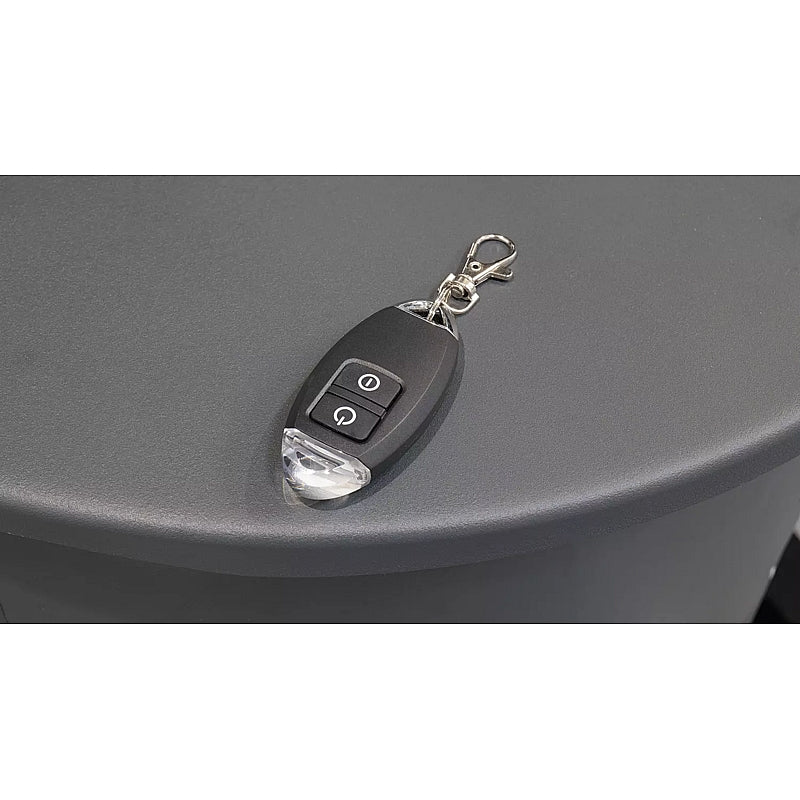

• RF Remote Control: Enables convenient operation from anywhere in the workshop.

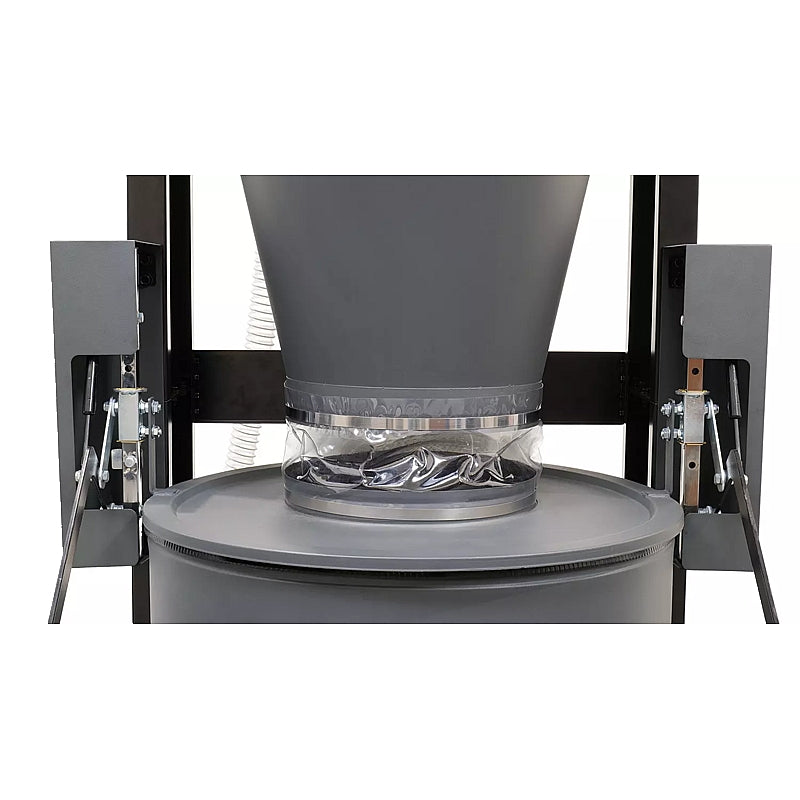

• Air-Strut-Assisted Drum Lid: Reduces physical effort when accessing or emptying the drum.

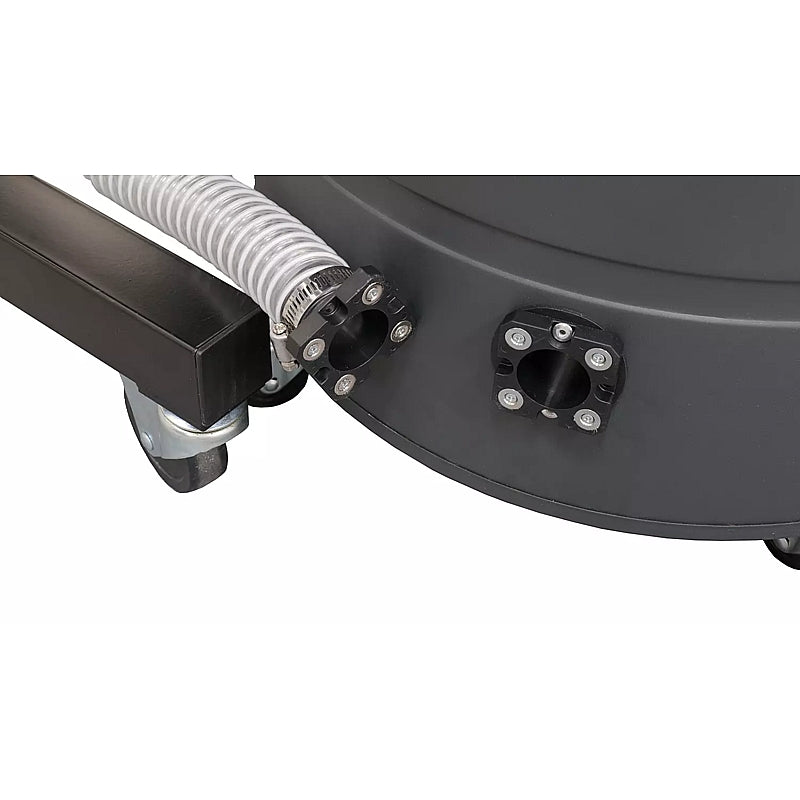

• Magnetic Hose Connections: Allow quick, secure, and tool-free hose attachment.
• Integrated Mobility System: Machine and drum wheels ensure easy repositioning within the workspace.

Specifications:

• Code: MDCDF3220
• Barcode: Not provided
• Motor: 3 HP TEFC
• Voltage: 220V
• Collection Type: 2 Stage Cyclone
• Maximum Air Flow: 1941 CFM
• Maximum Static Pressure: 11" (279 mm)
• Inlet Size: 8" (203 mm)
• Splitter: 3 × 4" (102 mm)
• Collection Volume: 45 Gallon Drum (170 litres)
• Filter: 1 Micron
• Filter Size: 14.5" × 39.38" (368 mm × 1,000 mm)
• Impeller: Cast Aluminium, 16" (406 mm)
• Drum Bag Retention: Negative Pressure
• Drum Bag Hose: Magnetic Connector
• Drum Lid Hose: Clear Hose
• Drum Handle Lift: Air Strut Assistance
• Mobility: Machine and Drum Wheels
• Remote Control: RF Remote
• Sound Rating: 79 dB
• Certification: ETL
• Filter Cleaning: Manual Filter Cleaning
• Dimensions: 31" × 54" × 82" (787 mm × 1,372 mm × 2,083 mm)
• Shipping Weight: 346 lbs (157 kg)
• Packaging: 1 Box

Scope of Delivery:

• Laguna D|Flux 3 Dust Extractor Unit
• Steel Collection Drum with Clear Plastic Bag
• 1 Micron Canister Filter
• RF Remote Control

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
