Laguna Floor Drill Press DP:20, 1.5HP - 220V | MDP20-1

Laguna Floor Drill Press DP:20, 1.5HP – 220V | MDP20-1

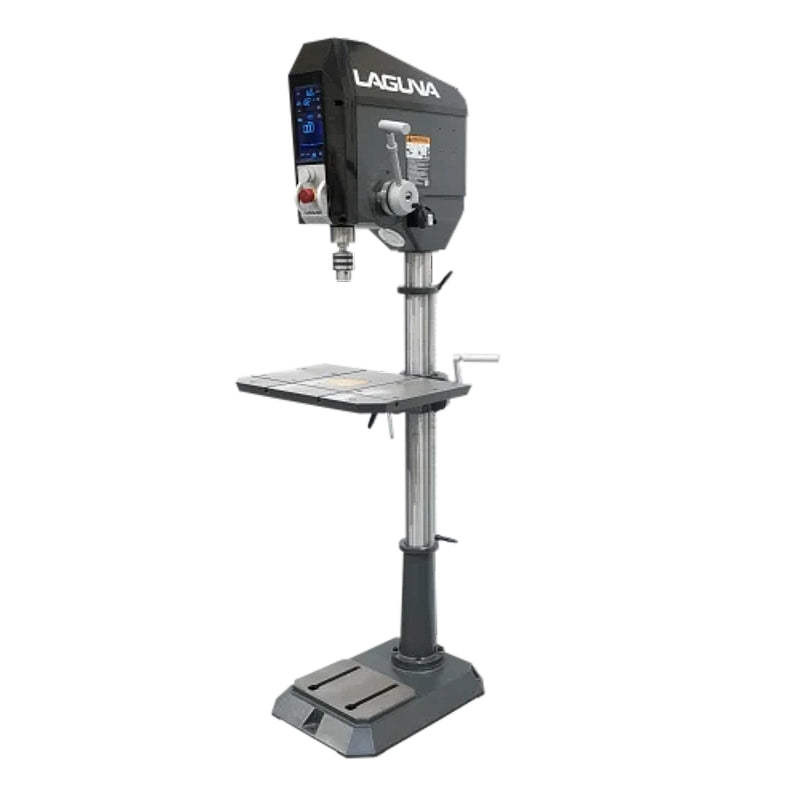

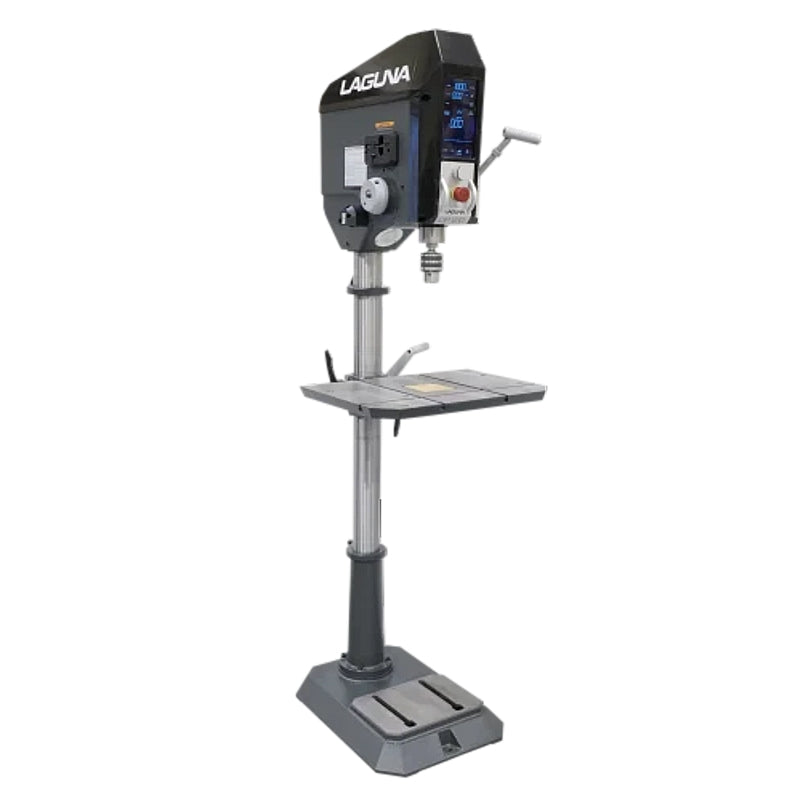

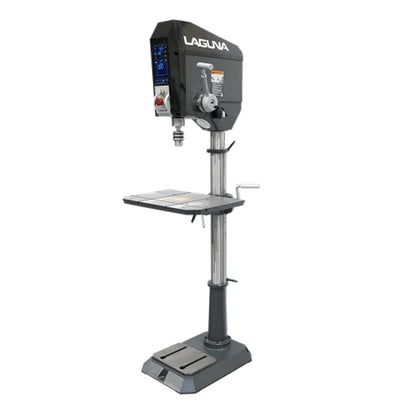

The Laguna DP:20 Floor Drill Press represents the latest evolution in Laguna’s classic drill press range, where industrial power meets modern design. Engineered for demanding applications, this machine features a robust 1.5HP Pulse Width Modulation (PWM) motor that delivers constant torque across a wide electronic variable speed range from 60 to 3600 RPM. This makes it suitable for wood, metal, plastics, and other materials, handling even the most challenging drilling tasks with ease.

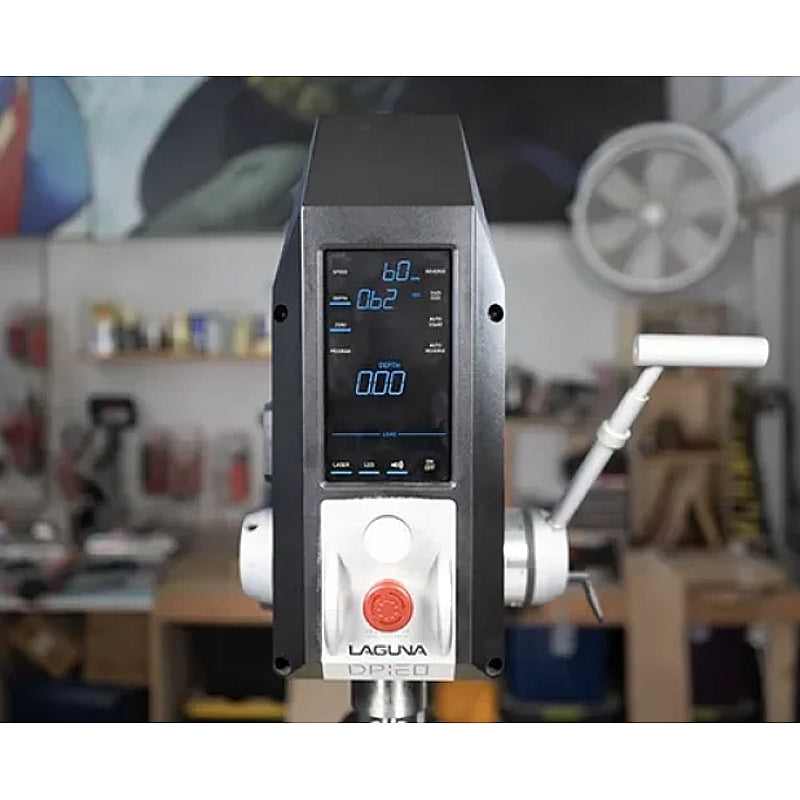

Furthermore, the state-of-the-art Touch Screen Smart Panel with a blue LCD digital readout provides real-time feedback for RPM, load, and quill depth. The large 3-3/4" × 6-7/8" (95 mm × 175 mm) touch screen enhances usability and functionality, allowing intuitive control and monitoring of every operation.

Productivity and precision are further enhanced by features such as Auto-Start, which activates the drill press when the quill is lowered and stops it when raised. Precision depth control via electronic depth settings or mechanical stops ensures consistent results, while Auto Reverse supports tapping operations. Safety is built-in with a chuck key holder sensor that disables Auto-Start during bit changes. The extra-large 15" × 22" (381 mm × 559 mm) cast iron worktable tilts ±90° and rotates 360°, providing versatile support and multiple clamping options. Onboard LED lighting and crosshair lasers ensure optimal visibility and positioning for every task.

Features & Benefits:

• 1.5HP PWM Motor: Provides constant torque with forward and reverse functionality for a wide range of materials.
• Touch Screen Smart Panel: Intuitive interface with blue LCD readout displaying RPM, load, and quill depth.
• Auto-Start Function: Starts and stops with quill movement, improving workflow efficiency.
• Precision Depth Control: Electronic depth settings allow repeatable and accurate drilling results.
• Auto Reverse Function: Automatically reverses taps when reaching preset depth for safe tapping operations.
• Advanced Safety System: Chuck key sensor disables Auto-Start during bit changes, ensuring operator safety.
• Extended Quill Travel: 6" (152 mm) of drilling capacity for deep or precise work.
• Versatile Cast Iron Worktable: 15" × 22" (381 mm × 559 mm) table tilts ±90° and rotates 360° for flexible positioning.

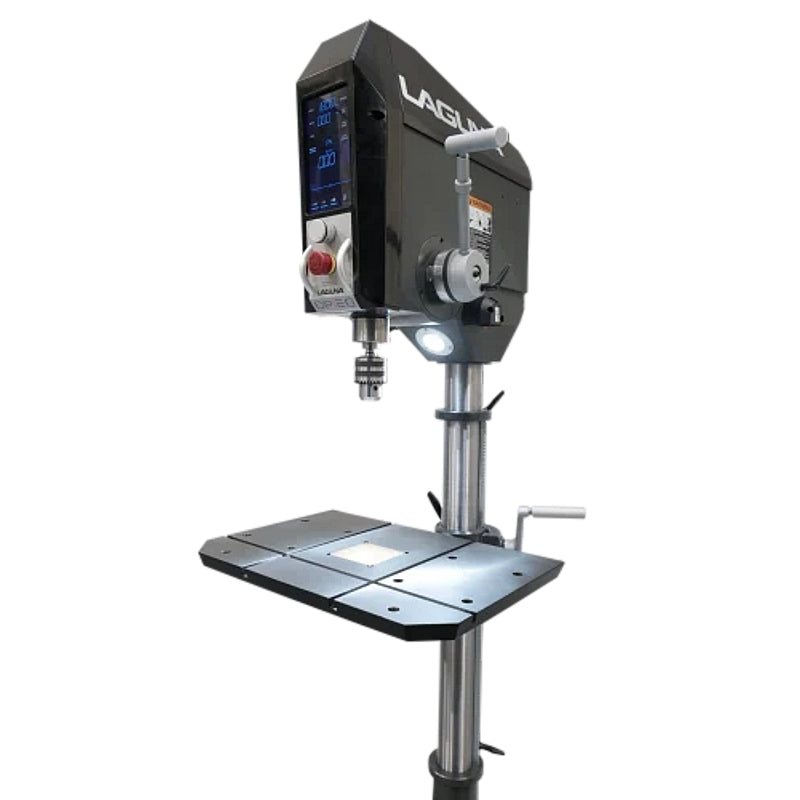

• LED Work Light & Crosshair Lasers: Onboard 5W LED and positioning lasers ensure visibility and accurate material alignment.
• Memory Settings: Five programmable speed and depth presets streamline repetitive tasks.

Specifications:

• Code: MDP20-1
• Barcode: Not provided
• Motor Type: DC Brushed, PWM (Pulse Width Modulation)
• Motor Power: 1.5 HP
• Current: 15 AMP
• Voltage: 220V
• Frequency: 60 Hz
• Speed Range: Electronic Variable 60 – 3600 RPM, Forward / Reverse
• Power Transfer: Poly-groove drive belt
• Machine Control: LCD Touch Screen Smart Panel
• Touch Screen Size: 3-3/4" × 6-7/8" (95 mm × 175 mm)
• Base Size: 22.83" × 16.92" (580 mm × 430 mm)
• Column Diameter: 3.15" (80 mm)
• Swing: 20" (1830 mm)
• Spindle Taper: MT2
• Quill Travel: 6" (152 mm)
• Quill Diameter: 2.6" (66 mm)

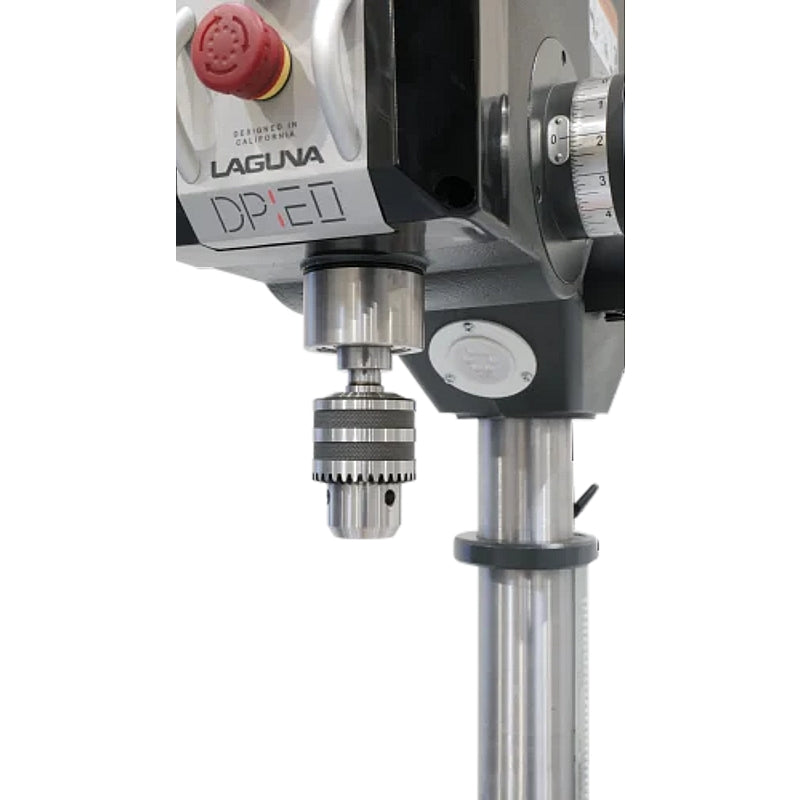

• Chuck Capacity: 5/64" – 5/8" (2 – 16 mm)
• Table Size: 15" × 22" (381 mm × 559 mm)
• Table Slots: 3 T-slots, 10 clamping holes
• Table Movement: ±90° tilt, 360° swivel around column
• Spindle to Table: 30" maximum (762 mm)
• Spindle to Base: 49.5" maximum (1,257 mm)
• Memory Settings: 5 programmable memory settings
• Power Cord Length: 6 ft (1,829 mm)
• Weight (Net): 304 lbs (138 kg)
• Weight (Gross): 326 lbs (148 kg)
• Packing Dimensions: 72.5" × 28.5" × 20" (1,840 mm × 725 mm × 406 mm)

Scope of Delivery:

• Laguna DP:20 Floor Drill Press
• Integrated Touch Screen Smart Panel
• Onboard 5W LED Work Light
• Crosshair Laser Positioning System

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
