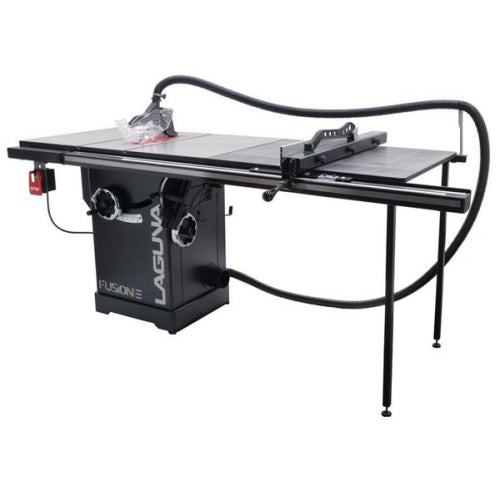

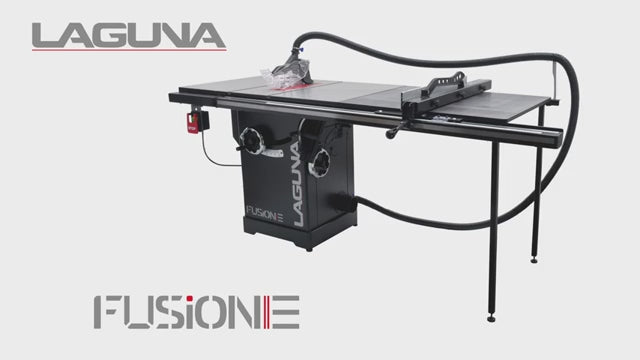

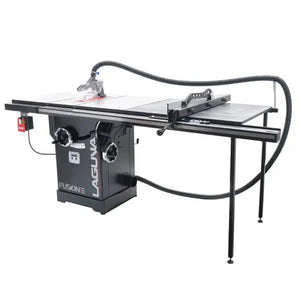

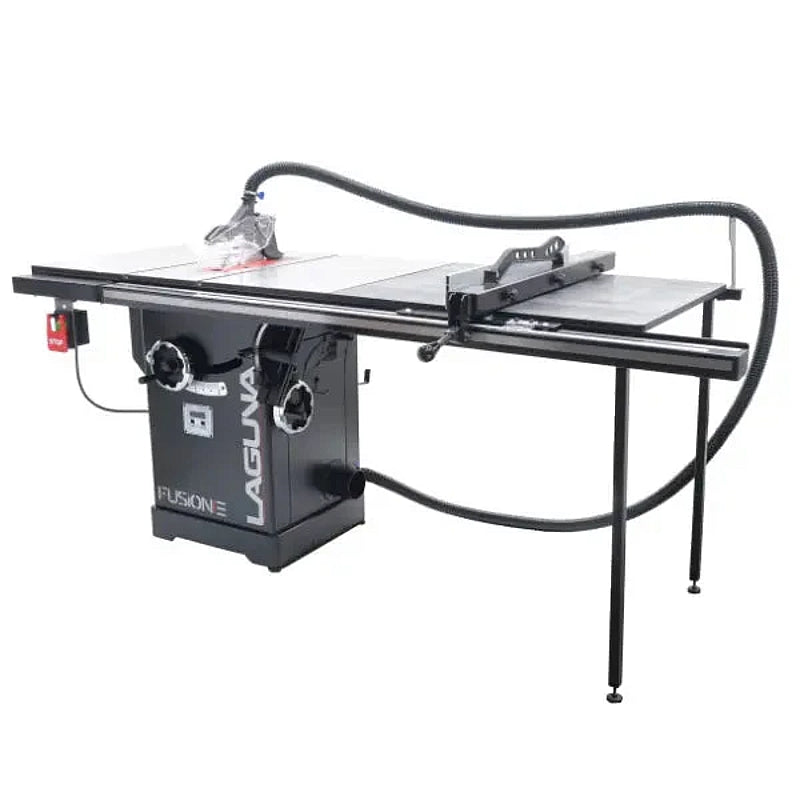

Laguna 10" F3 Fusion Table Saw + 52" Rail & Fence, 3HP TEFC | 027MTSF3.
The Laguna 10" F3 Fusion Table Saw is built for demanding woodworkers who require precision, durability, and efficiency. Its 3HP TEFC (Totally Enclosed Fan-Cooled) motor delivers consistent power, while the full cabinet design, cast iron table and wings, and cast iron Fusion trunnions ensure maximum stability. The hybrid European/American fence provides accurate alignment, and the saw features a 52" (1321 mm) rip capacity. Superior Fusion dust collection with a 4" (102 mm) cabinet port and 1-½" (38 mm) overhead port keeps your workspace clean. Additionally, the saw includes integrated tool storage, outfeed and rip tables, riving knife, push stick, miter gauge, blade changing tool, and a 10" x 40T carbide-tipped blade, enabling immediate operation and professional results.
Product Highlights:

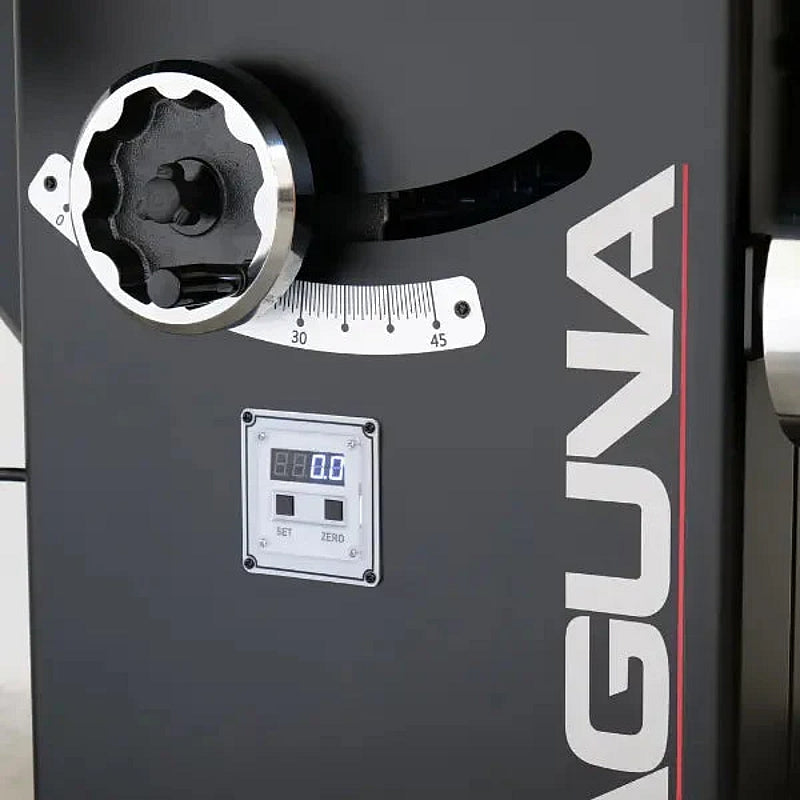

Digital Readout:
Laguna has added DRO for the tilt on the Fusion F2 & F3 as standard equipment.

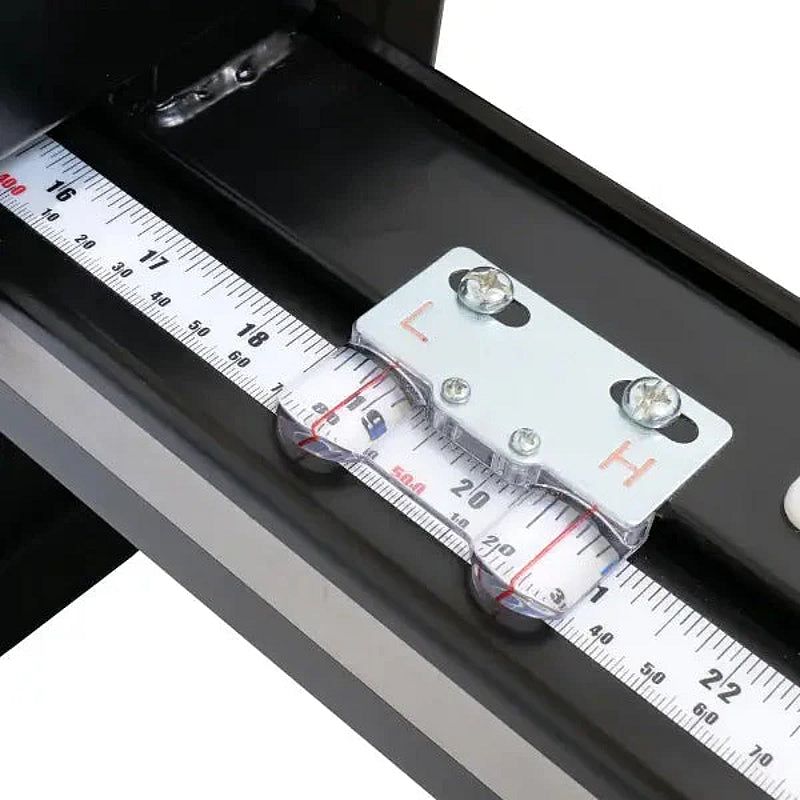

European Hi/Low Fence:
The Rip fence on Fusion F2 & F3 now features a Hi/Low window to work with the European style Hi/Low fence.

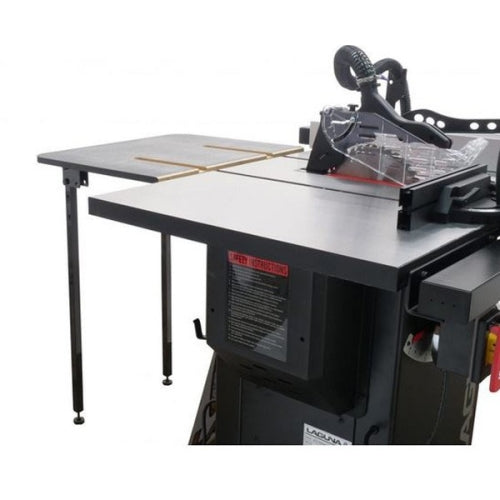

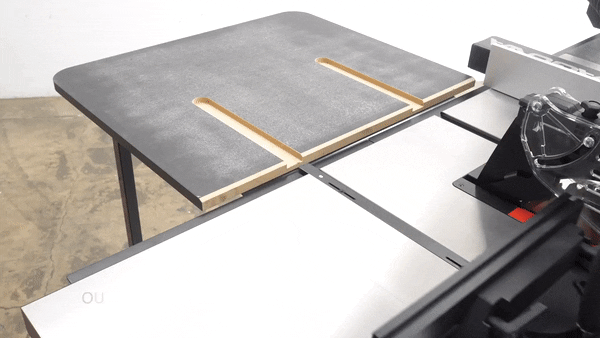

Outfeed Table:
Coming standard with the Fusion F3, the outfeed table features dual miter slots and 2 supporting legs

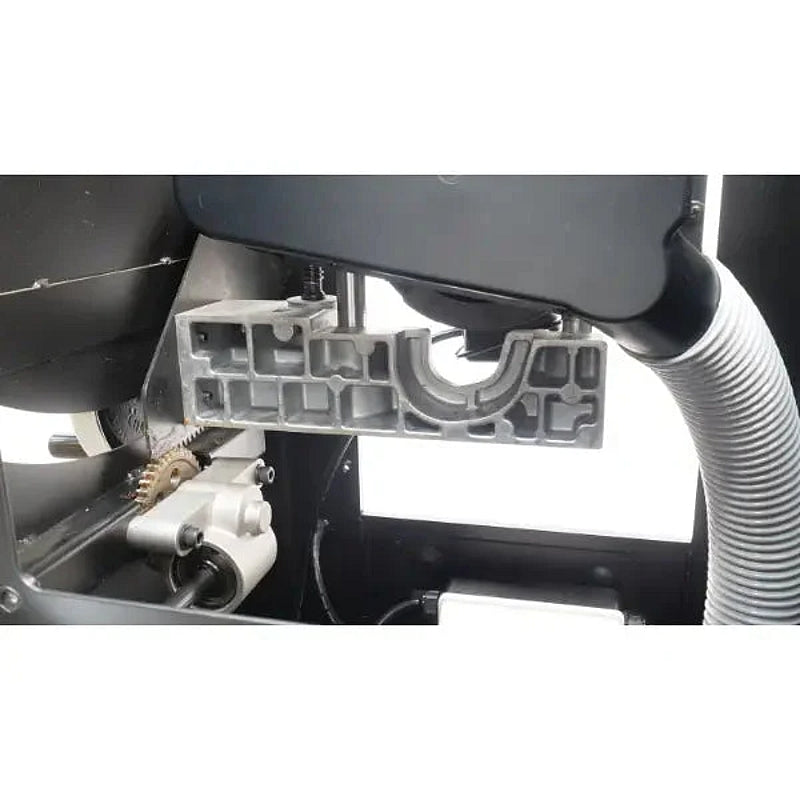

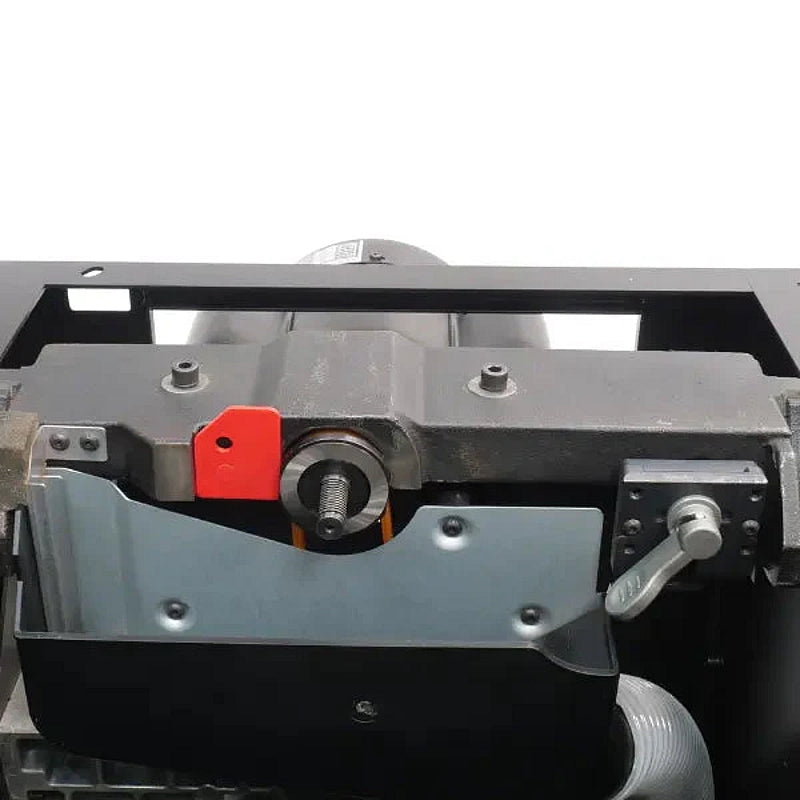

Cabinet Mounted Trunnion:
Adjusting the table to line up the miter gauge has never been easier

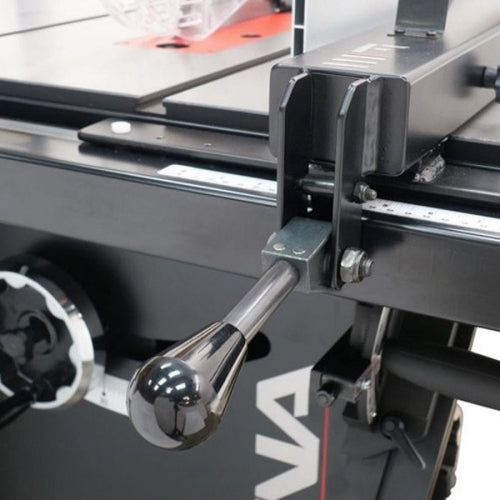

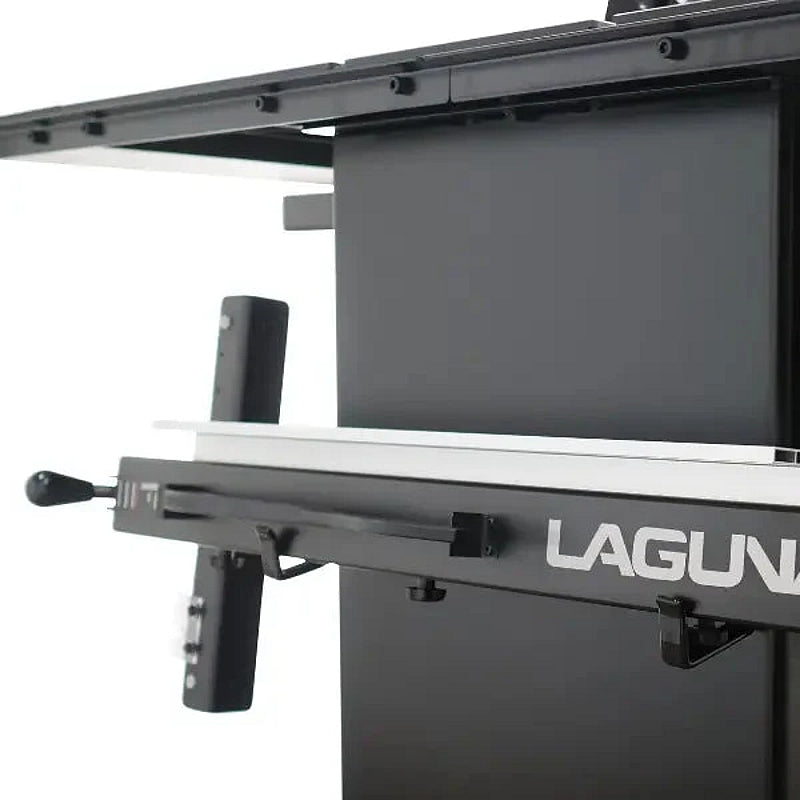

Industrial Fence & Rails:
The fence glides effortlessly on the industrial strength steel fence rails
Features & Benefits:
-
Powerful Motor: 3HP TEFC motor ensures stable, continuous performance for heavy-duty woodworking.
-
Precision and Stability: Cast iron table, wings, and Fusion trunnions provide rigidity and accurate cutting.
-
Large Rip Capacity: 52" (1321 mm) rip capacity accommodates wide panels.
-
Hybrid Fence: European Hi-Lo design ensures precise alignment, smooth adjustments, and safe operation.
-
Advanced Dust Collection: Fusion system with 4" (102 mm) cabinet port and 1-½" (38 mm) overhead port maintains a clean workspace.
-
Complete Tool & Accessory Kit: Includes riving knife, push stick, miter gauge, blade changing tool, and 10" x 40T carbide-tipped blade.
-
Integrated Tool Storage: Convenient on-board storage for essential tools and accessories.
-
Durable Construction: Industrial-grade steel, premium bearings, and powder-coated finish ensure long-term reliability.
-

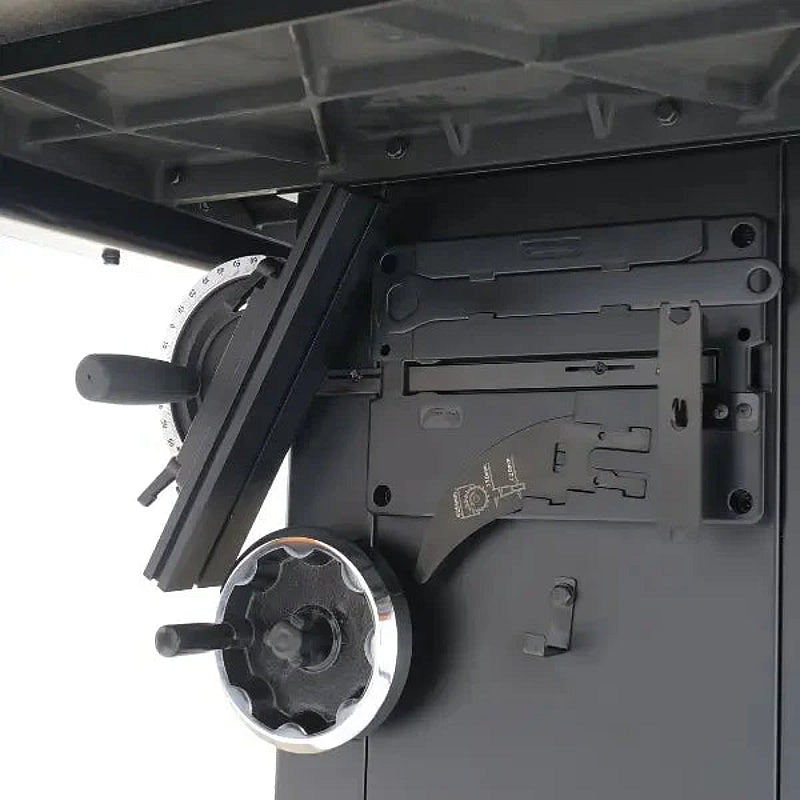

Digital Readout: Provides precise blade tilt adjustments for repeatable, accurate cuts.
-
Mobility: Built-in wheels allow repositioning without compromising stability.
Specifications:
-
Motor: 3HP TEFC, 220V, Single-Phase, 60Hz
-
Dust Port Size: 4" (102 mm)
-
Blade Guard Dust Port Size: 1-½" (38 mm)
-
Table Saw Type: Cabinet
-
Maximum Blade Diameter: 10" (254 mm)
-
Arbor Size: ⅝" (16 mm)
-
Arbor Speed: 4500 RPM
-
Maximum Width Of Dado: ¾" (19 mm)
-
Blade Tilt Direction: Left with Digital Readout
-
Max Blade Tilt: 45°
-
Maximum Rip Capacity: 52" (1321 mm)
-
Wheel System: Built-In
-
Maximum Depth Of Cut At 90°: 3-⅛" (80 mm)
-
Maximum Depth Of Cut At 45°: 2-⅛" (54 mm)
-
Max Rip Right Of Blade With Included Fence & Rails: 52" (1321 mm) *
-
Blade Information: 10" x 60T, Riving Knife/Spreader Thickness: 3/32", Required Blade Body Thickness: > ⅛", Required Kerf Thickness: < 5/64"
-
Table Information: Floor to Table Height: 35" (889 mm), Table Size with Extension Wings Width: 77" (1956 mm), Depth: 27" (686 mm), Distance Front to Blade Center: 13-7/16" (341 mm), Distance Front to Max Cut: 8-⅝" (219 mm), Main Table Thickness: 1-½" (38 mm)
-
Fence Information: Camlock T-Shape with Aluminum European Hi-Lo Face, Length: 33-7/16" (849 mm), Width: 16" (406 mm), Height: 3" (76 mm), Rail Type: Aluminum Extrusion/Angle Steel, Rail Length: 67-⅞" (1725 mm), Rail Width: 3" (76 mm), Rail Height: 2" (51 mm)
-
Product Dimensions: Weight (Net): 405 lbs (183.7 kg), Overall Width: 85" (2159 mm), Overall Depth: 56" (1422 mm), Overall Height: 43" (1092 mm), Footprint Width: 48" (1219 mm), Footprint Length: 42-½" (1080 mm), Space Required Side-to-Side: 85" (2159 mm), Space Required Front-to-Back: 56" (1422 mm)
-
Construction: Table & Wings: Precision-Ground Cast Iron, Cabinet: 14 Gauge Steel, Trunnions: Cast Iron, Body Assembly: 14 Gauge Steel, Fence Assembly: Steel Body, Rails: Industrial Steel, Miter Gauge: Cast Iron with Steel Bar & Aluminum Fence, Guard: Steel & Clear Plastic, Paint/Finish: Powder Coated, Arbor Bearings: Sealed & Permanently Lubricated
Scope of Delivery:
- 1 x Laguna 10" F3 Fusion Table Saw + *52" Rail & Fence
- 1 x 10" x 40T Carbide-Tipped Blade
- 1 x Riving Knife
- 1 x Push Stick
- 1 x Miter Gauge
- 1 x Blade Changing Tool
- Accessory Tables (Outfeed & Rip)
- Integrated Tool Storage
The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
