CNC BASIX - Lead Screw CNC Machine, 0.9M x 0.9M | AXYZ0909L.

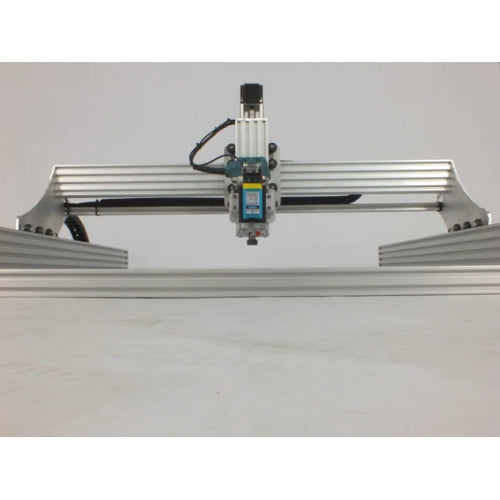

The CNC BASIX - Lead Screw CNC Machine, 0.9M x 0.9M | AXYZ0909L is a robust yet compact CNC router designed for users who require precision cutting in a smaller footprint. This light industrial machine is perfect for working with wood, PCBs, and perspex, making it a valuable addition to any workshop.

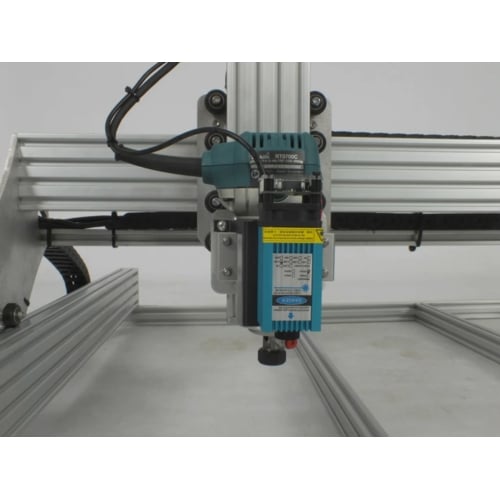

Powered by a Makita RT0700C 700W Router, this machine provides manual speed control ranging from 12,000 to 30,000 RPM. The work area of 700mm x 700mm x 50mm allows for versatile cutting applications, while the open-ended design enables pass-through cutting of longer materials.

With a maximum cutting depth of 50mm (depending on the bit used), this machine ensures accuracy and efficiency in every cut. Its all-aluminium frame enhances durability while maintaining a lightweight structure. Additionally, the TR8 8mm lead screw drive system provides reliable motion control, ensuring precision in every job.

Features & Benefits:

• Compact Footprint: 900mm x 900mm, making it ideal for workshops with limited space.
• Work Area: 700mm x 700mm x 50mm, providing ample space for various cutting tasks.
• TR8 8mm Lead Screw Drive System: Ensures precise and smooth motion control.
• Dual Motors on Y-Axis: Improves stability and accuracy during cutting operations.
• All-Aluminium Frame: Lightweight yet durable construction for long-lasting performance.
• Open-Ended Design: Enables pass-through cutting of longer materials.
• Makita RT0700C Router: 700W motor with adjustable speeds between 12,000 and 30,000 RPM.
• Maximum Cutting Depth: Up to 50mm, depending on the cutting bit used.
• Maximum Feed & Jog Rate: 1000mm/min for controlled operation.
• Electronics Controller Box: Equipped with a USB cable connection for easy interfacing.
• Full Cable Management: X & Y axis cable drag chains ensure organised and secure wiring.
• Includes MDF Wasteboard: Comes with fastening clamps to secure materials in place.
• 5 Cutting Bits: (1mm, 1.5mm, 2mm, 2.5mm, 3mm) for versatile cutting applications.
• Collets: 3mm and 6mm for accommodating different bit sizes.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• USB port on the computer.
• Open Builds Operating Software (included).
• Easel 30-Day Free Trial - Online Cloud-Based App used for designing and cutting.

Alternative Designing Software:

• Vectric: Basic training available at an additional cost.
• Fusion 360: Basic training available at an additional cost.

Specifications:

Footprint: 900mm x 900mm
Work Area: 700mm x 700mm x 50mm
Cutting Depth: Up to 50mm (depending on the bit used)
Drive System: TR8 8mm lead screws (X & Y axes)
Motors: 4 x Nema23 stepper motors
Controller Board: 4-axis stepper motor driver
Power Supply: 24V 10A 250W
Router Compatibility: Makita RT0700C (65mm spindle mount)
Manual Speed Control: 12,000 – 30,000 RPM
Resolution: Configured to 0.1375mm
Maximum Feed & Jog Rate: 1000mm/min
Collets: 3mm, 6mm

Scope of Delivery:

• 1 x CNC BASIX - Lead Screw CNC Machine, 0.9M x 0.9M | AXYZ0909L

Training & Delivery:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.

Lead Times:

• Gauteng & Surrounding Provinces: 3-5 Weeks
• Northern, Eastern & Western Cape: 5-8 Weeks

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
