CNC BASIX - Lead Screw CNC Machine, 1.4M x 1.4M | AXYZ1414L.

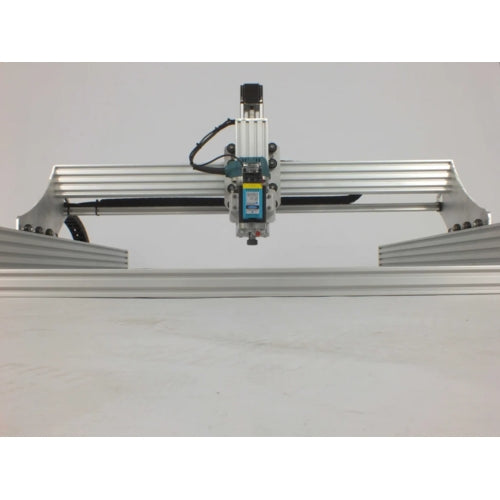

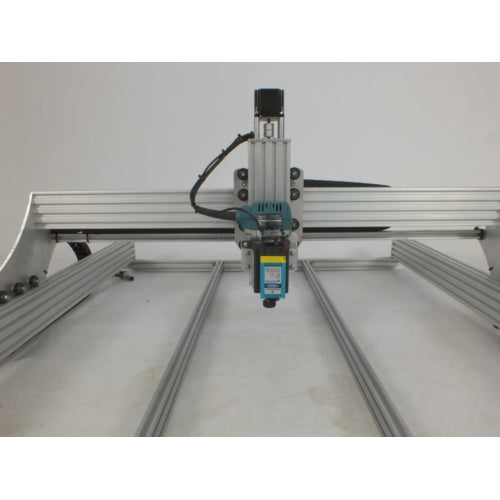

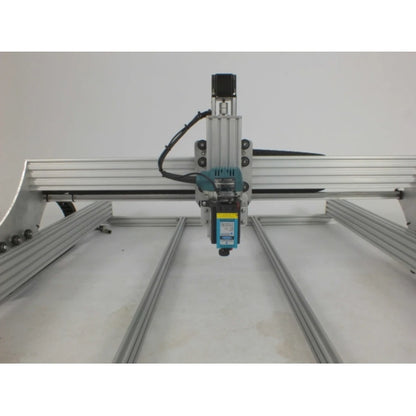

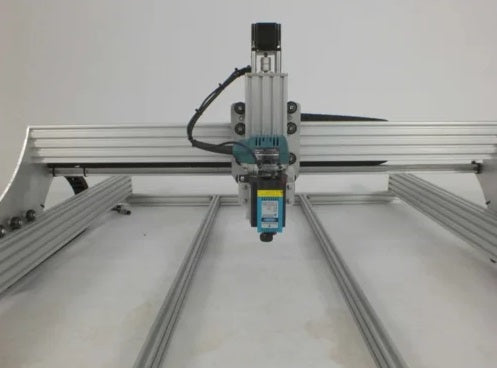

The CNC BASIX - Lead Screw CNC Machine, 1.4M x 1.4M | AXYZ1414L is a reliable and efficient cutting solution designed for users looking for a compact yet powerful CNC router. Ideal for light to moderate workloads, it can cut wood, PCBs, and perspex with precision. Equipped with a TR8 8mm lead screw drive system, it ensures smooth and controlled movement on the X and Y axes.

With a cutting depth of up to 50mm (depending on the cutting bit used), this machine provides flexibility for various applications. The all-aluminium frame enhances durability while maintaining a lightweight structure. Additionally, the open-ended design allows for the pass-through of longer materials, expanding the range of possible projects.

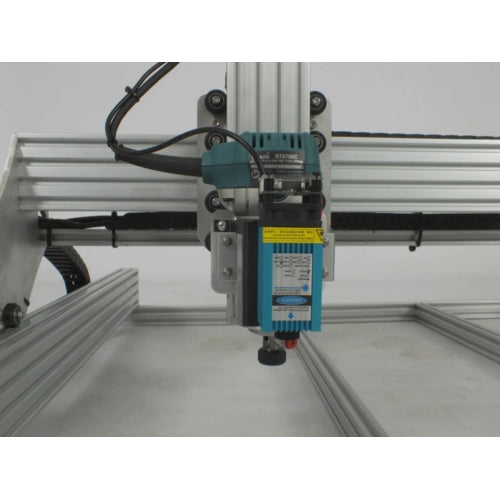

Powered by a Makita RT0700C 700W Router, the machine offers a speed range of 12,000 to 30,000 RPM. The maximum feed and jog rate is set at 1000mm/min, ensuring controlled operation. An MDF wasteboard with fastening clamps is included to secure materials during machining.

Features & Benefits:

• Footprint: 1400mm x 1400mm
• Work Area: 1200mm x 1200mm x 50mm
• TR8 8mm Lead Screw Drive System: Provides precise motion control on X and Y axes.
• Dual Motors on Y-Axis: Enhances stability and accuracy.
• All-Aluminium Frame: Durable yet lightweight for long-term reliability.
• Open-Ended Design: Allows pass-through cutting of longer materials.
• Makita RT0700C Router: A 700W router with adjustable speeds from 12,000 to 30,000 RPM.
• Adjustable Cutting Depth: Up to 50mm, depending on the cutting bit used.
• Maximum Feed & Jog Rate: 1000mm/min.
• Electronics Controller Box: Features a USB cable connection for seamless operation.
• Full Cable Management: Includes X & Y axis cable drag chains for organized and secure wiring.
• Includes MDF Wasteboard: Comes with fastening clamps for secure material placement.
• 5 Cutting Bits: (1mm, 1.5mm, 2mm, 2.5mm, 3mm) for versatile cutting applications.
• Collets: 3mm and 6mm for different bit sizes.

Requirements:

• Personal computer or laptop running Windows 7, 8, or 10.
• USB port on the computer.
• Open Builds Operating Software (included).
• Easel 30-Day Free Trial - Online Cloud-Based App used for designing and cutting.

Alternative Designing Software:

• Vectric: Basic training available at additional cost.
• Fusion 360: Basic training available at additional cost.

Specifications:

Footprint: 1400mm x 1400mm
Work Area: 1200mm x 1200mm x 50mm
Cutting Depth: Up to 50mm (depending on the bit used)
Drive System: TR8 8mm lead screws (X & Y axes)
Motors: 4 x Nema23 stepper motors
Controller Board: 4-axis stepper motor driver
Power Supply: 24V 10A 250W
Router Compatibility: Makita RT0700C (65mm spindle mount)
Manual Speed Control: 12,000 – 30,000 RPM
Resolution: Configured to 0.1375mm
Maximum Feed & Jog Rate: 1000mm/min
Collets: 3mm, 6mm

Training & Delivery:

• Compulsory delivery, setup, and minimal training of the machine available at additional cost.
• Delivery available within South Africa only.

Lead Times:

• Gauteng & Surrounding Provinces: 3-5 Weeks
• Northern, Eastern & Western Cape: 5-8 Weeks

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
