Souber Tools Lock Morticer + 18mm Cutter - Screw Type | ST JIG 1C

Souber Tools Lock Morticer + 18mm Cutter - Screw Type | ST JIG 1C.

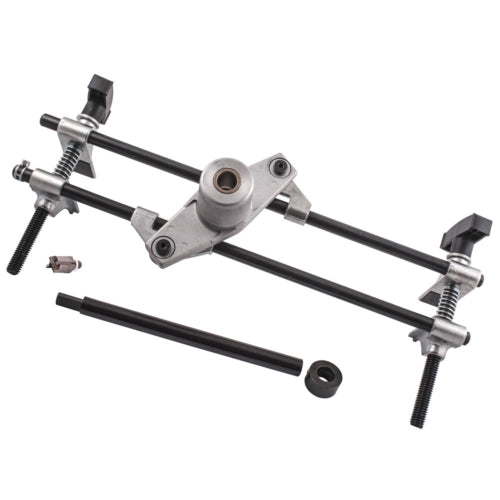

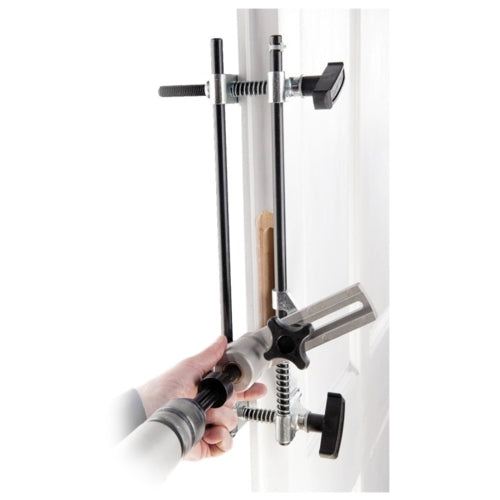

The Souber Tools Lock Morticer is a versatile tool designed for quick and accurate cutting of lock recesses. Known for its efficiency, it cuts mortices for both the lock body and faceplate, making it a go-to tool for locksmiths and builders who need to install mortice locks. The morticer is compatible with doors ranging from 30mm to 85mm thick and is ideal for wooden doors, with optional special cutters for aluminium doors.

This reliable tool features vertical guides, height, and depth stops, ensuring precise cuts without overrunning the marked area. Its robust construction and precision manufacturing guarantee dependable performance. Additionally, the self-centring jig minimizes marking-up time and requires only a standard power drill to operate. This kit comes complete with an 18mm cutter, operating manual, and a plastic carry case for easy storage and transport.

Features & Benefits:

• Fast and accurate cutting of lock body and faceplate mortices.
• Suitable for doors 30mm to 85mm thick.
• Reduces marking-up time with a self-centring jig.

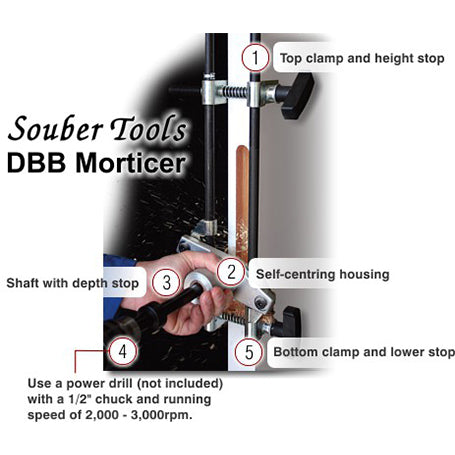

• Vertical guides, height, and depth stops ensure precise cuts.
• Can also cut door hinges, strike plates, and electric releases.
• Durable and robust construction with replaceable parts.
• Faster carbide cutters for wood morticing included.
• Works with a standard power drill for ease of use.

Specifications:

Please note that some of the items mentioned in the specifications below is not included in the set and can be purchased separately.

Drill Requirements: 13mm (1/2") Chuck, recommended speed 2,000 - 3,000 rpm
Standard Shaft Depth: 90mm (100mm without stop)
Long Shaft Depth: 170mm (180mm without stop)
Door Thickness (Standard Morticer): Max opening 55mm
Door Thickness (Standard Morticer with DBB/HK/S Special Housing): Max opening 80mm
Door and Frame Width (Offset Morticer): Max opening 95mm

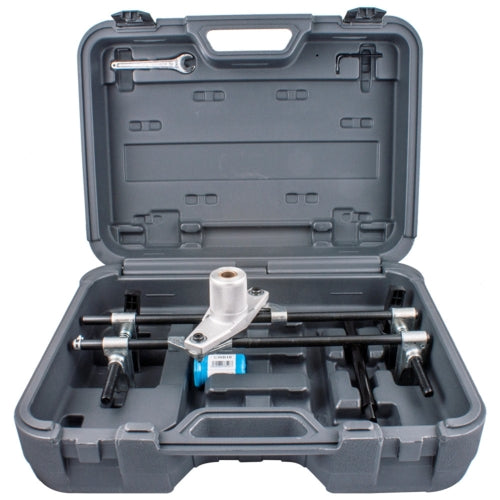

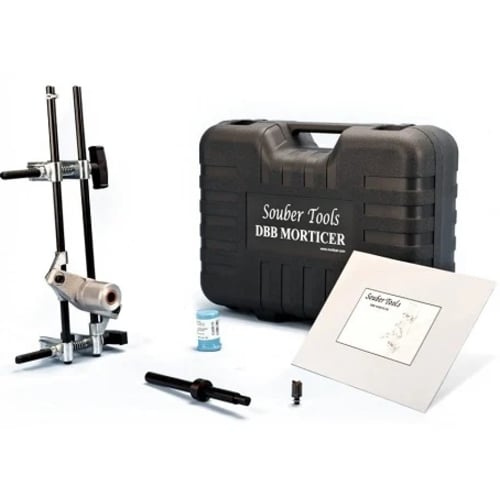

Scope of Delivery:

• 1 x Wood cutter
• 1 x Plastic carrying case
• 1 x Instruction Manual
• 1 x Standard shaft (for locks up to 100mm)

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
