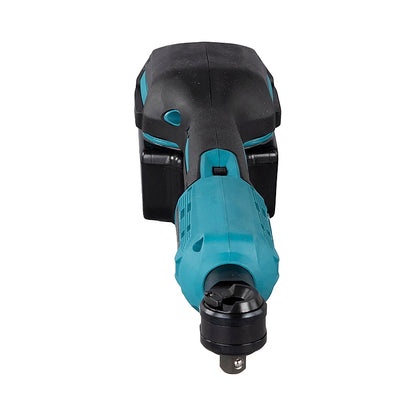

Makita 18V Cordless 3/8" & 1/4" Square Drive Ratchet Wrench 47.5Nm (Bare Tool) | DWR180Z.
The Makita 18V Cordless 3/8" & 1/4" Square Drive Ratchet Wrench is designed for agile and precise fastening in garages, workshops, and other confined areas. Its compact design allows easy handling while providing 47.5 N·m (420 in.lbs.) of maximum torque to handle a variety of standard and high-strength bolts.
Equipped with a lock-pin style ratchet mechanism, the wrench can function as a pass-through ratchet, enabling users to tighten nuts on threaded rods efficiently. The small diameter grip ensures comfort and control, while the forward/reverse switch allows easy directional changes. Additionally, the LED light with pre-glow and afterglow functions illuminates the workspace for better visibility, particularly in low-light conditions.
The ratchet wrench is compatible with Makita XPT water-resistant standards and features an electric brake to enhance productivity. The battery protection circuit safeguards against overloading, over-discharging, and overheating, ensuring consistent performance and durability.
Features & Benefits:
-
Dual Square Drive: Supports 3/8" (9.5 mm) and 1/4" (6.35 mm) socket sizes for versatile applications.
-
Maximum Torque: 47.5 N·m (420 in.lbs.) provides reliable fastening power.
-
Lock-Pin Ratchet Mechanism: Enables pass-through operation for threaded rod applications.
-
Compact Ergonomic Grip: Small diameter handle improves comfort and control.
-
LED Work Light: Pre-glow and afterglow functions illuminate the work area.
-
Forward/Reverse Switch: Allows quick and easy directional changes.
-
Electric Brake: Stops rotation quickly to increase efficiency and safety.
-
Battery Protection Circuit: Protects against overloading, over-discharging, and overheating.
-
Water-Resistance (XPT Compatible): Provides durability in wet or harsh working conditions.
-
Pass-Through Function: Tightens nuts on threaded rods without removing the bolt.
-
Versatile Use: Can also be used as a hand ratchet wrench for manual tasks.
Specifications:
-
Code: DWR180Z
-
Max Output: 330 W
-
Fastening Capacity (Standard Bolt): M5 – M12 (3/16 – 1/2")
-
Fastening Capacity (High Strength Bolt): M5 – M10 (3/16 – 3/8")
-
Square Drive: 3/8" / 1/4" (9.5 / 6.35 mm)
-
Max Fastening Torque: 47.5 N·m (420 in.lbs.)
-
No Load Speed: 0 – 800 min⁻¹
-
Flats Width: 13 mm (1/2")
-
Angle Head Size: Diameter: 31 mm (1-7/32"), Height: 25.5 mm (1")
-
Vibration Level: 2.5 m/s²
-
Vibration K Factor: 1.5 m/s²
-
Sound Pressure Level: 74 dB(A)
-
Noise K Factor: 3 dB(A)
-
Dimensions (L × W × H) w/o Battery: 350 x 79 x 67 mm (13-3/4 x 3-1/8 x 2-5/8")
-
Dimensions (L × W × H) w/ Battery: 369 x 79 x 87 mm (14-1/2 x 3-1/8 x 3-7/16")
-
Net Weight: 1.2 – 1.6 kg (2.6 – 3.5 lbs.)
Scope of Delivery:
- 1 x Makita 18V Cordless 3/8" & 1/4" Square Drive Ratchet Wrench (Bare Tool)
- 2 x Socket Adapters
Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
