Makita MT SDS-Plus Rotary Hammer Drill 2.3J, 800W | M8701B

Makita MT SDS-Plus Rotary Hammer Drill 2.3J, 800W | M8701B.

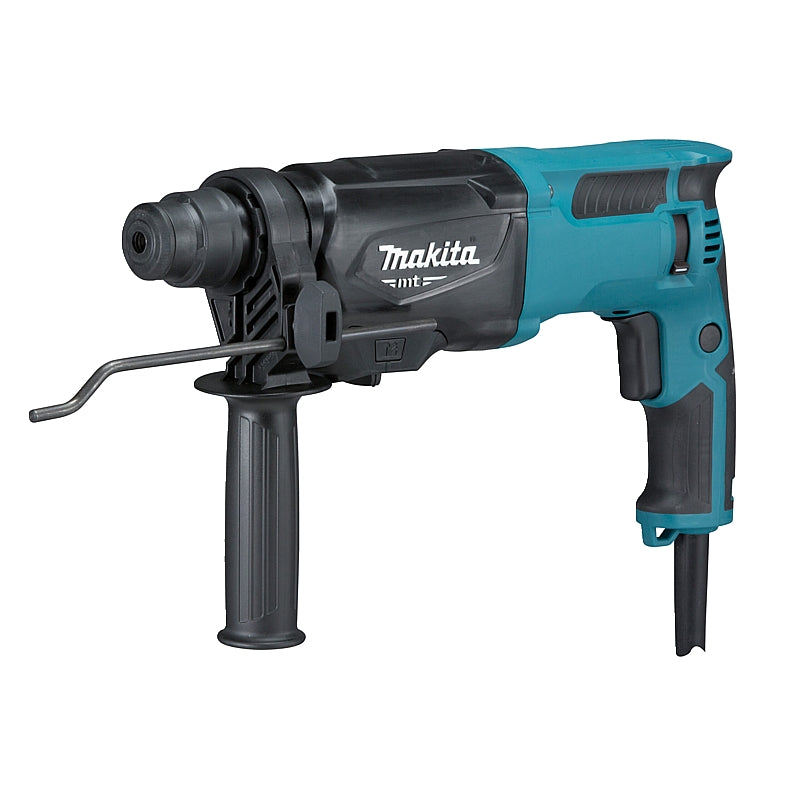

The Makita MT M8701B SDS-Plus Rotary Hammer Drill combines an 800 W motor with 2.3 J of impact energy to provide strong performance across multiple applications. This versatile tool features 3-mode operation, allowing users to switch easily between “Rotation Only”, “Hammering with Rotation” and “Hammering Only” to tackle a wide range of tasks. The re-located operating mode lever improves protection and durability, while the soft easy-to-grip handle delivers maximum power thrust and ensures a comfortable hold during operation. Additional user-friendly features include a variable speed trigger, forward/reverse lever, one-touch sliding chuck for quick bit changes, depth gauge for consistent drilling depth, torque limiter that stops rotation if the bit jams, and a recessed lock-on button for continuous use. Double insulation enhances operator safety.

Features & Benefits:

• Powerful 800 W Motor: Delivers 2.3 J impact energy for effective hammer drilling in concrete and masonry.
• 3-Mode Operation: Offers “Rotation Only”, “Hammering with Rotation” and “Hammering Only” modes for maximum versatility across different tasks.
• SDS-Plus Shank: Features a one-touch sliding chuck for fast and easy bit installation and removal.
• Safety Features: Includes a torque limiter that stops rotation if the bit jams, protecting both the tool and the user.
• Ergonomic Design: Soft easy-to-grip handle provides a sure and comfortable grip while delivering maximum power thrust.
• Convenient Controls: Variable speed trigger, forward/reverse lever, depth gauge and recessed lock-on button enhance usability and control.

Specifications:

• Code: M8701B
• Continuous Rating Input: 800 W
• Impact Energy: 2.3 J (EPTA-Procedure 05/2009)
• No Load Speed: 0 – 1,200 min⁻¹
• Blows per Minute: 0 – 4,500 min⁻¹
• Chuck Capacity: 1.5 – 13 mm (0.06" – 0.51")
• Shank Type: SDS-PLUS
• Capacity in Concrete: 26 mm (1")
• Capacity in Masonry: 26 mm (1")
• Capacity in Steel: 13 mm (0.51")
• Capacity in Wood: 32 mm (1.26")
• Vibration Level (Chiselling with Side Grip): 9.0 m/s²
• Vibration Level (Hammer Drilling into Concrete): 16.5 m/s²
• Vibration Level (Drilling into Metal): 2.5 m/s² or less
• Vibration K Factor: 1.5 m/s²
• Sound Pressure Level: 90 dB(A)
• Sound Power Level: 101 dB(A)
• Noise K Factor: 3 dB(A)
• Dimensions (L x W x H): 362 x 71 x 194 mm (14.3" x 2.8" x 7.6")
• Net Weight: 2.7 – 3.1 kg (5.95 – 6.83 lb)
• Power Supply Cord: 4.0 m (13.1 ft)

Scope of Delivery:

• Rotary Hammer Drill
• Depth Gauge
• Side Handle

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
