MatWeld Multi-Process Inverter Welder, 250A, 220V | MAT9105

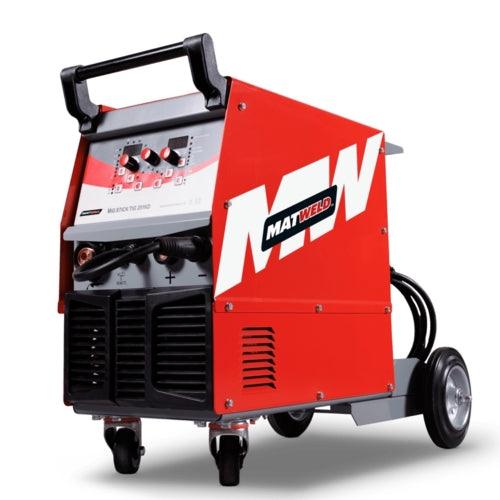

MatWeld MIG, MMA & TIG Multi-Process Inverter Welder, 250A, 220V | MAT9105.

Experience cutting-edge welding technology with the MatWeld MAT9105. Designed for efficiency and versatility, this IGBT inverter-based welder supports MIG, TIG, and MMA stick welding, making it a reliable solution for diverse welding needs. Its constant current (CC) and constant voltage (CV) functionalities ensure stable output, enhancing precision and weld quality.

With a high-duty cycle of 60% at 40°C, the MAT9105 is built for extended operation without compromising performance. The internal wire feeder simplifies MIG welding setups, while the unit’s wide output current range caters to both light and heavy-duty welding tasks. Whether used for fabrication, maintenance, or industrial applications, this multi-process welder is engineered for durability and superior welding results.

Specifications:

Brand: MatWeld
Input Power Voltage: 220V ±15%
Frequency: 50/60Hz
Rated Input Power: 45 KVA
No Load Voltage: 60V
Output Current Range (MMA): 20 – 200A
Output Current Range (TIG): 15 – 250A
Output Current Range (MIG): 30 – 250A
Rated Work Voltage: 28V
Duty Cycle: 60%
Suitable Welding Wire Diameter: 0.8mm / 1.0mm
Type of Wire Feeder: Internal
Protection Class: IP21S
Width: 460mm (46.0cm)
Length: 965mm (96.5cm)
Height: 710mm (71.0cm)
Weight: 70.00kg

Features & Benefits:

• 3-In-1 Welding Capability: Supports MIG, TIG, and MMA stick welding for maximum versatility.
• IGBT Inverter Technology: Ensures stable output and efficient energy consumption.
• Constant Current (CC) & Constant Voltage (CV): Provides precise control for high-quality welds.
• High 60% Duty Cycle at 40°C: Enables prolonged welding operations with minimal downtime.
• Internal Wire Feeder: Streamlines MIG welding for a more convenient setup.
• Wide Output Current Range: Accommodates a variety of welding applications, from light to heavy-duty tasks.

Scope of Delivery:

• MatWeld MAT9105 3-In-1 Multi-Process Welder
• Electrode holder with cable & dinse connector
• Earth clamp with cable & dinse connector
• MIG torch

Please Note: The images provided are for illustrative purposes only. The actual items included in the delivery are specified in the product description or as indicated by the product title.
