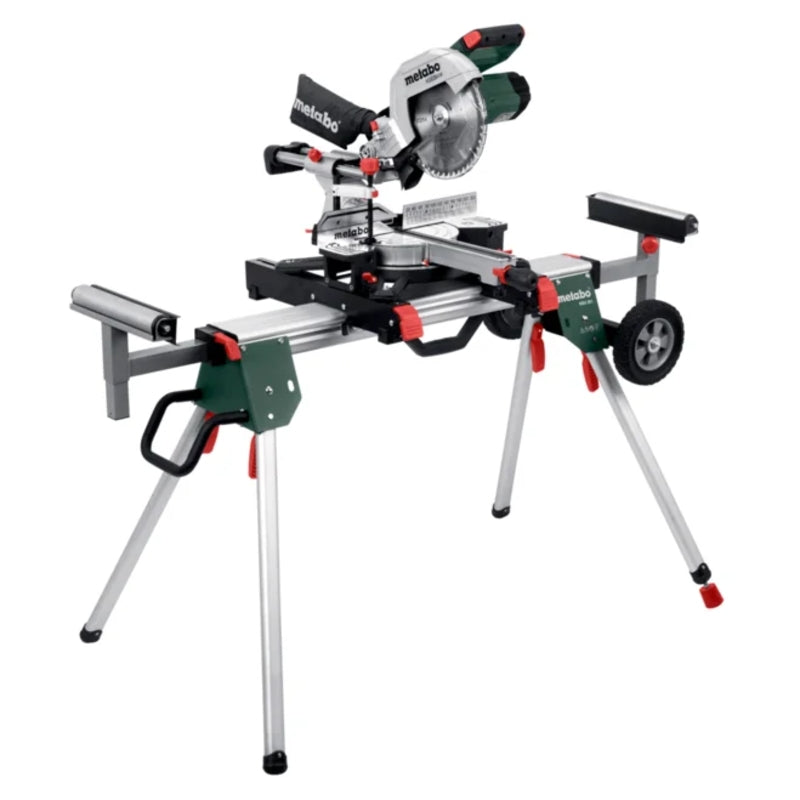

Metabo KGS 254 M Sliding Mitre Saw, 1450W + KSU 251 Machine Stand | 691214000

Metabo KGS 254 M Sliding Mitre Saw, 1450W + KSU 251 Machine Stand | 691214000

The Metabo KGS 254 M Sliding Mitre Saw is designed for professional accuracy and mobility. Equipped with a 1450W motor and sliding function, it easily handles wide workpieces with consistent precision. The innovative Precision Cut Line (PCL) feature uses an LED light to project an exact cutting shadow, eliminating the need for realignment. The die-cast aluminium construction ensures strength and durability, while the soft start function extends the motor’s lifespan by reducing initial stress on components.

Its turntable enables fast, accurate angle adjustments with preset stops for common mitres. The saw blade tilts from -2° to 47°, allowing for both bevel and undercut operations. Efficient dust extraction via an integrated dust scoop helps maintain a clean workspace, and the extendable table width extensions provide additional support for longer materials. For user convenience, the ergonomic design allows comfortable handling and portability, even with one hand.

Features & Benefits:

• Precision Cut Line (PCL): LED-guided shadow cutting line offers exact cut alignment without readjustment.
• Sliding Function: Enables large cutting capacity for wide workpieces.
• Soft Start: Ensures smooth motor startup and extended service life.
• Fast Brake System: Quickly stops the blade for added operator safety.
• Effective Dust Extraction: Integrated dust scoop efficiently removes dust and chips for a cleaner workspace.
• Adjustable Angle and Bevel Cuts: Turntable and saw head adjust easily for mitres and bevels up to 47°.
• Robust Die-Cast Aluminium Design: Built for durability under demanding working conditions.
• Ergonomic Handles: Allow easy and balanced carrying with one or two hands.
• Extendable Table Width Extensions: Support long workpieces securely.

Specifications:

• Rated Input Power (S1 100%): 1450W
• Rated Input Power (S6 20%): 1800W
• No-Load Speed: 4500 rpm
• Speed at Rated Load: 3200 rpm
• Cutting Speed: 60 m/s (197 ft/min)
• Dimensions: 726 x 485 x 543 mm (28.6 x 19.1 x 21.37 in)
• Support Surface: 345 x 760 mm (13.58 x 29.92 in)
• Maximum Cutting Width (90°/45°): 305 / 215 mm (12 / 8.5 in)
• Maximum Cutting Depth (90°/45°): 92 / 47 mm (3.6 / 1.85 in)
• Cutting Capacity (90°/90°): 305 x 92 mm (12 x 3.6 in)
• Cutting Capacity (45°/45°): 215 x 47 mm (8.5 x 1.85 in)
• Turntable Setting Left/Right: 50° / 50°
• Saw Blade Tilt Left/Right: 47° / 2°
• Saw Blade Diameter: 254 x 30 mm (10 x 1.18 in)
• Weight: 16.1 kg (35.5 lbs)
• Cable Length: 2 m (7 ft)
• Sound Pressure Level: 86 dB(A)
• Sound Power Level (LwA): 99 dB(A)
• Uncertainty of Measurement (K): 3 dB(A)

Scope of Delivery:

• 1 x  KGS 254 M Sliding Mitre Saw, 1450W

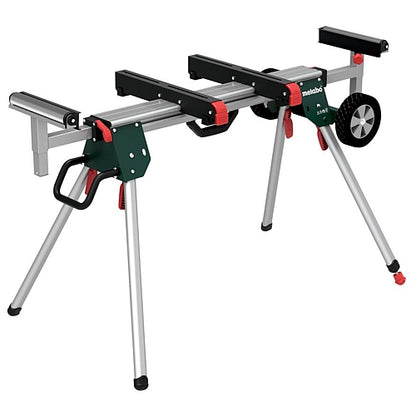

• 1 x Machine Stand KSU 251
• 1 x Saw Blade “Precision Cut Wood - Classic” (254 x 30 mm, Z48)
• 2 x Table Length Extensions
• 1 x Length Guide
• 1 x Material Clamp
• 1 x Tool for Saw Blade Change
• 1 x Cable Winder
• 1 x Chip Collection Bag


Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
