Metabo KGS 305 M Double-Bevel Sliding Compound Mitre Saw, 1600W | 613305000

Metabo KGS 305 M Double-Bevel Sliding Compound Mitre Saw 1600W | 613305000.

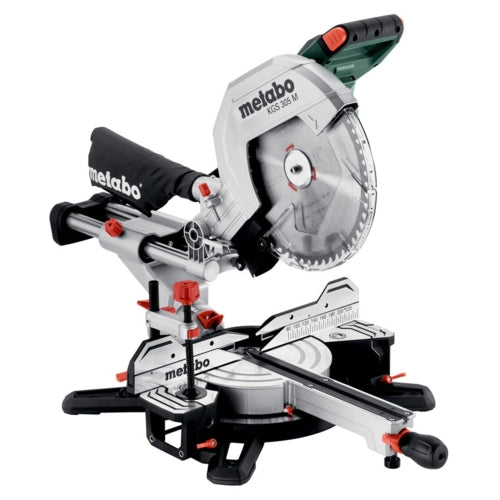

The Metabo KGS 305 M Double-Bevel Sliding Compound Mitre Saw is the largest in the mobile M-class, offering exceptional precision and user-friendly features. The innovative Precision Cut Line (PCL) system provides an accurate shadow cutting line without the need for adjustments, thanks to a cleverly positioned LED. This saw boasts an impressive cutting performance powered by a high-capacity universal motor and a large 305 mm (12 inches) saw blade. The turntable allows for quick and precise angle settings with convenient stop points, while the dual-sided blade inclination up to 47° ensures maximum flexibility. Constructed from robust die-cast aluminium, this saw meets the highest demands of durability and performance.

Enhanced dust extraction is achieved through an integrated dust scoop, maintaining a clean workspace. The soft start feature extends the life of the motor and drive, while extendable and removable table width extensions accommodate extremely long workpieces. A quick-action clamp securely fixes the workpiece from the top or front, and the depth guide facilitates the easy creation of grooves. All scales and operating elements are visible from the working position, ensuring intuitive operation. Ergonomic handle areas allow for easy carrying with one or two hands.

Features & User Benefits:

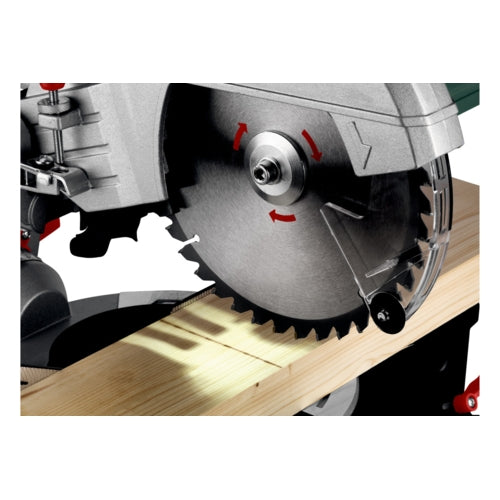

• Precision Cut Line (PCL): Accurate shadow cutting line with LED illumination.
• High Cutting Performance: Powerful 1600W motor and large 305 mm (12 inches) saw blade.

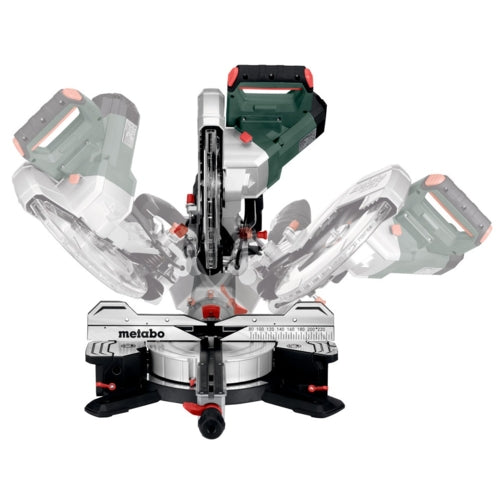

• Flexible Blade Inclination: Tilt up to 47° on both sides for versatile cuts.
• Robust Construction: Durable die-cast aluminium design for demanding tasks.

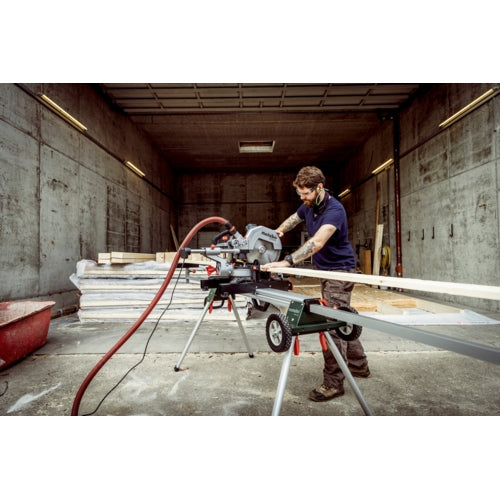

• Effective Dust Extraction: Integrated dust scoop for a cleaner workspace.
• Soft Start Feature: Extends motor and drive life.

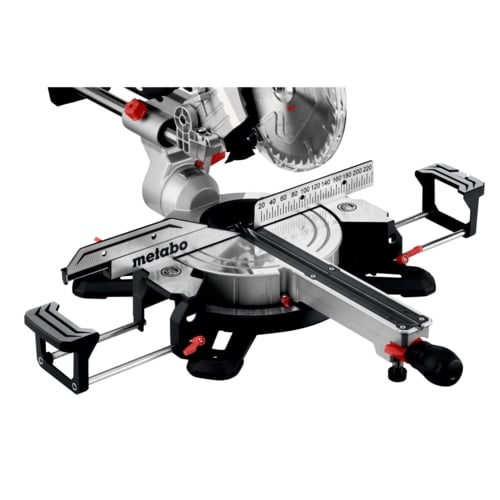

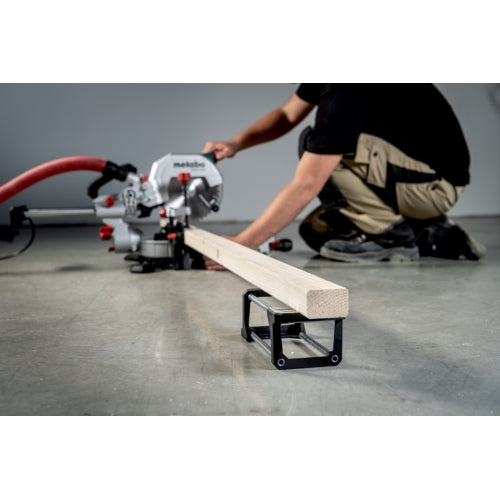

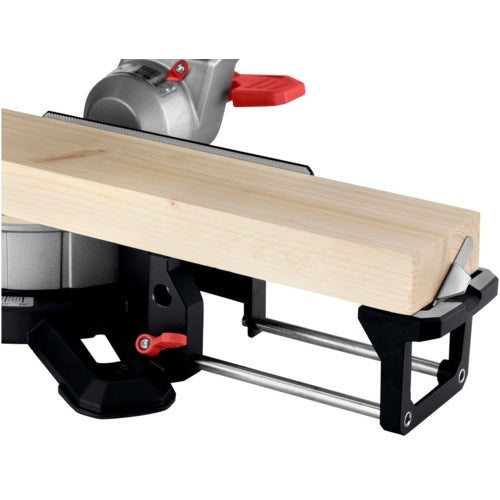

• Extendable Table Width: Accommodates long workpieces with removable extensions.

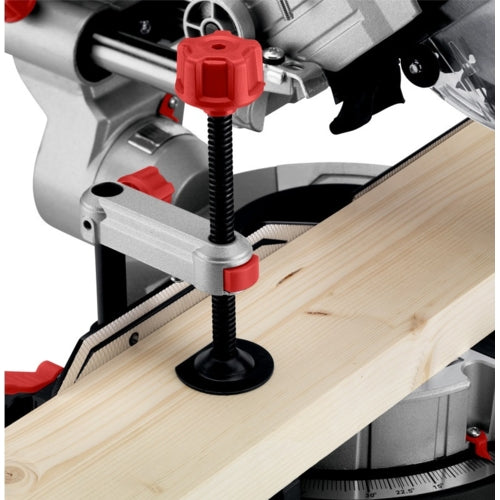

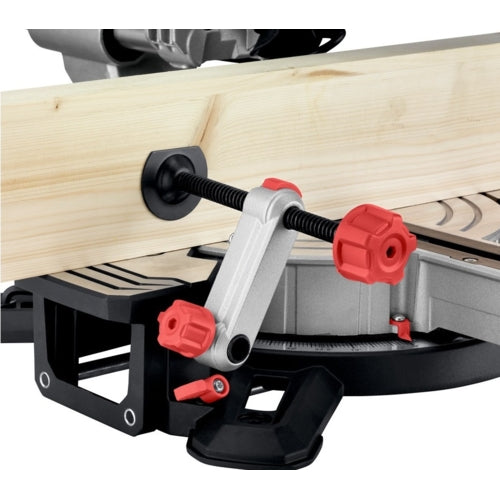

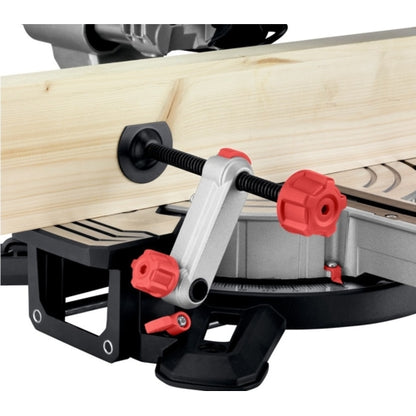

• Quick-Action Clamp: Securely fixes workpieces from the top or front.
• Depth Guide: Easy creation of grooves.

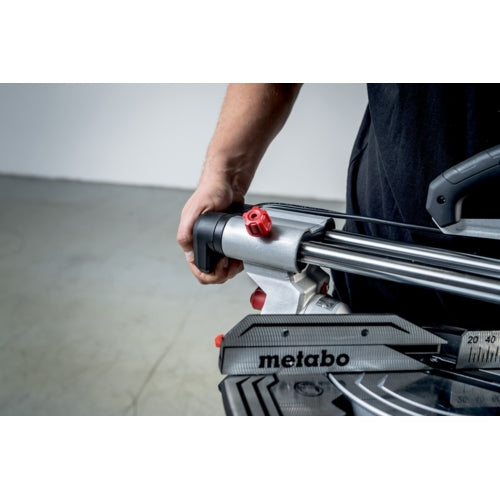

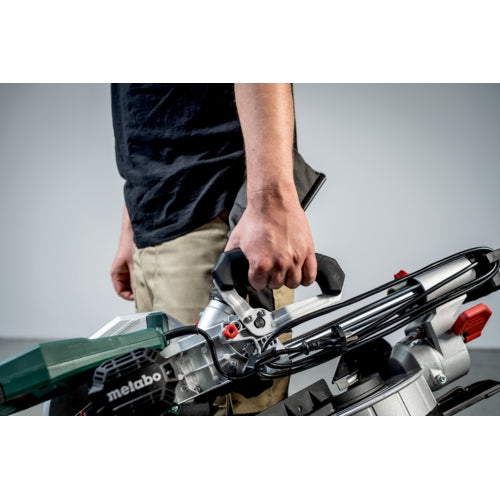

• Ergonomic Handles: Comfortable carrying with one or two hands.

Specifications:

Dimensions: 780 x 500 x 657 mm
Support Surface: 345 x 770 mm
Maximum Cutting Width 90°/45°: 305 / 215 mm
Maximum Cutting Depth at 90°/45°: 110 / 67 mm
Cutting Capacity 90°/90°: 305 x 110 mm
Cutting Capacity 45°/45°: 215 x 67 mm
Turntable Setting Left/Right: 50 / 60 °
Saw Blade Tilt Left/Right: 47 / 47 °
Saw Blade: 305 x 30 mm
Rated Input Power: 1600 W
Rated Input Power S1 100%: 1600 W
Rated Input Power S6 20%: 2000 W
No-Load Speed: 3700 rpm
Speed at Rated Load: 3000 rpm
Cutting Speed: 59 m/s
Weight: 18.6 kg
Cable Length: 2 m

Noise Emission:

Sound Pressure Level: 87 dB(A)
Sound Power Level (LwA): 100 dB(A)
Uncertainty of Measurement: K 3 dB(A)

Scope of Delivery:

• Saw blade "precision cut wood - classic", 305x30 Z56
• 2 Table length extensions
• Length Guide
• Material clamp
• Tool for saw blade change
• Cable winder
• Chip Collection Bag

Did You Know?

A Double-Bevel Sliding Compound Miter Saw is a type of power tool commonly used in woodworking and carpentry. Here’s what each part of the name refers to:

1. Double-Bevel: This means that the saw can tilt to both the left and right sides, allowing you to make beveled cuts in either direction without having to flip or adjust the workpiece. This feature is particularly useful for creating angled cuts, such as for crown molding or picture frames, where the edges need to fit together precisely.
2. Sliding: The sliding feature allows the saw blade to move forward and backward along a track or rails. This extension increases the cutting capacity of the saw, enabling you to cut wider pieces of wood or other materials.
3. Compound: Compound refers to the saw’s ability to tilt (bevel) and rotate (miter) the blade simultaneously. This combination of movements allows you to create compound angles, such as those needed for complex woodworking projects or for cutting bevels on the edges of boards.

Overall, a Double-Bevel Sliding Compound Miter Saw offers a lot of versatility and flexibility in making various types of cuts, especially when dealing with angled or beveled edges in woodworking.

https://youtu.be/02meKwFfhJE

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
