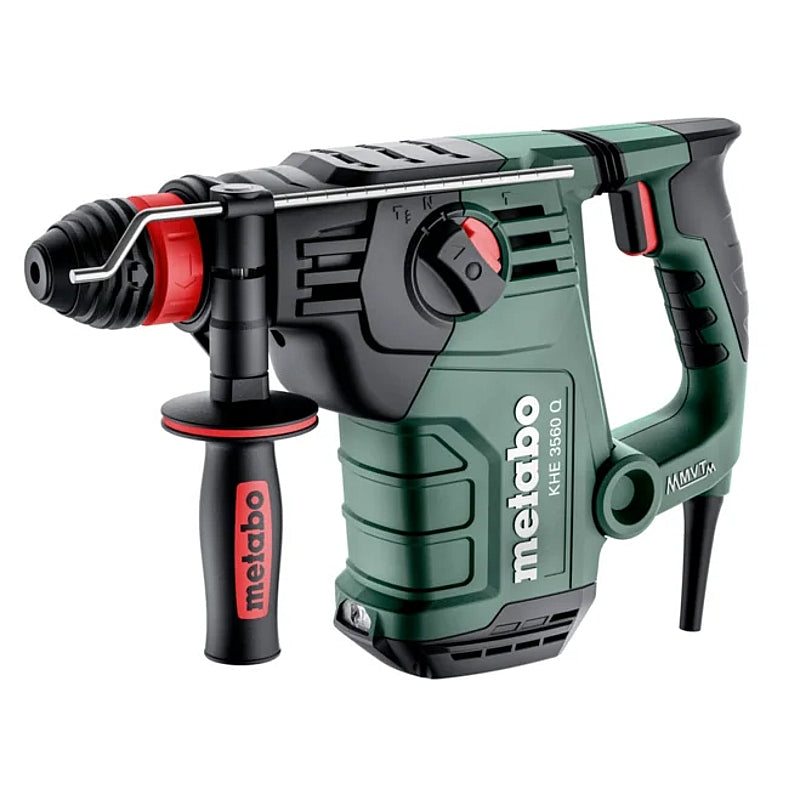

Metabo KHE 3560 Q SDS-Plus Combination Hammer 4.2J, 1050W | 600811500

Metabo KHE 3560 Q SDS-Plus Combination Hammer 4.2J, 1050W | 600811500.

Metabo’s most powerful SDS-plus combination hammer, the KHE 3560 Q, provides fast drilling and efficient chiselling in concrete and masonry. Its 1050 W motor delivers a maximum single-blow energy of 4.2 J and an impact rate of up to 4,350 bpm, with a maximum concrete drilling diameter of 32 mm using hammer drill bits. Three operating functions allow you to switch between hammer drilling, drilling and chiselling, while the Metabo Quick system enables fast changes between the SDS-plus hammer chuck and keyless chuck for different applications. Meanwhile, Vario-Tacho-Constamatic (VTC) Full-wave Electronics with a thumbwheel let you select a speed to suit the material and maintain an almost constant speed under load. You can also reduce the speed and impact energy when starting a drill hole or working in softer materials. Metabo VibraTech (MVT) reduces vibration, while the centre of gravity close to the hand and optimised handle contour support ergonomic handling. For added protection if a drill bit jams, mechanical drive decoupling works together with ultra-fast sensor-controlled shutdown to prevent kickback. Furthermore, restart protection prevents unintentional start-up after a power interruption, and overload protection protects the motor from overheating. An LED work light illuminates the drilling site, while the supplied metaBOX 185 XL provides a transport and storage solution.

Features & Benefits:

• Powerful SDS-Plus Performance: Metabo’s most powerful SDS-plus combination hammer supports quick drilling and efficient chiselling in concrete and masonry.
• Three Operating Functions: Select hammer drilling, drilling or chiselling to suit the application.
• Metabo Quick Chuck Changes: Switch quickly between the SDS-plus hammer chuck and keyless chuck for different tool shanks and applications.
• VTC Full-wave Electronics: Use the thumbwheel to select a speed that suits the material, with speeds remaining almost constant under load.
• Reduced Speed and Impact Energy: Select reduced output when starting a drill hole or working in softer materials.
• Electronic Soft Start: Provides smooth start-up.
• Metabo VibraTech: The integrated damping system reduces vibrations to help protect the user’s health and support comfortable continuous working.
• Ergonomic Handling: A centre of gravity close to the hand and an optimised handle contour support comfortable control.
• Anticlockwise Rotation: Helps loosen tilted tool attachments.
• Dual Anti-Kickback Protection: Mechanical decoupling and ultra-fast sensor-controlled shutdown work together to prevent kickback if the drill bit jams.
• Restart Protection: Prevents unintentional start-up after a power supply interruption.
• Overload Protection: Protects the motor from overheating.
• LED Work Light: Illuminates the drilling site for a clear view of the work area.
• Carbon Brush Wear Indication: Indicates carbon brush wear.
• metaBOX Storage: The supplied metaBOX 185 XL provides a practical solution for transport and storage.

Compatibility:

The supplied SDS-plus hammer chuck accepts tools with SDS-plus shanks, while the supplied keyless chuck accepts tools with cylindrical shanks. The Metabo Quick system allows fast changes between the two chucks.

Specifications:

Code: 600811500
Model: KHE 3560 Q
Rated Input Power: 1050 W
Maximum Single-Blow Energy (EPTA): 4.2 J
Maximum Impact Rate: 4,350 bpm
Maximum Concrete Drilling Diameter with Hammer Drill Bits: 1 1/4" (32 mm)
No-Load Speed: 0–810 rpm
Speed at Rated Load: 810 rpm
Tool Holder: SDS-plus
Operating Functions: Hammer drilling, drilling and chiselling
Speed Control: Vario-Tacho-Constamatic (VTC) Full-wave Electronics with thumbwheel
Collar Diameter: 2 3/8" (60 mm)
Weight Without Power Cable: 11 lbs (5 kg)
Cable Length: 3.9 m

Vibration:

Hammer Drilling in Concrete: 17.2 m/s²
Hammer Drilling Measurement Uncertainty K: 1.5 m/s²
Chiselling: 12.8 m/s²
Chiselling Measurement Uncertainty K: 1.5 m/s²

Noise Emission:

Sound Pressure Level: 90 dB(A)
Sound Power Level (LwA): 101 dB(A)
Measurement Uncertainty K: 3 dB(A)

Scope of Delivery:

• Metabo KHE 3560 Q SDS-plus Combination Hammer.
• Hammer chuck for tools with SDS-plus shanks.
• Keyless chuck for tools with cylindrical shanks.
• Side handle.
• Drilling depth guide.
• metaBOX 185 XL.

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
